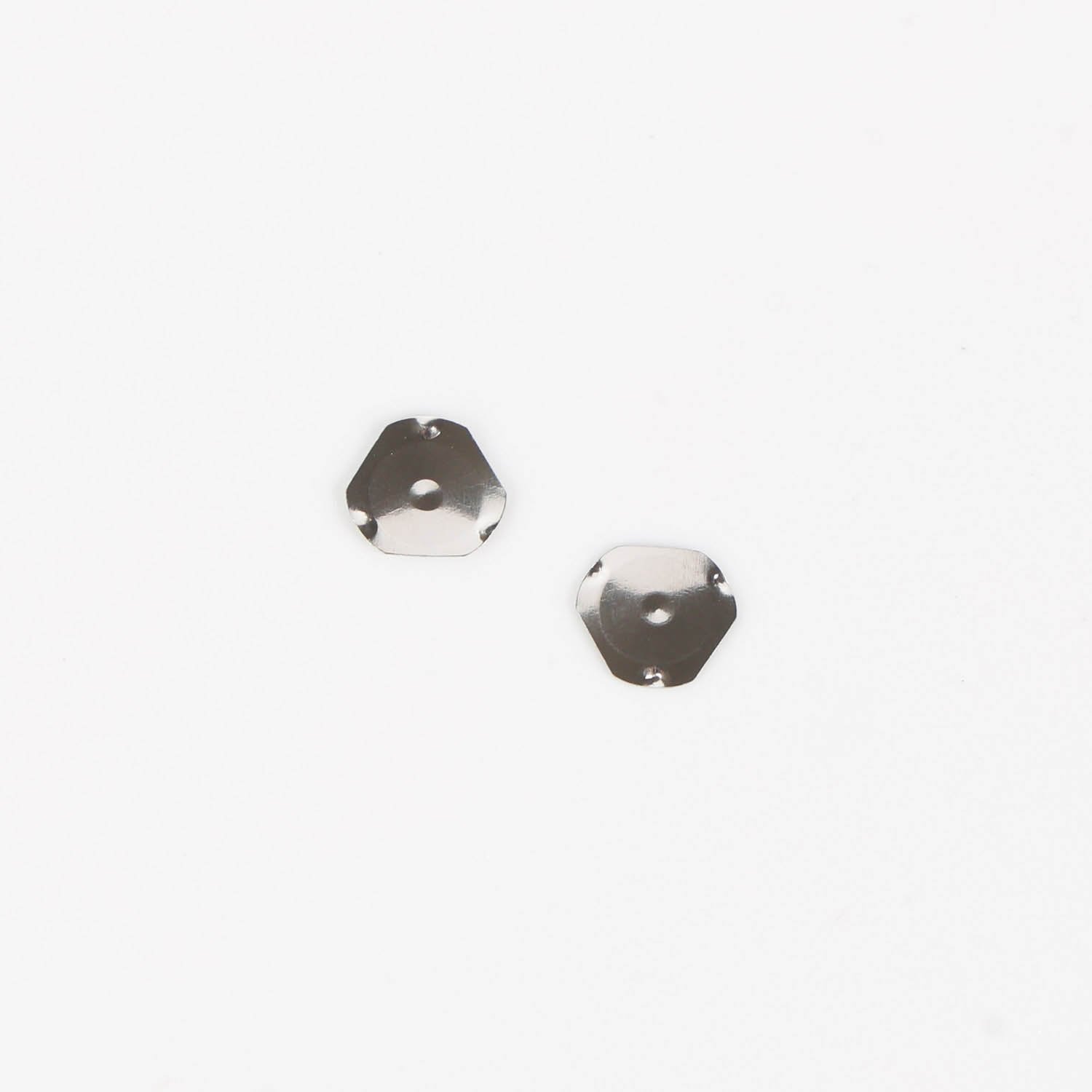

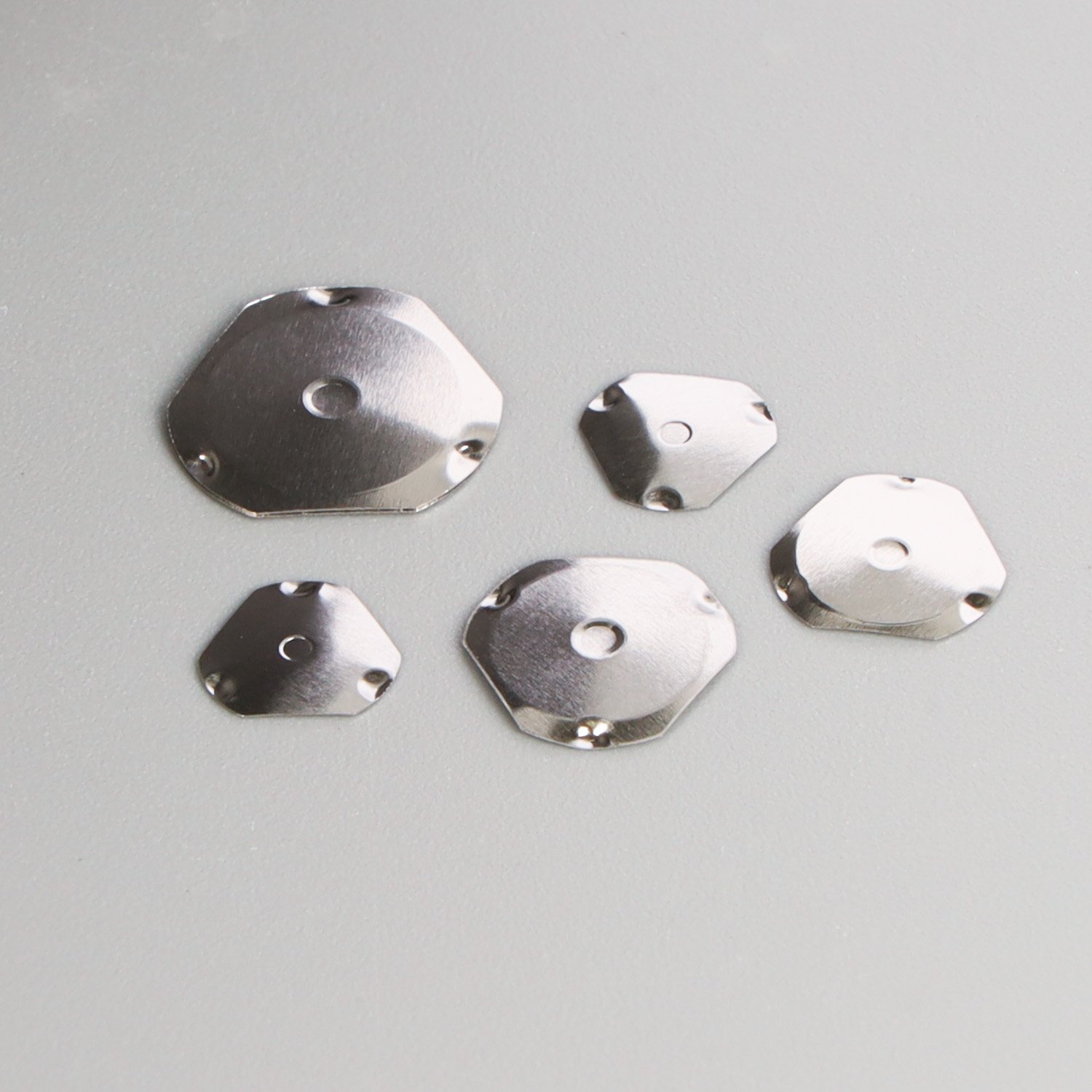

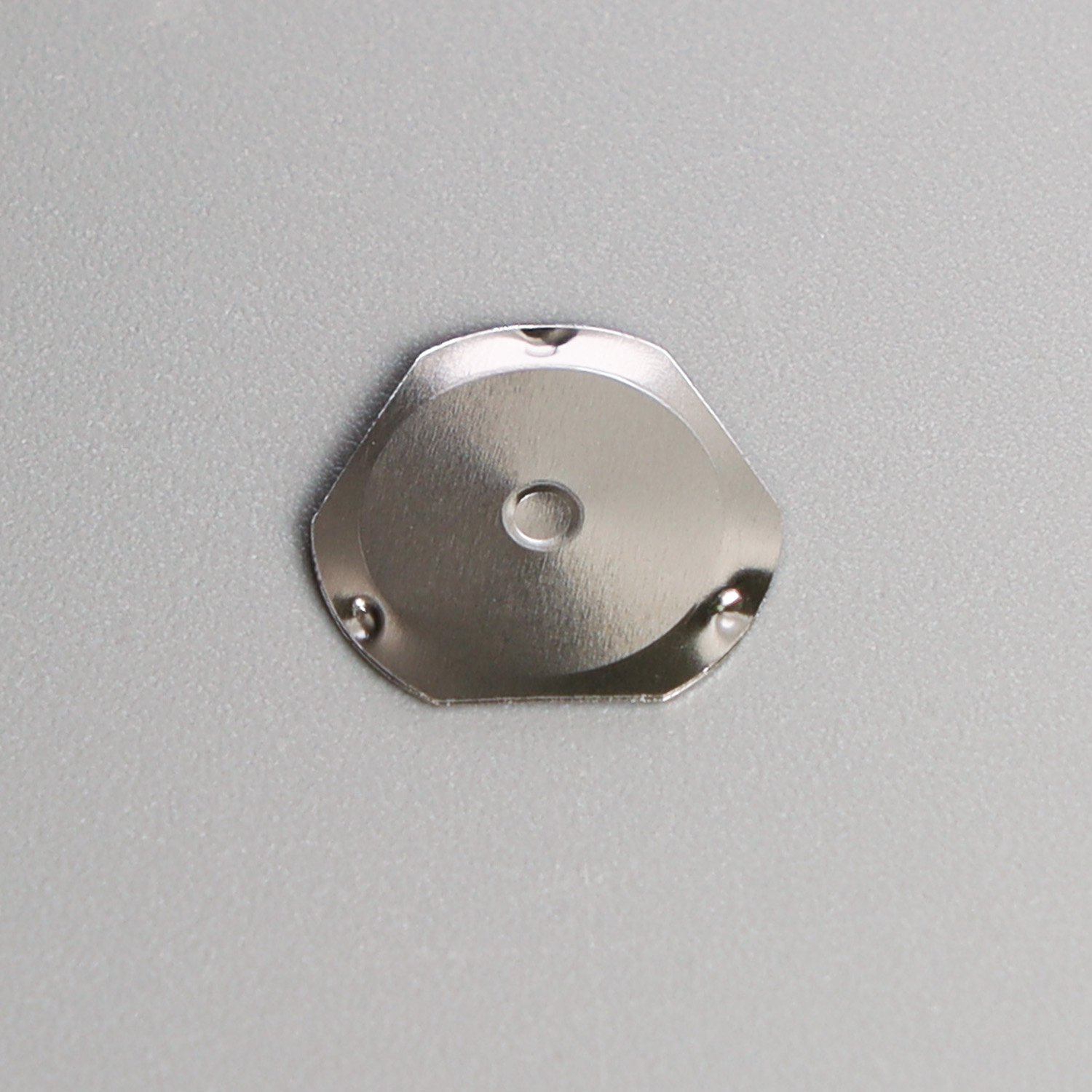

What Is Triangle Snap Dome Switch?
The Custom Triangle Snap Dome Switch is a specialized metal dome variant engineered for applications requiring distinct tactile feedback and reliable multi-point electrical contact. This triangular snap dome utilizes a unique three-point support structure with a central contact point, creating a stable and definitive press sensation favored in many control interface designs.
As a purpose-built snap dome solution, the triangle configuration offers designers an alternative tactile signature—characterized by higher travel and heavier actuation force—that stands out from standard circular domes. While it serves as a robust metal dome option, it is typically selected for its specific feel rather than maximum lifespan, making it ideal for medium-duty applications where tactile clarity is paramount.
Technical Drawing of Triangle Snap Dome Switch
Get Free Drawing Design
Contact UsWhy Choose Shanyo's Triangle Snap Dome Switch?
Definite Tactile Feedback
The triangle snap dome switch is engineered to deliver a pronounced, high-travel press with a heavier actuation force. This provides operators with unambiguous confirmation of an input, making this snap dome ideal for safety-critical or rarely used controls.
Stable Multi-Point Connection
Featuring four contact points (one central, three at the vertices), this triangle metal dome ensures a highly stable and conductive bridge upon actuation. This reliable electrical performance is a key benefit of choosing this custom metal dome for critical circuits.
Space-Optimized Angular Design
The triangular shape of this snap dome allows it to fit efficiently into corner spaces or unique PCB layouts where a standard round or square dome switch might not be optimal, offering designers greater flexibility.
Excellent Adaptability
Supports wide temperature operation (-20℃~70℃) with good moisture and salt spray resistance, compliant with RoHS environmental requirements.
Durable Construction for Target Applications
While the lifecycle of a triangle snap dome switch may be shorter than a standard circular dome, its 300,000+ cycle rating is more than sufficient for the medium-duty applications it is designed for, ensuring long-term reliability in its niche.
Superior Conductivity
Surface Nickel (Ni) plating primarily enhances corrosion resistance, preventing oxidation that would otherwise increase contact resistance over time. It maintains a stable contact resistance, typically in the range of 100 mΩ to 500 mΩ.
Find Your Application: Versatile by Design
Shanyo's custom triangle snap dome switches can be applied to various industries and specific products.
| Application Category | Typical Products | Description |
|---|---|---|
| Access & Intercom Systems | Building intercoms, residential gate security panels | The definitive click of the triangle snap dome switch provides clear feedback in public or access control devices, ensuring an input is registered. |
| Remote Controls | Lighting system remotes, smart safe remotes, e-bike controllers | This snap dome offers a satisfying, heavier press feel in handheld devices, enhancing the perceived quality and reliability of the remote. |
| Security & Safety Devices | Electronic locks, doorbells, alarm system panic buttons | For buttons that must feel deliberate, the triangle metal dome’s distinct actuation is ideal. Its multi-point contact also ensures a reliable circuit in alarm triggers. |
| Digital Accessories | Bluetooth headset controls, dashcam buttons | The compact yet tactile feel of the triangle dome switch is well-suited for consumer electronics accessories that require a positive, space-efficient button. |
| Medical & Weighing Devices | Portable monitors, electronic scales | Devices requiring a deliberate user input benefit from the clear tactile feedback of this custom snap dome, which prevents accidental actuation. |
| Automotive Electronics | Car key fobs, electric vehicle control buttons | The robust construction of the triangle metal dome can withstand the environmental demands of automotive applications while providing a quality feel. |
| Kitchen Appliances | High-end built-in ovens, cooktops, and microwave control panels | Chosen for its premium tactile signature, this snap dome is used in applications where user interface experience is a key differentiator, holding an 8.7% market share in this sector (2024). |
Consumer
Fitness Wearables
Industrial
Medical
Aerospace
Military
Shanyo's Partners
Shanyo collaborates with leading companies across various industries worldwide to design and manufacture snap dome switches for them.
Help Center
FAQ
Q1: What is the main reason to choose a Triangle Snap Dome over a standard round one?
A: four legs Metal Dome switches feature maximum travel, higher actuation force, and superior support stability with crisp audible feedback. Circular domes have minimal travel and weaker sound, while triangular domes fall between but typically have shorter lifespan than four legs domes.
Q2: Why is the lifespan of the Triangle Metal Dome generally shorter?
A: four legs Metal Dome switches feature maximum travel, higher actuation force, and superior support stability with crisp audible feedback. Circular domes have minimal travel and weaker sound, while triangular domes fall between but typically have shorter lifespan than four legs domes.
Q3: Can the actuation force of a Custom Triangle Snap Dome be made lighter?
A: Yes, as part of our custom snap dome service, we can adjust the actuation force within a range. However, the inherent design of a triangle dome switch naturally lends itself to a heavier feel. Significantly reducing the force may affect the crispness of the tactile feedback that is characteristic of this triangle metal dome.
Q4: Do you offer the Triangle Dome Switch with different plating options?
A: Absolutely. Our custom triangle metal dome can be plated with nickel for corrosion resistance or gold for superior conductivity in low-voltage applications, depending on your project’s specific environmental and electrical requirements.
Q5: Is the Triangle Snap Dome suitable for high-frequency use like a keyboard?
A: It is not typically recommended for very high-frequency data entry (like a computer keyboard). For such applications, a long-life circular snap dome is preferable. The triangle snap dome switch is ideal for function buttons, power switches, or mode selectors where the tactile quality is valued over ultra-high cycle counts.
