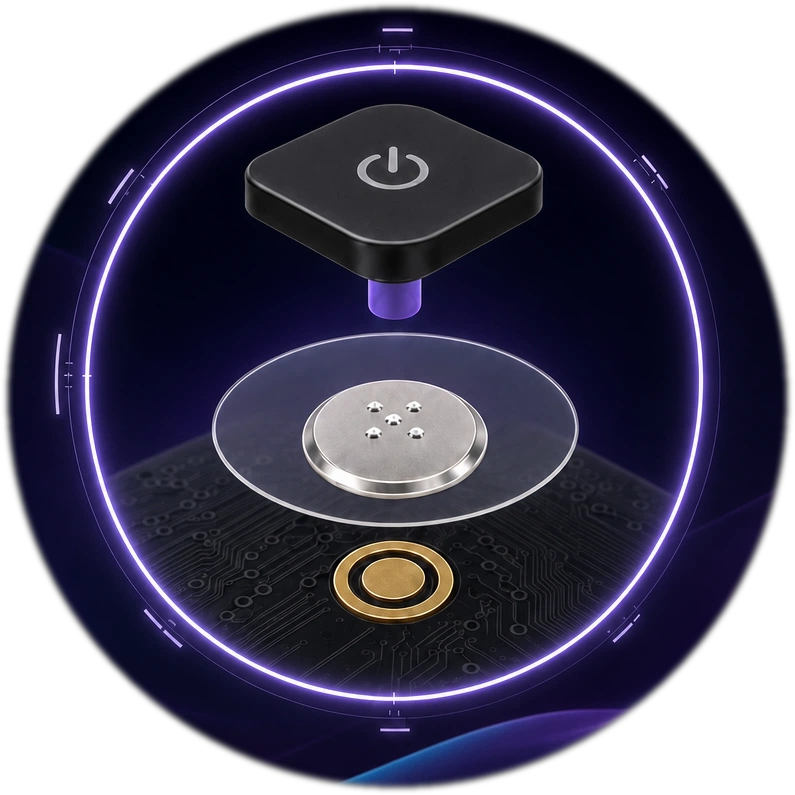

Custom Metal Dome for Remote Controls — TV / AC / Set-Top Box Remotes
Consistent tactile feel, 1,000,000+ press cycles and sealed, low-resistance contacts — engineered around your remote control, PCB layout and cost target.
- Configuration
- Contact details
Direct inquiry
Snap Dome Configuration
Select one or more shapes and the specifications you need. You can review everything before sending a quote request.
Step 2 of 2
Request a quote
Your configuration will be included in the email sent to the site administrator.
Request sent
Thank you. Your quote request has been sent to our team.
Technical Resources for Remote Control Design
Remote Control Selection Guide and Drawing Examples
| Title |
|---|
Common Remote Control Dome Issues and Solutions
| Issue | Cause | Solution |
|---|---|---|
| Key unresponsive | Oxidation/contamination on the metal dome or PCB contact point | Clean the contact point; use gold-plated/silver-plated metal domes for enhanced anti-oxidation |
| Key insensitive | Excessive contact resistance; metal dome not fully depressed | Check dome height vs. PCB gap; use center-point gold-plated domes to lower resistance |
| Feel becomes too hard/soft | Metal dome fatigue deformation; force value outside tolerance | Optimize dome curvature design; tighten force tolerance to ±15gf |
| Dome doesn't rebound | Housing deformation, foreign debris jamming, or dome fracture | Inspect housing structure; use high-durability SUS301 material rated for ≥1,000,000 cycles |
| Intermittent performance | Dust/oil contamination entering the gap between dome and contact | Use TPU or PET film encapsulation to seal out external contamination |
| Short lifespan, early failure | Inferior material or burrs on stamped edges | Use precision full-cut, burr-free metal domes; 100% electrical performance testing on all batches |
Need Metal Dome for Your Remote Control Project?
Telephone
Address
Factory No. 20, Tianhe Industrial Park, No. 252 Weihe Road, Qingdao Economic and Technological Development Zone
Tell us your remote control type and technical requirements, and we’ll customize the optimal solution for you.
