What Is a Metal Dome？
A metal dome is a small, curved metal piece. It works like a tiny spring under a button. You can find these in many electronic devices. When you push the button, the metal dome bends and snaps down. This makes a sharp click you can feel and sometimes hear. When you let go, the dome pops back to its shape.
People sometimes call them snap domes or dome switches. They act as momentary switches. This means they only connect the circuit while you press them. This quick action tells your device you pressed the button.
Here are some important things about metal domes:
They give you clear tactile feedback when you press a button.
You can find them in things like remote controls, medical tools, and keypads.
The dome collapses when you press it, which completes an electrical circuit.
Key Features of Metal domes
Metal domes have many features that help in electronics. You can see the main materials used in the table below:
Material | Description |
|---|---|
Copper | A metal known for its excellent conductivity. |
Aluminum | Lightweight and resistant to corrosion. |
Steel | Strong and durable, often galvanized. |
Zinc | Provides corrosion resistance. |
Stainless Steel | Offers high strength and corrosion resistance. |
Bronze | Known for its toughness and resistance to wear. |
You will see that stainless steel is used a lot. It gives the dome strength and keeps it from rusting. This helps your device last longer and work better.
Other important features are:
Tactile feedback: You feel a sharp, clear response every time you press a button.
Durability: Metal domes can handle thousands or even millions of presses.
Low profile: They fit into slim devices without taking up much space.
Reliable contact: The dome makes sure each press sends a clear signal.
Tip: If you want a button that feels crisp and lasts a long time, a metal dome is a smart choice.
How a Metal Dome Switch Works
Construction
A tactile metal dome switch has a few main parts. These parts work together to make a button that feels good and works well. Inside each switch, you will find these pieces:
Contact Terminal: This part lets electricity move when you press the button. It closes the circuit so current can flow.
Dome: The metal dome sits in the middle. It bends and pops back, giving you the feeling when you press.
Plunger: This piece pushes on the dome when you press the button. It starts the action.
Cover: The cover keeps all the parts safe. It also blocks dust and water from getting inside.
Most tactile metal dome switches use stainless steel for the dome. A common and highly stable design is the Four-Leg Snap Dome. Stainless steel does not rust and keeps its shape after many presses. Some switches use polyester domes for special reasons. The design often has extra layers for protection. These layers stop dust and water, so the switch lasts longer.

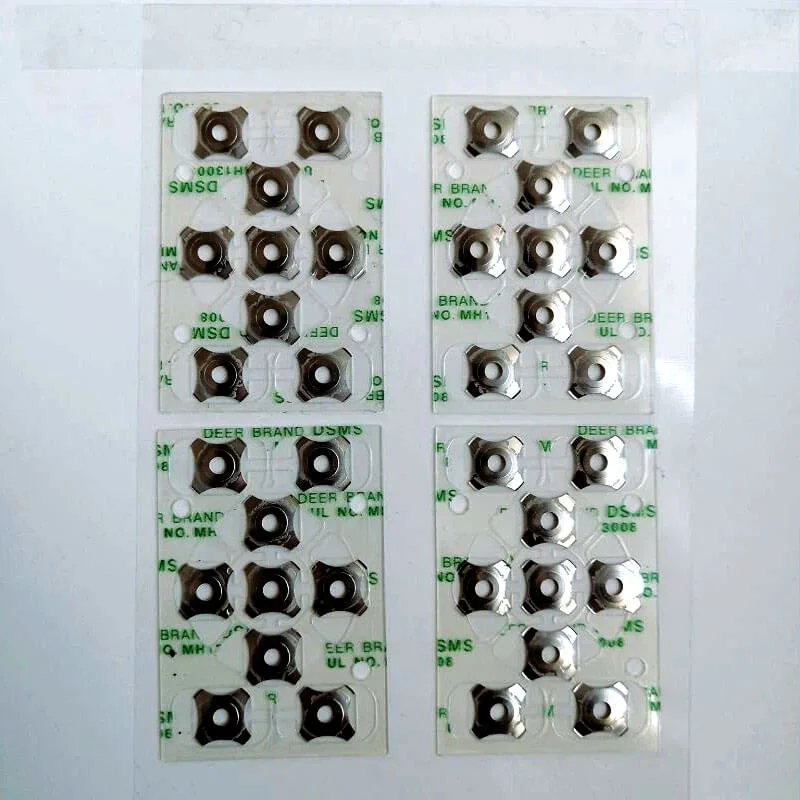

The domes themselves come in various structural designs to meet specific force and stability requirements. Common types include Four Legs Tactile Domes(F-Series) and specialized T-series snap domes. While many are round, they are also manufactured in other forms like an Oblong/ Rectangle Meal Dome to fit unique button layouts.
Feature | Benefit |
|---|---|
Stainless steel dome | High durability and corrosion resistance |
Protective layers | Shields against dust and moisture |
Low profile design | Fits into slim devices |
Millions of actuations | Long-lasting performance |
The “Snap-Action” Process
When you press a tactile metal dome switch, a simple process starts. Your finger pushes down on the plunger. The plunger pushes the metal dome. The dome bends down and touches the contact terminal. This closes the circuit and lets current flow. Your device then knows you pressed the button.
When you let go, the dome pops back to its shape. This opens the circuit and stops the current. The switch only works while you press it. This is called a momentary contact.
Here are the steps:
You press the button to start.
The plunger pushes the metal dome.
The dome bends and touches the contact terminal.
The circuit closes, and your device gets the signal.
You let go, and the dome goes back to normal.
The circuit opens, and the device stops getting input.
This design makes tactile metal dome switches very strong. The dome can be pressed millions of times and still feel good. The cover keeps out dust and water, so the switch works in many places.
The Importance of Tactile Feedback
Tactile feedback is what makes these switches special. When you press a tactile metal dome switch, you feel a sharp snap. This feeling tells you that your press worked. You do not have to wonder if the device got your input.
Many people say the tactile response feels like a clear click. This helps you feel sure and avoid mistakes. You get quick feedback, which is important when every press matters. For example, in medical tools or machines, you need to know each press counts.
Studies show that tactile feedback from metal dome switches lowers mistakes. The snap makes hard tasks easier, especially when you need to work fast. The feeling also helps your brain know each press, making your work smoother and more correct.
Note: The tactile feedback you feel is not just for comfort. It helps you work faster and make fewer mistakes, especially when things are tough.
Why Choose Metal Domes? Advantages Over Alternatives
Reliability
Metal dome switches last a long time. They can work for up to 1 million presses. Strong materials like stainless steel help them stay tough. These switches keep working well after many uses. You can use them every day without problems.
Metal dome switches last longer than membrane switches.
They work in hot or wet places.
The strong design means fewer problems and less fixing.
Metal dome switches help you feel sure. Your device will work each time you press a button.
User Experience
Devices with metal dome switches feel better to use. You get a clear click when you press. This helps you know your press worked. You do not have to guess if the device got your touch.
Tactile feedback helps you feel confident and make fewer mistakes.
You get quick responses, which helps in games or fast work.
The switches keep their feel for a long time.
Metal domes help you type faster and more correctly.
You can use these switches in thin devices, so they are good for travel.
The design fits in small spaces, so devices look modern.
You get good performance even in tough places, so your experience is better everywhere.
A good user experience means you like using your device and trust it to work.
Comparison
You may wonder how metal dome switches are different from other types. Here is a simple table:
Feature | Metal Dome Switches | Rubber Dome Switches |
|---|---|---|
Cost | Cheaper for long-lasting use | Costs less but wears out faster |
Durability | Works for millions of presses | Silicone gets soft over time |
Performance | Gives a sharp, clear click | Feels softer and less clear |
Metal dome switches give a sharper and cleaner click.
You get better accuracy, even in dim light.
Each press feels solid, so you enjoy using your device.
Rubber domes can feel soft, so you may not know if your press worked.
If you want a switch that works well and feels good, metal dome switches are a great choice.
Real-World Applications of Metal Dome
Consumer Devices
You use dome-switch keypad switches every day. You might not notice them. Remote controls use these switches for a crisp click. Keyless entry pads and smart home devices use them too. Wearable electronics and gaming accessories depend on dome-switch keypad switches. Appliances like washing machines use them for their slim shape and long life. Mechanical keyboards and gaming controllers use these switches for fast responses. These devices are comfortable and dependable because of dome-switch keypad technology. The switches are thin and last a long time.
Tip: Dome-switch keypad switches make your gadgets better. They give you clear feedback and last a long time.
Medical Equipment
Dome-switch keypad switches are in many medical devices. These switches help keep equipment clean and precise. Custom designs help keep things hygienic and make sure input is accurate. This is important in critical moments. Medical devices use dome-switch keypad switches for tactile feedback. You know your action worked. Waterproof and dustproof features protect the switches. This makes them safe for hospitals and clinics. For applications requiring the highest level of reliability and corrosion resistance, Gold-Plated Snap Domes are often specified.
Benefit | Description |
|---|---|
Waterproof and Dustproof | Works well in damp or dusty places. This is important for hygiene in medical devices. |
UV and Chemical Resistance | Coatings stop fading and let you use disinfectants. |
Durability | Strong tactile feedback and works in tough conditions. |
Dome-switch keypad switches help medical staff work fast and safely. They work well even when things get tough.
Industrial Use
Factories and outdoor equipment use dome-switch keypad switches. These switches use strong metals like stainless steel. They last through millions of presses. Dome-switch keypad switches resist moisture, dust, and heat or cold. The sealed design keeps inside parts safe. You get reliable performance every time. Dome-switch keypad switches work well in harsh places. They work in dusty warehouses and wet outdoor sites.
Dome-switch keypad buttons work well in tough places.
Their design keeps them working when things change.
Automotive
You use dome-switch keypad switches in your car every day. Dashboards, steering wheels, and gear selectors use this technology. You get a quick response when you press a button. Tactile feedback lets you know your action worked. You do not have to look away from the road. This helps keep you safe. You can reach car features quickly. The switches work in hot or cold weather. Dome-switch keypad switches are a smart choice for cars.
Application Component | Description |
|---|---|
Dashboards | Gives tactile feedback for buttons |
Steering Wheels | Makes controls easy to use |
Gear Selectors | Gives a quick feel for gear changes |
Dome-switch keypad switches help you stay safe and focused while driving.
Metal domes are tiny, springy parts. They give you crisp tactile feedback when you press a button. You see them in lots of devices. They last a long time and work well. Metal domes fit into slim designs easily.
Main advantages include:
Durability and reliability
Compact size for modern electronics
Fast, clear response with every press
Industry Sector | Common Applications |
|---|---|
Automotive | Dashboard controls, infotainment systems |
Healthcare | Patient monitors, diagnostic equipment |
Consumer Electronics | Smartphones, laptops, wearables |
You get a better experience with metal dome switches. They help you feel each press. You can trust your device to work every time.
Conclusion
In essence, metal domes are the unsung heroes behind the crisp, responsive buttons on countless electronic devices. Their primary function is to provide clear tactile feedback, a small but crucial feature that confirms every press and significantly enhances a user’s sense of control and confidence. Combining remarkable durability—with a lifespan reaching millions of actuations—with a low-profile design, they meet the demands of modern, slim electronics without sacrificing reliability. From everyday consumer gadgets and automotive controls to critical medical equipment and rugged industrial keypads, the versatility of metal dome switches makes them an indispensable component across various sectors. As technology continues to evolve, the simple yet effective mechanism of the metal dome ensures it remains a go-to solution for designers. For any project, partnering with an experienced metal dome manufacturer is the key to successfully implementing this technology and achieving a satisfying, dependable, and intuitive user experience.”
