T-series snap domes(metal domes) a triangle-shaped metal domes that is designed for mounting on single or double-sided printed circuit boards, flex circuits, and membranes, where a Via is run through the circuit board.

Applications requiring a good click feeling but limited to narrow space, such as small, hand-held devices, are a perfect fit with our Triangle series metal domes. On the same diameter, we can get the biggest force from the triangle dome. The Trip force can reach up to 540g, so this triangle tactile dome can be used as a heavy force control switch to avoid careless operation.
Most of the triangle dome has two legs (feet) that can be inserted into the hole of the circuit board so that it can be fixed on the circuit without any adhesive tape and can be used in high temperatures. Sometimes people named it a “metal dome with legs”.

The T-series snap domes, available in diameters ranging from 4mm to 12mm, offer a wide range of actuation forces from 100g to 5000g. One significant advantage of the T-series domes, especially within the same diameter, is their ability to achieve higher actuation forces, often exceeding 600 grams. This makes them particularly suitable for applications that require robust tactile feedback and strong actuation force within compact designs.

We don’t recommend soldering its leg on a circuit which reduces the life cycle and clicking feeling. You can also visit our blog for more information such as how to assemble a triangle dome and other technology about triangle metal domes.

To complement our diverse variety of domes, Shanyo offers T-Series metal domes with various features.

The T-series snap domes are further categorized based on their structural design, specifically the presence and size of legs. Here are the four variations:

1. NT-series: Without legs

2. ST-series: With two short legs measuring 0.8mm in width and 0.8mm in length

3. MT-series: With two middle legs measuring 0.8mm in width and 1.5mm in length

4. LT-series: With two long legs measuring 0.8mm in width and 3.0mm in length

These structural differences allow for varied mounting and performance characteristics, providing flexibility in how the domes are integrated into different devices and applications.

T-Series tactile snap domes are an inexpensive alternative for projects with relaxed tolerance requirements and cost constraints. Contact Shanyo to see if T-Series domes may be right for your application.
Contact Shanyo for pricing, to order, or to request samples of T-Series domes.

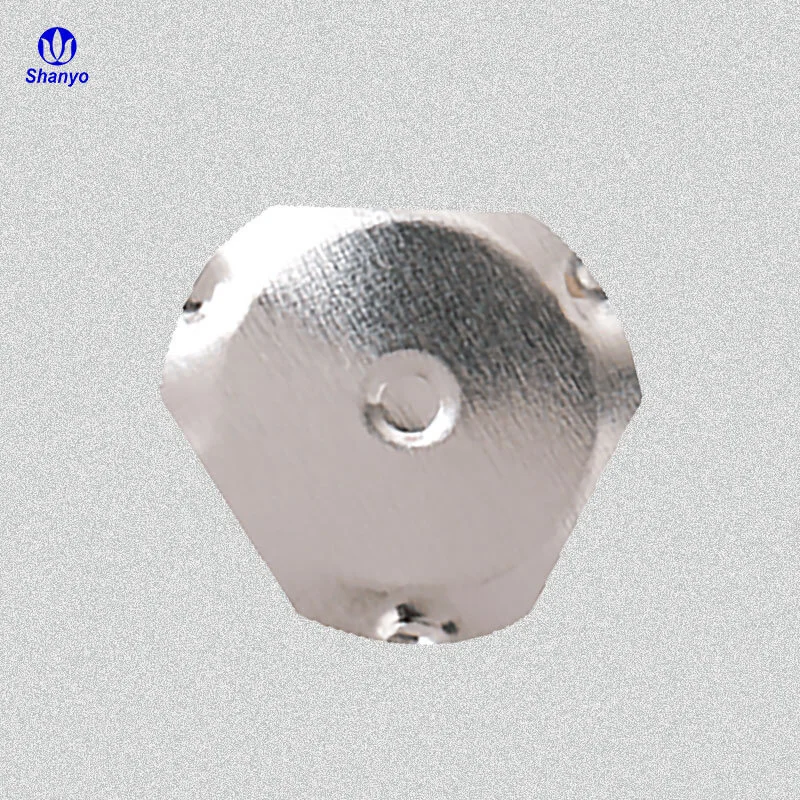

NT-series-snap-domes-02

NT-series: Without

ST-series-snap-domes-01

ST-series: With two short legs: 0.8*0.8mm(width * length of the legs)

MT-series-snap-domes-01

MT-series: With two middle legs: 0.8*1.5mm

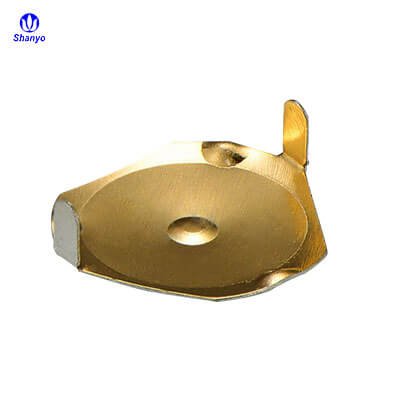

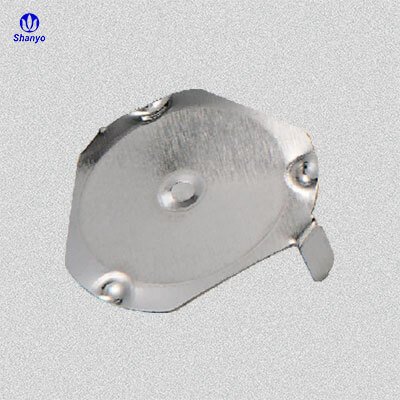

LT-series-snap-domes-01

LT-series: With two long legs: 0.8*3.0mm

Shanyo T-series snap domes:

1
Diameter
4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm,12mm.
2
Actuation Force
150g,180g,200g, 250g, 280g, 320g, 350g,400g,500g,550g,600g
3
Plated
Nickel and gold plated are available.

Snap Dome Structure

Metal-Dome-Structure

Snap Dome of pot flakes

Snap Dome as a metal dome. Compared with traditional silicone buttons, conductive film has a better feel and longer life. It can also indirectly improve the production of various types of switches using conductive film. efficiency. The metal spring on the dome button is located on the conductive part of the PCB (mostly located above the gold finger on the circuit board). When pressed, the center point of the spring is concave and contacts the circuit on the PCB, thus forming a circuit. , the current passes through, and the entire product can work normally. This is how it works.

Snap Dome The structure of the product is categorized:

(1) Single layer structure
This is the simplest structure at the beginning, the metal shrapnel is located underneath the Mylar (a layer of PET with adhesive), and there are ventilation holes to ensure the basic feel and use.

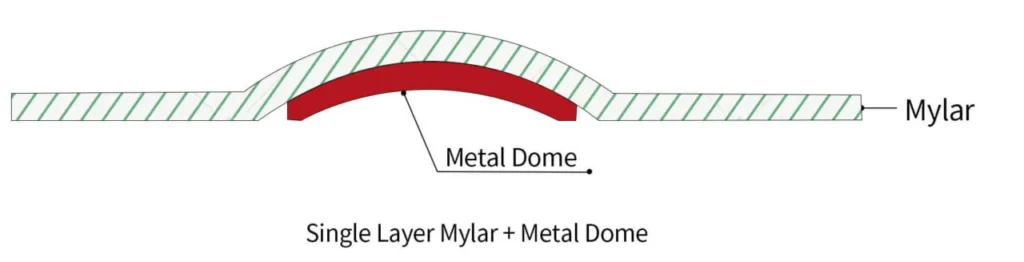

Single-Layer-Mylar-Metal-Dome

(2) Double-layer structure
A single layer of the conductive film is different, it has a layer of Spacer (spacer), shrapnel better paste, and Mylar adhesive on top, and maintains good contact with the circuit board, with a better feel (some similar to the membrane switch ‘bulge’) In addition, the double-layer structure of the conductive film on the ventilation slots can be more effective in preventing the PET layer by the In addition, the ventilation slots on the double-layer structure of the conductive film can more effectively prevent the PET layer from being scratched by the blade burrs of the shrapnel, etc., and can also prevent dust from entering the PET layer.

Double-Layer-Mylar-Metal-dome-Spacer

Metal snap dome according to the needs of different product structures and grades

Nickel plating, silver plating, gold plating

x

Smooth contact

x

Strong conductivity

x

Stable rebound

x

Good feel

T-series snap domes advantages

Snap Domes has several major advantages: smooth contact, strong conductivity, stable rebound, and good feel. Due to its good conduction performance, it can play a good switch activation and control role between the operator and the product.

Snap Dome Part Number Introduce

NO.
Products
Shape
Dimple
Length of legs
Range of diameter
1

PCB Metal Dome Array

Triangle
Four dimple
No legs
4-8mm
2

PCB Metal Dome Array

Triangle
Four dimple
No legs
9-11.5mm
3

PCB Metal Dome Array

Triangle
Four dimple
No legs
12-15.2mm
4

PCB Metal Dome Array

Triangle
Four dimple
0.8mm legs
4-7mm
5

PCB Metal Dome Array

Triangle
Four dimple
0.8mm legs
8-12mm
6

PCB Metal Dome Array

Triangle
Four dimple
1.5mm legs
4-8mm
7

PCB Metal Dome Array

Triangle
Four dimple
1.5mm legs
9-12mm
8

PCB Metal Dome Array

Triangle
Four dimple
3.0mm legs
4-8mm
9

PCB Metal Dome Array

Triangle
Four dimple
3.0mm legs
9-12mm

How to choose snap dome

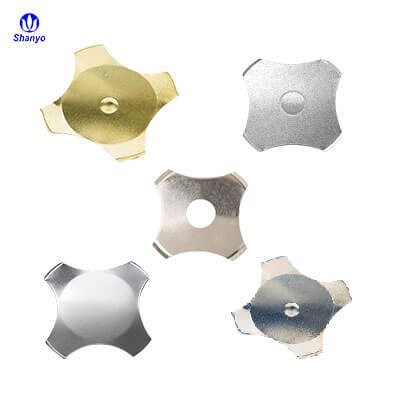

Four-legged-snap-dome-01

Four-legged snap dome

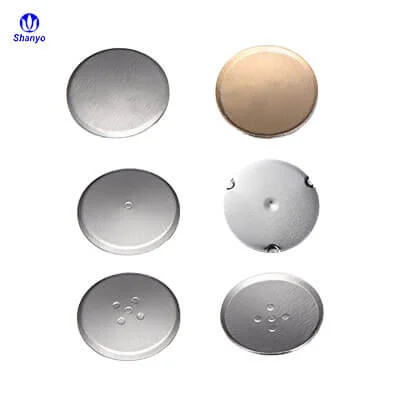

Round-snap-dome-01

Round snap dome

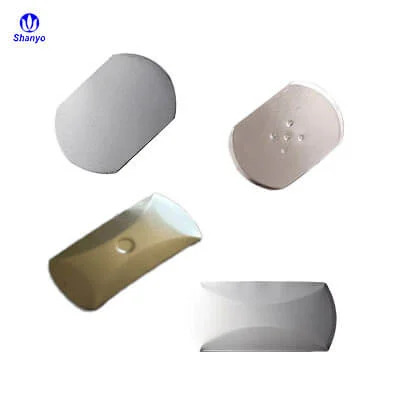

Blong-snap-dome-002

Blong snap dome

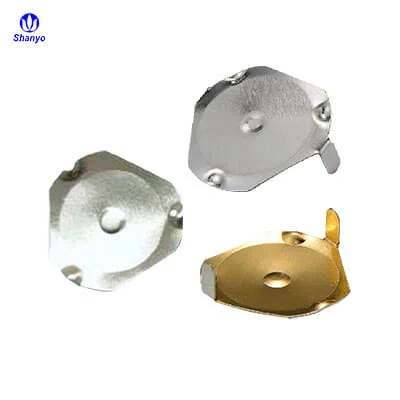

Triangle-Snap-Dome

Tactile snap dome

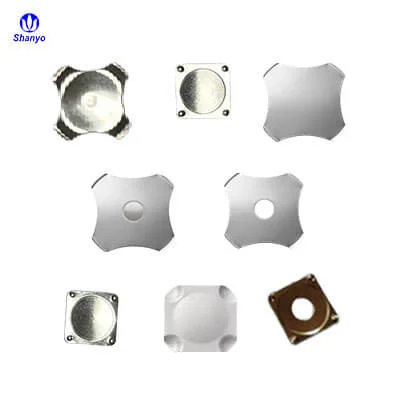

Cross-shaped snap dome

Cross-shaped snap dome

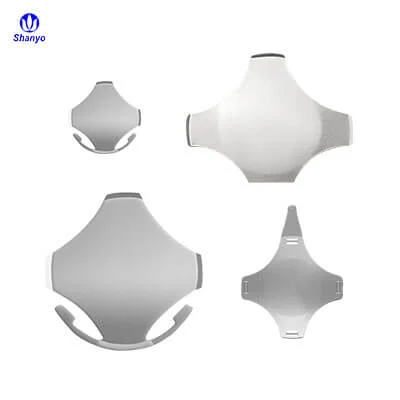

Special-shaped-custom-snap-dome-01

Special-shaped custom snap dome

4 Legs Dome Part Number

Model Number
Standard
Surface treatment
Parameters
Parameters
Parameters
Parameters
Load
Diameter
Stroke
Height
C-series
0/1/4/5 bumps
Gold/Silver/Nickel Plating
3-10mm
0.14-0.19 ±0.05
0.21-0.25 ± 0.03mm
100gf-500gf
F-series
0/1/4/5 bumps
Gold/Silver/Nickel Plating
4-20mm
0.23-0.28 ±0.05
1.40-1.70 ± 0.03mm
100gf-600gf
O-series
0/1/4/5 bumps
Gold/Silver/Nickel Plating
4x2.88mm ~5x4mm
0.15-0.23 ±0.05
0.21-0.29 ±0.03mm
100gf-250gf
T-series
Long legs/short legs/no legs
Gold/Silver/Nickel Plating
3.15-12mm
0.15-0.23 ±0.05
0.21-0.25 ± 0.03mm
200gt-600gf
Custom snap domes
Special shapes
Gold/Silver/Nickel Plating
Customization is available according to customer requirements
Customization is available according to customer requirements
Customization is available according to customer requirements
Customization is available according to customer requirements
Customization is available according to customer requirements
Note: All types of metal snap domes can be customized according to requirements.
Note: All types of metal snap domes can be customized according to requirements.
Note: All types of metal snap domes can be customized according to requirements.
Note: All types of metal snap domes can be customized according to requirements.
Note: All types of metal snap domes can be customized according to requirements.
Note: All types of metal snap domes can be customized according to requirements.
Note: All types of metal snap domes can be customized according to requirements.
Note: All types of metal snap domes can be customized according to requirements.

Tactile snap dome: when encountered in a small space can only put down the smaller dome and at the same time the need to have a good feel and at the same time must meet the situation of greater pressure, tactile snap domes are the best choice; in addition is also divided into two kinds of feet with and without feet, which is by the thickness of the PCB board and the assembly process to choose.

dom switch

Metal Snap dome PCB Pad Shape

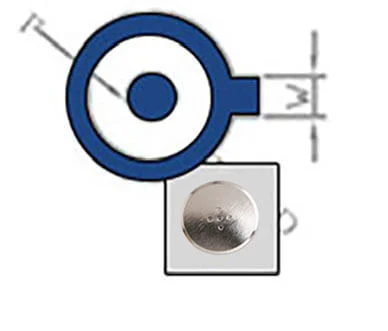

Snap-Dome-PCB-Pad-Shape_12

C -series

$

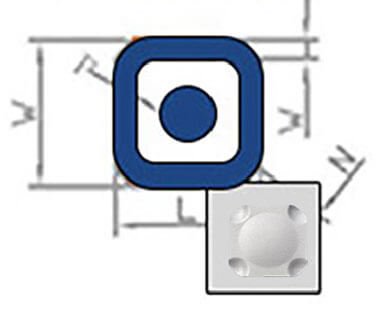

Snap-Dome-PCB-Pad-Shape_04

S -series

$

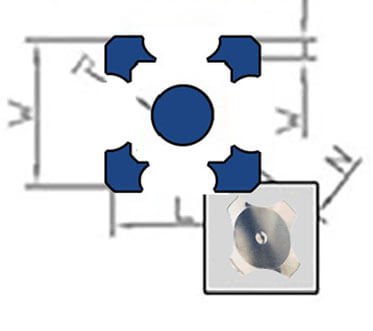

Snap-Dome-PCB-Pad-Shape_06

F -series

$

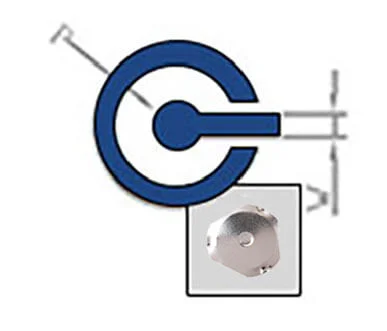

Snap-Dome-PCB-Pad-Shape_07

T -series

$

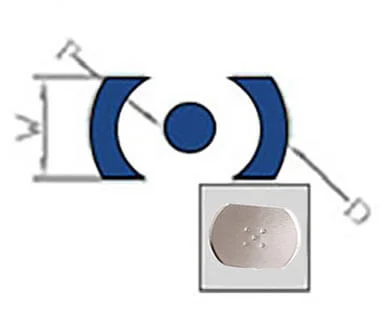

Snap-Dome-PCB-Pad-Shape_09

O -series

$




Classification of Adhesive for Snap Domes:

Transparency: Better alignment



  • White: generally used with light guides (reflective)
  • Black: generally used to block out light (obscuring the content)
  • Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
  • Silver screen: grounding anti-static effect Transparency: Better alignment
  • White: generally used with light guides (reflective)
  • Black: generally used to block out light (obscuring the content)
  • Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
  • Silver screen: grounding anti-static effect

Metal Dome! Widely used

Applied to TV remote controls, air conditioner remote controls, various button facilities, and other equipment.

Metal dome
T-series snap domes, characterized by their triangular shape, are versatile switches designed to be mounted on double-sided printed circuit boards, flex circuits, or membrane switch panels. These domes are widely used across various industries, including electronic toys, desktop phones, and medical equipment, due to their reliable tactile feedback and adaptability to different electronic interfaces.

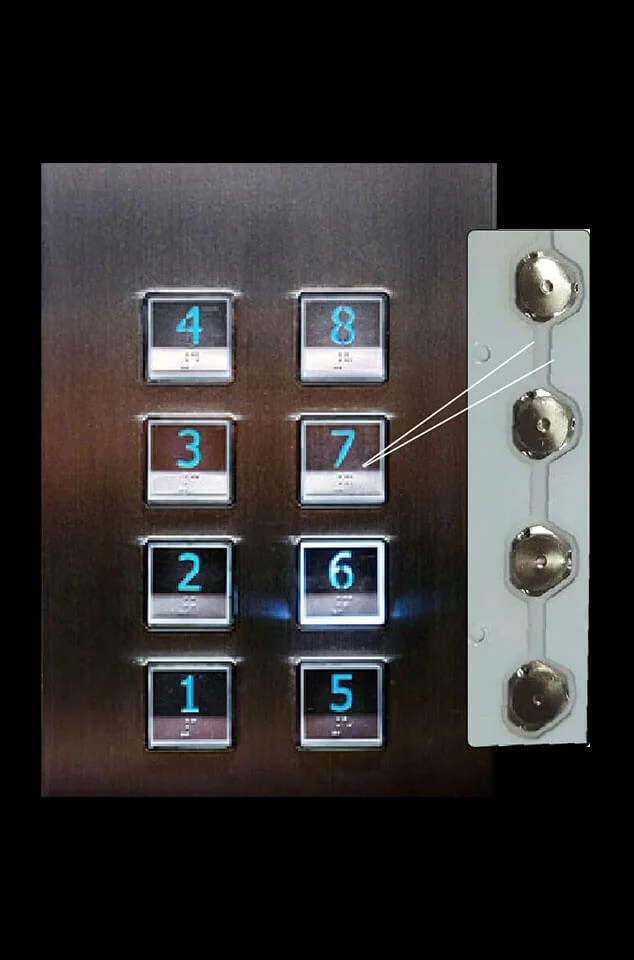

Elevator Tactile Dome Switch Dome Arrays

Read More

Remote Control Dome Arrays

Read More

PS Remote Control Dome Arrays

Read More

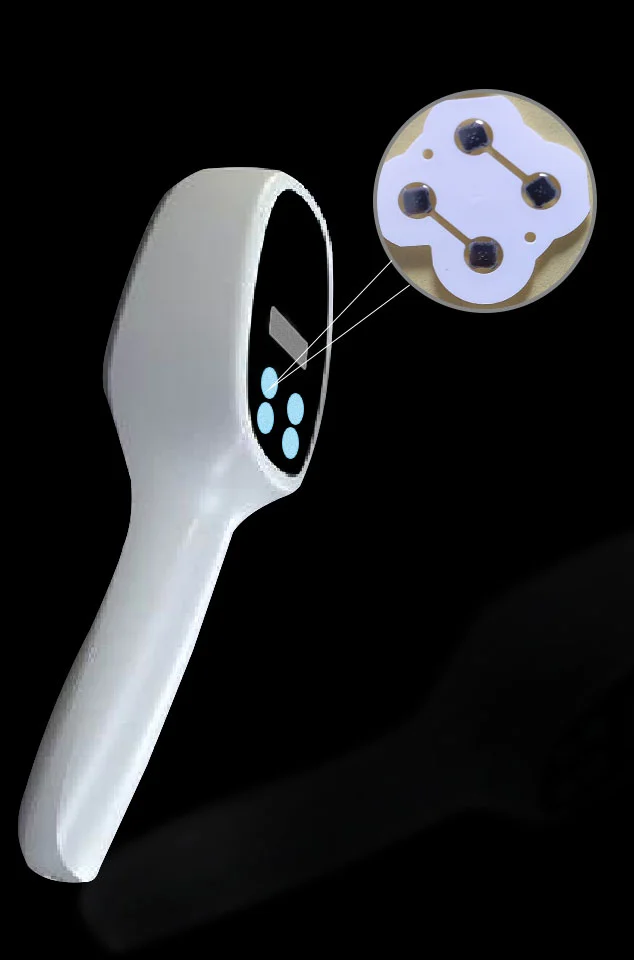

Medical Instrument Dome Arrays

Read More

Mobile Phone Keys Dome Arrays

Read More

Metal Snap Dome Packaging

Focusing on the packaging options for snap domes or metal domes. Here’s a summary of the common packaging methods:

snap-dome-01

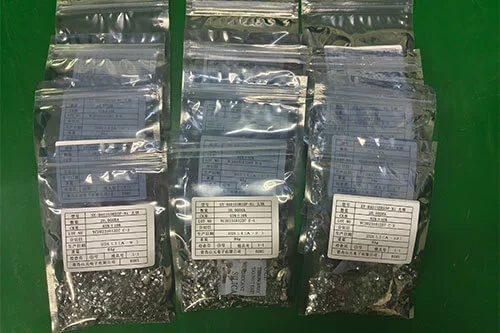

Bulk Packaging by Bag

– Description: Snap domes or metal domes are placed in large quantities within a single bag.
– Advantages:
– Cost-Effective: Minimizes packaging material and labor costs.
– Efficient Handling: Simplifies storage and inventory management.
– Reduced Waste: Less packaging waste compared to individual or small quantity packaging.
– Considerations:
– Protection: Ensure the bag provides adequate protection to prevent damage during transit.
– Dispensing: Make sure the bulk packaging allows for easy access and dispensing of the domes when needed.

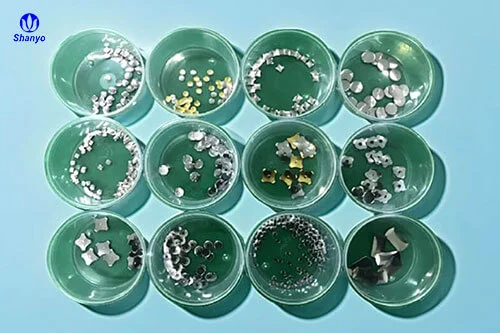

Custom-Packaging-snap-dome

 Custom Packaging

– Description: Tailored packaging solutions such as boxes, trays, or reels, depending on the specific requirements of the application.
– Advantages:
– Protection: Custom packaging can offer better protection against damage or contamination.
– Ease of Use: Can be designed for easier dispensing or handling in specific applications.
– Considerations:
– Cost: Custom packaging may involve higher costs and more complex logistics.
– Suitability: Needs to be aligned with the intended use and application of the domes.

SMT-snap-dome-01

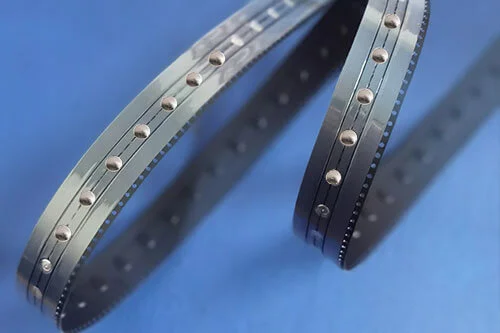

Taped Reel Packaging for Snap Domes



Snap domes are packaged on a reel with tape. This type of packaging is designed specifically for high-speed pick-and-place machines used in automated assembly processes. The reel format ensures efficient handling and application during PCB assembly.

The choice of packaging method depends on factors such as cost, volume, ease of use, and the specific needs of your application.

Processing of dome arrays

Drawings and materials checks

Shanyo Metal Domes Factory Advantage

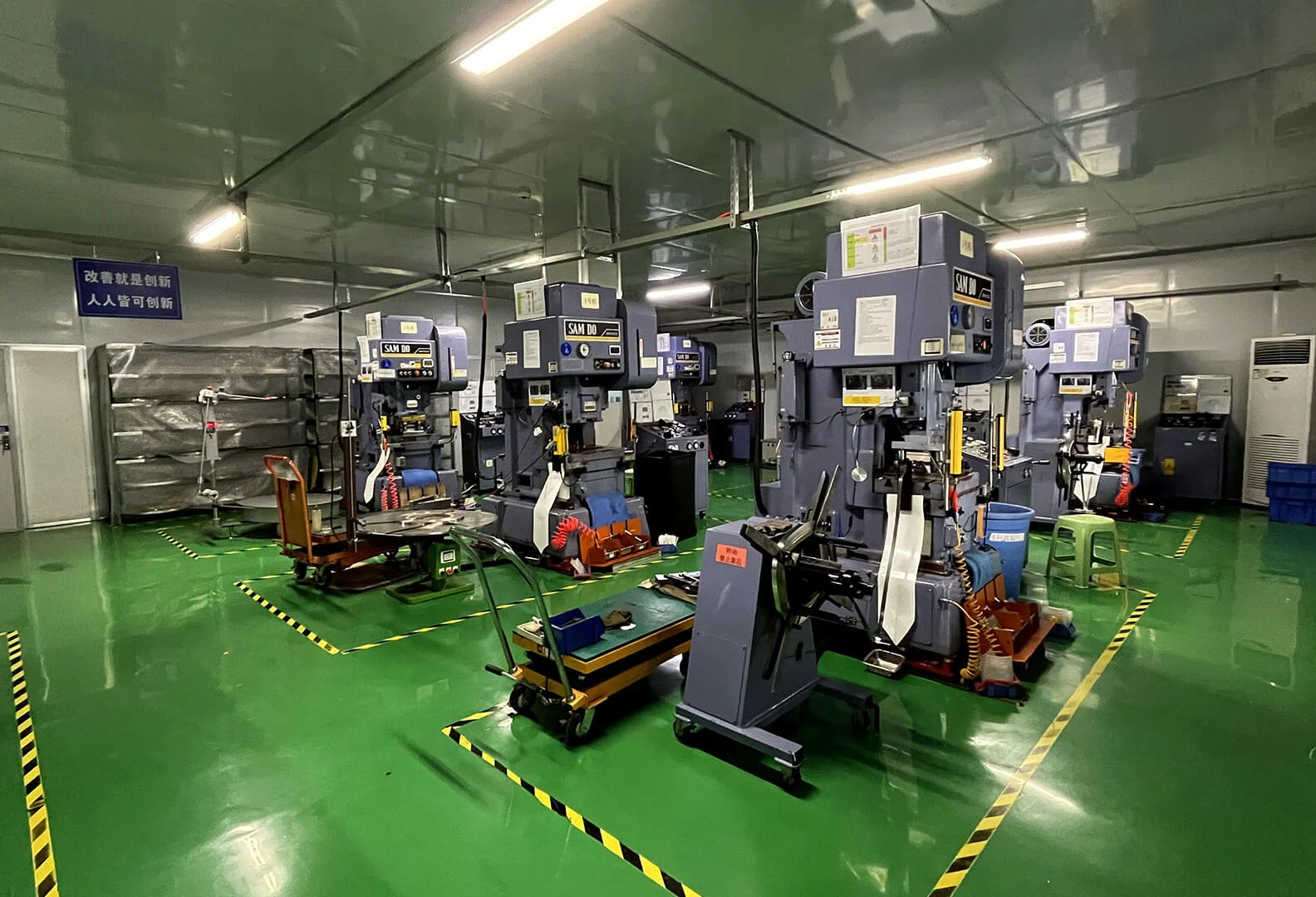

Metal Dome-Stamping-Workshop

Metal dome production workshop

Metal-dome-automatic-attachment-workshop

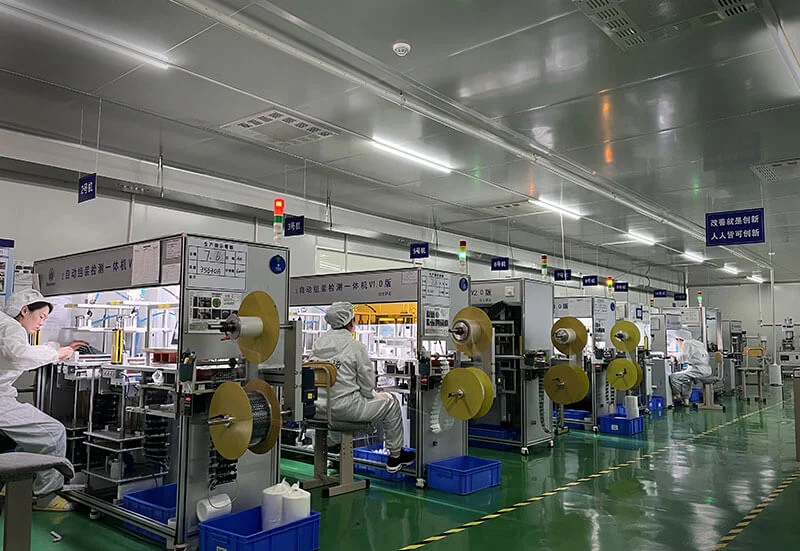

Automatic attachment workshop

SMT

Mold workshop

SMT

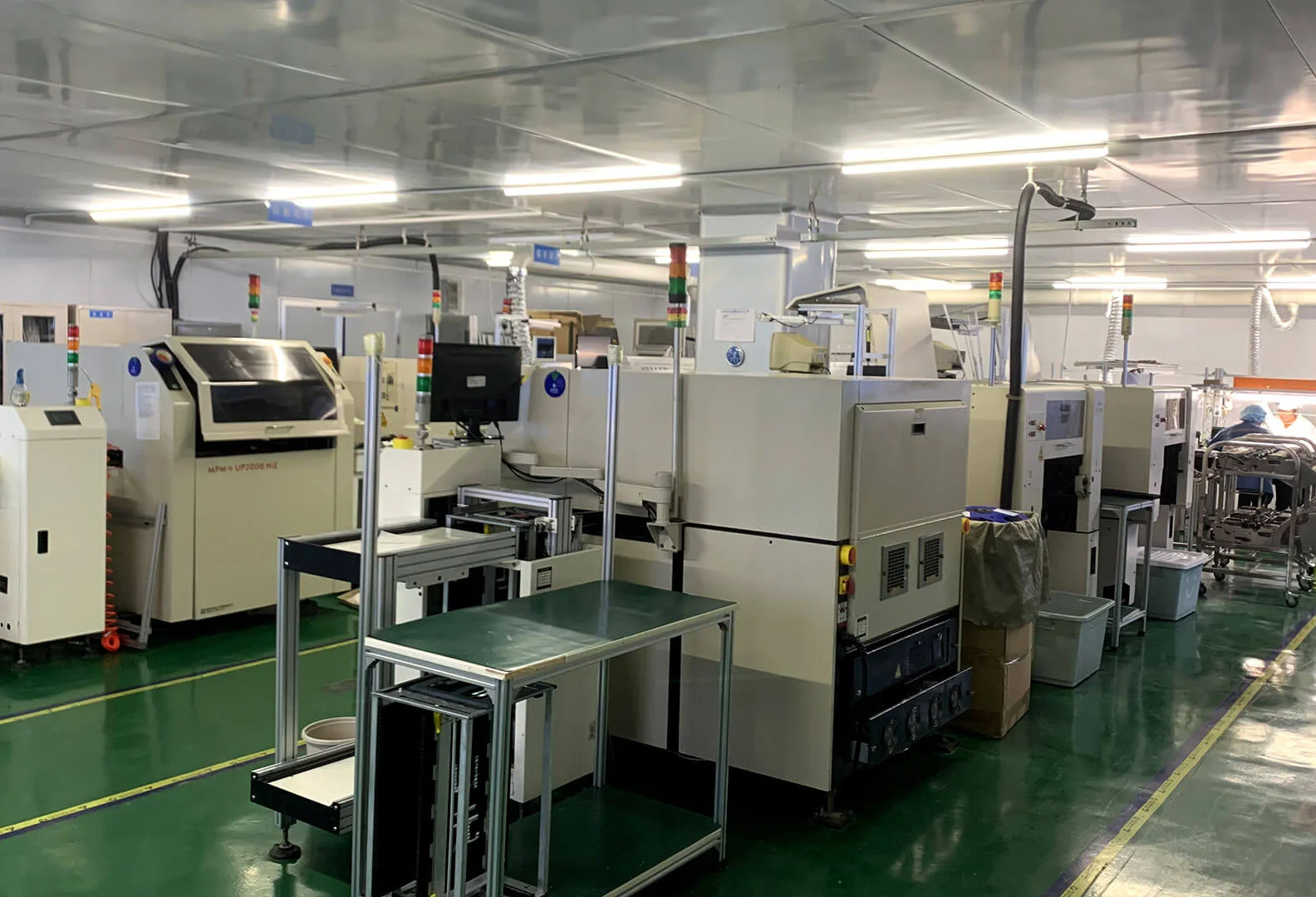

SMT workshop

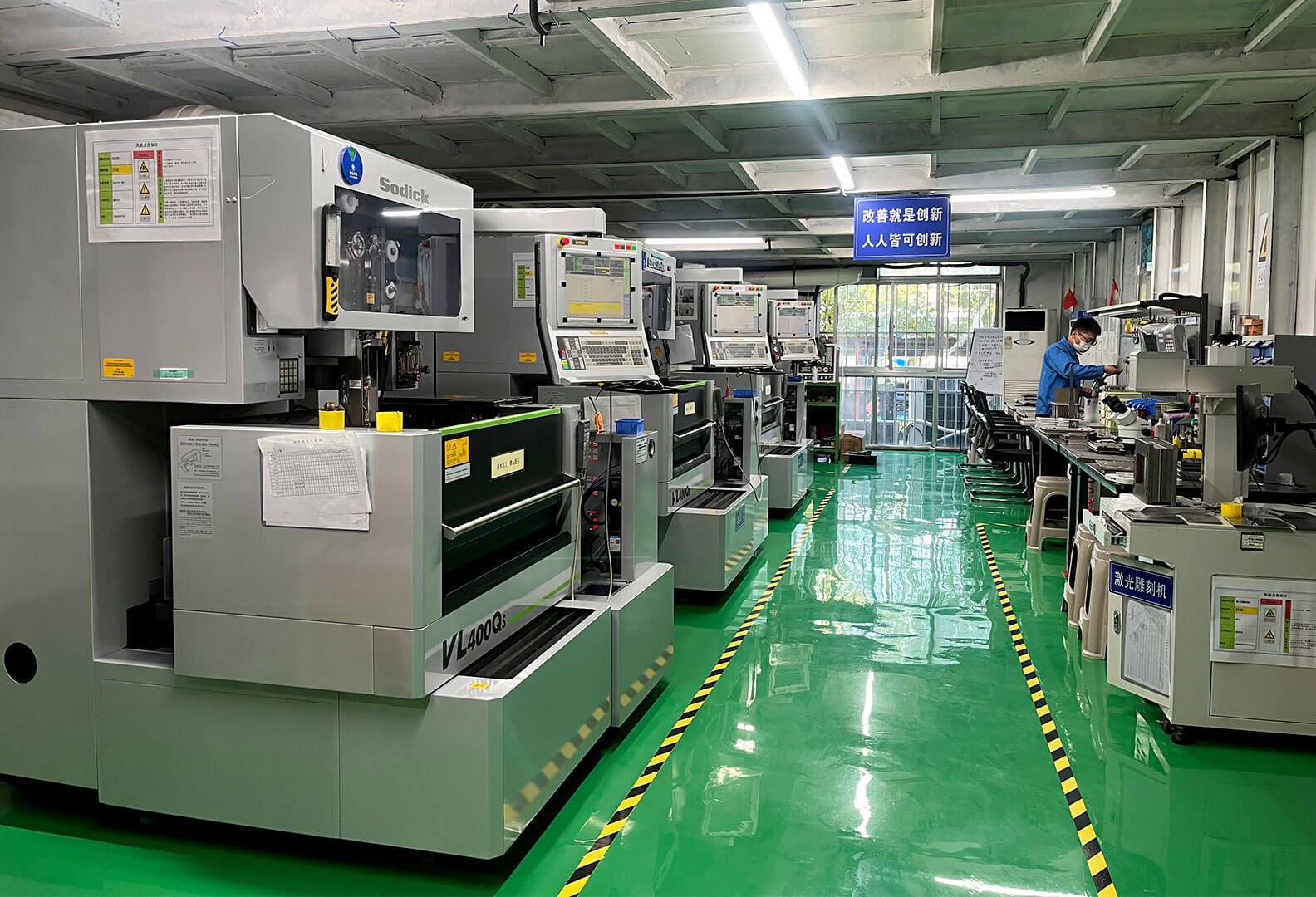

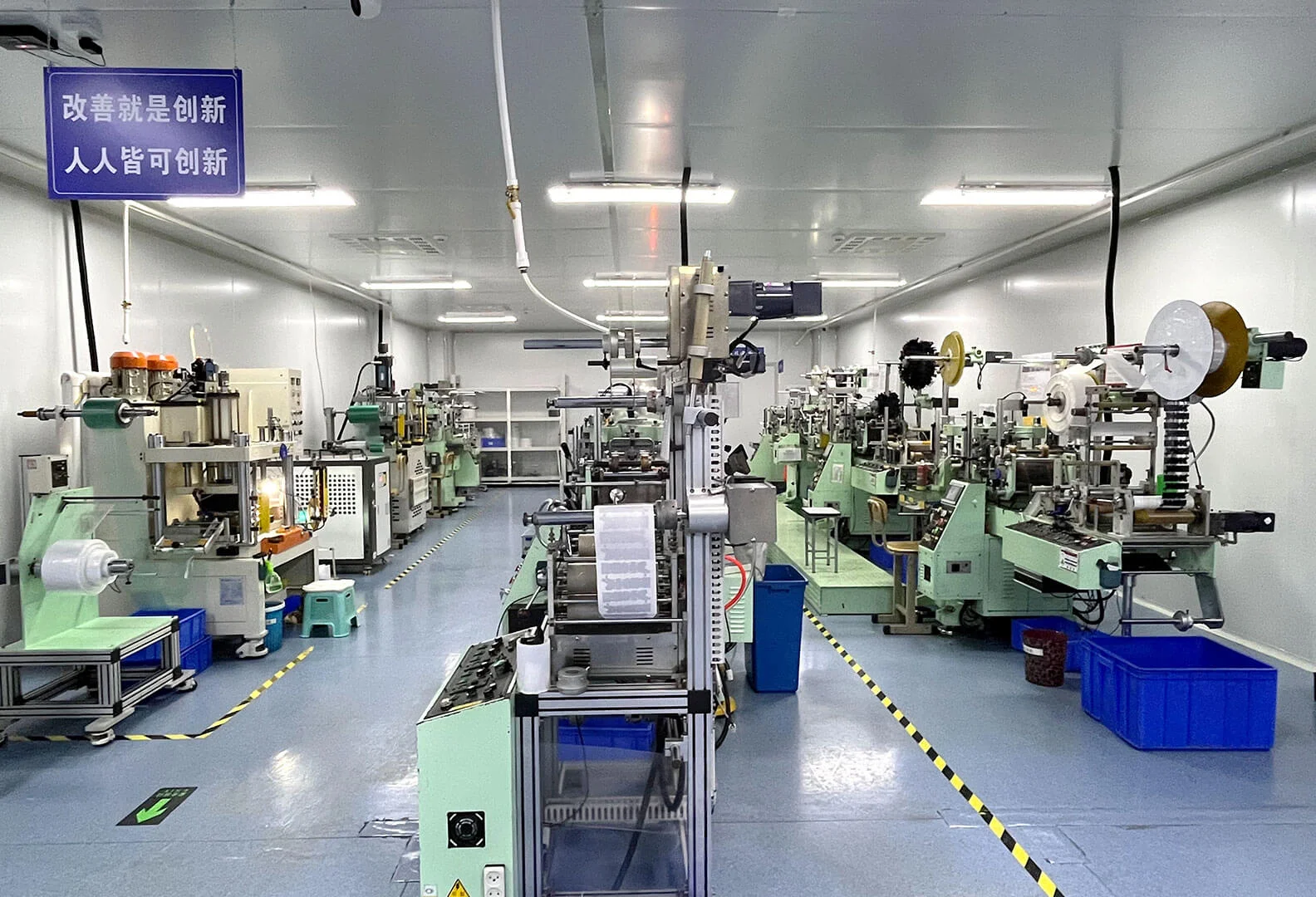

Die-Cutting-Workshop-01

Die-cutting workshop

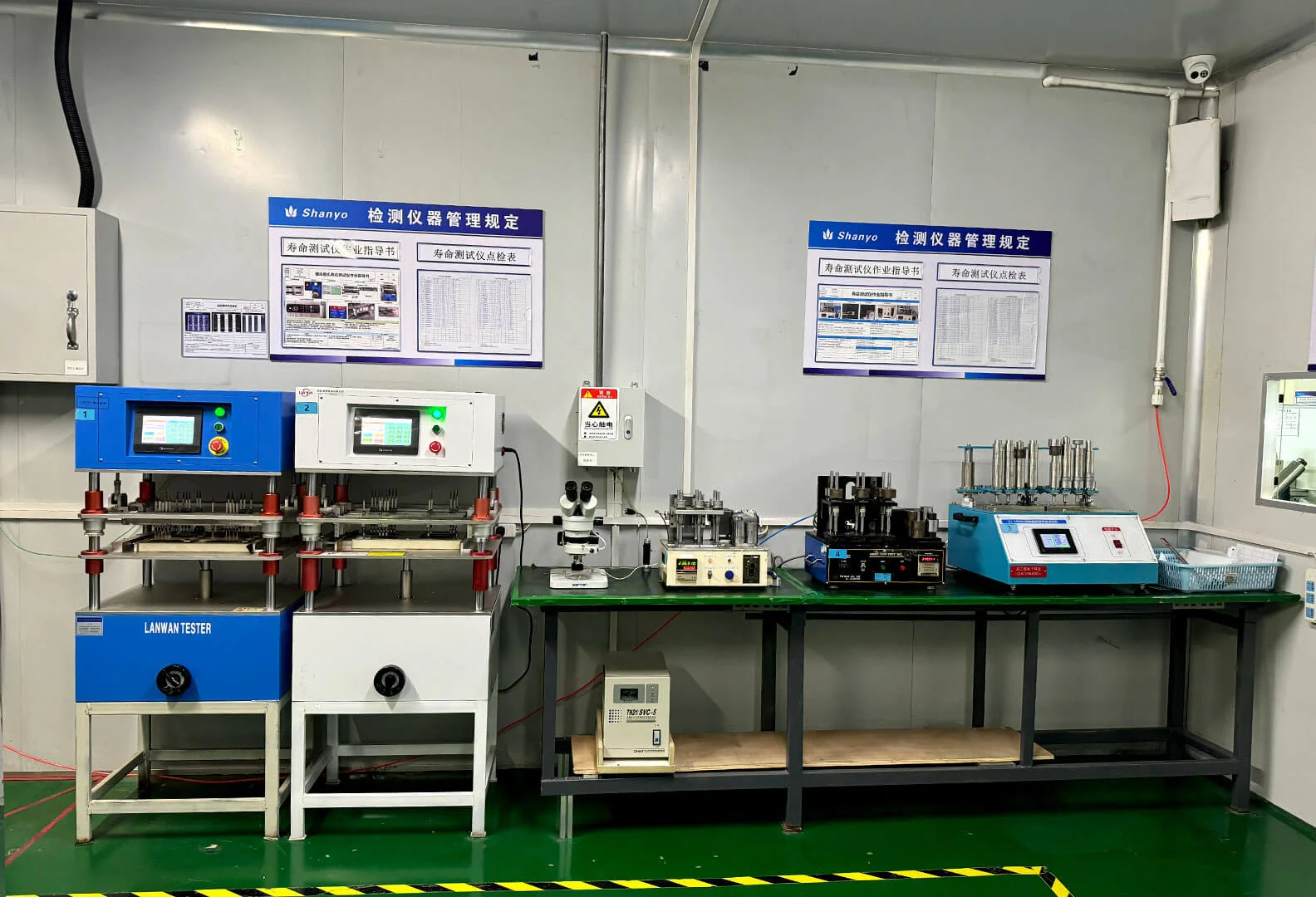

Laboratory-1

Laboratory 01

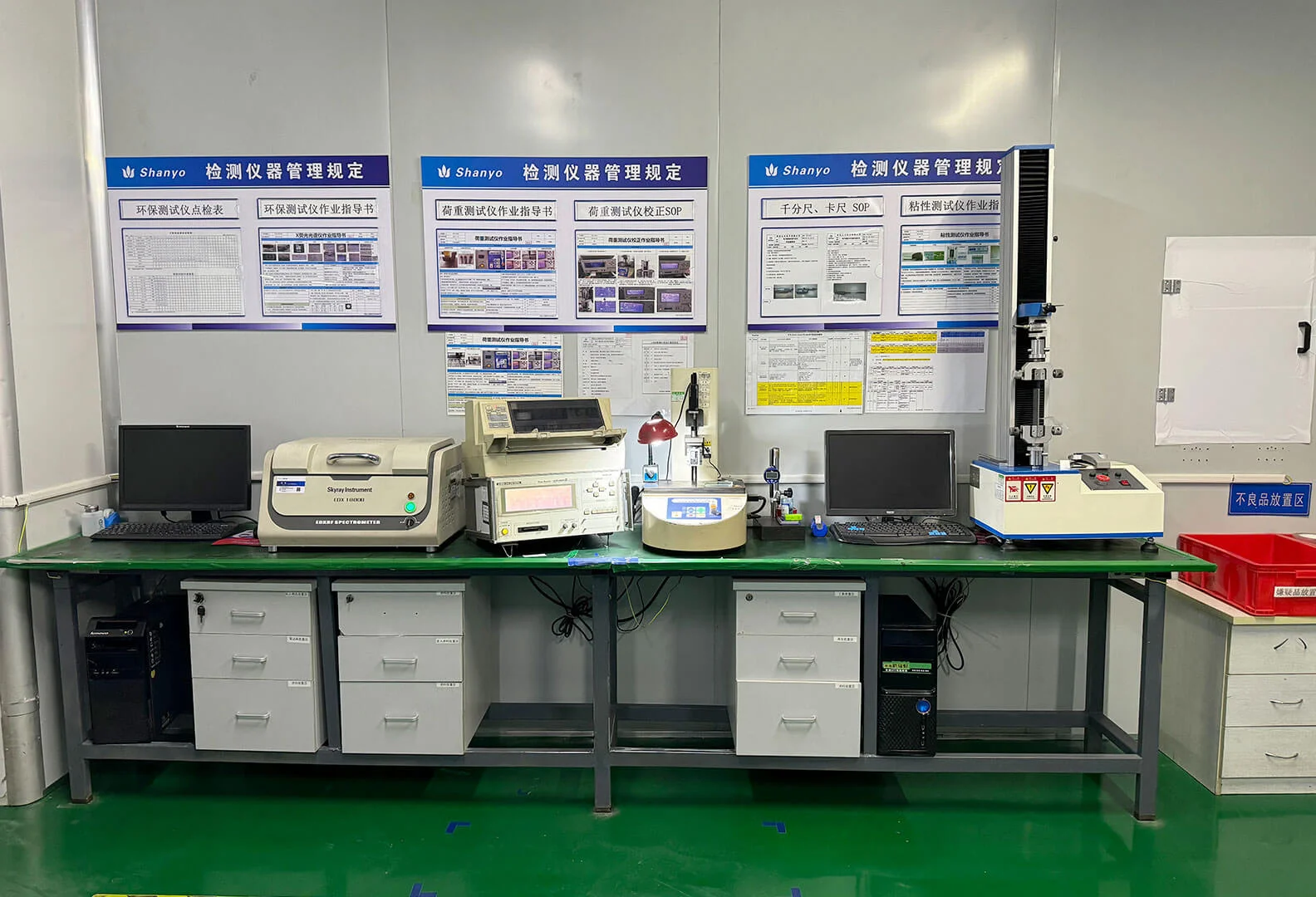

Laboratory-2

Laboratory 02

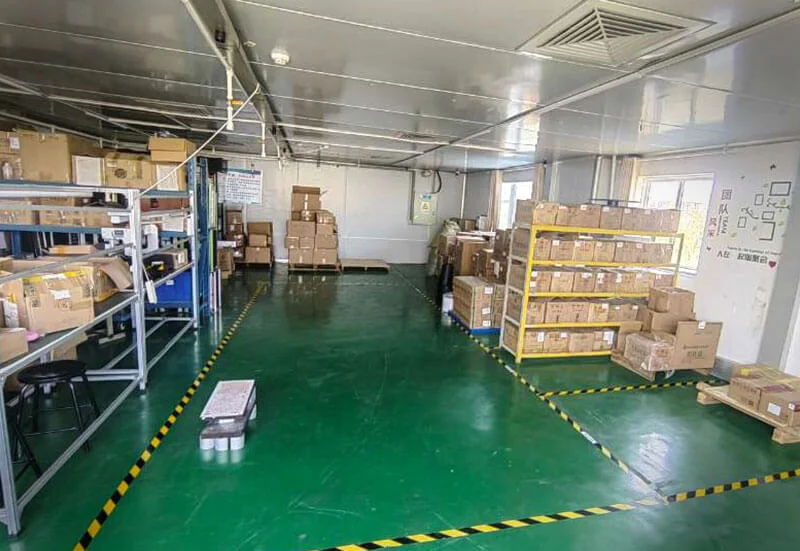

Warehouse

Shanyo Warehouse

COMPANY CORE ADVANTAGE

i

Share innovation

actively communicate with domestic and foreign counterparts, cooperate, share technological achievements, constantly develop more new products to enrich the product catalog of enterprises, and strive to develop with old and new customers and colleagues in the industry who patronize our company.

Professional

The company specializes in the research development and production of metal snap dome
pan discs and conductive film of metal snap dome. It has very rich experience and can provide different dome solutions according to customers ‘needs.

Overseas Quality

Snap dome since its establishment, it has been keeping pace with the times, improving the quality of metal snap domes and conductive film of metal snap domes to meet the harsh requirements of customers all over the world. The reliability and long-term stability of product quality have been continuously praised by foreign customers, and the quality has been rising steadily.

Rich products

from round, cross (four corners), waist round snap dome to custom snap dome switch, from single-layer structure, double-layer structure, EMI printing, Rubber structure.

Strict control

from the purchase of raw materials, mold design and production, product production, quality testing, packaging sales, and other aspects of strict operation by the requirements of ISO 9001:2015, to ensure the consistent reliability of products;

High-quality service

punctual delivery; free technical solutions and samples; quick response (domestic customers respond 2 hours after mail receipt, foreign customers respond 12 hours); after-sales service 1-hour fast processing.

FAQs

Frequently Asked Questions

Q: What is a snap dome?
  • Metal snap domes (tactile metal domes) are made of stainless steel and are momentary switch contacts. Combined with printed circuit boards (PCBs), flexible circuits, or membranes, they become normally-open tactile dome switch.

    This metal dome has the following characteristics and advantages:

    I. Material characteristics

    The stainless steel material gives the metal dome good durability and stability. It can withstand multiple presses without being easily deformed, ensuring the long-term reliability of the switch. At the same time, stainless steel has good electrical conductivity, which can effectively transmit electrical signals to ensure the normal operation of the switch.

    Second, the working principle

    When an external force is applied to the PCB, flexible circuit, or film combined with the metal dome, the metal dome will deform, thus realizing the closure of the circuit. Once the external force disappears, the metal dome will quickly return to its original state, breaking the circuit and forming a normally open state. This instantaneous switching action provides clear tactile feedback, allowing the user to perceive the success of the operation.

    III. Application Areas

    1. Electronics: Widely used in a variety of electronic devices such as cell phones, tablet PCs, remote controls, etc., providing users with a convenient operating experience.
    2. Industrial control: In industrial automation equipment, a dom switch can be used to control the start and stop of various functions.
    3. medical equipment: due to its reliability and accuracy, tactile dome switch are also suitable for various operation controls in medical equipment.

    In conclusion, metal snap domes play a key role as an important switching component in electronics and related fields. Its high performance and reliability make it ideal for many product designs.

Q: What is the approximate lifespan of the Snap Dome?
  • The service life of a metal dome is affected by a variety of factors, such as dome material, shape, size, production process, and the environment in which it is used.

    Generally speaking, the life span of the metal dome varies greatly in China. The life span of a cross-shaped dome is usually around 200,000 to 300,000 times; the life span of a round snap dome, such as 4c, c5 and other smaller domes, is about 700,000 to 800,000 times in China. And can reach 500,000 to 1 million times the life of the dome is relatively small.

    However, with some metal domes made of special technology or high-quality materials, their life may be longer. For example, in the metal dome used in some mouse axle bodies, after optimized design and material selection, the theoretical service life can reach 80 million times.

    If the metal dome is frequently subjected to high-intensity pressure, intense friction, or in poor environmental conditions (such as high temperature, high humidity, etc.), its life span may be shortened accordingly.

    In order to extend the service life of metal domes, in the process of product design and use, you can try to choose reliable quality domes, and avoid excessive use or use of related products in extreme environments. At the same time, reasonable design and manufacturing process can also help to improve the life and performance stability of metal dome.

Q: How do snap domes work?
  • Snap domes work through a combination of mechanical and electrical principles. Here’s how they operate:

    Mechanical Action:

    When at rest, the snap dome is in a convex shape. As a force is applied to its center, it starts to deform. The metal of the snap dome is resilient and has a certain amount of springiness. As the force increases, the dome gradually flattens out.

    At a certain point, known as the “snap point,” the dome suddenly inverts and snaps into a concave shape. This rapid inversion creates a distinct tactile feedback, often described as a click or a pop. This tactile sensation is useful in applications where users need confirmation of an action, such as pressing a button on a keypad or a switch.

    Electrical Function:

    Snap domes are often used in conjunction with a printed circuit board (PCB), flex circuit, or membrane. When the snap dome is in its un-actuated state (convex), it is electrically open, meaning there is no electrical connection between the contacts it is designed to connect.

    However, when the dome snaps into its concave state due to the applied force, it makes contact with the underlying electrical contacts on the PCB or other substrate. This creates an electrical connection, allowing current to flow through the circuit. Once the force is removed, the snap dome returns to its original convex shape, breaking the electrical connection again.

    In summary, snap domes work by mechanically snapping from a convex to a concave shape when pressed, providing tactile feedback, and simultaneously creating or breaking an electrical connection to control the flow of electricity in a circuit.

Q: Are you a Trading Company or Manufacturing?
  • We are a Professional Metal dome manufacturer, we have our own factory, and we are based in Qingdao, China, Shanyo Precision Electronic Technology Co., Ltd. is a professional manufacturer of mobile phones and digital product components. It was established in 2004 and has more than 200 employees. The main business is applied in consumer electronics, remote controls, mobile phones, automobiles, medical care, smart products, outdoor products, etc. The main products are metal dome array, Remote control buttons, die cutting, LGF, UV bumps, FPC, panel buttons, PCB lines, thin film flexible lines, etc. The Qingdao factory covers an area of more than 3,500 square meters. Currently, it has offices in Shenzhen, Shanghai, Taiwan, Malaysia, and Singapore, fully implementing the global marketing strategy. sell to Southern Europe (10.00%), Domestic Market (10.00%), Northern Europe (10.00%), Central America (10.00%), Western Europe (10.00%), Eastern Europe (10.00%), South America (10.00%), North America (10.00%), South Asia (5.00%), Southeast Asia (5.00%), Eastern Asia (3.00%), Oceania (3.00%), Mid East (2.00%), Africa (2.00%). There are a total of about 51-100 people in our office.
Q. How do I request samples of your products?
  • Stock Samples: If you paid the freight cost, we could provide free samples for you.
  • Customized Samples: We will offer you 5 pcs free samples after we receive the setup cost.
  • To request product samples, please email us at shanyonod@shanyo.com.
Q.How do I request a quote?
  • You can easily request a quote by filling out our Quote Form, or by sending us an e-mail at shanyonod@shanyo.com.
Q. how can we guarantee quality?
  • We process and produce products in strict accordance with the list of raw materials.
  • Many of our engineers have many years of experience and are very responsible.
    Always a pre-production sample before mass production;
    Always final Inspection before shipment.
    And video confirmation of packing with the customer.
Q. Can you offer OEM Service?
  • Surely Okay, we have Seasoned OEM service experience.
Q. what is the Lead time of the sample?
  • It takes 2-7 working days depending.
Q. How fast can I get the Quotation?
  • 30 mins ~ 24 Hours depends.
Q. How to place an order?
  • Please tell us your material, artwork design, logic circuit schematic diagram, size, surface, usage, etc. It is best to send us the design drawings or samples and other detailed data, and then we will customize the metal dome and metal dome array according to your requirements.
Q. What services can we provide?

Accepted Delivery Terms: FOB, EXW;
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Escrow;
Language Spoken: English, Chinese

Q. What products are die-cut?
  • The die-cutting process is suitable for a variety of materials, including metal, plastic, paper, fabric, foam, wood, and composites.
Q. Advantages of metal dome technology:
  • Durability: Metal domes are highly durable and can withstand millions of actuations without failure. This makes them ideal for use in devices that are used frequently, such as keyboards and keypads.
  • Consistency: Metal domes provide a consistent tactile response, which means that users can rely on the same level of feedback every time they press a button. This can improve user experience and accuracy.
  • Cost-effectiveness: Metal domes are relatively inexpensive to manufacture, which makes them a cost-effective solution for manufacturers.
    Space-saving: Metal domes are small and can be placed close together, which makes them ideal for use in compact devices.
  • Customization: Metal domes can be customized with different shapes, sizes, and force requirements to suit the specific needs of a particular device or application. This allows manufacturers to create unique user experiences for their products.

Shanyo Supplier's popular products

SHANYO PARTNER

Shanyo Metal Dome Partner
Shanyo Metal Dome Partner amazon
Shanyo Metal Dome Partner-asus
Shanyo Metal Dome Partner-dyson
Shanyo Metal Dome Partner Haier
Shanyo Metal Dome-Partner-Hisense
Shanyo-Metal-Dome-Partner-Lenovo
Shanyo Metal Dome Partner-FOXCONN
Shanyo-Metal Dome Partner-GoerTek
Shanyo-Metal-Dome-Partner-LG
Shanyo-Metal-Dome-Partner-oppo
Shanyo-Metal-Dome-Partner-SAMSUNG
Shanyo-Metal-Dome-Partner-huawei
Shanyo-Metal-Dome-Partner-tesla
Shanyo-Metal-Dome-Partner-dell
Shanyo-Metal -Dome-Partner-Kyocera
Shanyo-Metal-Dome-Partner-VOLVO
Shanyo-Metal-Dome-Partner-mi
Shanyo-Metal-Dome-Partner-AUCMA
Shanyo-Metal-Dome-Partner-GREE
Shanyo-Metal-Dome-Partner-VIVO
Shanyo-Metal-Dome-Partner-OMNI
Shanyo Metal Dome Partner-facebook
Shanyo Metal Dome Partner-facebook

Metal Dome Contact Details

Address:

Factory Address NO.1
QINGDAO SHANYO PRECISION ELECTRONIC TECHNOLOGY CO., LTD.
ADD:NO.20.TIANHE INDUSTRIAL WEIHE ROAD QINGDAO E﹠TZONE QINGDAO CHINA
Factory Address NO.2
QINGDAO SHANYO SHINE WE TECHNOLOGY CO., LTD.
Room 201, Building 1, No.138 Songgang Road,Qingxi Town, Dongguan City, Guangdong Province
Factory Address NO.3
QINGDAO SHANYO Wontop Group(Vietnam)Co.,Ltd
{Công Ty TNHH Tập Đoàn WONTOP (VIỆT NAM)}
Đại chỉ : Thôn An Lạc, Xã Trưng Trắc, Huyện Văn Lâm, Tỉnh Hưng Yên
Factory Address NO.4
QINGDAO SHANYO RIZHAO SHANYO PRECISION ELECTRONIC TECHNOLOGY CO., LTD.

Shandong, China, 2665

Tel:
Terry Song
+86-18653253918

Candy Yan
+86-17865426805

Email:

shanyonod@gmail.com
