What are dome switch?

What are Tactile Dome Switch?

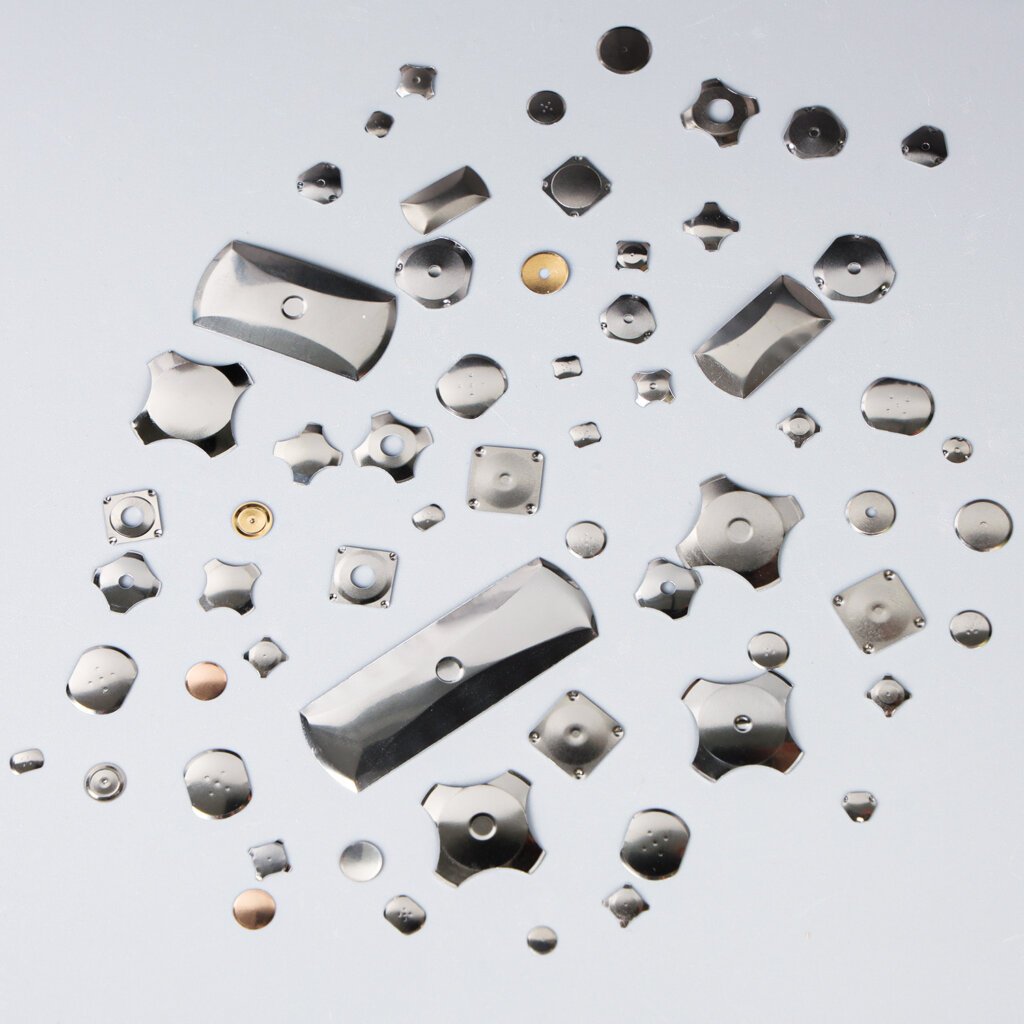

Tactile dome switch, also known as snap domes or metal domes, are instantaneous contacts that trigger specific actions when pressed. They are usually used in electronic products, such as keyboards, game consoles, and medical equipment.

The dome switches is made of a conductive material (such as stainless steel) and is placed on top of the circuit board. When pressed, the dome will come into contact with the conductive coating on the circuit board, triggering an electrical connection.

Advantages of metal dome
Tactile dome switch provide many benefits for product design. They are relatively cheap and easy to install, which makes them very suitable for mass production. They also provide tactile feedback to help users understand when a specific action is triggered.

Metal dome switches are also very durable and reliable. In addition, they are designed to withstand various environmental conditions, such as extreme temperatures, humidity, and dust. This makes them very suitable for use in harsh environments and harsh conditions.

Waterproof walkie-talkie with dome switch keyboard

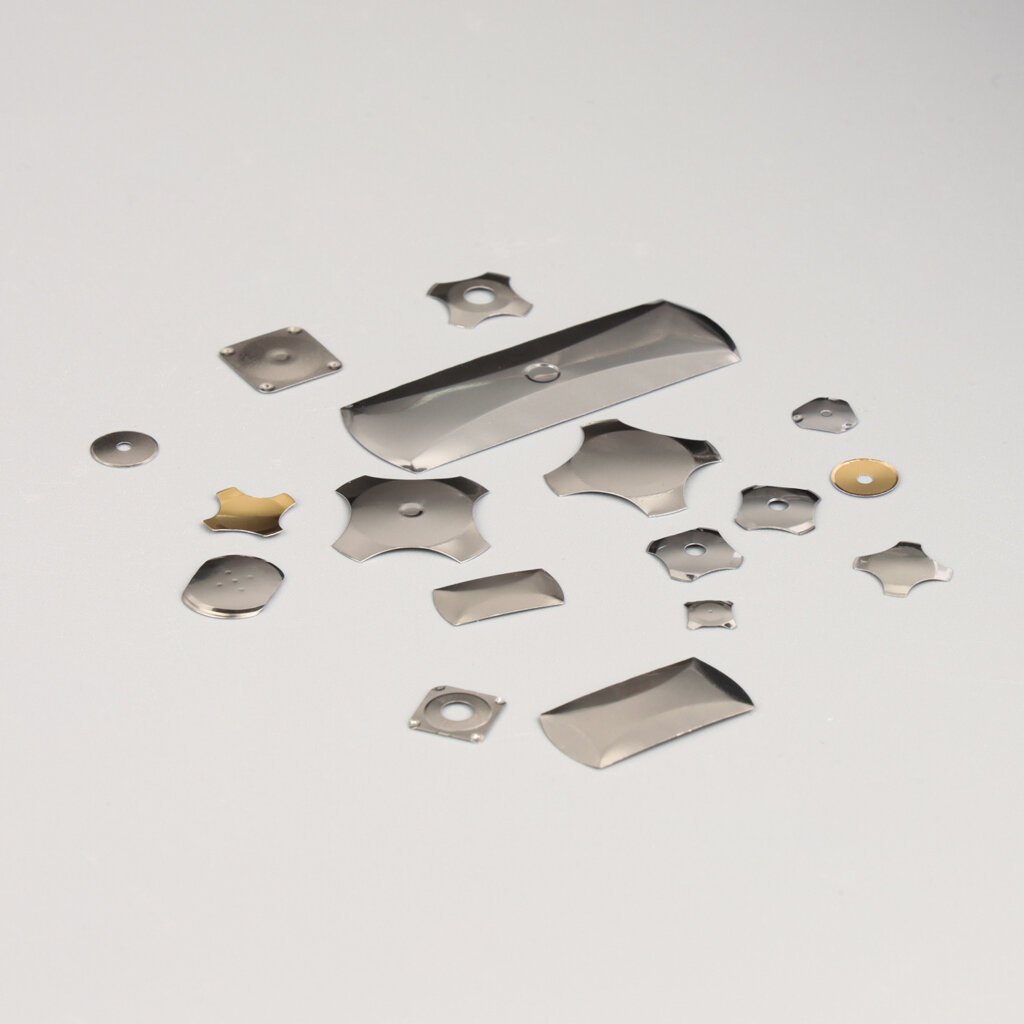

Another advantage of dome switch keyboard is that they are highly customizable. They come in all shapes, sizes, and powers. In addition, they are one of the thinnest switches on the market and have a high life cycle rating of up to 10 million cycles. These advantages make it easy to design products that meet a specific aesthetic or feel.

Tactile dome switches common applications
dome switch keyboard are usually used in many products, including electrical appliances, smart home devices, game controllers, etc. You will also find dome switches in various industrial applications, such as robotics, test and automation equipment, industrial machinery, and more.

In addition to the above, dome switches are also used in automotive applications. They are commonly found on dashboards, doors, steering wheels, and other areas of the vehicle.

How to choose the right dome membrane switch
When choosing a dome membrane switch for a specific product, several factors need to be considered. First of all, the type of switch you choose depends on the purpose and use environment of the product.

The size of the dome membrane switch is also very important. You need to make sure that the switch size you choose is suitable for the product you are designing. If the switch is too large, it will take up too much space in the circuit and may affect the overall design. On the other hand, if the switch is too small, it may not be able to handle the required usage.

The type of cover layer, actuator, or membrane covering the switch is also important. The cover layer, actuator, and membrane are the mechanical components of the switch assembly, and they contact the dome to press it down. They also act as a protective shell to protect the switch from dirt and dust. These materials can usually enhance the feel of the switch and minimize damage to the dome. The material should be durable because it must be able to withstand various environmental conditions.

Disadvantages of tactile metal dome switch
Although tactile metal dome switch have many advantages, some disadvantages need to be considered. One of the main disadvantages is that they have limited functions. For example, most instantaneous contact switches can only trigger a single action, which may not be ideal for some applications. However, some unique dome switch products, such as four-legged tactile domes, can help minimize these effects.

In addition, tactile metal dome switch may be difficult to repair or replace. Due to its small size, it may be difficult to contact the switch’s internal components. This may make it difficult to diagnose the problem or make repairs.

Finally, metal dome switches are sensitive to dirt and dust. If these contaminants accumulate on the surface of the switch, it will affect its performance.

Metal dome switches is a popular and cost-effective component that can be used to enhance the user experience of a product. They are highly customizable and have a variety of advantages in terms of durability, reliability, and tactile feedback.

When designing products that use tactile dome switches, it is essential to consider the size, material, contact type, and protective shell of the switch. You must also test the switch before the product is put into production. By following these best practices, designers and engineers can create products that enhance user experience.

If you want to order or ask how to incorporate dome switches into your product design, please contact Shanyo immediately.
