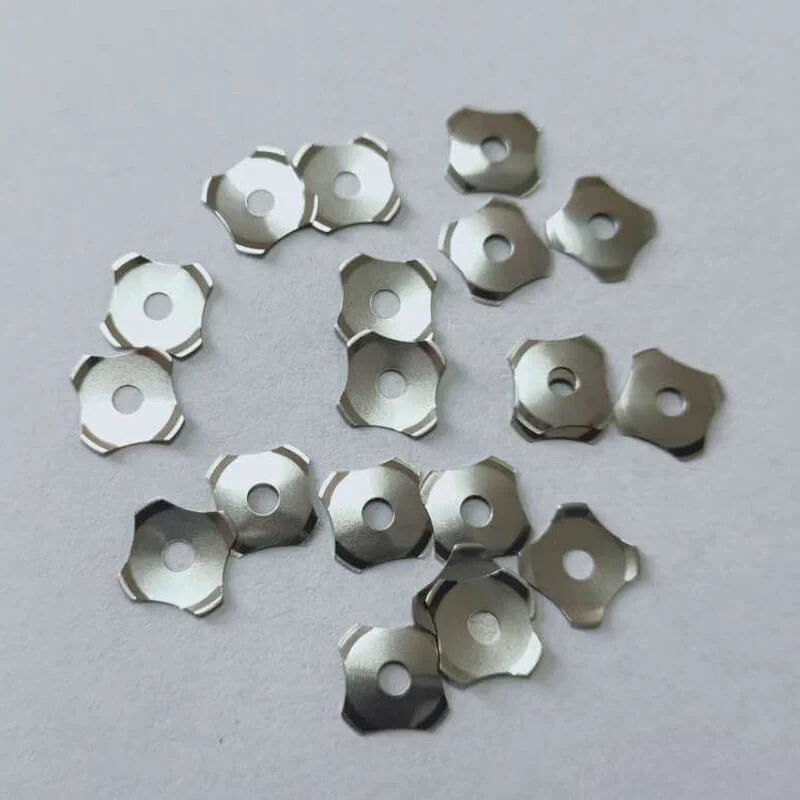

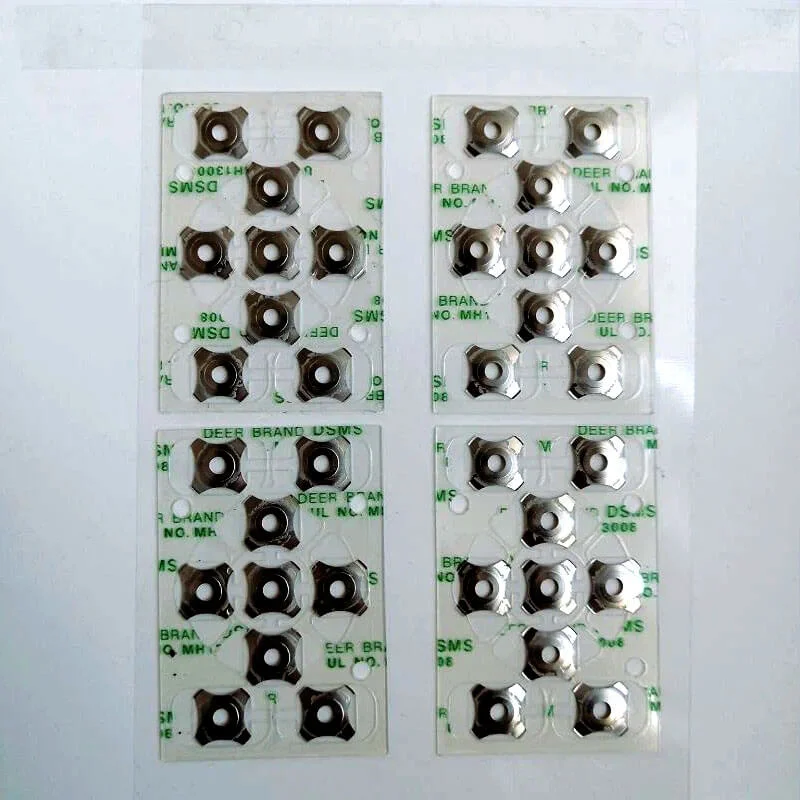

Four Leg Metal Dome with Center Hole

  • Circular metal dome;
  • Waist round metal dome/elliptical shrapnel (also known as Waist round pot shrapnel);
  • Cruciform metal shrapnel;

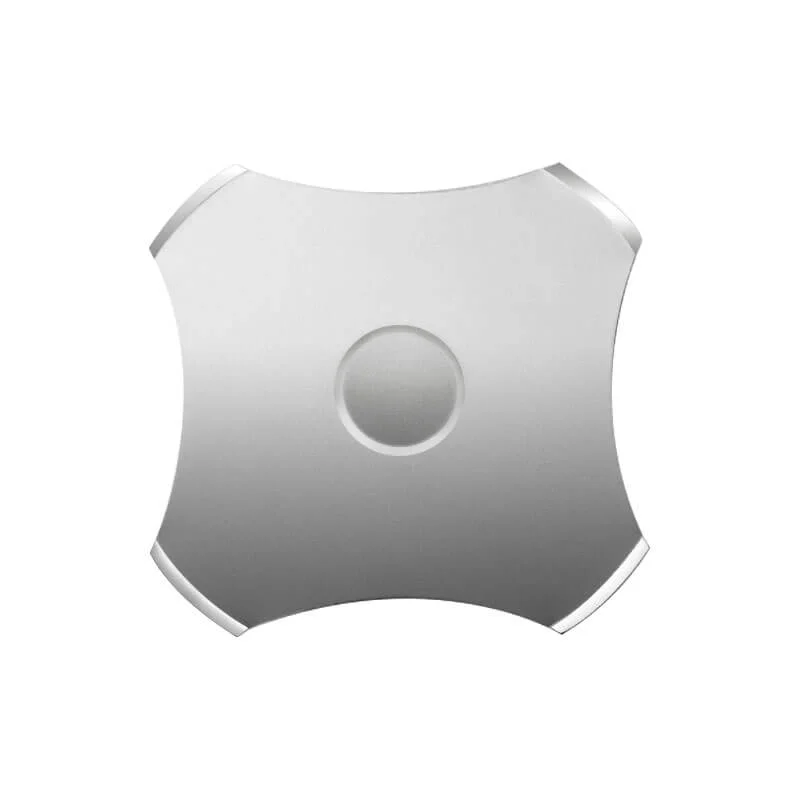

  • Four-legged (cruciform) metal shrapnel with a central hole;
  • Customized metal shrapnel.

Advantage:

N

Low resistance

N

Feel good

N

long life

N

Easy assembly, etc.

Advantage:

N

Support customization

N

24 hours online service

N

Free sample

N

Good quality

The Metal domes offer significant advantages for applications requiring back-lit switches with tactile feedback. Here are some key points about these domes:

1. Design and Structure:

  • Four Legs: Provides stability and ensures reliable actuation.
  • Central Hole: Allows direct placement of an LED, resulting in more intense and uniform backlighting.

2. Mounting Options:

  • Can be mounted on various substrates including single or double-sided printed circuit boards (PCBs), flexible circuits (flex circuits), or membrane switches.
  • Versatile in terms of application, accommodating different design and manufacturing requirements.

3. Packaging and Placement:

  • Can be packaged in cartridges for efficient handling.
  • Compatible with tools like the Dart™ dome placement pen and the SureShot™ automated dome placement machine for quick and accurate placement, enhancing production efficiency.

4. Applications:

  • Ideal for use in devices that require back-lit switches with crisp tactile feedback.
  • Suitable for a range of industries including consumer electronics, medical devices, and industrial control panels where visibility and tactile response are crucial.



This makes Metal domes a versatile and efficient solution for back-lit tactile switch applications, enhancing both the functionality and user experience of the end products.

Metal Dome Structure

Metal-Dome-Structure

Snap Dome of pot flakes

Snap Dome as a metal dome. Compared with traditional silicone buttons, conductive film has a better feel and longer life. It can also indirectly improve the production of various types of switches using conductive film. efficiency. The metal spring on the dome button is located on the conductive part of the PCB (mostly located above the gold finger on the circuit board). When pressed, the center point of the spring is concave and contacts the circuit on the PCB, thus forming a circuit. , the current passes through, and the entire product can work normally. This is how it works.

Metal Dome! Widely used

Applied to TV remote controls, air conditioner remote controls, various button facilities, and other equipment.

Metal dome

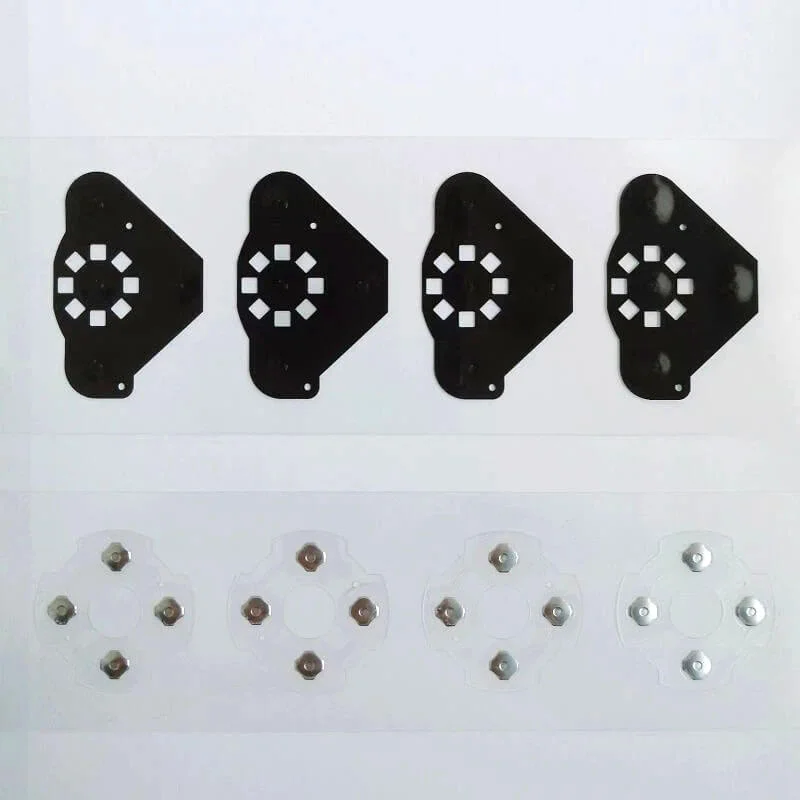

Product application scope: widely used in mobile phones, cameras, computers, remote controllers, printers, game devices, intelligent wear products, financial terminal products, medical equipment, mechanical equipment, sports equipment, household appliances, automotive electronics, and other product areas.

Metal Dome Button remote control

Read More

car remote control

Read More

toy remote control

Read More

Air conditionin aremote control

Read More

mobile phone remote control

Read More

According to the needs of different product structures and grades

Nickel plating, silver plating, gold plating

x

Smooth contact

x

Strong conductivity

x

Stable rebound

x

Good feel

Snap Dome Introduction

Snap Domes has several major advantages: smooth contact, strong conductivity, stable rebound, and good feel. Due to its good conduction performance, it can play a good switch activation and control role between the operator and the product.

4 Legs Dome Part Number

NO.
Product model
Operating load (g)
Feel ratio (%)
Travel (mm)
Shrapnel height (mm)
Material thickness (mm)
Life (second)
1
SY-H4008-4L-5DP-Ni
80±25g
70±15
0.18±0.05mm
0.23±0.05mm
0.055mm
500, 000次
2
SY-H4010-4L-5DP-Ni
100±25g
70±15
0.19±0.05mm
0.24±0.05mm
0.055mm
500, 000次
3
SY-H4013-4L-5DP-Ni
130±25g
70±15
0.20±0.05mm
0.25±0.05mm
0.055mm
500, 000次
4
SY-H4015-4L-5DP-Ni
150±25g
70±15
0.21±0.05mm
0.26±0.05mm
0.055mm
500, 000次
5
SY-H4020-4L-5DP-Ni
200±25g
70±15
0.29±0.05mm
0.33±0.05mm
0.060mm
500, 000次
Product

  • Circular metal dome;
  • Waist round metal dome/elliptical dome (also known as Waist round metal dome);
  • Cruciform metal dome;
  • Four-legged (cruciform) metal dome with a central hole;
  • Customized metal dome.

Metal dome design principle

How to choose the snap dome chip based on the PCB pad shape

metal-dome-Design-principles01

Classification of Adhesive for Metal Domes:
Classification of Adhesive for Metal Domes:
Transparency: Better alignment

  • White: generally used with light guides (reflective)
  • Black: generally used to block out light (obscuring the content)
  • Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
  • Silver screen: grounding anti-static effect Transparency: Better alignment
  • White: generally used with light guides (reflective)
  • Black: generally used to block out light (obscuring the content)
  • Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
  • Silver screen: grounding anti-static effect

COMPANY CORE ADVANTAGE

i

Share innovation

actively communicate with domestic and foreign counterparts, cooperate, share technological achievements, constantly develop more new products to enrich the product catalog of enterprises, and strive to develop with old and new customers and colleagues in the industry who patronize our company.

Professional

The company specializes in the research development and production of metal shrapnel/pot pan disc and conductive film of metal shrapnel. It has very rich experience and can provide different shrapnel solutions according to customers ‘needs.

Overseas Quality

Since its establishment, it has been keeping pace with the times, improving the quality of metal shrapnel and conductive film of metal shrapnel to meet the harsh requirements of customers all over the world. The reliability and long-term stability of product quality have been continuously praised by foreign customers, and the quality has been rising steadily.

Rich products

from round, cross (four corners), waist round shrapnel to custom shrapnel, from single-layer structure, double-layer structure, EMI printing, Rubber structure.

Strict control

from the purchase of raw materials, mold design and production, product production, quality testing, packaging sales, and other aspects of strict operation by the requirements of ISO 9001:2015, to ensure the consistent reliability of products;

High-quality service

punctual delivery; free technical solutions and samples; quick response (domestic customers respond 2 hours after mail receipt, foreign customers respond 12 hours); after-sales service 1-hour fast processing.

FAQs

Frequently Asked Questions

Q1: Are you a Trading Company or Manufacturing?
  • We are a Professional Metal dome manufacturer, we have our own factory, and we are based in Qingdao, China, Shanyo Precision Electronic Technology Co., Ltd. is a professional manufacturer of mobile phones and digital product components. It was established in 2004 and has more than 200 employees. The main business is applied in consumer electronics, remote controls, mobile phones, automobiles, medical care, smart products, outdoor products, etc. The main products are metal dome array, Remote control buttons, die cutting, LGF, UV bumps, FPC, panel buttons, PCB lines, thin film flexible lines, etc. The Qingdao factory covers an area of more than 3,500 square meters. Currently, it has offices in Shenzhen, Shanghai, Taiwan, Malaysia, and Singapore, fully implementing the global marketing strategy. sell to Southern Europe (10.00%), Domestic Market (10.00%), Northern Europe (10.00%), Central America (10.00%), Western Europe (10.00%), Eastern Europe (10.00%), South America (10.00%), North America (10.00%), South Asia (5.00%), Southeast Asia (5.00%), Eastern Asia (3.00%), Oceania (3.00%), Mid East (2.00%), Africa (2.00%). There are a total of about 51-100 people in our office.
  • Q2. How do I request samples of your products?
    • Stock Samples: If you paid the freight cost, we could provide free samples for you.
    • Customized Samples: We will offer you 5 pcs free samples after we receive the setup cost.
    • To request product samples, please email us at shanyonod@shanyo.com.
    Q3.How do I request a quote?
  • You can easily request a quote by filling out our Quote Form, or by sending us an e-mail at shanyonod@shanyo.com.
  • Q4. how can we guarantee quality?
    • We process and produce products in strict accordance with the list of raw materials.
    • Many of our engineers have many years of experience and are very responsible.
      Always a pre-production sample before mass production;
      Always final Inspection before shipment.
      And video confirmation of packing with the customer.
    Q5. Can you offer OEM Service?
    • Surely Okay, we have Seasoned OEM service experience.
    Q6. what is the Lead time of the sample?
  • It takes 2-7 working days depending.
  • Q7. How fast can I get the Quotation?
  • 30 mins ~ 24 Hours depends.
  • Q8. How to place an order?
  • Please tell us your material, artwork design, logic circuit schematic diagram, size, surface, usage, etc. It is best to send us the design drawings or samples and other detailed data, and then we will customize the metal dome and metal dome array according to your requirements.
  • Q9. What services can we provide?
    Accepted Delivery Terms: FOB, EXW;
    Accepted Payment Currency: USD, EUR, HKD, CNY;
    Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Escrow;
    Language Spoken: English, Chinese
    Q10. What products are die-cut?
  • The die-cutting process is suitable for a variety of materials, including metal, plastic, paper, fabric, foam, wood, and composites.
  • Q11. Advantages of metal dome technology:
    • Durability: Metal domes are highly durable and can withstand millions of actuations without failure. This makes them ideal for use in devices that are used frequently, such as keyboards and keypads.
    • Consistency: Metal domes provide a consistent tactile response, which means that users can rely on the same level of feedback every time they press a button. This can improve user experience and accuracy.
    • Cost-effectiveness: Metal domes are relatively inexpensive to manufacture, which makes them a cost-effective solution for manufacturers.
      Space-saving: Metal domes are small and can be placed close together, which makes them ideal for use in compact devices.
    • Customization: Metal domes can be customized with different shapes, sizes, and force requirements to suit the specific needs of a particular device or application. This allows manufacturers to create unique user experiences for their products.
