P-Series Circle Metal Dome

C -Series Round Metal Domes Features:

N

Long life

N

Low cost

N

High reliability

N

Easy assembly

N

Low resistance

N

Corrosion resistance

N

Good hand feeling, etc.

C -Series Round Metal Domes Advantage:

N

OEM / ODM

N

Free sample

N

Fast delivery

N

Good quality

N

24 hours online service

N

Factory direct sales wholesale

N

Support customization (color/ shape/ size/ material)

Various specifications of the metal dome are available:

The circle metal dome (round metal domes, circle tactile dome) is a circle(round) snap dome specifically designed for use in multi-layered circuit boards or precision switches. The C-Series domes are non-inverting and suitable for over-travel applications.

They are ideal for low-profile switches under membrane overlays and keypads and longer service life.

The size of a C-Series metal dome ranges from 2.5mm to 20mm, with trip forces typically ranging from 100gf to 600gf. Trip force, rebound/return force, click ratio, travel distance, and height can be adjusted according to client requirements.

Packaging options include bulk packaging in PE bags or pick-and-place dome arrays; when creating a dome array using automated or semi-automated machines that place the domes on glued PET film, they will be packed in steel tubes.

Regardless of your specific size and force needs, we strive to provide the best possible solution. Contact Shanyo for pricing, to order, or to request samples of C-Series circular metal domes.

Circle / Round Metal Dome

NO.
Product model
Outer Diameter
Click Ratto(%)
Rebound/Return orce(g)
Fmax/Force (mm)
Dome height (mm)
Material thickness (mm)
Plating
Life Cycles (s)
1
SY-M2508R-Ag
2.5mm
60±10%
80士20g
0.10士0.03mm
0.14士0.03mm
0.04mm
Silver(Ag)
1,000,000
2
SY-M2516R-Ag
2.5mm
60±10%
160士20g
0.14士0.03mm
0.18士0.03mm
0.04mm
Silver(Ag)
1,000,000
3
SY-M4010R5DP-Ni
4mm
50±10%
100士20g
0.14土0.03mm
0.19土0.03mm
0.055mm
Nickel(NI)
500,000
4
SY-M4012R5DP-Ni
4mm
50±10%
120士20g
0.15士0.03mm
0.20士0.03mm
0.055mm
Nickel(NI)
500,000
5
SY-M4014R5DP-Ni
4mm
50±10%
140士20g
0.16士0.03mm
0.21土0.03mm
0.055mm
Nickel(NI)
500,000
6
SY-M4016R5DP-Ni
4mm
50±10%
160士20g
0.17士0.03mm
0.22士0.03mm
0.055mm
Nickel(NI)
500,000
7
SY-M4018R5DP-Ni
4mm
50±10%
180士20g
0.18士0.03mm
0.23土0.03mm
0.055mm
Nickel(NI)
500,000
8
SY-M4020R5DP-Ni
4mm
50±10%
200士20g
0.19士0.03mm
0.24士0.03mm
0.055mm
Nickel(NI)
500,000
9
SY-M4022R5DP-Ni
4mm
50±10%
220士20g
0.20土0.03mm
0.25士0.03mm
0.055mm
Nickel(NI)
500,000
10
SY-M4016R4DP-T-Ni
4mm
50±10%
160士20g
0.17士0.03mm
0.17士0.03mm
0.055mm
Nickel(NI)
500,000
11
SY-M4016R4DP-T-Ni
4mm
50±10%
160士20g
0.17士0.03mm
0.22士0.03mm
Nickel(NI)
1,000,000
12
SY-M4018R4DP-T-Ni
4mm
50±10%
180士20g
0.18士0.03mm
0.23土0.03mm
0.055mm
Nickel(NI)
500,000
13
SY-M4018R4DP-T-Ni
4mm
50±10%
180士20g
0.18士0.03mm
0.23士0.03mm
Nickel(NI)
1,000,000
14
SY-M4018R4DP-T-Ni
4mm
50±15%
180士30g
0.19士0.05mm
0.23士0.05mm
0.055mm
Nickel(NI)
1,000,000
15
SY-M5010R5DP-Ni
5mm
50±10%
100士20g
0.16士0.03mm
0.21士0.03mm
0.06mm
Nickel(NI)
500,000
16
SY-M5012R5DP-Ni
5mm
50±10%
120士20g
0.17士0.03mm
0.22士0.03m
0.06mm
Nickel(NI)
500,000
17
SY-M5014R5DP-Ni
5mm
50±10%
140士20g
0.18士0.03mm
0.23士0.03mm
0.06mm
Nickel(NI)
500,000
18
SY-M5016R5DP-Ni
5mm
50±10%
160士20g
0.19士0.03mm
0.24士0.03mm
0.06mm
Nickel(NI)
500,000
19
SY-M5016R-Ni
5mm
50±10%
160士20g
0.18士0.03mm
0.23士0.03mm
0.06mm
Nickel(NI)
1,000,000
20
SY-M5018R5DP-Ni
5mm
50±10%
180士20g
0.20士0.03mm
0.25士0.03mm
0.06mm
Nickel(NI)
500,000
21
SY-M5020R5DP-Ni
5mm
50±10%
200士20g
0.21士0.03mm
0.26士0.03mm
0.06mm
Nickel(NI)
500,000
22
SY-M5022R5DP-Ni
5mm
50±10%
220士20g
0.22士0.03mm
0.27士0.03mm
0.06mm
Nickel(NI)
1,000,000
23
SY-M5022R5DP-Ni
5mm
50±10%
220士25g
0.22士0.03mm
0.27士0.03mm
0.06mm
Gold(Au)
500,000
24
SY-M6025R-Au
6mm
55±15%
250士30g
0.23士0.05mm
0.29士0.05mm
0.06mm
Nickel(NI)
1,000,000
25
SY-M6010R5DP-Ni
6mm
50±10%
100士20g
0.19士0.03mm
0.24士0.03mm
0.06mm
Nickel(NI)
500,000
26
SY-M6012R5DP-Ni
6mm
50±10%
120士20g
0.20士0.03mm
0.25士0.03mm
0.06mm
Nickel(NI)
500,000
27
SY-M6014R5DP-Ni
6mm
50±10%
140士20g
0.21士0.03mm
0.26士0.03mm
0.06mm
Nickel(NI)
500,000
28
SY-M6016R5DP-Ni
6mm
50±10%
160士20g
0.22士0.03mm
0.27士0.03mm
0.06mm
Nickel(NI)
500,000
29
SY-M6018R5DP-Ni
6mm
50±10%
180士20g
0.23士0.03mm
0.28士0.03mm
0.06mm
Nickel(NI)
500,000
30
SY-M6020R5DP-Ni
6mm
50±10%
200士20g
0.24土0.03mm
0.29士0.03mm
0.06mm
Nickel(NI)
500,000
31
SY-M6022R5DP-Ni
6mm
50±15%
220士30g
0.25士0.03mm
0.29士0.03mm
0.06mm
Nickel(NI)
500,000
32
SY-M6024R5DP-Ni
6mm
50±15%
240士30g
0.26士0.03mm
0.31土0.03mm
0.06mm
Nickel(NI)
500,000

Circular/ Round Metal Dome Structure

Circular-metal-dome 01
Life cycle test norms and standards

The blow’s force should be twice that of the product, using a 2.0mm ABS flat head, aligned with the product’s center. The speed should be 120 blows/minute. The fixed base must be clean, flat, and free of bumpy deformation or soft materials, lest it significantly affect the product’s lifespan.

Recommended-Performance-Test-Head-Shape
Recommended-life-cycle-test-head-shape

Performance test specification standard

Before conducting the product testing, apply a force of 2 times the product strength using a 1.8mm aluminum ball head, ensuring it is vertically aligned with the center of the product, and press it 10 times to stabilize its performance before commencing testing. The test products should be secured using specialized metal fixtures that are clean and flat, without any uneven conditions present. Failure to adhere to these requirements may significantly impact the accuracy of the product performance test.

Metal Dome! Widely used

Applied to TV remote controls, air conditioner remote controls, various button facilities, and other equipment.
Metal dome

This product is extensively used in various electronic devices, such as mobile phones, cameras, computers, remote controllers, printers, game consoles, smart wearables, financial terminals, medical equipment, mechanical devices, sports gear, home appliances, automotive electronics, and more.

Remote Control Buttons Metal Dome

Read More

PC Button Metal Dome

Read More

Intercom Keys Metal Dome

Read More

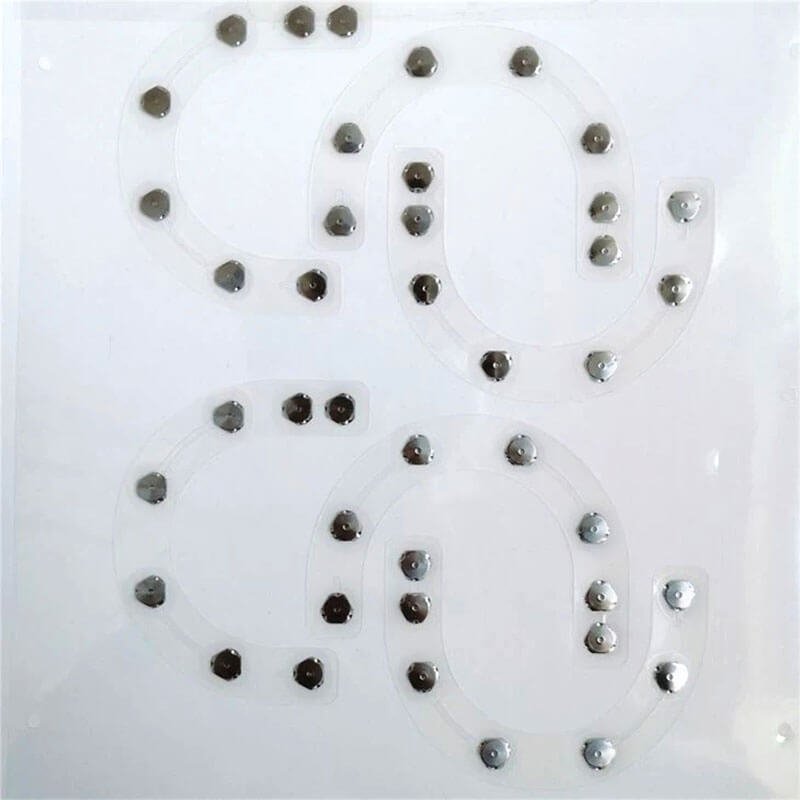

Car Button Metal Dome

Read More

Phone Keys Tactile Dome Switches

Read More

Industrial Equipment Control Panel

Read More

snap dome Dome Switch and Silicone Button after installation

According to the needs of different product structures and grades

Nickel plating, silver plating, gold plating

x

Smooth contact

x

Strong conductivity

x

Stable rebound

x

Good feel

Snap Dome Introduction

Snap Domes has several major advantages: smooth contact, strong conductivity, stable rebound, and good feel. Due to its good conduction performance, it can play a good switch activation and control role between the operator and the product.

Various specifications of metal shrapnel are available:

  • Triangle Metal Dome;
  • Cruciform Metal Dome;
  • Four Legs Tactile Domes
  • Circular/ Round Metal Dome;
  • Oblong/ Rectangle Metal Dome;
  • Ellipse/ Round Waist Metal Dome;
  • Circle / Round Metal Dome With Holes;
  • Four Leg Metal Domes with Center Hole;
  • Customized metal dome (color/ shape/ size, material, etc.).

Metal dome design principle

How to choose the snap dome chip based on the PCB pad shape

metal-dome-Design-principles01

Classification of Adhesive for Metal Domes:
Classification of Adhesive for Metal Domes:
Transparency: Better alignment

  • White: generally used with light guides (reflective)
  • Black: generally used to block out light (obscuring the content)
  • Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
  • Silver screen: grounding anti-static effect Transparency: Better alignment
  • White: generally used with light guides (reflective)
  • Black: generally used to block out light (obscuring the content)
  • Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
  • Silver screen: grounding anti-static effect

COMPANY CORE ADVANTAGE

i

Share innovation

actively communicate with domestic and foreign counterparts, cooperate, share technological achievements, constantly develop more new products to enrich the product catalog of enterprises, and strive to develop with old and new customers and colleagues in the industry who patronize our company.

Professional

The company specializes in the research development and production of metal shrapnel/pot pan disc and conductive film of metal shrapnel. It has very rich experience and can provide different shrapnel solutions according to customers ‘needs.

Overseas Quality

Since its establishment, it has been keeping pace with the times, improving the quality of metal shrapnel and conductive film of metal shrapnel to meet the harsh requirements of customers all over the world. The reliability and long-term stability of product quality have been continuously praised by foreign customers, and the quality has been rising steadily.

Rich products

from round, cross (four corners), waist round shrapnel to custom shrapnel, from single-layer structure, double-layer structure, EMI printing, Rubber structure.

Strict control

from the purchase of raw materials, mold design and production, product production, quality testing, packaging sales, and other aspects of strict operation by the requirements of ISO 9001:2015, to ensure the consistent reliability of products;

High-quality service

punctual delivery; free technical solutions and samples; quick response (domestic customers respond 2 hours after mail receipt, foreign customers respond 12 hours); after-sales service 1-hour fast processing.

FAQs

Frequently Asked Questions

Q1: Are you a Trading Company or Manufacturing?
  • We are a Professional Metal dome manufacturer, we have our own factory, and we are based in Qingdao, China, Shanyo Precision Electronic Technology Co., Ltd. is a professional manufacturer of mobile phones and digital product components. It was established in 2004 and has more than 200 employees. The main business is applied in consumer electronics, remote controls, mobile phones, automobiles, medical care, smart products, outdoor products, etc. The main products are metal dome array, Remote control buttons, die cutting, LGF, UV bumps, FPC, panel buttons, PCB lines, thin film flexible lines, etc. The Qingdao factory covers an area of more than 3,500 square meters. Currently, it has offices in Shenzhen, Shanghai, Taiwan, Malaysia, and Singapore, fully implementing the global marketing strategy. sell to Southern Europe (10.00%), Domestic Market (10.00%), Northern Europe (10.00%), Central America (10.00%), Western Europe (10.00%), Eastern Europe (10.00%), South America (10.00%), North America (10.00%), South Asia (5.00%), Southeast Asia (5.00%), Eastern Asia (3.00%), Oceania (3.00%), Mid East (2.00%), Africa (2.00%). There are a total of about 51-100 people in our office.
  • Q2. How do I request samples of your products?
    • Stock Samples: If you paid the freight cost, we could provide free samples for you.
    • Customized Samples: We will offer you 5 pcs free samples after we receive the setup cost.
    • To request product samples, please email us at shanyonod@shanyo.com.
    Q3.How do I request a quote?
  • You can easily request a quote by filling out our Quote Form, or by sending us an e-mail at shanyonod@shanyo.com.
  • Q4. how can we guarantee quality?
    • We process and produce products in strict accordance with the list of raw materials.
    • Many of our engineers have many years of experience and are very responsible.
      Always a pre-production sample before mass production;
      Always final Inspection before shipment.
      And video confirmation of packing with the customer.
    Q5. Can you offer OEM Service?
    • Surely Okay, we have Seasoned OEM service experience.
    Q6. what is the Lead time of the sample?
  • It takes 2-7 working days depending.
  • Q7. How fast can I get the Quotation?
  • 30 mins ~ 24 Hours depends.
  • Q8. How to place an order?
  • Please tell us your material, artwork design, logic circuit schematic diagram, size, surface, usage, etc. It is best to send us the design drawings or samples and other detailed data, and then we will customize the metal dome and metal dome array according to your requirements.
  • Q9. What services can we provide?
    Accepted Delivery Terms: FOB, EXW;
    Accepted Payment Currency: USD, EUR, HKD, CNY;
    Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Escrow;
    Language Spoken: English, Chinese
    Q10. What products are die-cut?
  • The die-cutting process is suitable for a variety of materials, including metal, plastic, paper, fabric, foam, wood, and composites.
  • Q11. Advantages of metal dome technology:
    • Durability: Metal domes are highly durable and can withstand millions of actuations without failure. This makes them ideal for use in devices that are used frequently, such as keyboards and keypads.
    • Consistency: Metal domes provide a consistent tactile response, which means that users can rely on the same level of feedback every time they press a button. This can improve user experience and accuracy.
    • Cost-effectiveness: Metal domes are relatively inexpensive to manufacture, which makes them a cost-effective solution for manufacturers.
      Space-saving: Metal domes are small and can be placed close together, which makes them ideal for use in compact devices.
    • Customization: Metal domes can be customized with different shapes, sizes, and force requirements to suit the specific needs of a particular device or application. This allows manufacturers to create unique user experiences for their products.
