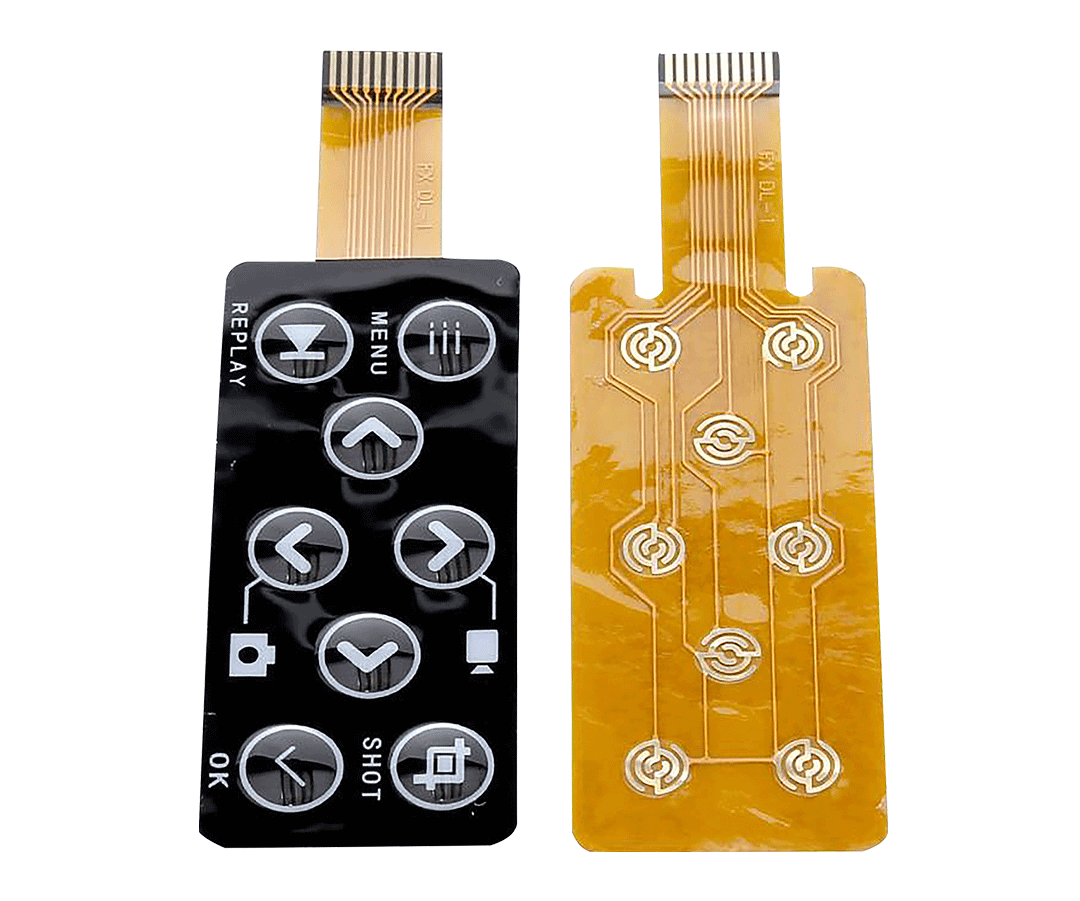

Backlit Membrane Switch

Here are three other types of LED membrane switches

It seems like you’re comparing different backlighting technologies for membrane switches. Here’s a breakdown based on your descriptions:

Electroluminescent (EL) Backlight

Fiber Optics Backlight

LED Backlight

Each technology has its strengths depending on the application’s requirements for brightness, lifespan, power consumption, and size of the lit area. If you need more specific details or have further questions about integrating these into your membrane switch designs, feel free to ask!

Applications of Backlit Membrane Switches

Shanyo specializes in custom membrane switches for medical equipment and laboratory use, emphasizing antibacterial materials and easy cleaning for hygiene. Backlight, glue tech, and digital printing boost functionality and aesthetics, meeting demanding practical and design needs.

Shanyo’s experienced team of engineers and designers work closely with clients to create innovative solutions that ensure reliable performance and user satisfaction. With a commitment to quality and precision, Shanyo delivers cutting-edge membrane switch technology tailored to meet the unique requirements of the medical and laboratory industries.

Electroluminescent (EL) Backlight

For industrial controls, ensuring that membrane switches meet high standards for moisture and UV resistance is crucial due to the demanding conditions of industrial environments. The choice of materials plays a significant role in achieving these requirements.

Key Considerations for Industrial Control Membrane Switches

1. Waterproof Performance:
– IP Ratings: Industrial controls often require membrane switches to meet IP65 or higher ratings, ensuring protection against dust and water.
– Sealants: High-quality adhesives and sealants are necessary to prevent water ingress.
– Design: Incorporating features like waterproof frames and gaskets can enhance the water resistance of the switch.

2. UV Resistance:
– Materials: Using UV-resistant materials such as polycarbonate or UV-coated polyester can protect the switch from sun damage.
– Inks and Coatings: UV-resistant inks and protective coatings can prevent fading and degradation due to UV exposure.

Material Selection Guide for Industrial Controls

1. Overlay Materials:
– Polycarbonate (PC): Offers excellent durability and UV resistance. Suitable for outdoor applications.
– Polyester (PET): Known for its flexibility and resistance to moisture and UV light.

2. Adhesives:
– 3M Adhesives: High-performance adhesives from 3M can ensure strong bonding and seal against moisture and contaminants.

3. Substrate Materials:
– Polyimide: Ideal for flexible circuits due to its thermal stability and resistance to moisture and chemicals.
– FR4 (Fiberglass Epoxy): Commonly used in rigid circuit boards, providing mechanical strength and moisture resistance.

Shanyo’s Expertise

Shanyo specializes in designing and producing membrane switches that meet the stringent requirements of industrial applications. By utilizing high-quality materials and advanced manufacturing processes, Shanyo ensures that its products offer:

– Durability: Long-lasting performance even in harsh conditions.
– Reliability: Consistent functionality with high moisture and UV resistance.
– Customization: Tailored solutions to meet specific application needs, including size, color, and backlighting options.

By referring to Shanyo’s comprehensive membrane switch design guide, you can select materials that ensure your industrial control applications meet the necessary waterproof and UV resistance standards. Shanyo’s expertise and high-quality materials can significantly enhance the performance and reliability of your membrane switches in demanding industrial environments.

Health & Fitness Equipment

In the health and fitness equipment industry, especially for treadmills and similar devices, membrane switches are a popular choice due to their durability and ease of use. Given the frequent exposure to sweat, salt, and moisture, it’s essential to use materials that can withstand these harsh conditions. Here are some key considerations for membrane switches in fitness equipment:

1. Corrosion Resistance: The materials used should resist corrosion to ensure longevity and reliability. This can include using protective coatings or selecting inherently resistant materials.

2. Waterproofing: Ensuring that the membrane switch is waterproof can prevent moisture ingress, which can cause malfunctions. Waterproof seals and coatings are essential.

3. Durability: The membrane switch must be durable enough to withstand frequent use and physical stress without wearing out.

4. Ease of Cleaning: Fitness equipment needs to be easy to clean and maintain. Smooth, non-porous surfaces on membrane switches can help in this regard.

5. Customizability: The design of the membrane switch should be customizable to accommodate different functionalities and aesthetic preferences, such as backlighting and tactile feedback.

6. High Reliability: In fitness environments, where equipment is used intensively, high reliability is crucial to avoid downtime and ensure user safety.

Using membrane switches optimized for these conditions can significantly enhance the user experience and extend the lifespan of fitness equipment.

In which industry do you work?

Contact Shanyo today or visit our Product Gallery for high-performance inventory and customized LED membrane switches for your unique applications. If you have any questions, please contact shanyonod@gmail.comWe are here to assist you in finding the perfect solution for your specific needs. Whether you require a standard product or a completely custom design, our team at Shanyo is dedicated to providing you with top-notch service and innovative solutions. Feel free to reach out to us with any inquiries or requirements you may have.

Backlit Membrane Switch Standard Structure

When designing graphic overlays and membrane switch panels, it is essential to consider the following options and materials based on the specific requirements and application environments:

Graphic Overlays

Printing Techniques

– Digital Printing: Offers high resolution and vibrant colors, suitable for detailed and intricate designs.
– Screen Printing: Provides durability and resistance to environmental factors, ideal for harsh environments.

Customization Effects

– Glass, Metal, Wood, Stone Effects: Customizable to mimic various materials, enhancing aesthetic appeal.
– Hardened Glass and Stainless Steel Panels: Suitable for severe environments requiring robust and durable materials.

Window Materials

Options

– Transparent: For clear visibility of underlying displays.
– Frosted: To diffuse light and reduce glare.
– Colored: To match design aesthetics or functional requirements.

Material Choices

– EBG Series: Scratch-resistant, ideal for large windows needing clear visibility.
– PC (Polycarbonate) or Lexan Overlay: Suitable for panels, providing durability and clarity.

Surface Finishes

– Selective Textures: Customizable to enhance tactile feedback and appearance.
– UV Hard-Coat Surface Finishes: Adds durability and scratch resistance.

Tactility and Domes

– Tactile or Nontactile: Based on user interaction requirements.
– Snap Dome or Nonsnap Dome: For feedback preferences, with snap domes providing a noticeable click.

Embossing

– Pillow Rim-Embossed Panels: Adds a raised edge around buttons for tactile differentiation and aesthetic enhancement.

Adhesives

– Optically Clear Adhesive (OCA): Ensures clear visibility and strong bonding.
– Liquid Optically Clear Adhesive: Used for applications requiring liquid bonding.
– Air Gap: Can be utilized in optical bonding to enhance display clarity.

Shielding and Support

– EMI/RFI Shielding: Protects against electromagnetic and radio frequency interference.
– Rigid Support Backers: Options like aluminum and FR4 with PEM mounting fasteners for structural integrity.

Connectors

– Standard Connectors: ensure compatibility and ease of assembly.

By carefully selecting materials, finishes, and components based on these considerations, you can design high-performance and aesthetically pleasing membrane switch panels and graphic overlays tailored to specific applications and environments.
