Metal Dome Basics

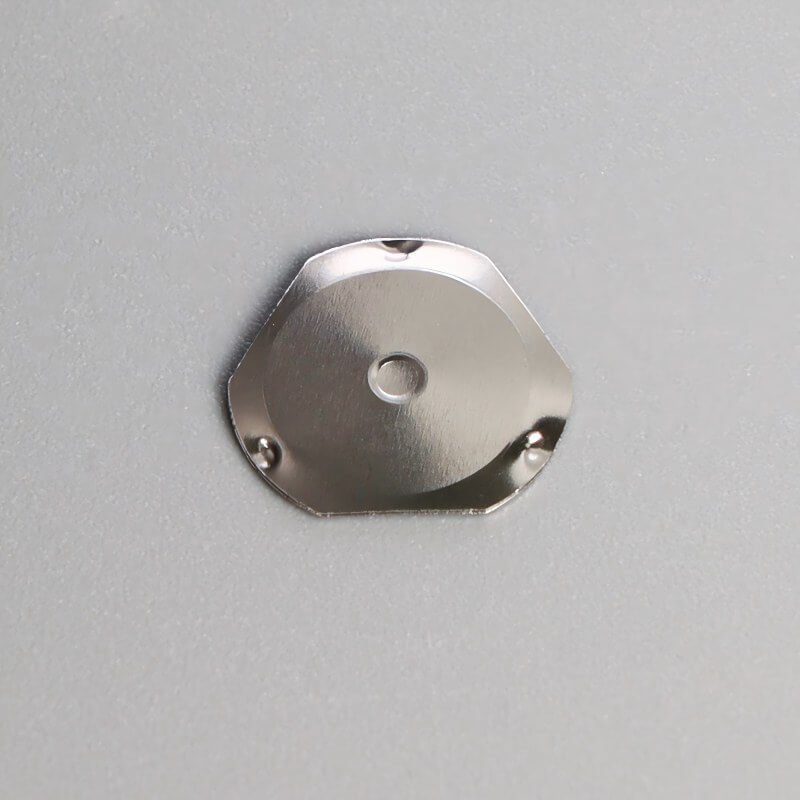

What Is a Metal Dome
A metal dome is a thin piece of metal. It works like a switch in devices. You put it inside electronics to help control things. When you press the dome, it bends down. This lets it touch the circuit. That sends a signal to the device. You see metal domes in keypads and remotes. They are also in other user controls. They give a clear feel when you press a button.
Tip: Picking the right metal dome can make your product feel better.
Common Applications
You find metal domes in many fields. They are used in products with buttons that must work well. Here are some places you see them:
- Industrial control panels: These need switches that last a long time.
- Medical devices: These need good feedback for important tasks.
- Consumer electronics: These need a nice click in remotes and gadgets.
- Automotive systems: These need fast response in car controls.
A metal dome helps make devices work better. It makes sure each press is correct and works every time. Choosing the right dome makes your device work and feel better.
Metal Dome Selection Criteria
Actuation Force
You need to choose the right actuation force for your application. Actuation force means how much pressure you must apply to press the metal dome. If you pick a dome with a low actuation force, users can press it easily. This works well for devices that need fast or frequent input, like remote controls or handheld scanners. A higher actuation force gives a firmer feel. This suits industrial panels or medical equipment where you want to avoid accidental presses.
You should test different actuation forces to see what feels best for your users. The right force improves comfort and reduces fatigue. It also helps prevent mistakes. Always match the actuation force to the needs of your device and the people who will use it.
Metal Dome Shapes and Sizes
Metal domes come in many shapes and sizes. The most common shapes are circular, four-legged, triangle, and oblong. Each shape has its own benefits.
- Circular domes give a balanced feel and work well in most keypads.
- Four-legged domes offer strong stability and fit well in larger buttons or industrial controls.
- Triangle domes provide a unique tactile response and suit special layouts.
- Oblong domes fit narrow spaces, like slim remote controls.
Size matters too. Most metal domes range from 6mm to 20mm. Small domes fit compact devices, like wearables or small remotes. Large domes work better in equipment that needs a bigger button area, such as control panels. The size and shape you choose affect how the button feels and how reliable it is over time.
Tip: Always match the dome shape and size to your product’s design and user needs.
Sweet Spot and Reliability
The “sweet spot” is the best place to press on the metal dome. A good sweet spot makes the button easy to use. If the sweet spot is too small, users may miss it and the button may not work every time. A large sweet spot helps users press the button correctly, even if they do not hit the center.
Reliability depends on the sweet spot and the dome’s design. A well-designed metal dome gives the same response every time you press it. This is important for devices that need to work without fail, like medical or industrial equipment. You should always test the dome in your product to make sure the sweet spot is easy to find and the dome works well after many presses.
Tactile Feedback
Tactile feedback is the feeling you get when you press the metal dome. Some domes give a light click, while others give a strong, sharp click. The right feedback depends on your application.
- Light feedback works well for devices that need quiet operation, like medical devices or office equipment.
- Strong feedback suits products where users need to feel each press, such as industrial controls or automotive buttons.
Tactile feedback helps users know when they have pressed the button. This reduces errors and improves the user experience. You should always test different domes to find the feedback that fits your product best.
Quality Indicators
You must check the quality of each metal dome before you use it in your product. High-quality domes have a smooth shape and even surface. The edges should not have burrs or rough spots. The dome should fit its size and shape exactly.
| Quality Indicator | What to Look For |
|---|---|
| Shape | Smooth and even |
| Circumference | No sharp or rough edges |
| Burrs | None present |
| Accuracy | Matches design specifications |
A good metal dome lasts longer and works better. Poor quality domes can fail early or give a bad user experience. Always inspect domes before you use them. You can also ask your supplier for samples to test in your own devices.
Note: Reliable suppliers will provide quality reports and help you choose the best dome for your needs.
Conclusion
Picking the right metal dome helps your product work better. Try out samples with your team to see how they feel. Make sure the tactile feedback and actuation force are good. Talk to experts so the dome fits your device. Always look for quality and make sure it is reliable. Think about what your product needs and what users want for the best outcome.
