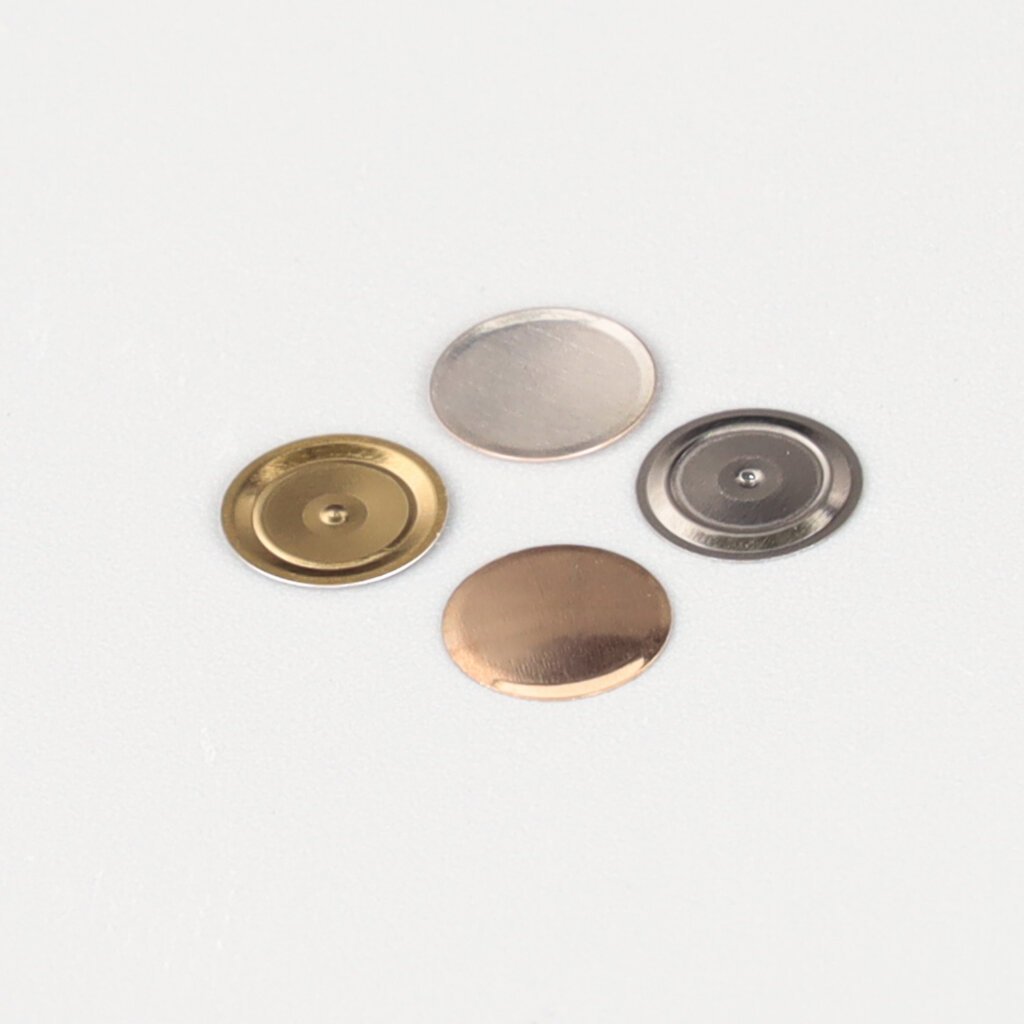

With 22 years of deep expertise in metal dome switches, Qingdao Shanyo Precision Electronics has been a trusted partner for global consumer electronics leaders. In the world of metal domes, “Reliability” isn’t just a metric—it’s the heartbeat of the user experience.
While the industry standard for metal dome life cycles typically hovers around 500,000 activations (tested at 2x the rated load), a few years ago, we were tasked with a challenge that pushed the boundaries of material science and precision engineering.
The Challenge: Beyond Industry Limits
A world-class customer—Amazon—approached us with a critical project requiring an unprecedented level of durability. The specifications were rigorous:
● Target Life Cycle: 1,000,000 activations.
● Strike Force: 1kgf (kilogram-force).
● The Difficulty: This force was more than 5 times the standard load, representing the highest reliability requirement in the industry.
The Solution: A Triple-Pillar Engineering Breakthrough
To meet this “impossible” demand, Shanyuan established a dedicated R&D task force. After six months of rigorous experimentation across product design, material selection, and stamping processes, we achieved a breakthrough through three key pillars:
1. Circular Blanking Tooling Design
Conventional tooling often leaves micro-interfaces or “seams” during the blanking process. These points are the primary sites for stress concentration and eventual fracturing. We implemented a Full-Circle Blanking Mode, eliminating all interfaces to ensure a seamless edge, fundamentally removing the risk of premature cracking.
2. Advanced Material Science & Heat Treatment
Reliability starts at the source. We partnered with top-tier rolling and material manufacturers to ensure exceptional surface smoothness, which is directly correlated with fatigue resistance.
●Optimization: We fine-tuned the heat treatment process to achieve the perfect equilibrium between tensile strength and hardness. By elevating the material hardness through precise thermal control, we significantly extended the dome’s elastic life.
3. Precision Process Management
High-quality design requires high-fidelity execution. Our stamping process was governed by surgical precision:
●Burr Control: We maintained a strict grinding schedule for the punch and die every 200,000 strokes. This ensured that product burrs were consistently controlled under 0.01mm.
●High-Performance Lubrication: We selected premium drawing oils to enhance tool wear resistance, maintaining the stability of the dome’s geometry over millions of cycles.
The Result: 2 Billion Success Stories
This engineering success was a transformative milestone for both our client and Shanyuan:
●Strategic Replacement: Our solution successfully replaced high-cost Japanese imports, providing our client with significant cost efficiencies without compromising quality.
●Mass Production Excellence: For over six years, we operated three sets of duplicate high-precision molds, delivering over 2 billion units to our customer.
●Industry Benchmark: Today, this high-life metal dome is recognized as an industry benchmark and has been widely adopted across a diverse range of premium electronic products.
Partner with Shanyo for Custom High-Reliability Metal Domes
At Shanyo, we don’t just manufacture components; we engineer custom reliability solutions for demanding applications. Whether you require 1-million-cycle endurance, extreme force profiles, or custom tactile dome arrays, our 22-year engineering legacy ensures your product stands the test of time.
