Why Do Membrane Switches Fail? Lifespan & Performance Factors

Membrane switches have a bit of a reputation, and for the most part, it’s a good one. They are seen as the durable, sealed, and reliable workhorses of the user interface world. You find them on everything from gas pumps to medical equipment for one simple reason: they are built to last. They have no moving parts (mostly), are sealed from the elements, and are pretty simple electrically.

So, when they do fail, it can be confusing. A component that’s supposed to last for millions of cycles suddenly quits.

The reality is, while these keypads are incredibly tough, they aren’t immortal. Their failure is rarely a random event. It’s almost always a story of environmental factors, design choices, or mechanical wear finally catching up. Understanding why they fail is the key to preventing it, and it usually comes down to a mismatch between the switch’s design and the world it’s been asked to live in.

The Lifespan Number: What Does “1 Million Cycles” Even Mean?

First, let’s talk about that membrane switch manufacturer love to advertise: the actuation lifespan. You’ll see ratings of 1 million, 3 million, or even 10 million cycles. This number specifically refers to the mechanical and electrical life of the switch contacts under laboratory conditions.

It’s an important metric, for sure. But it’s not the whole story.

That 1-million-cycle rating doesn’t mean much if the graphic overlay cracks after six months in the sun, or if the adhesive gives up after being wiped down with a harsh cleaner 100 times. A switch “failing” isn’t always about the button-press itself. It’s about the failure of the entire system.

Mechanical Failures: The Obvious Wear and Tear

This is the most common and expected type of failure. It’s all about the physical act of pressing the button, over and over again.

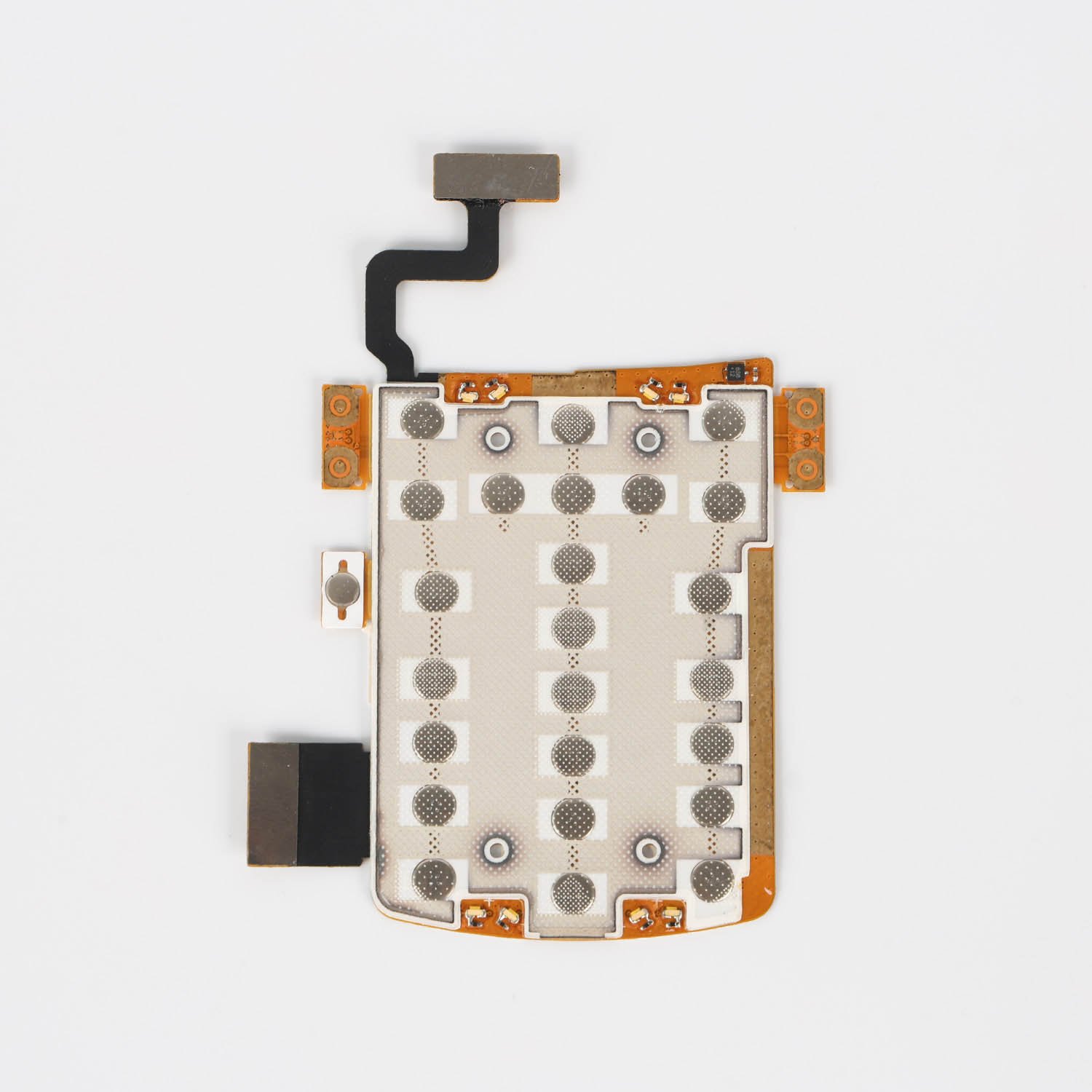

• Tactile Dome Fatigue: If you have a tactile switch (the one that gives you a “click”), that click comes from a small metal dome. While these domes are rated for a high cycle life (often 1 million+), they are still a piece of spring metal. Eventually, they can fatigue, crack, or “invert” (get stuck in the “down” position). This is often accelerated by “point loading”—jabbing the button with a pen tip or a long fingernail instead of a finger pad.

• Circuit Trace Cracking: The circuit itself is made of conductive silver ink printed onto a flexible polyester (PET) layer. Every time you press a button, that layer flexes. Over millions of cycles, or if the switch is excessively flexed or bent during installation, these silver traces can develop micro-cracks. The result? An open circuit. The button just stops responding.

• “Polydome” Breakdown: In some switches, the “spring” is just a formed plastic dome in the overlay itself. These are very durable but can eventually lose their shape (plastic creep) or crack, leading to a loss of tactile feel or eventual failure.

Environmental Attack: The Silent Killer

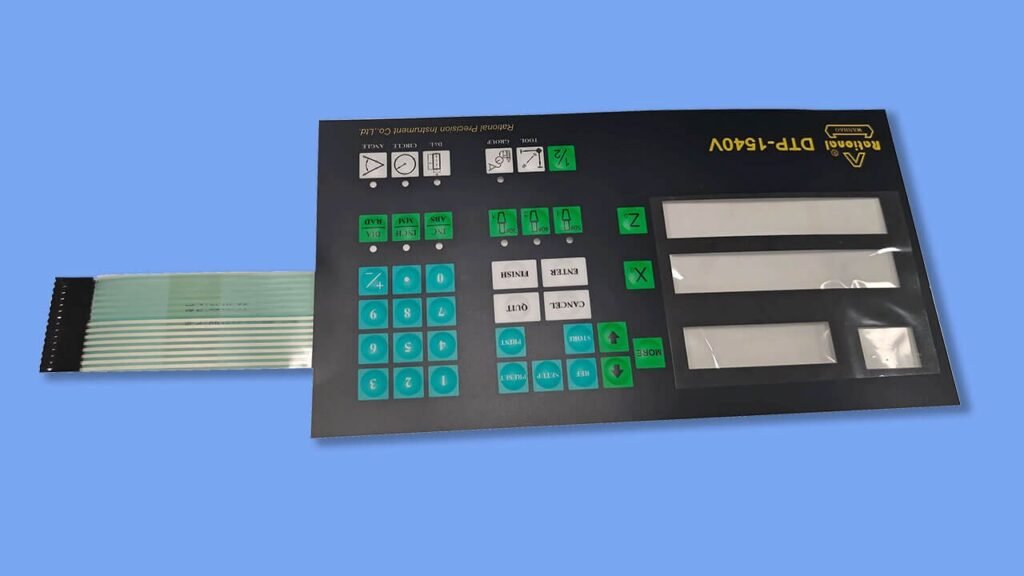

Moisture and Liquid Ingress This is a huge one. Membrane switches are “sealed,” but that seal is only as good as its IP (Ingress Protection) rating. A switch designed for an indoor office (maybe IP54) will not survive a pressure-washing on a factory floor. Water, oil, or cleaning solutions can find their way in, often through the “tail” (the ribbon cable exit) or a weakness in the perimeter adhesive. As a result, a water-proof membrane switch is critical for moisture environment.

Once inside, moisture plus electricity creates a nightmare scenario called silver migration. The silver particles in the conductive traces literally “move” across the insulating material, growing tiny, conductive filaments called dendrites. These dendrites eventually bridge two traces that shouldn’t be touching, creating a short circuit. The button might “press itself,” or just short out the whole keypad.

UV and Chemical Exposure For outdoor equipment, the sun is a brutal enemy. UV radiation breaks down the plastics and inks.

• The graphic overlay (often polycarbonate) can become brittle, yellow, and crack.

• Colors will fade, making the interface hard to read.

• The adhesives holding the layers together can fail, leading to delamination (see below).

Polyester overlays are generally far more resistant to UV and chemicals than polycarbonate, which is a key design choice. Similarly, in hospitals or food processing, daily wipe-downs with harsh sterilizing chemicals can eat away at the wrong type of overlay or adhesive.

Adhesive and Layer Failures: Coming Apart at the Seams

Membrane switches are, at their core, a high-tech sandwich of layers (graphic overlay, adhesive, dome layer, circuit layer, rear adhesive). That entire sandwich is held together with… glue. And that glue is a common point of failure.

• Delamination: This is when the layers of the switch itself start to separate. You might see a “bubble” or “tunnel” forming under the graphic overlay. This not only looks bad but, more importantly, it breaks the internal seal and creates a perfect pathway for moisture and dust to get into the circuitry.

• Rear Adhesive Failure: This is when the adhesive that holds the entire switch assembly to the product’s enclosure fails. The keypad starts to peel off. This is almost always due to specifying the wrong adhesive for the mounting surface. Adhesives are picky; one designed for smooth, high-energy metal will not stick well to a textured, low-surface-energy plastic.

Electrical Failures: The Invisible Zap

Finally, the switch can fail from electrical events. The most common is ESD (Electrostatic Discharge). A user walking across a carpet on a dry day can build up thousands of volts. If they touch the keypad and there isn’t proper shielding (like a built-in carbon layer or a ground path), that static “zap” can travel right down the switch’s tail and fry the sensitive microprocessor (MCU) it’s connected to.

The switch itself might be fine, but the product is dead. From the user’s perspective, the “keypad failed.”
