What Is A Metal Dome Switch?
A metal dome switch is a type of tactile switch found in countless electronic devices. These small, dome-shaped pieces of metal sit on a printed circuit board and create an electrical connection when pressed. The “click” feeling when pushing a button on a remote control or keyboard? That’s often a metal dome switch doing its job.
The basic concept isn’t complicated. A thin metal disc, usually made from stainless steel, gets formed into a dome shape. When someone presses down on it, the dome collapses and touches a contact point below. Release the pressure, and the dome springs back to its original shape. Simple, reliable, and surprisingly satisfying to use.
How Does It Actually Work?
The operation relies on something called snap-action. The dome holds its shape until enough force gets applied, then suddenly buckles with a distinct tactile pop. This instant feedback tells users their input registered successfully.
Here’s what happens step by step:
- User applies downward pressure on the button
- Force transfers through an overlay or actuator to the dome
- Dome resists initially, building tension
- At the actuation point, dome suddenly collapses
- Collapsed dome contacts the PCB trace below
- Electrical circuit completes, registering the input
- User releases pressure
- Dome snaps back to original position
- Circuit opens again
The whole sequence takes milliseconds. Most people never think about what’s happening underneath their fingertip, but there’s genuine engineering behind that satisfying click.
Types of Metal Dome Switches
Not all domes are created equal. Manufacturers produce various configurations depending on what the end product requires. Shape, size, and material all play into performance.
Common Shapes Available
Round metal dome switches remain the most popular choice. They provide consistent feedback regardless of where pressure gets applied on the surface. But other options exist for specific situations.
| Dome Shape | Primary Benefit | Typical Use |
|---|---|---|
| Round (circular) | Uniform feel from any angle | Remote controls, general electronics |
| Square | Maximizes space in grid layouts | Keyboards, membrane keypads |
| Oval | Fits elongated button designs | Slim devices, wearables |
| Four-leg | Extra stability, longer lifespan | High-use applications |
Size and Force Variations
Dome diameter typically ranges from 4mm up to 20mm. Smaller domes suit compact devices like earbuds or smartwatches. Larger ones work better for applications where users need more substantial feedback.
Force ratings matter too. Light-touch domes around 100-150 grams feel soft and easy to press. Heavier options reaching 300-400 grams prevent accidental activation. Industrial equipment often uses higher force ratings since operators might be wearing gloves or working in environments with vibration.
Why Choose Metal Dome Switches?
Several characteristics make these components attractive for product designers. Cost sits near the top of the list, but performance factors in heavily as well.
Benefits worth noting:
- Long operational life, often exceeding 1 million cycles
- Consistent tactile response throughout product lifespan
- Thin profile enables sleek device designs
- Lower cost compared to mechanical key switches
- Good resistance to dust and moisture when properly sealed
- Customizable force and travel characteristics
The tactile feedback deserves special mention. Users generally prefer buttons that “feel” like something happened. A mushy, unresponsive button creates uncertainty. Did the input register? Should it be pressed again? Metal dome switches eliminate that ambiguity with their crisp snap action.
Where Are Metal Dome Switches Used?
Honestly, they show up everywhere. Looking around any room reveals multiple devices probably containing these switches.
Common applications include:
- Television and streaming device remotes
- Computer keyboards and mice
- Automotive dashboard controls
- Medical monitoring equipment
- Industrial control panels
- Household appliances like microwaves
- Gaming controllers
- Elevator buttons

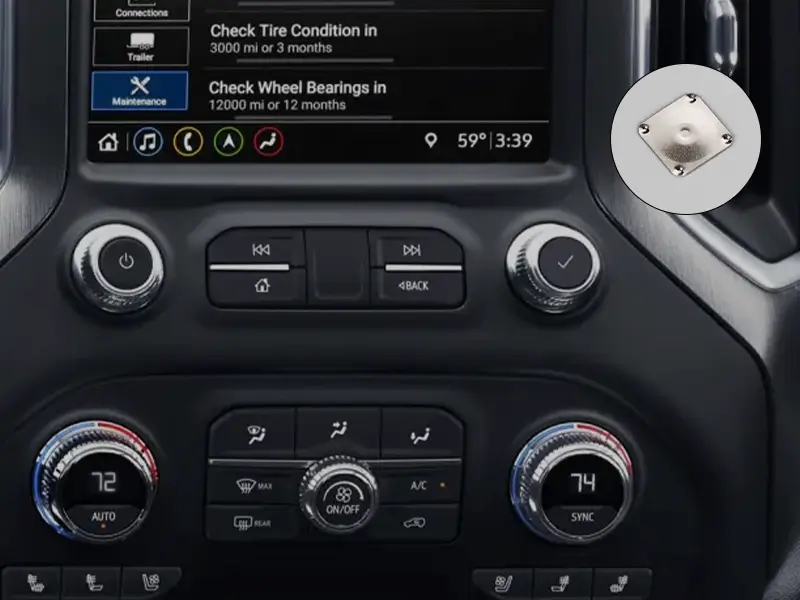

Consumer electronics represent the biggest market segment. But medical and automotive sectors demand them for reliability reasons. When a car’s hazard light button needs to work perfectly for years under temperature extremes and constant vibration, metal dome technology delivers.
FAQ
How long do metal dome switches last?
Quality metal domes typically survive 1 million to 5 million actuations. Premium versions designed for heavy-use applications can exceed 10 million cycles. Lifespan depends on material grade, force rating, and operating conditions.
Can metal dome switches be used outdoors?
Yes, with proper design considerations. The switches themselves resist corrosion reasonably well. However, the complete assembly needs appropriate sealing through overlays or gaskets to prevent moisture and debris from causing problems. Industrial and automotive applications regularly use them in challenging environments.
What's the difference between metal dome switches and rubber dome switches?
Metal domes provide sharper, more defined tactile feedback with a distinct “click” sensation. Rubber domes feel softer and quieter. Metal versions generally offer longer lifespan and more consistent feel over time, while rubber domes cost less and work well for budget applications.
