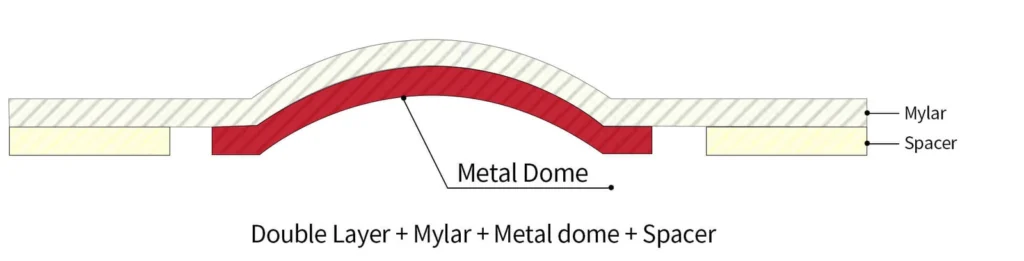

Double Layer Metal Dome Array Structure
Advantages Showcase
METAL DOME SHEET ASSEMBLY METHOD

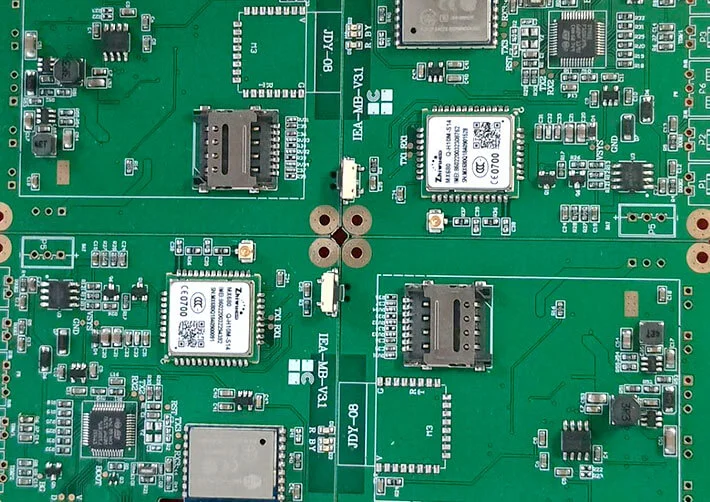

Single Dome Sheet

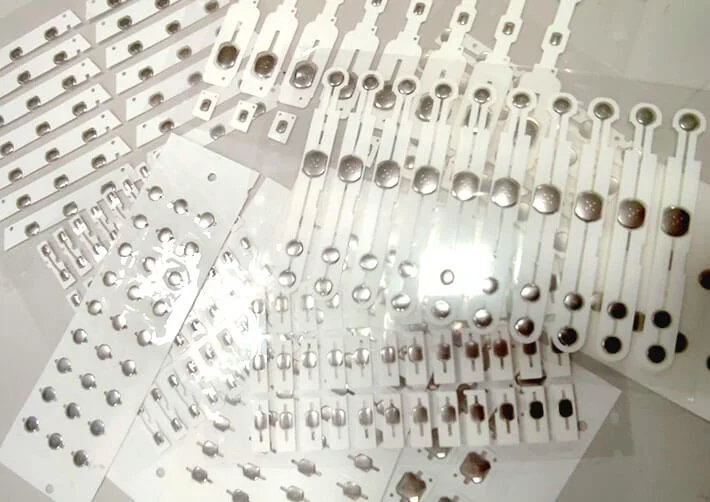

Panel Dome Sheet

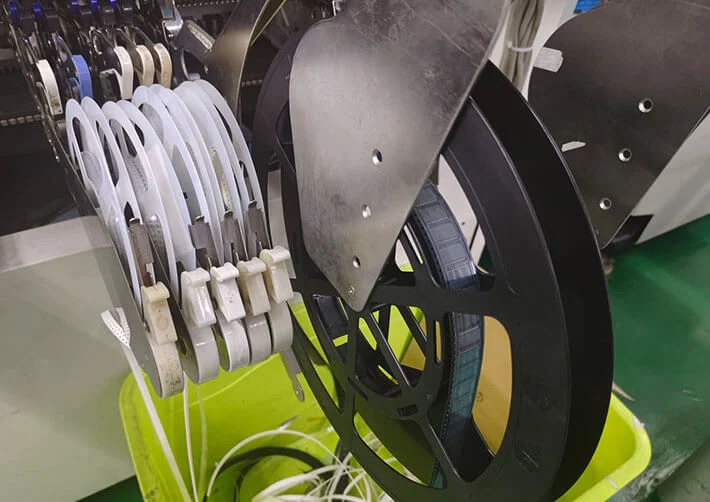

SMT
Metal Dome Array! Widely used
Metal dome Array(Sheet)

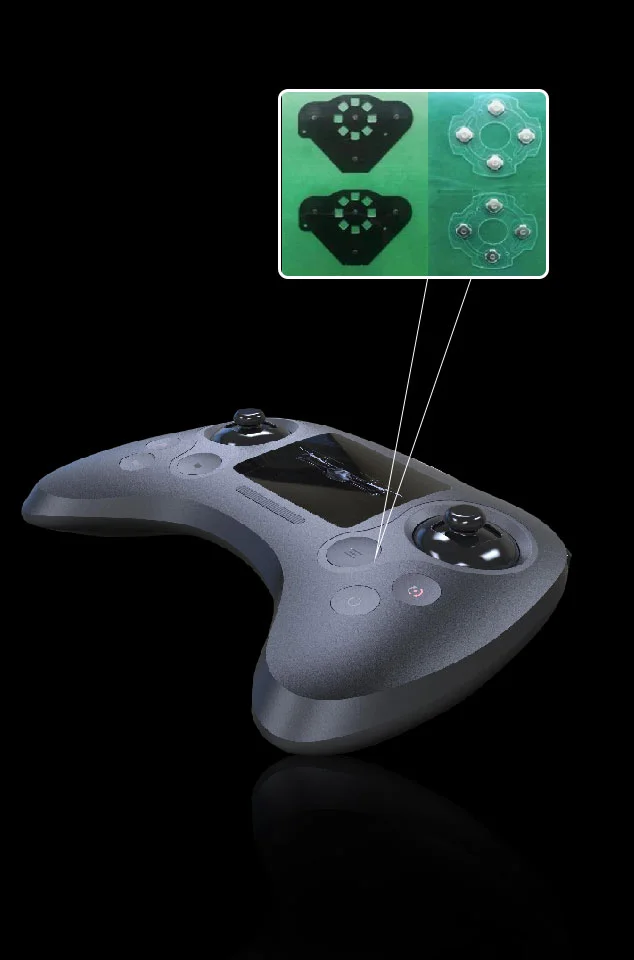

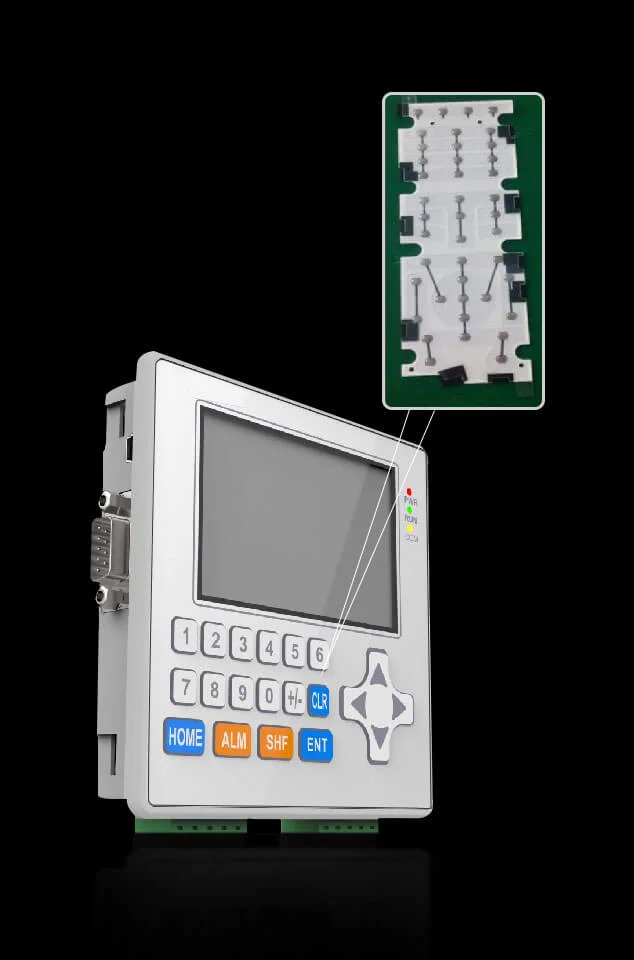

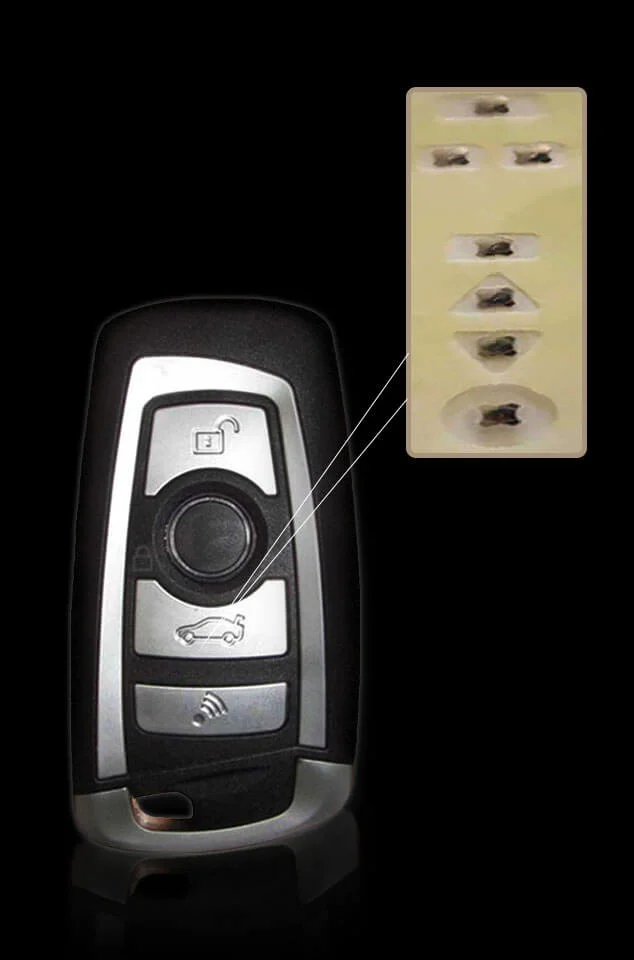

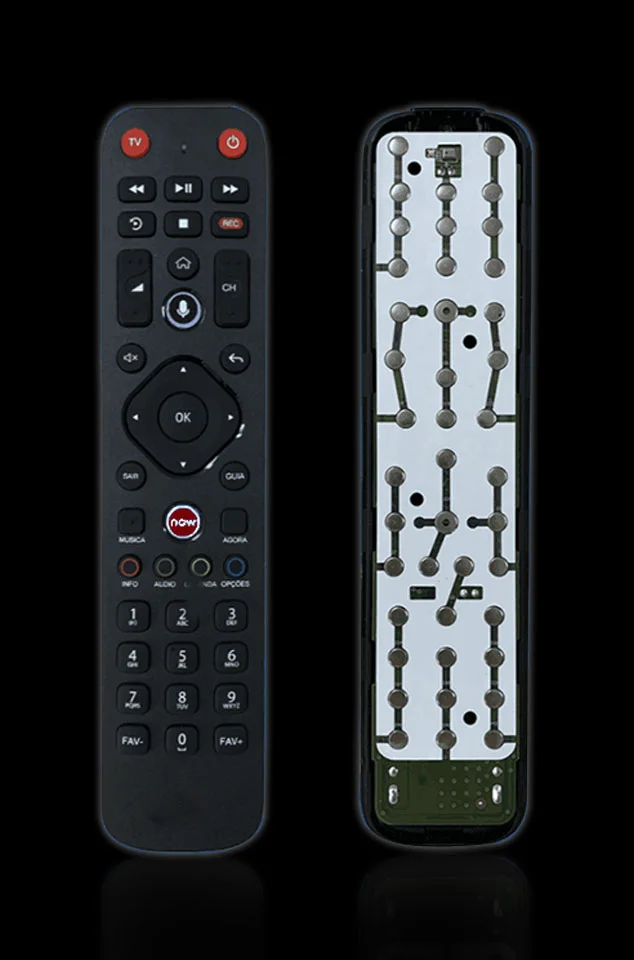

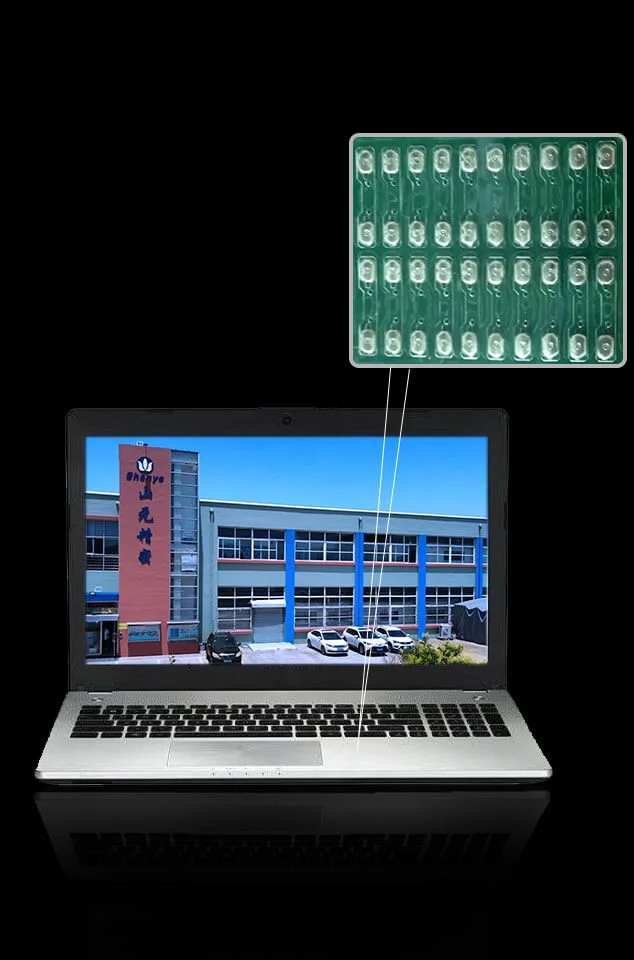

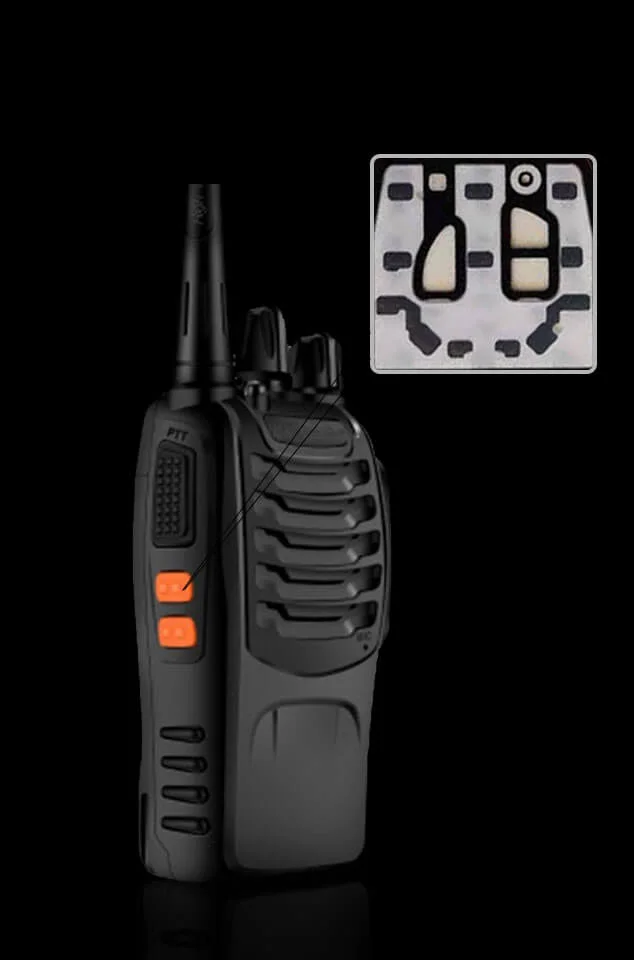

This product is extensively used in various electronic devices, such as mobile phones, cameras, computers, remote controllers, printers, game consoles, smart wearables, financial terminals, medical equipment, mechanical devices, sports gear, home appliances, automotive electronics, and more.
Metal dome design principle
Our Metal Dome Array Machining Services Shanyo’s custom Metal Dome(Snap Dome) services are the solution for engineers, product developers, and designers requiring prototyping and low-volume production. From simple to intricate designs with tight tolerances;
Shanyo’s ISO 9001 quality management system certification ensures excellence. A professional design and technical team, gets the drawings to communicate, and determine the plan. Our fast machining capabilities promise quality custom-machined parts delivered within 1 day.
According to the needs of different product structures and grades
Smooth
contact
Strong
conductivity
Stable
rebound
Good feel

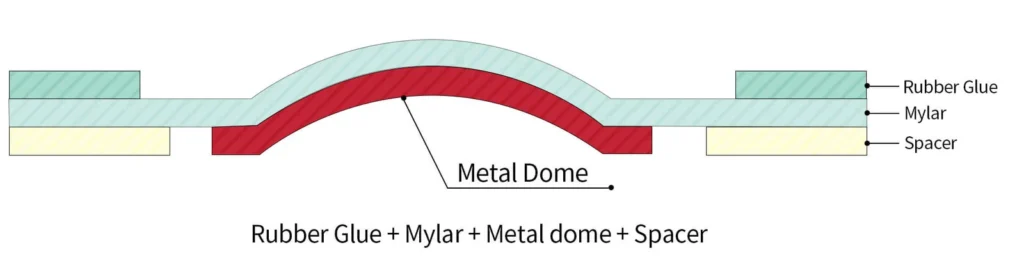

Dome Array Specifications
- Structure: Double Layers
- Material: Rubber glue + Mylar + Adhesive + Spacer + Adhesive + metal dome
- Color: Mylar: transparent; Spacer: white or transparent
- Thickness: Mylar: 0.05mm; Spacer: 0.075mm

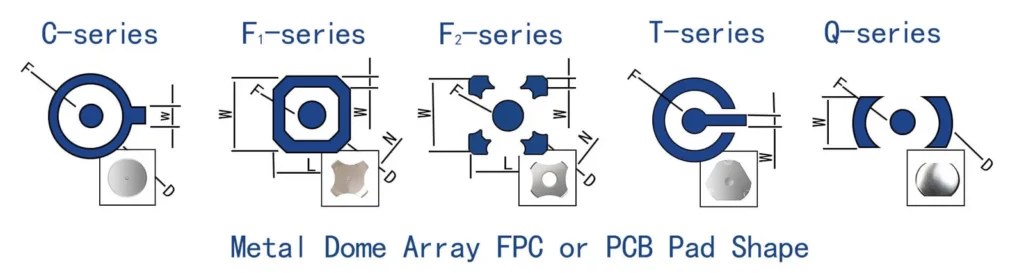

- Available Domes: c-series, F-series, T-series
- Operating & Storage Temprature: 5-125℃
Various specifications of metal domes are available：
- Triangle Metal Dome;
- Cruciform Metal Dome;
- Four Legs Tactile Domes
- Circular/ Round Metal Dome;

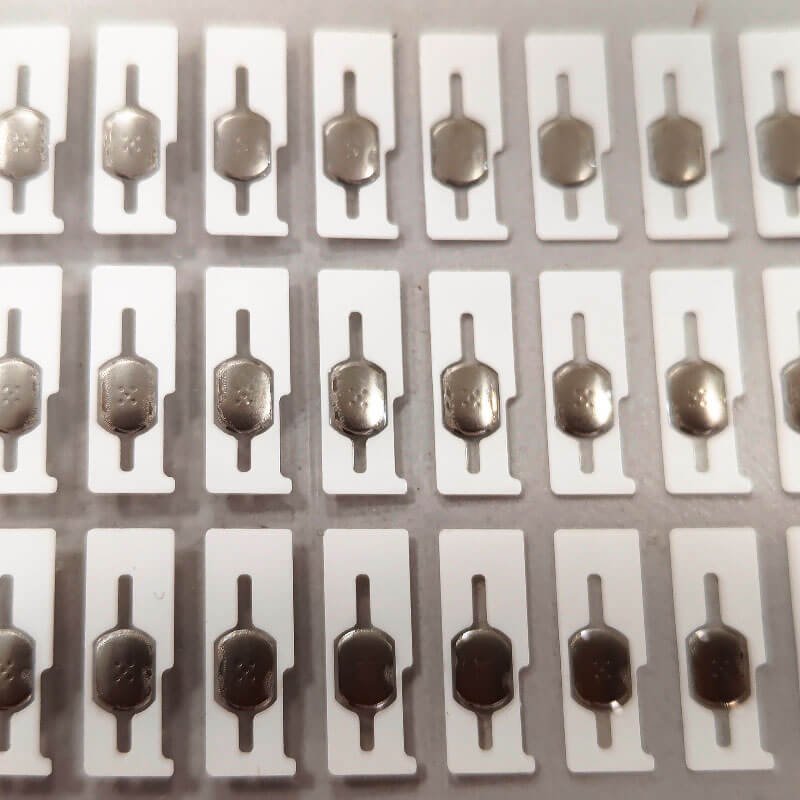

- Oblong/ Rectangle Metal Dome;
- Ellipse/ Round Waist Metal Dome;
- Circle / Round Metal Dome With Holes;
- Four Leg Metal Domes with Center Hole；
- Customized metal dome (color/ shape/ size, material, etc.).
Metal dome design principle
Metal Dome Array Classification
- Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect
Order Metal Dome Array Machining Parts Online: Easy &Fast
Upload your design file to our Instant Quote Platform and instantly receive pricing, lead time, and DFM details for your dome array components. Specializing in metal dome(snap dome) sheet machining for metals and plastics, we provide adaptive production and shipping solutions to align with your product development needs.
Instant Quotation
Eliminate long waits and reduce uncertainty. With our instant online quotations, you gain clear cost insights immediately, and free & professional DFM feedback, streamlining your Metal Dome Switch, Metal Dome Array, EMI Printing, Metal Dome Array, Light guide plate module, FPC switch, Membrane switch panel, Backlight Module, Equipment, die-cut products, light guides, UV bumps, FPC, panel buttons, PCB circuits, film flexible circuits and Packaging machining decisions.
Online Annotation
Say goodbye to tedious back-and-forths. Directly annotate your 3D drawing online and convey specific changes or queries instantly via live chat. Ensure precise machining requirements are communicated and understood without ambiguity.
All-in-One Project Management
Take full control of your Metal Dome (Snap Dome) projects. Manage both quotes and orders in a unified platform. Effortlessly oversee every project, ensuring that each stage is transparent and easily accessible.
Team Collaboration
Strengthen your metal dome array (metal dome sheet) coordination. Create teams, invite members instantly, and access shared quotes & orders with ease. Include key departments like accounting, ensuring smooth payment oversight and execution.
Services
Why Choose Our Custom CNC Machining Service
Curabitur ac tristique nibh, at laoreet leo. Praesent cursus lacus nec dictum consequat. Aliquam nec fringilla enim, eu bibendum neque. Mauris id varius tellus. Suspendisse maximus lacus ac dui sodales efficitur.
Online Instant Quote & DFM Analysis
Consistent High Quality
Fast and Reliable Delivery
Professional Engineering Support
COMPANY CORE ADVANTAGE
Share innovation
actively communicate with domestic and foreign counterparts, cooperate, share technological achievements, constantly develop more new products to enrich the product catalog of enterprises, and strive to develop with old and new customers and colleagues in the industry who patronize our company.
Professional
The company specializes in the research development and production of metal shrapnel/pot pan disc and conductive film of metal shrapnel. It has very rich experience and can provide different shrapnel solutions according to customers ‘needs.
Overseas Quality
Since its establishment, it has been keeping pace with the times, improving the quality of metal shrapnel and conductive film of metal shrapnel to meet the harsh requirements of customers all over the world. The reliability and long-term stability of product quality have been continuously praised by foreign customers, and the quality has been rising steadily.
Rich products
from round, cross (four corners), waist round shrapnel to custom shrapnel, from single-layer structure, double-layer structure, EMI printing, Rubber structure.
Strict control
from the purchase of raw materials, mold design and production, product production, quality testing, packaging sales, and other aspects of strict operation by the requirements of ISO 9001:2015, to ensure the consistent reliability of products;
High-quality service
punctual delivery; free technical solutions and samples; quick response customers respond 1 hour after mail receipt; after-sales service 1 hour fast processing.
Are you a Trading Company or Manufacturing?
- We are a Professional Metal dome manufacturer, we have our own factory, and we are based in Qingdao, China, Shanyo Precision Electronic Technology Co., Ltd. is a professional manufacturer of mobile phones and digital product components. It was established in 2004 and has more than 200 employees. The main business is applied in consumer electronics, remote controls, mobile phones, automobiles, medical care, smart products, outdoor products, etc. The main products are metal dome array, Remote control buttons, die cutting, LGF, UV bumps, FPC, panel buttons, PCB lines, thin film flexible lines, etc. The Qingdao factory covers an area of more than 3,500 square meters. Currently, it has offices in Shenzhen, Shanghai, Taiwan, Malaysia, and Singapore, fully implementing the global marketing strategy. sell to Southern Europe (10.00%), Domestic Market (10.00%), Northern Europe (10.00%), Central America (10.00%), Western Europe (10.00%), Eastern Europe (10.00%), South America (10.00%), North America (10.00%), South Asia (5.00%), Southeast Asia (5.00%), Eastern Asia (3.00%), Oceania (3.00%), Mid East (2.00%), Africa (2.00%). There are a total of about 51-100 people in our office.
How do I request samples of your products?
- Stock Samples: If you paid the freight cost, we could provide free samples for you.
- Customized Samples: We will offer you 5 pcs free samples after we receive the setup cost.
- To request product samples, please email us at shanyonod@shanyo.com.
How do I request a quote?
- You can easily request a quote by filling out our Quote Form, or by sending us an e-mail at shanyonod@shanyo.com.
How can we guarantee quality?
- We process and produce products in strict accordance with the list of raw materials.
- Many of our engineers have many years of experience and are very responsible.
Always a pre-production sample before mass production;
Always final Inspection before shipment.
And video confirmation of packing with the customer.
Can you offer OEM Service?
- Surely Okay, we have Seasoned OEM service experience.
What is the Lead time of the sample?
- It takes 2-7 working days depending.
How fast can I get the Quotation?
- 30 mins ~ 24 Hours depends.
How to place an order?
- Please tell us your material, artwork design, logic circuit schematic diagram, size, surface, usage, etc. It is best to send us the design drawings or samples and other detailed data, and then we will customize the metal dome and metal dome array according to your requirements.
What services can we provide?
- Accepted Delivery Terms: FOB, EXW；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Escrow;
Language Spoken: English, Chinese
What products are die-cut?
- The die-cutting process is suitable for a variety of materials, including metal, plastic, paper, fabric, foam, wood, and composites.
Advantages of metal dome technology:
- Durability: Metal domes are highly durable and can withstand millions of actuations without failure. This makes them ideal for use in devices that are used frequently, such as keyboards and keypads.
- Consistency: Metal domes provide a consistent tactile response, which means that users can rely on the same level of feedback every time they press a button. This can improve user experience and accuracy.
- Cost-effectiveness: Metal domes are relatively inexpensive to manufacture, which makes them a cost-effective solution for manufacturers.
Space-saving: Metal domes are small and can be placed close together, which makes them ideal for use in compact devices. - Customization: Metal domes can be customized with different shapes, sizes, and force requirements to suit the specific needs of a particular device or application. This allows manufacturers to create unique user experiences for their products.
