Single Sided Flex
Single Sided Flex with Dual Access
Double Sided Flex
Multi Layer Flex

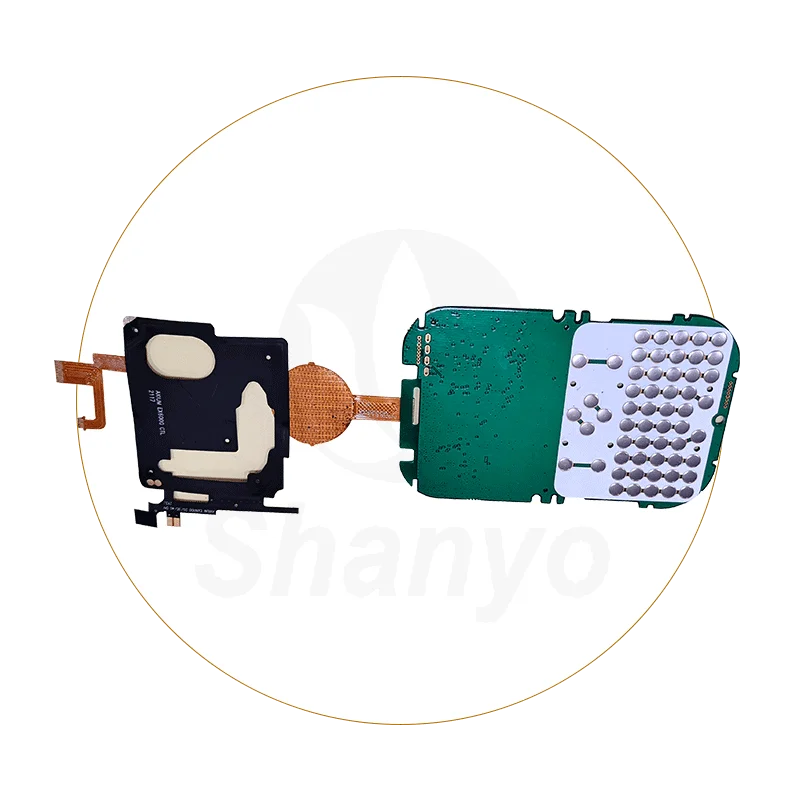

Rigid Flex
Flexible Circuits, Rigid Flex, Flexible Heaters, Flat Flex Cables, Membrane Switches, Plastic Moldings, Assemblies, Product Module Builds to Complete Product Box Builds.
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us
There are many high level benefits to Rigid Flex circuits including:
Connection Reliability
Connecting rigid layers with flexible cables is the foundation for a combination of rigid flex circuits. Rigid flex constructions eliminate the need for board-to-board connectors or wiring harnesses to link rigid boards together.Connecting rigid layers with flexible cables is the foundation for a combination of rigid flex circuits. Rigid flex constructions eliminate the need for board-to-board connectors or wiring harnesses to link rigid boards together.
Reduce parts count
Compared with traditional rigid boards, Rigid flex circuits require fewer parts and interconnections by eliminating wire harnesses and board-to-board connectors.
Flexible design options
At Flexible Circuit Technologies, we pride ourselves on guiding our customers through their most complex design challenges to deliver the most reliable and cost-effective designs. By utilizing rigid and flexible substrates, rigid-flex circuits can be designed to accommodate highly complex and unimaginable configurations. Rigid flex circuit design can include any of the following:
- Highly complex configurations
- Controlled Impedance
- High layer count
- Reduced interconnections
High density applications
By eliminating interconnection hardware, the combination of rigidity and softness can free up space, thereby achieving higher connection density. Generally, the rigid area of a rigid flexible circuit is used for high-density SMT device groups. The flexible region connecting the rigid region allows the circuit to form a 3 dimensional shape with multiple interconnected rigid regions on different planes.
Package size and weight reduction
Due to the ultra thin characteristics of flexible circuit materials and the ability to create very narrow circuit traces, higher connection density can be achieved while significantly reducing the overall system weight. The inherent low quality of rigid flex materials makes this interconnection system ideal for high shock and vibration applications.
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us
Rigid Flex Applications
The combination of rigid flex has two main functional applications. These are static (curved installation) and dynamic (continuous bending during the service life of the product). The design and construction of the rigid-flexible combination will depend on whether the application is static or dynamic.
Static application
An application that only requires a flexible circuit to be bent during installation to adapt to its application (also known as curved installation).
Dynamic bending application
An application where the flexible area is dynamically bent during normal operation. This range can range from a few hundred cycles to more than 1 million cycles.
Advances in rigid circuit board technology have broadened the scope of the application of electronic products, from computers, communications, and consumer electronics to automotive, medical, and military electronics. The growing demand for more powerful and smaller products has driven the demand for multiple layers to accommodate denser, finer line widths and spacing, as well as smaller hole sizes.
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us
Rigid Flex Materials
Conductor
Copper is the most widely used conductor used to build flexible and rigid flex conductors. Copper is available in a variety of thicknesses to meet customer requirements for current carrying capacity and voltage drop. Copper thickness is usually specified in ounces/square foot. The most common thickness is 1/3 ounce (.0005”/12um), ½ ounce (.0007”/15um), 1 ounce (.0014”/35um and 2 oz (.0028”/70um) Conductor options include：
- Rolled and annealed (RA) copper
- Super annealed copper (HA)
- Electroplated (ED) copper
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us
Adhesive
The choice of adhesive depends on the customer’s needs and the thickness of the conductor. Common adhesives include：
- Modified epoxy resin film
- Modified acrylic film
- Epoxy resin/glass prepreg
- Pressure sensitive adhesive (PSA)
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us
Insulator/dielectric
Flexible substrate (substrate) and cover layer materials are available in a variety of thicknesses, from 0.001 inches/25 microns to 0.005 inches/125 microns. Common dielectrics include：
- Polyimide film
- FR-4 (rigid epoxy resin/glass)
- Solder resist layer
- Photo imaged cover lay (PIC)
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us
Surface treatment
The completion depends on the assembly requirements of each customer and the application of the finished product. Common surface treatments include：
- ENIG (electroless nickel-plated immersion gold)
- ENEPIG (electroless nickel plating, electroless palladium plating, gold immersion)
- Solder (tin/lead, in line with RoHS standards)
- Hard nickel/gold
- Welding wire gold
- Tin
- Organic flux (OSP)
- Silver
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us
Printed Circuit Flexible PRODUCT DETAIL
| NO. | Item | Speci. |
|---|---|---|
| 1 | Layers | 1~32 |
| 2 | Board thickness | 0.1mm-7.0mm |
| 3 | Material | FR-4，CEM-1/CEM-3,Pl, High Tg, Rogers |
| 4 | Max panel size | 32"x48"(800mmx1200mm) |
| 5 | Min hole size | 0.075mm |
| 6 | Min line width | 3mil(0.075mm) |
| 7 | Surface finish | OSP, HASL, Imm Gold/Nickel/Ag, Electric gold |
| 8 | Copper thickness | 0.5-7.00Z |
| 9 | Soldermask | Green/Yellow/Black/White/Red/Blue |
| 10 | Silkscreen | Red/Yellow/Black/White |
| 11 | Min PAD | Red/Yellow/Black/White |
| 12 | Inter package | Vacuum |
| 13 | Outer package | Carton |
| 14 | Outline tolerance | ±0.075mm |
| 15 | Hole tolerance | PTH:±0.05 NPTH:±0.025 |
| 16 | Certificate | ISO 9001,ISO14001，IATF16949 |
| 17 | Special request | Blind hole+Gold finger + BGA |
Get Free Drawing Design
Contact UsFlexible Printed Circuit Board Manufacturers Production Process
Double-side plate system
Open material → Drilling → PTH → Plating → Pre-treatment → Dry film → Alignment → Exposure → Development → Graphic plating → Stripping → Pre-treatment → Dry film → Alignment → Exposure → Development → Etching → Stripping → Surface treatment → Overlay film → Pressing → Curing → Immersion of nickel and gold → Printing of characters → Cutting → Electrical testing → Punching → Final inspection → Packing → Shipments
Flexible Printed Circuit Board Manufacturers Production Process
Double-side plate system
Open material → Drilling → PTH → Plating → Pre-treatment → Dry film → Alignment → Exposure → Development → Graphic plating → Stripping → Pre-treatment → Dry film → Alignment → Exposure → Development → Etching → Stripping → Surface treatment → Overlay film → Pressing → Curing → Immersion of nickel and gold → Printing of characters → Cutting → Electrical testing → Punching → Final inspection → Packing → Shipments
China Flexible Printed Circuit Board Basic Structure
Common single panel structure diagram
Hollow plate composition
The combination of soft and hard plate composition
Multi-layer board structure diagram
The substrate generates a double sided laminated composition
Copper Film
The copper film is divided into electrolytic copper and rolled copper. The common thicknesses are 1oz 1/2oz and 1/3 oz.
Substrate Film: Common thicknesses are 1 mil and 1/2 mil.
Glues: Thickness depends on the customer’s requirement.
Cover Film
Cover Film: For surface insulation. Common thicknesses are 1mil and 1/2mil.
Glues: Thickness depends on the customer’s requirement.
Release Paper: To avoid foreign matter from adhesive before pressing; to facilitate the work.
PI Stiffener Film
PI Stiffener Film: Reinforces the mechanical strength of the FPC and facilitates the surface mounting process. Common thicknesses range from 3mil to 9mil.
Glues: Thickness depends on the customer’s requirement.
Glues (Adhesives): To avoid adhesive from sticking to foreign objects before pressing.
EMI: Electromagnetic shielding film protects the circuit board circuit from outside (a strong electromagnetic area or susceptible to interference area) interference.
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us
Flexible Printed Circuits FPC Advantages
FPC is a printed circuit made of flexible insulating substrate, with many advantages that rigid printed circuit boards do not have:
- can be free to bend, coil, and fold, according to the requirements of the spatial layout of any arrangement, and in three-dimensional space, arbitrary movement, and expansion, to achieve the integration of component assembly and wire connection;
- The use of FPC can greatly reduce the volume and weight of electronic products, applicable electronic products to high-density, miniaturization, and high reliability in the direction of development needs. Therefore, FPC in aerospace, military, mobile communications, laptop computers, computer peripherals, PDA, digital cameras, and other fields or products have been widely used;
- FPC also has good heat dissipation and solderability as well as easy to install and connect, has a lower overall cost, and has other advantages.
Order Fpc Flexible Printed Circuit: Easy & Fast
Upload your design file to our Instant Quote Platform and instantly receive pricing, lead time, and DFM details for your FPC and PCB components. Specializing in FPC and PCB machining for Consumer Electronics, we provide adaptive production and shipping solutions to align with your product development needs.
Instant Quotation
Eliminate long waits and reduce uncertainty. With our instant online quotations, you gain clear cost insights immediately, and free & professional DFM feedback, streamlining your Metal Dome Switch, Metal Dome Array, EMI Printing, Metal Dome Array, Light guide plate module, FPC switch, Membrane switch panel, Backlight Module, Equipment, die-cut products, light guides, UV bumps, FPC, panel buttons, PCB circuits, film flexible circuits and Packaging machining decisions.
Online Annotation
Say goodbye to tedious back-and-forths. Directly annotate your 3D drawing online and convey specific changes or queries instantly via live chat. Ensure precise machining requirements are communicated and understood without ambiguity.
All-in-One Project Management
Take full control of your FPC projects. Manage both quotes and orders in a unified platform. Effortlessly oversee every project, ensuring that each stage is transparent and easily accessible.
Team Collaboration
Strengthen your FPC coordination. Create teams, invite members instantly, and access shared quotes & orders with ease. Include key departments like accounting, ensuring smooth payment oversight and execution.
Services
Why Choose Our Custom flexible printed circuit design Service
Online Instant Quote & DFM Analysis
Online Instant quote request email, and get instant Dome Array quotes by simply uploading your design files. We can customize FPC of various sizes and shapes according to customer requirements. provides real-time & competitive pricing and comprehensive feedback.
Consistent High Quality
Advanced metal dome automatic assembly equipment multi-function testing equipment, and rigorous quality checks, combined with constant communication, ensure that every snap dome you receive meets the highest standards, consistently and reliably.
Fast and Reliable Delivery
Boasting robust manufacturing capacity, Shanyo’s ensures quick turnaround for tactile dome machined parts. Plus, with our varied dome array(snap dome switch) choices, you’ll get your order on time, without the usual hassles.
Professional Engineering Support
No matter where you are, you can get our 24/7 engineering support all year around. Our experienced engineer can provide you with the most appropriate solution for your metal dome customized design, material selection, surface finishing, and even lead time.
Company Core Advantage
Share innovation
actively communicate with domestic and foreign counterparts, cooperate, share technological achievements, constantly develop more new products to enrich the product catalog of enterprises, and strive to develop with old and new customers and colleagues in the industry who patronize our company.
Professional
The company specializes in the research development and production of metal shrapnel/pot pan disc and conductive film of metal shrapnel. It has very rich experience and can provide different shrapnel solutions according to customers ‘needs.
Overseas Quality
Since its establishment, it has been keeping pace with the times, improving the quality of metal shrapnel and conductive film of metal shrapnel to meet the harsh requirements of customers all over the world. The reliability and long-term stability of product quality have been continuously praised by foreign customers, and the quality has been rising steadily.
Rich products
from round, cross (four corners), waist round shrapnel to custom shrapnel, from single-layer structure, double-layer structure, EMI printing, and Rubber structure.
Strict control
from the purchase of raw materials, mold design and production, product production, quality testing, packaging sales, and other aspects of strict operation by the requirements of ISO 9001:2015, to ensure the consistent reliability of products;
High-quality service
punctual delivery; free technical solutions and samples; quick response customers respond 1 hour after mail receipt; after-sales service 1 hour fast processing.
Are you a Trading Company or Manufacturing?
- We are a Professional Metal dome manufacturer, we have our own factory, and we are based in Qingdao, China, Shanyo Precision Electronic Technology Co., Ltd. is a professional manufacturer of mobile phones and digital product components. It was established in 2004 and has more than 200 employees. The main business is applied in consumer electronics, remote controls, mobile phones, automobiles, medical care, smart products, outdoor products, etc. The main products are metal dome array, Remote control buttons, die cutting, LGF, UV bumps, FPC, panel buttons, PCB lines, thin film flexible lines, etc. The Qingdao factory covers an area of more than 3,500 square meters. Currently, it has offices in Shenzhen, Shanghai, Taiwan, Malaysia, and Singapore, fully implementing the global marketing strategy. sell to Southern Europe (10.00%), Domestic Market (10.00%), Northern Europe (10.00%), Central America (10.00%), Western Europe (10.00%), Eastern Europe (10.00%), South America (10.00%), North America (10.00%), South Asia (5.00%), Southeast Asia (5.00%), Eastern Asia (3.00%), Oceania (3.00%), Mid East (2.00%), Africa (2.00%). There are a total of about 51-100 people in our office.
How do I request samples of your products?
- Stock Samples: If you paid the freight cost, we could provide free samples for you.
- Customized Samples: We will offer you 5 pcs free samples after we receive the setup cost.
- To request product samples, please email us at shanyonod@shanyo.com.
How do I request a quote?
- You can easily request a quote by filling out our Quote Form, or by sending us an e-mail at shanyonod@shanyo.com.
How can we guarantee quality?
- We process and produce products in strict accordance with the list of raw materials.
- Many of our engineers have many years of experience and are very responsible.
Always a pre-production sample before mass production;
Always final Inspection before shipment.
And video confirmation of packing with the customer.
Can you offer OEM Service?
- Surely Okay, we have Seasoned OEM service experience.
What is the Lead time of the sample?
- It takes 2-7 working days depending.
How fast can I get the Quotation?
- 30 mins ~ 24 Hours depends.
How to place an order?
- Please tell us your material, artwork design, logic circuit schematic diagram, size, surface, usage, etc. It is best to send us the design drawings or samples and other detailed data, and then we will customize the metal dome and metal dome array according to your requirements.
What services can we provide?
- Accepted Delivery Terms: FOB, EXW；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Escrow;
Language Spoken: English, Chinese
What products are die-cut?
- The die-cutting process is suitable for a variety of materials, including metal, plastic, paper, fabric, foam, wood, and composites.
Advantages of metal dome technology:
- Durability: Metal domes are highly durable and can withstand millions of actuations without failure. This makes them ideal for use in devices that are used frequently, such as keyboards and keypads.
- Consistency: Metal domes provide a consistent tactile response, which means that users can rely on the same level of feedback every time they press a button. This can improve user experience and accuracy.
- Cost-effectiveness: Metal domes are relatively inexpensive to manufacture, which makes them a cost-effective solution for manufacturers.
Space-saving: Metal domes are small and can be placed close together, which makes them ideal for use in compact devices. - Customization: Metal domes can be customized with different shapes, sizes, and force requirements to suit the specific needs of a particular device or application. This allows manufacturers to create unique user experiences for their products.
