Metal Domes Manufacturer
Metal dome array and sheet (dome array) is a PET sheet containing a metal dome, which is used as a switch on circuit boards such as PCB or FPC and plays an important role between the user and the instrument. The function of the tactile switch. Can be easily peeled off the release paper and stuck on the circuit board as a switch for electronic equipment. Therefore, from the perspective of metal shrapnel encapsulation, it also requires a ” Peel & Place metal dome”. You can place one or more metal domes in each array depending on the design purpose, mostly in the same number and position as the PAD of the circuit board to which it will be posted.
Dome Arrays (Metal Dome Arrays) are the most cost-effective simple switching solution with a superior tactile interface between your device and the user. It has a nice click feel compared to the membrane polyester switches previously used. Due to the use of metal domes, it also lasts longer compared to polymer dome sheets.
The metal dome contacts on the array (sheet) sit above the contact points on the PCB. When the metal dome is pressed, the center of the dome contacts the PCB and allows current to flow. This is how metal dome arrays work. Please click on our blog to learn How to Place a Metal Dome Array on a Circuit Board.

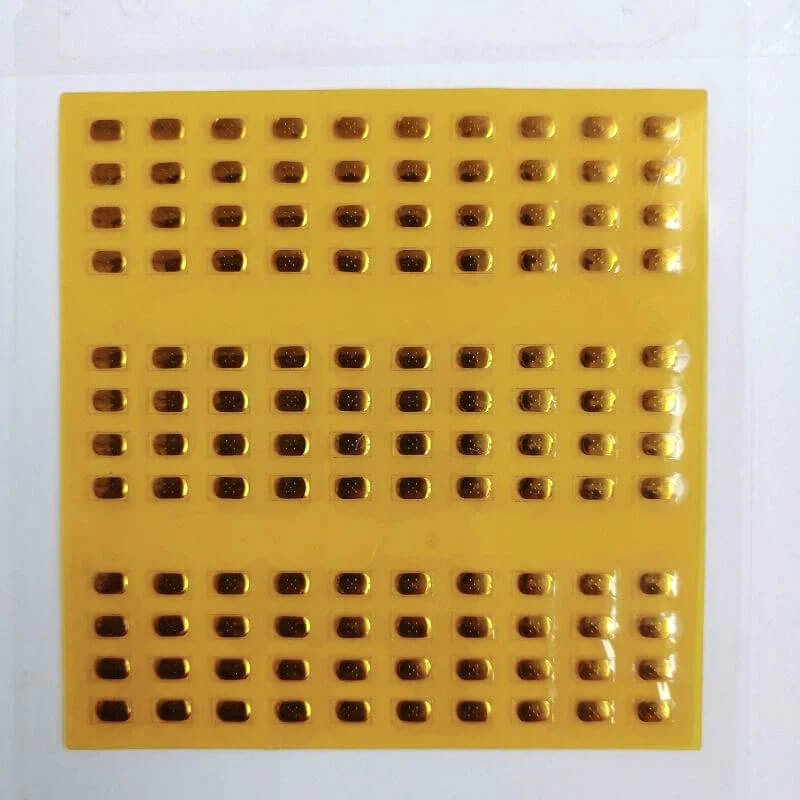

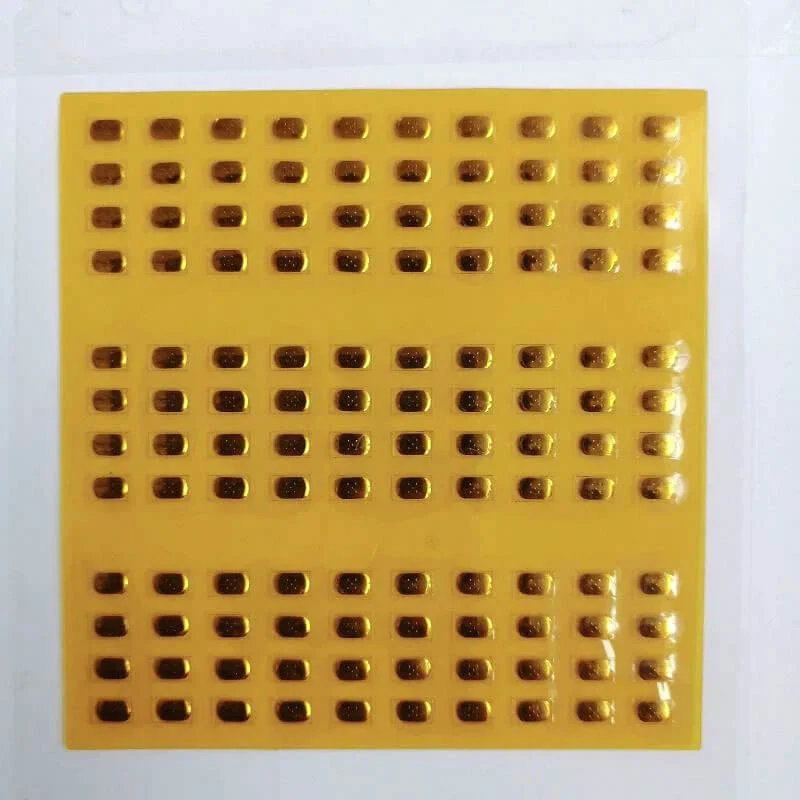

Metal dome arrays (metal dome) of various sizes can be manufactured and meet customer requirements. At present, the metal dome arrays we produce have the following basic types.
Used for: remote controls, MP3, MP4, GPS systems, electronic dictionaries, digital photo frames, etc.; mobile phones, PHS, cordless phones, handsets, walkie-talkies, etc. Digital electronic products with buttons…
Dome Array Features:
- Chemical resistance, weather resistance, and damage resistance;
- Ø 3 to Ø 6 mm, 100 g to 250 g driving force;
- Typical life span is greater than 1M cycles;
- You can choose the version with or without pits.
Dome array advantages:
- Shorten production time and easy assembly
The dome array is easy to assemble, and all domes can be placed on the PCB at the same time to shorten production time. The combination of automated processes will bring extremely low unit costs and improve production efficiency.
- Ensure quality
Dome arrays can reduce quality issues associated with dome placement because these arrays or dome sheets prevent misalignment or misalignment of dome pads, upper domes, and double dome misalignment during assembly.
Single Layer Dome Array
Single-layer dome arrays are used in dome arrays. Metal dome contacts are attached underneath Maylar, a layer of adhesive PET film. On the lamella, each dome contact has an air hole for a nice click feel.
Double Dome Array
EMI Printed Dome Array
– EMI Single Layer
EMI is printed on top of a single layer metal dome array (dome array).
– EMI Double Layer
Rubber Dome Array
LGF Dome Array
Custom Dome Arrays
Shanyo engineers independently developed the automatic shrapnel attachment and assembly machine equipment, which is more convenient, less troublesome, more accurate, and faster than manual labor. The metal shrapnel is independently developed and stamped and has multiple patents. Order now.
Get Free Drawing Design
Contact UsOnline Instant Quote & DFM Analysis
Online Instant quote request email, and get instant Dome Array quotes by simply uploading your design files. We can customize metal domes of various sizes and shapes according to customer requirements. provides real-time & competitive pricing and comprehensive feedback.
Consistent High Quality
Advanced metal dome automatic assembly equipment multi-function testing equipment, and rigorous quality checks, combined with constant communication, ensure that every snap dome you receive meets the highest standards, consistently and reliably.
Fast and Reliable Delivery
Boasting robust manufacturing capacity, Shanyo’s ensures quick turnaround for tactile dome machined parts. Plus, with our varied dome array(snap dome switch) choices, you’ll get your order on time, without the usual hassles.
Professional Engineering Support
No matter where you are, you can get our 24/7 engineering support all year around. Our experienced engineer can provide you with the most appropriate solution for your metal dome customized design, material selection, surface finishing, and even lead time.
Comsumer
Fitness Wearables
Industrial
Medical
Aerospace
Military
METAL DOME SHEET ASSEMBLY METHOD
Single Dome Sheet
It is directly pasted on the PCB board through the adhesive backside.
SMT
SMT machining technology Smaller, lighter, denser, better.
Panel Dome Sheet
Panel dome sheet as per design requirement Convenient fit and high efficiency.
Various specifications of metal shrapnel are available
- Triangle Metal Dome;
- Cruciform Metal Dome;
- Four Legs Tactile Domes
- Circular/ Round Metal Dome;
- Oblong/ Rectangle Metal Dome;
- Ellipse/ Round Waist Metal Dome;
- Circle / Round Metal Dome With Holes;
- Four Leg Metal Domes with Center Hole；
- Customized metal dome (color/ shape/ size, material, etc.).
Metal Dome Array Classification
- Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect
Order Metal Dome Array Machining Parts Online: Easy &Fast
Instant Quotation
- Eliminate long waits and reduce uncertainty. With our instant online quotations, you gain clear cost insights immediately, and free & professional DFM feedback, streamlining your Metal Dome Switch, Metal Dome Array, EMI Printing, Metal Dome Array, Light guide plate module, FPC switch, Membrane switch panel, Backlight Module, Equipment, die-cut products, light guides, UV bumps, FPC, panel buttons, PCB circuits, film flexible circuits and Packaging machining decisions.
Online Annotation
- Say goodbye to tedious back-and-forths. Directly annotate your 3D drawing online and convey specific changes or queries instantly via live chat. Ensure precise machining requirements are communicated and understood without ambiguity.
All-in-One Project Management
- Take full control of your Metal Dome (Snap Dome) projects. Manage both quotes and orders in a unified platform. Effortlessly oversee every project, ensuring that each stage is transparent and easily accessible.
Team Collaboration
- Strengthen your metal dome array (metal dome sheet) coordination. Create teams, invite members instantly, and access shared quotes & orders with ease. Include key departments like accounting, ensuring smooth payment oversight and execution.
Nickel plating, silver plating, gold plating
Smooth contact
Strong conductivity
Stable rebound
Good feel
Dome Array Specifications
- Structure: Double Layers
- Material: Rubber glue + Mylar + Adhesive + Spacer + Adhesive + metal dome
- Color: Mylar: transparent; Spacer: white or transparent
- Thickness: Mylar: 0.05mm; Spacer: 0.075mm
- Available Domes: c-series, F-series, T-series
- Operating & Storage Temprature: 5-125℃
Share innovation
Actively communicate with domestic and foreign counterparts, cooperate, share technological achievements, constantly develop more new products to enrich the product catalog of enterprises, and strive to develop with old and new customers and colleagues in the industry who patronize our company.
Professional
Actively communicate with domestic and foreign counterparts, cooperate, share technological achievements, constantly develop more new products to enrich the product catalog of enterprises, and strive to develop with old and new customers and colleagues in the industry who patronize our company.
Overseas Quality
Since its establishment, it has been keeping pace with the times, improving the quality of metal shrapnel and conductive film of metal shrapnel to meet the harsh requirements of customers all over the world. The reliability and long-term stability of product quality have been continuously praised by foreign customers, and the quality has been rising steadily.
Rich products
From round, cross (four corners), waist round shrapnel to custom shrapnel, from single-layer structure, double-layer structure, EMI printing, Rubber structure.
Strict control
From the purchase of raw materials, mold design and production, product production, quality testing, packaging sales, and other aspects of strict operation by the requirements of ISO 9001:2015, to ensure the consistent reliability of products;
High-quality service
Punctual delivery; free technical solutions and samples; quick response customers respond 1 hour after mail receipt; after-sales service 1 hour fast processing.
Are you a Trading Company or Manufacturing?
- We are a Professional Metal dome manufacturer, we have our own factory, and we are based in Qingdao, China, Shanyo Precision Electronic Technology Co., Ltd. is a professional manufacturer of mobile phones and digital product components. It was established in 2004 and has more than 200 employees. The main business is applied in consumer electronics, remote controls, mobile phones, automobiles, medical care, smart products, outdoor products, etc. The main products are metal dome array, Remote control buttons, die cutting, LGF, UV bumps, FPC, panel buttons, PCB lines, thin film flexible lines, etc. The Qingdao factory covers an area of more than 3,500 square meters. Currently, it has offices in Shenzhen, Shanghai, Taiwan, Malaysia, and Singapore, fully implementing the global marketing strategy. sell to Southern Europe (10.00%), Domestic Market (10.00%), Northern Europe (10.00%), Central America (10.00%), Western Europe (10.00%), Eastern Europe (10.00%), South America (10.00%), North America (10.00%), South Asia (5.00%), Southeast Asia (5.00%), Eastern Asia (3.00%), Oceania (3.00%), Mid East (2.00%), Africa (2.00%). There are a total of about 51-100 people in our office.
How do I request samples of your products?
- Stock Samples: If you paid the freight cost, we could provide free samples for you.
- Customized Samples: We will offer you 5 pcs free samples after we receive the setup cost.
- To request product samples, please email us at shanyonod@shanyo.com.
How do I request a quote?
- You can easily request a quote by filling out our Quote Form, or by sending us an e-mail at shanyonod@shanyo.com.
How can we guarantee quality?
- We process and produce products in strict accordance with the list of raw materials.
- Many of our engineers have many years of experience and are very responsible.
Always a pre-production sample before mass production;
Always final Inspection before shipment.
And video confirmation of packing with the customer.
Can you offer OEM Service?
- Surely Okay, we have Seasoned OEM service experience.
What is the Lead time of the sample?
- It takes 2-7 working days depending.
How fast can I get the Quotation?
- 30 mins ~ 24 Hours depends.
How to place an order?
- Please tell us your material, artwork design, logic circuit schematic diagram, size, surface, usage, etc. It is best to send us the design drawings or samples and other detailed data, and then we will customize the metal dome and metal dome array according to your requirements.
What services can we provide?
- Accepted Delivery Terms: FOB, EXW；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Escrow;
Language Spoken: English, Chinese
What products are die-cut?
- The die-cutting process is suitable for a variety of materials, including metal, plastic, paper, fabric, foam, wood, and composites.
Advantages of metal dome technology:
- Durability: Metal domes are highly durable and can withstand millions of actuations without failure. This makes them ideal for use in devices that are used frequently, such as keyboards and keypads.
- Consistency: Metal domes provide a consistent tactile response, which means that users can rely on the same level of feedback every time they press a button. This can improve user experience and accuracy.
- Cost-effectiveness: Metal domes are relatively inexpensive to manufacture, which makes them a cost-effective solution for manufacturers.
Space-saving: Metal domes are small and can be placed close together, which makes them ideal for use in compact devices. - Customization: Metal domes can be customized with different shapes, sizes, and force requirements to suit the specific needs of a particular device or application. This allows manufacturers to create unique user experiences for their products.
