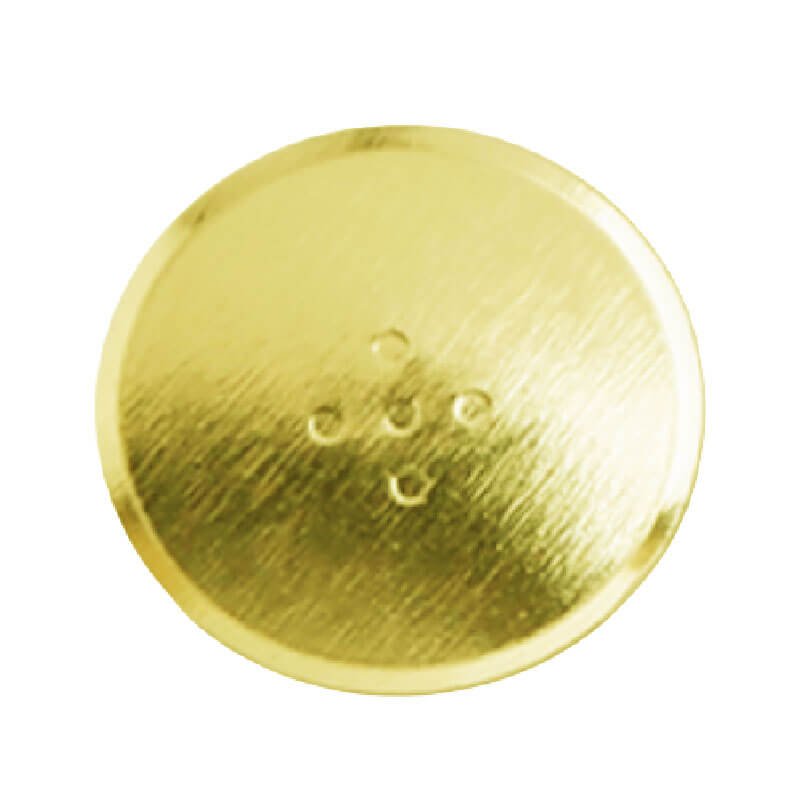

Gold-Plated Round Snap Dome
C -Series Round Snap Domes Features：
Long life
Low cost
High reliability
Easy assembly
Low resistance
Corrosion resistance
Good hand feeling, etc.
C -Series Round Snap Domes Advantage：
OEM / ODM
Free sample
Fast delivery
Good quality
24 hours online service
Factory direct sales wholesale
Support customization (color/ shape/ size/ material)
Various specifications of the snap dome available：
A gold-plated round snap dome refers to a type of component commonly used in electronics and mechanical devices. It typically consists of a small, circular metal disc that is dome-shaped, made from a base metal such as stainless steel or brass, and then coated with a layer of gold.
These snap domes are designed to provide tactile feedback and actuation force in membrane switches, keyboards, and other control panels where a user presses a button or key. The gold plating serves several purposes:
- Corrosion Resistance: Gold is highly resistant to corrosion, which ensures the durability and longevity of the snap dome.
- Electrical Conductivity: Gold is an excellent conductor of electricity, making it ideal for applications where reliable electrical contact is essential.
- Aesthetic Appeal: The gold plating can also enhance the appearance of the snap dome, giving it a more attractive and professional look.
In summary, a gold-plated round snap dome combines the functional properties of a snap dome with the benefits of gold plating, making it suitable for demanding applications where reliability, conductivity, and aesthetics are important.
Circle / Round Snap Dome

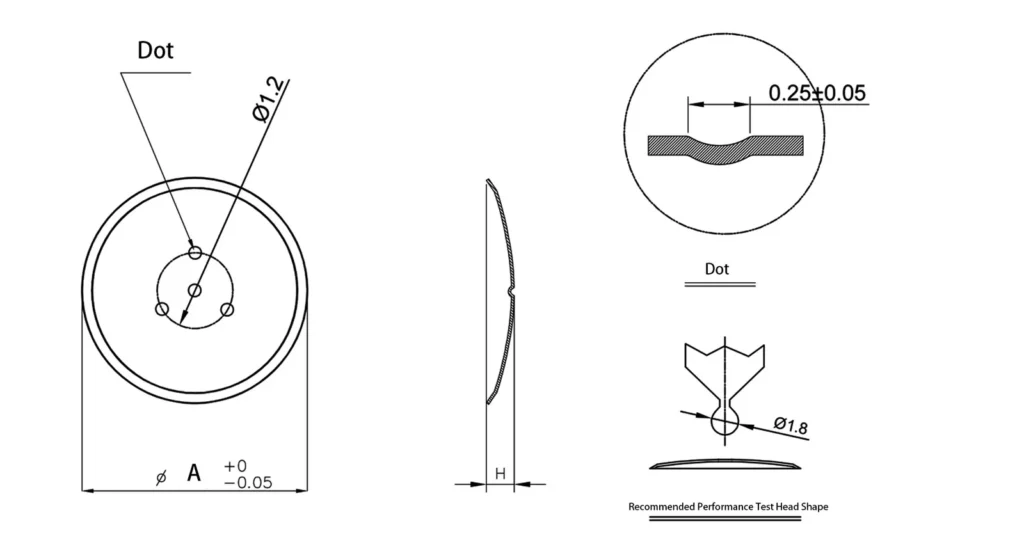

Circular/ Round Metal Dome Structure

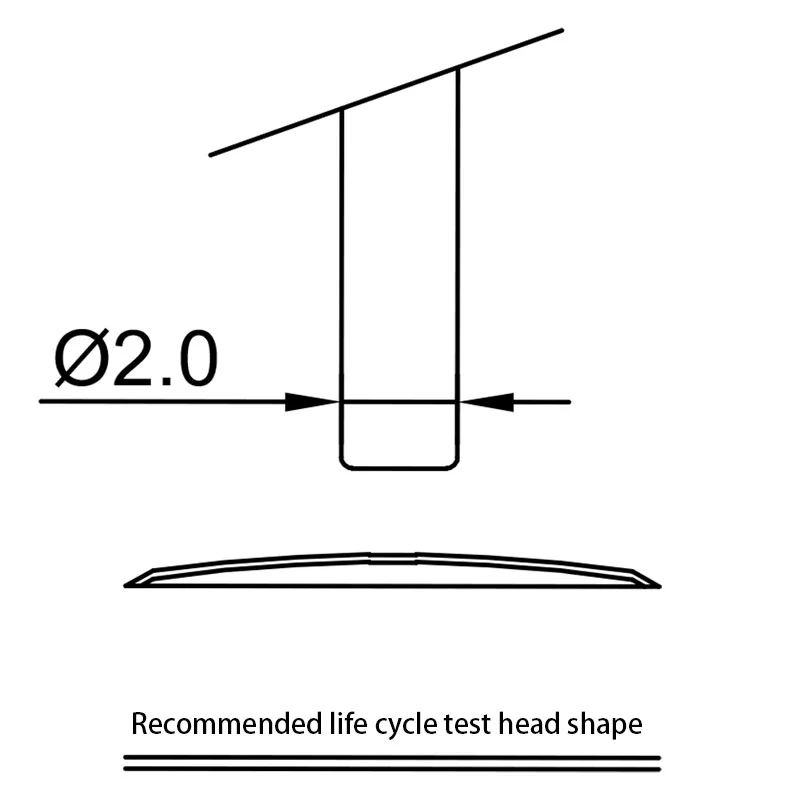

Life cycle test norms and standards
The blow’s force should be twice that of the product, using a 2.0mm ABS flat head, aligned with the product’s center. The speed should be 120 blows/minute. The fixed base must be clean, flat, and free of bumpy deformation or soft materials, lest it significantly affect the product’s lifespan.
Performance test specification standard
Before conducting the product testing, apply a force of 2 times the product strength using a 1.8mm aluminum ball head, ensuring it is vertically aligned with the center of the product, and press it 10 times to stabilize its performance before commencing testing. The test products should be secured using specialized metal fixtures that are clean and flat, without any uneven conditions present. Failure to adhere to these requirements may significantly impact the accuracy of the product performance test.
Tactile Metal Dome Switch! Widely used
Applied to TV remote controls, air conditioner remote controls, various button facilities, and other equipment.
This product is extensively used in various electronic devices, such as mobile phones, cameras, computers, remote controllers, printers, game consoles, smart wearables, financial terminals, medical equipment, mechanical devices, sports gear, home appliances, automotive electronics, and more.
Remote Control Buttons Metal Dome
Read More
PC Button Metal Dome
Read More
Intercom Keys Metal Dome
Read More
Car Button Metal Dome
Read More
Phone Keys Tactile Dome Switches
Read More
Industrial Equipment Control Panel
Read More
how do snap dome switches work? snap dome switch and silicone button after installation
According to the needs of different product structures and grades
x
x
x
x
Snap Dome Introduction
Snap Domes has several major advantages: smooth contact, strong conductivity, stable rebound, and good feel. Due to its good conduction performance, it can play a good switch activation and control role between the operator and the product.
snap dome design guide principle
How to choose the snap dome chip based on the PCB pad shape
Classification of Adhesive for snap click domes:
Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect
COMPANY CORE ADVANTAGE
Share innovation
actively communicate with domestic and foreign counterparts, cooperate, share technological achievements, constantly develop more new products to enrich the product catalog of enterprises, and strive to develop with old and new customers and colleagues in the industry who patronize our company.
Professional
Overseas Quality
Since its establishment, it has been keeping pace with the times, improving the quality of custom multi legged metal dome switches and conductive film of keyboard metal dome to meet the harsh requirements of customers all over the world. The reliability and long-term stability of product quality have been continuously praised by foreign customers, and the quality has been rising steadily.
Rich products
From round, cross (four corners), oval metal dome to custom metal dome fabricators, from single-layer structure, double-layer structure, EMI printing, Rubber structure.
Strict control
from the purchase of raw materials, mold design and production, product production, quality testing, packaging sales, and other aspects of strict operation by the requirements of ISO 9001:2015, to ensure the consistent reliability of products;
High-quality service
punctual delivery; free technical solutions and samples; quick response (domestic customers respond 2 hours after mail receipt, foreign customers respond 12 hours); after-sales service 1-hour fast processing.
FAQs
Frequently Asked Questions
Q1: Are you a Trading Company or Manufacturing?
Q2. How do I request samples of your products?
- Stock Samples: If you paid the freight cost, we could provide free samples for you.
- Customized Samples: We will offer you 5 pcs free samples after we receive the setup cost.
- To request product samples, please email us at shanyonod@shanyo.com.
Q3.How do I request a quote?
Q4. how can we guarantee quality?
- We process and produce products in strict accordance with the list of raw materials.
- Many of our engineers have many years of experience and are very responsible.
Always a pre-production sample before mass production;
Always final Inspection before shipment.
And video confirmation of packing with the customer.
Q5. Can you offer OEM Service?
- Surely Okay, we have Seasoned OEM service experience.
Q6. what is the Lead time of the sample?
Q7. How fast can I get the Quotation?
Q8. How to place an order?
Q9. What services can we provide?
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, PayPal, Western Union, Escrow;
Language Spoken: English, Chinese
Q10. What products are die-cut?
Q11. Advantages of metal dome technology:
- Durability: Metal domes are highly durable and can withstand millions of actuations without failure. This makes them ideal for use in devices that are used frequently, such as keyboards and keypads.
- Consistency: Metal domes provide a consistent tactile response, which means that users can rely on the same level of feedback every time they press a button. This can improve user experience and accuracy.
- Cost-effectiveness: Metal domes are relatively inexpensive to manufacture, which makes them a cost-effective solution for manufacturers.
Space-saving: Metal domes are small and can be placed close together, which makes them ideal for use in compact devices. - Customization: Metal domes can be customized with different shapes, sizes, and force requirements to suit the specific needs of a particular device or application. This allows manufacturers to create unique user experiences for their products.
