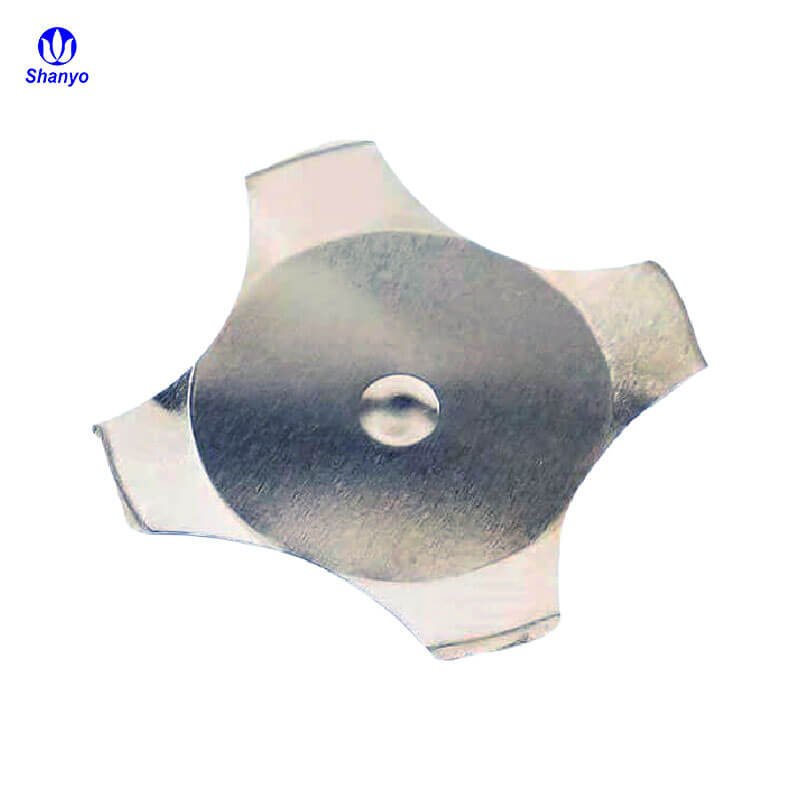

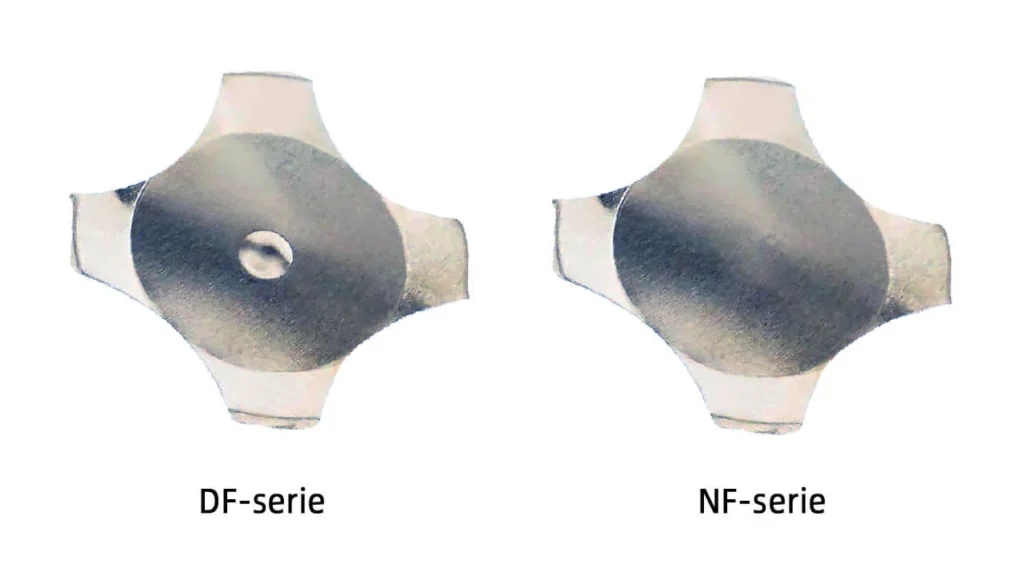

Metal Snap Dome Product Specifications

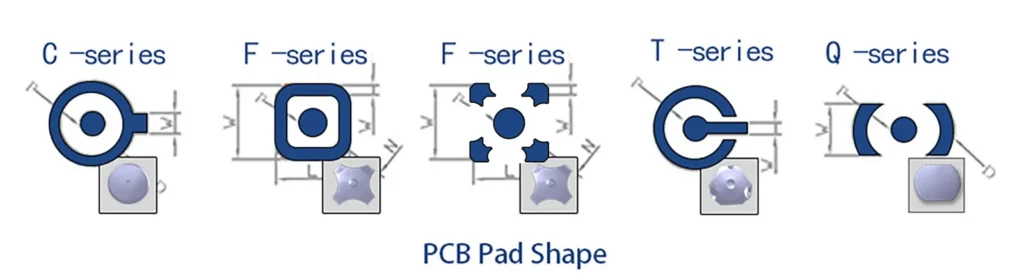

| No | Our F-series snap domes | |
|---|---|---|

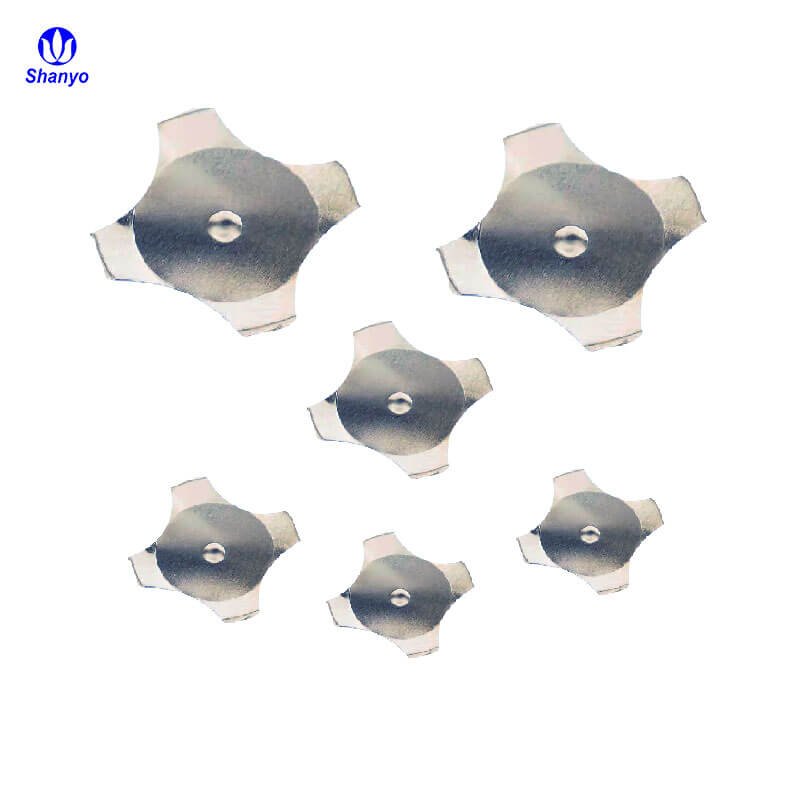

| 1 | Diameter | 5mm, 6mm, 7mm, 8.4mm, 10mm,12.2mm, 16mm, 20mm |
| 2 | Actuation Force | 150g,180g, 200g, 220g, 250g, 280g, 320g, 350g,400g, 450g, 500g |

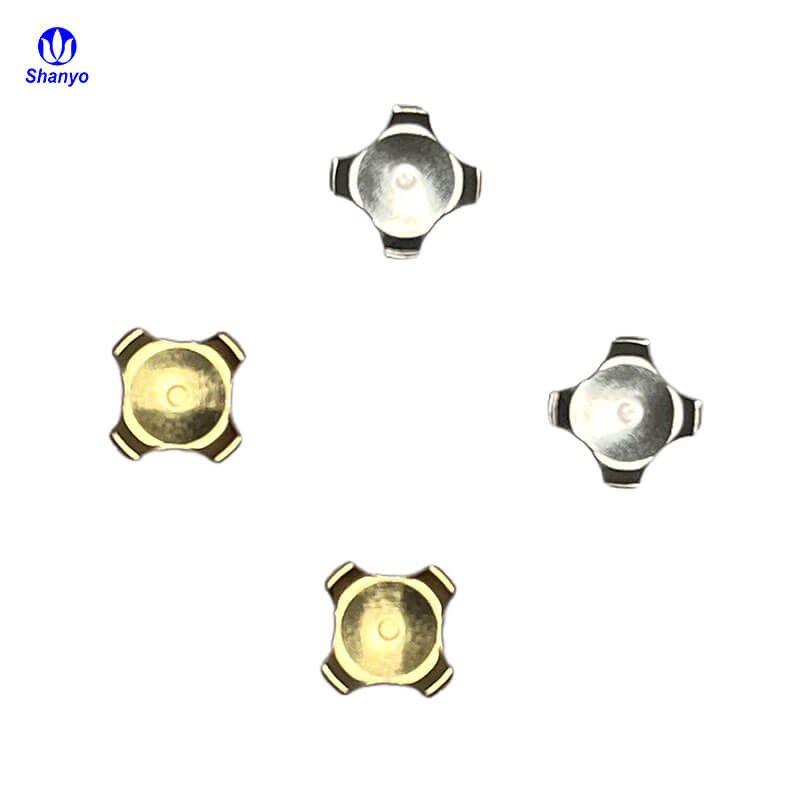

| 3 | Plated | Nickel and gold plated are available. |
If you have an inquiry about the F-series snap domes, please contact us anytime.
Metal Snap Dome Product Specifications
| No | Product model | Outer Diameter | Click Ratto(%) | Rebound/Return orce(g) | Fmax/Force (mm) | Dome height (mm) | Material thickness (mm) | Plating | Life Cycles (s) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SY-M2508R-Ag | 2.5mm | 60±10% | 80士20g | 0.10士0.03mm | 0.14士0.03mm | 0.04mm | Silver(Ag) | 1,000,000 |
| 2 | SY-M2516R-Ag | 2.5mm | 60±10% | 160士20g | 0.14士0.03mm | 0.18士0.03mm | 0.04mm | Silver(Ag) | 1,000,000 |
| 3 | SY-M4010R5DP-Ni | 4mm | 50±10% | 100士20g | 0.14土0.03mm | 0.19土0.03mm | 0.055mm | Nickel(NI) | 500,000 |
| 4 | SY-M4012R5DP-Ni | 4mm | 50±10% | 120士20g | 0.15士0.03mm | 0.20士0.03mm | 0.055mm | Nickel(NI) | 500,000 |
| 5 | SY-M4014R5DP-Ni | 4mm | 50±10% | 140土20g | 0.16士0.03mm | 0.21土0.03mm | 0.055mm | Nickel(NI) | 500,000 |
| 6 | SY-M4016R5DP-Ni | 4mm | 50±10% | 160士20g | 0.17士0.03mm | 0.22士0.03mm | 0.055mm | Nickel(NI) | 500,000 |
| 7 | SY-M4018R5DP-Ni | 4mm | 50±10% | 180士20g | 0.18士0.03mm | 0.23土0.03mm | 0.055mm | Nickel(NI) | 500,000 |
| 8 | SY-M4020R5DP-Ni | 4mm | 50±10% | 200士20g | 0.19士0.03mm | 0.24士0.03mm | 0.055mm | Nickel(NI) | 500,000 |
| 9 | SY-M4022R5DP-Ni | 4mm | 50±10% | 220士20g | 0.20土0.03mm | 0.25士0.03mm | 0.055mm | Nickel(NI) | 500,000 |
| 10 | SY-M4016R4DP-T-Ni | 4mm | 50±10% | 160士20g | 0.17士0.03mm | 0.17士0.03mm | 0.055mm | Nickel(NI) | 500,000 |
| 11 | SY-M4016R4DP-T-Ni | 4mm | 50±10% | 160士20g | 0.17士0.03mm | 0.22士0.03mm | Nickel(NI) | 1,000,000 | |
| 12 | SY-M4018R4DP-T-Ni | 4mm | 50±10% | 180士20g | 0.18士0.03mm | 0.23土0.03mm | 0.055mm | Nickel(NI) | 500,000 |
| 13 | SY-M4018R4DP-T-Ni | 4mm | 50±10% | 180士20g | 0.18士0.03mm | 0.23士0.03mm | Nickel(NI) | 1,000,000 | |
| 14 | SY-M4018R4DP-T-Ni | 4mm | 50±15% | 180士30g | 0.19士0.05mm | 0.23士0.05mm | 0.055mm | Nickel(NI) | 1,000,000 |
| 15 | SY-M5010R5DP-Ni | 5mm | 50±10% | 100士20g | 0.16±0.03mm | 0.21士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 16 | SY-M5012R5DP-Ni | 5mm | 50±10% | 120士20g | 0.17士0.03mm | 0.22士0.03m | 0.06mm | Nickel(NI) | 500,000 |
| 17 | SY-M5014R5DP-Ni | 5mm | 50±10% | 140土20g | 0.18士0.03mm | 0.23士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 18 | SY-M5016R5DP-Ni | 5mm | 50±10% | 160士20g | 0.19士0.03mm | 0.24士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 19 | SY-M5016R-Ni | 5mm | 50±10% | 160士20g | 0.18士0.03mm | 0.23士0.03mm | 0.06mm | Nickel(NI) | 1,000,000 |
| 20 | SY-M5018R5DP-Ni | 5mm | 50±10% | 180士20g | 0.20士0.03mm | 0.25士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 21 | SY-M5020R5DP-Ni | 5mm | 50±10% | 200士20g | 0.21士0.03mm | 0.26土0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 22 | SY-M5022R5DP-Ni | 5mm | 50±10% | 220士20g | 0.22士0.03mm | 0.27士0.03mm | 0.06mm | Nickel(NI) | 1,000,000 |
| 23 | SY-M5022R5DP-Ni | 5mm | 50±10% | 220士25g | 0.22士0.03mm | 0.27士0.03mm | 0.06mm | Gold(Au). | 500,000 |
| 24 | SY-M6025R-Au | 6mm | 55±15% | 250士30g | 0.23士0.05mm | 0.29士0.05mm | 0.06mm | Nickel(NI) | 1,000,000 |
| 25 | SY-M6010R5DP-Ni | 6mm | 50±10% | 100士20g | 0.19士0.03mm | 0.24士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 26 | SY-M6012R5DP-Ni | 6mm | 50±10% | 120士20g | 0.20士0.03mm | 0.25士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 27 | SY-M6014R5DP-Ni | 6mm | 50±10% | 140士20g | 0.21士0.03mm | 0.26士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 28 | SY-M6016R5DP-Ni | 6mm | 50±10% | 160士20g | 0.22士0.03mm | 0.27士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 29 | SY-M6018R5DP-Ni | 6mm | 50±10% | 180士20g | 0.23士0.03mm | 0.28士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 30 | SY-M6020R5DP-Ni | 6mm | 50±10% | 200±20g | 0.24土0.03mm | 0.29士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 31 | SY-M6022R5DP-Ni | 6mm | 50±15% | 220士30g | 0.25士0.03mm | 0.29士0.03mm | 0.06mm | Nickel(NI) | 500,000 |
| 32 | SY-M6024R5DP-Ni | 6mm | 50±15% | 240土30g | 0.26士0.03mm | 0.31土0.03mm | 0.06mm | Nickel(NI) | 500,000 |
Dome Array! Widely used
tactile snap domes
This product is extensively used in various electronic devices, such as mobile phones, cameras, computers, remote controllers, printers, game consoles, smart wearables, financial terminals, medical equipment, mechanical devices, sports gear, home appliances, automotive electronics, and more.
snap dome Dome Switch and Silicone Button after installation
Metal snap dome according to the needs of different product structures and grades
Nickel plating, silver plating, gold plating
Smooth
contact
Strong
conductivity
Stable
rebound
Good feel
Snap Dome Introduction
Snap Domes has several major advantages: smooth contact, strong conductivity, stable rebound, and good feel. Due to its good conduction performance, it can play a good switch activation and control role between the operator and the product.
