| Part Number | Diameter | Height | Trip Force | Dimple | Life Cycles | |
|---|---|---|---|---|---|---|
| F06085 | 6mm (0.236″) | 0.30mm (0.012″) | 85g | No | up to 5,000,000 |  |
| F06130 | 6mm (0.236″) | 0.30mm (0.012″) | 130g | No | up to 5,000,000 | |
| F06180 | 6mm (0.236″) | 0.33mm (0.013″) | 180g | No | up to 5,000,000 | |
| F06300 | 6mm (0.236″) | 0.43mm (0.017″) | 300g | No | up to 10,000 | |
| F07040 | 7mm (0.276″) | 0.25mm (0.010″) | 40g | No | up to 5,000,000 | |
| F07085 | 7mm (0.276″) | 0.30mm (0.012″) | 85g | No | up to 5,000,000 | |
| F07110 | 7mm (0.276″) | 0.36mm (0.014″) | 110g | No | up to 5,000,000 | |
| F07150 | 7mm (0.276″) | 0.38mm (0.015″) | 150g | No | up to 5,000,000 | |
| F07200 | 7mm (0.276″) | 0.43mm (0.017″) | 200g | No | up to 5,000,000 |
Get Free Drawing Design
Product Advantage Display
Global production layout andtechnological strength
At Shanyo, particularly noteworthy is the company’s independently developed Dome Sheet automatic mounting equipment, which is a model of technological innovation. this equipment integrates a number of patented technologies, such as PCB dust removal, intelligent static elimination, micron-level visual alignment, and dynamic pressing. With a mounting speed of 2,000 pieces per hour and an ultra-high precision within 0.1mm, it breaks through the bottlenecks of industry efficiency and precision, offering customers more competitive production solutions.
Core products and technologicaladvantages
Shanyo boasts robust quality management systems integrated into every facet of our manufacturing processes. Equipped with cutting-edge technology, a state-of-the-artclean room, and advanced testing equipment, our facilitiesenable us to monitor and validate product quality at eachstage meticulously. From initial design to final productionwe employ stringent inspection protocols to identify and rectify any potential defects or deviations, leaving no room forcompromise.
Internationalized qualitymanagement system

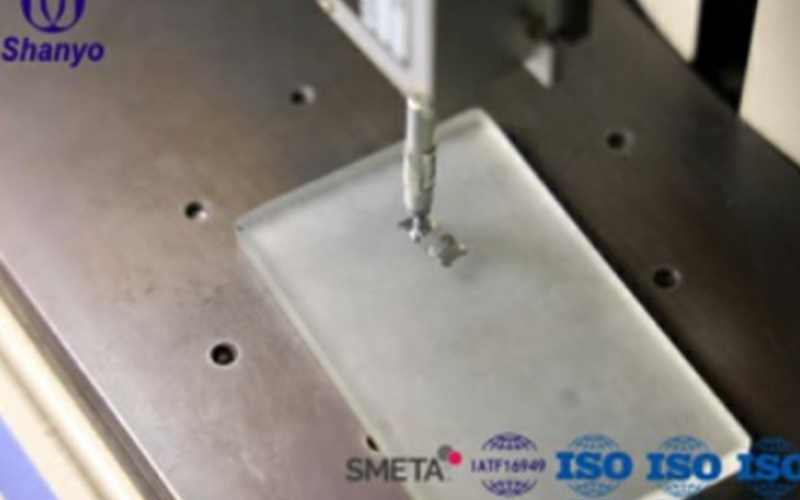

Shanyo company has created a digital quality control system to ensure product quality through innovative means: It uses load testers from Japan’s AKOH ENGINEERING for intelligent inspection: The environmental laboratory, through the independently developed multi-dimensional testing scheme, has increased the efficiency of reliability tests such as salt spray and thermal shock by 40% ensuring that product quality always stays at the forefront of the industry.

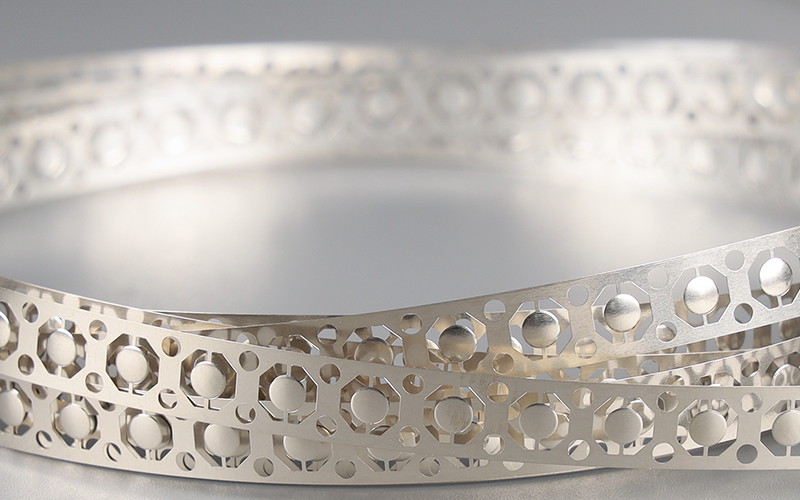

Preserving Performance.Dome Handling
Advanced automated equipment and strict qualty control ensure industry-leading precision and reliability. The right handling procedures preventdeformation or damage to the delicate compo-nents, ultimately guaranteeing consistent actuation forces and tactile responses.
Product Application of the Metal Dome
Comsumer
Tactile metal domes are essential components in premium consumer electronics, from gaming controllers to mechanical keyboards.
Learn more
Fitness Wearables
Shanyo’s premium metal dome switches deliver crisp, reliable tactile feedback—perfect for fitness trackers, wearables, and high-performance applications.
Learn more
Industrial
Industrial equipment often requires rugged keyboards and human machine interfaces that can withstand continuous use in harsh environments and extreme temperatures.
Learn more
Medical
The medical industry has long relied on Shanyo’s membrane switch and touch screen technology as the user interface for its products.
Learn more
Aerospace
Shanyo has over 20 years of experience designing backlit human machine interfaces and backlit panels and signage for the aerospace industry.
Learn more
Military
When a Special Forces team inserts behind enemy lines, every component in their AN/PRC-163 manpack radio becomes a lifeline.
Learn more
What are the main business activities of Shanyo Precision Electronics Technology Co., Ltd.?
We are a professional manufacturer specializing in the R&D and production of precision electronic components. Our main products include metal domes, precision stamped parts, FPC flexible circuits, light guide plates, PCB circuits, etc., which are widely used in consumer electronics, automotive electronics, medical devices, smart home systems, and other fields.
Do your products comply with international standards?
Yes, we have obtained ISO9001:2015, ISO14001:2015, ISO45001:2015, IATF16949:2015, Sedex 2p certifications, and strictly adhere to environmental standards such as RoHS and REACH to ensure our products meet global market requirements.
Do you support customized production?
Absolutely! We provide ODM/OEM services and can customize materials, dimensions, surface treatments, etc., according to customer requirements. We also offer DFM (Design for Manufacturability) optimization suggestions.
Who are your notable partners?
We have established long-term cooperative relationships with internationally renowned companies such as Tesla, Amazon, and Goertek, and we continue to expand our global market presence.
How can I request a quotation or sample support?
You can contact us through the following channels: Our engineering team will respond to your inquiry with in 24 hours.
