Dome Sheets & LGF
Custom Dome Sheets & LGF (Light Guide Film)
Structure: Multi-layer composite (PET/stainless steel/conductive layer);
Actuation force range: 5-500gf (customizable);
Standard stroke: 0.05-0.5mm;
Contact resistance: < 100 mΩ (typical);
Life Cycle: ≥500,000 cycles;
Environmental tolerance: -40℃ ~ +85℃ (extendable to 125℃);
Protection rating: Up to IP68 design.
What Is Dome Sheets & LGF?
Dome Sheets & LGF (Light Guide Film) solutions represent a significant evolution beyond standard metal domes. This technology integrates a reliable Metal Dome Sheet with a precision light guide layer into a single, unified LGF Dome Sheet module. This innovative approach solves key design challenges—such as uneven backlighting, complex assembly, and increased thickness—associated with traditional backlit buttons. An LGF metal dome array delivers both crisp tactile feedback and perfectly uniform illumination, making it the ideal choice for modern interfaces where user experience and aesthetics are paramount.
Technical Parameters of Dome Sheets & LGF
| Parameter Category | Standard Range | Premium Spec | Test Standard |
|---|---|---|---|
| Actuation Force | 10 – 200 gf | 5 – 500 gf (customizable) | IEC 61000-4-2 |
| Travel | 0.05 – 0.5 mm | 0.02 – 1.0 mm | ISO 13732-1 |
| Contact Resistance | < 100 mΩ | < 50 mΩ | EIA-364-23 |
| Bounce Time | < 10 ms | < 5 ms | MIL-STD-202 |
| Operating Life | 1 million cycles | 5 million cycles | IEC 60384 |
- Temperature range: -40℃ to +85℃ (Special grade -55℃ to +125℃)
- Damp heat resistance: 1000-hour test at 85℃/85%RH
- Chemical compatibility: Resistant to common solvents such as IPA and ethanol
- UV aging resistance: No performance degradation after 500 hours of UVB irradiation

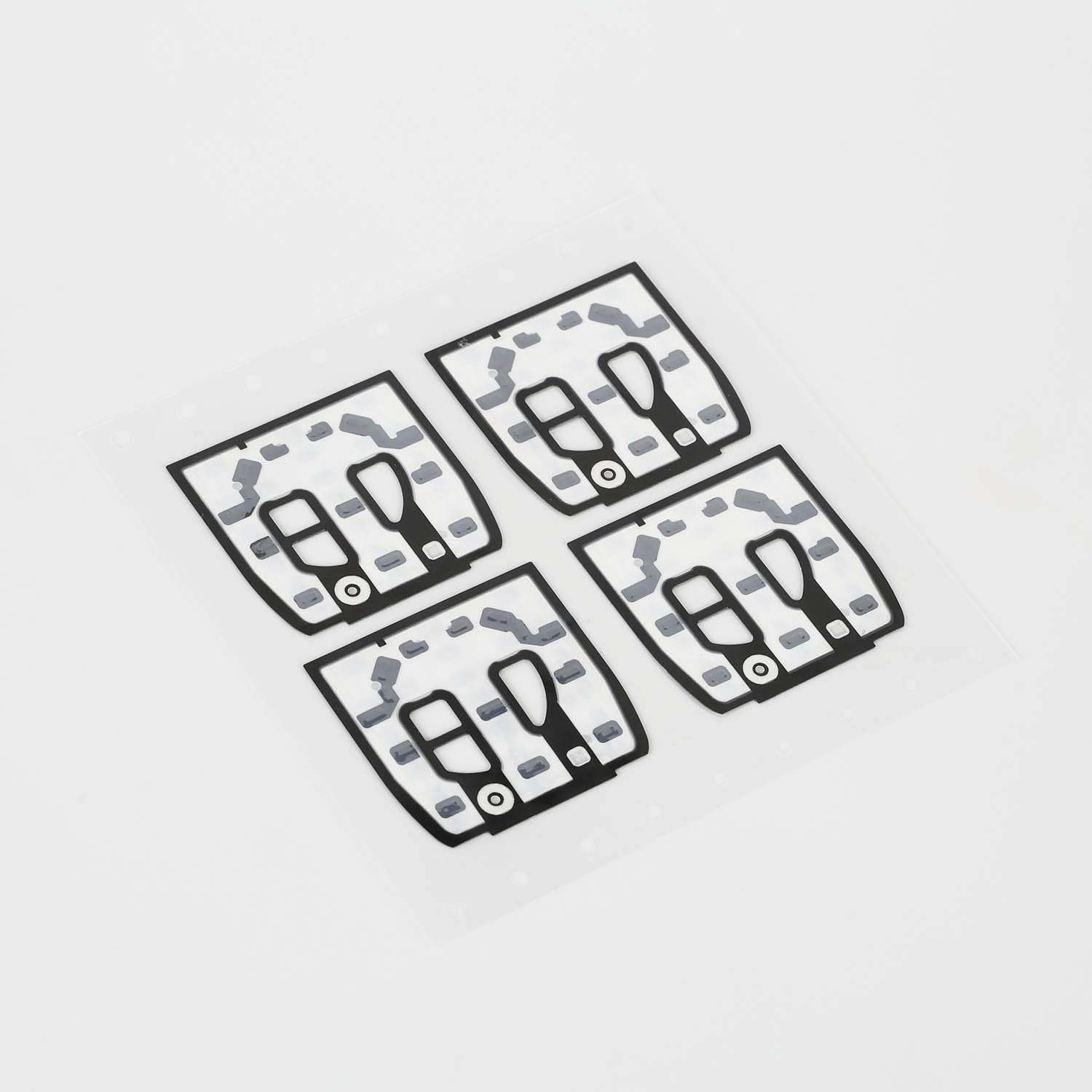

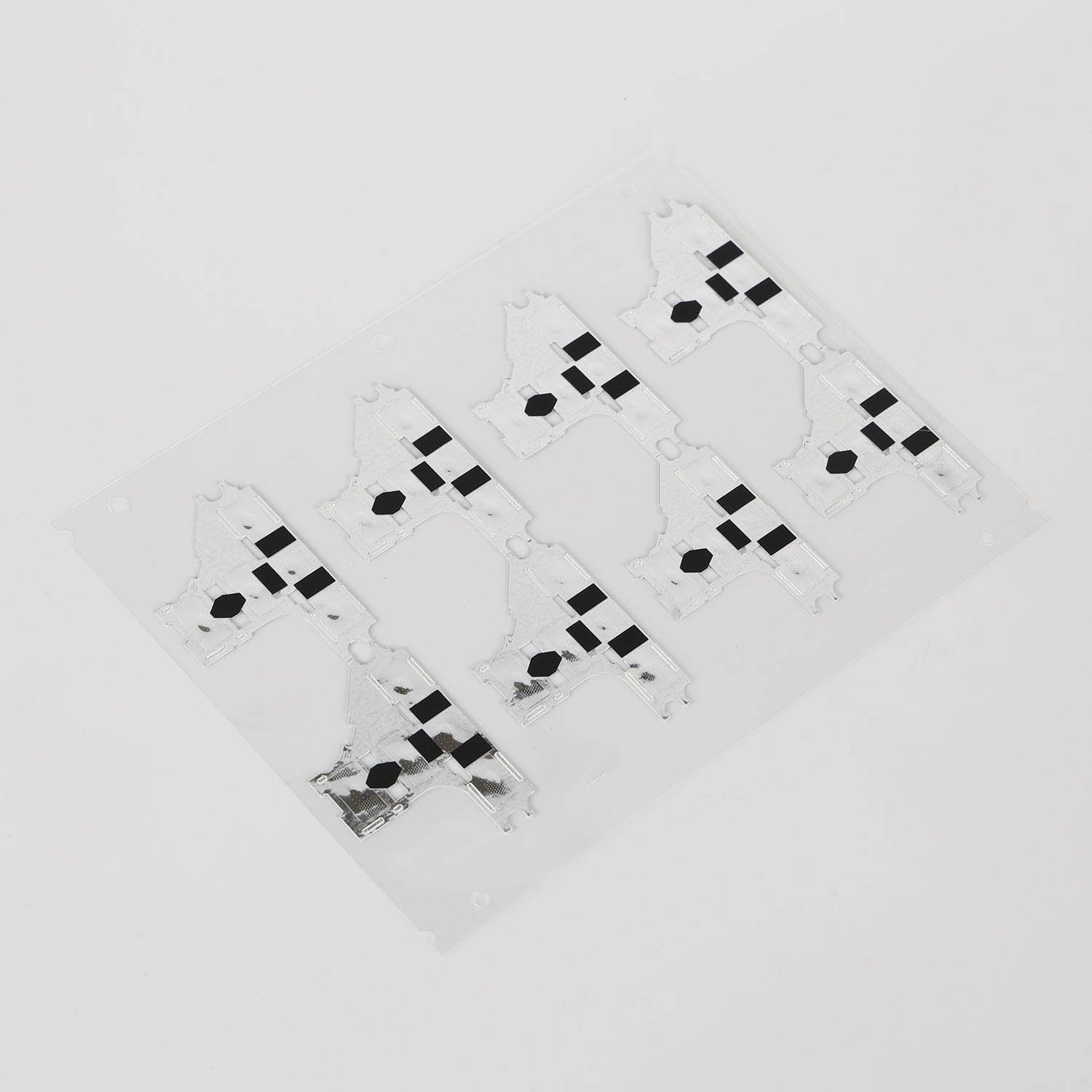

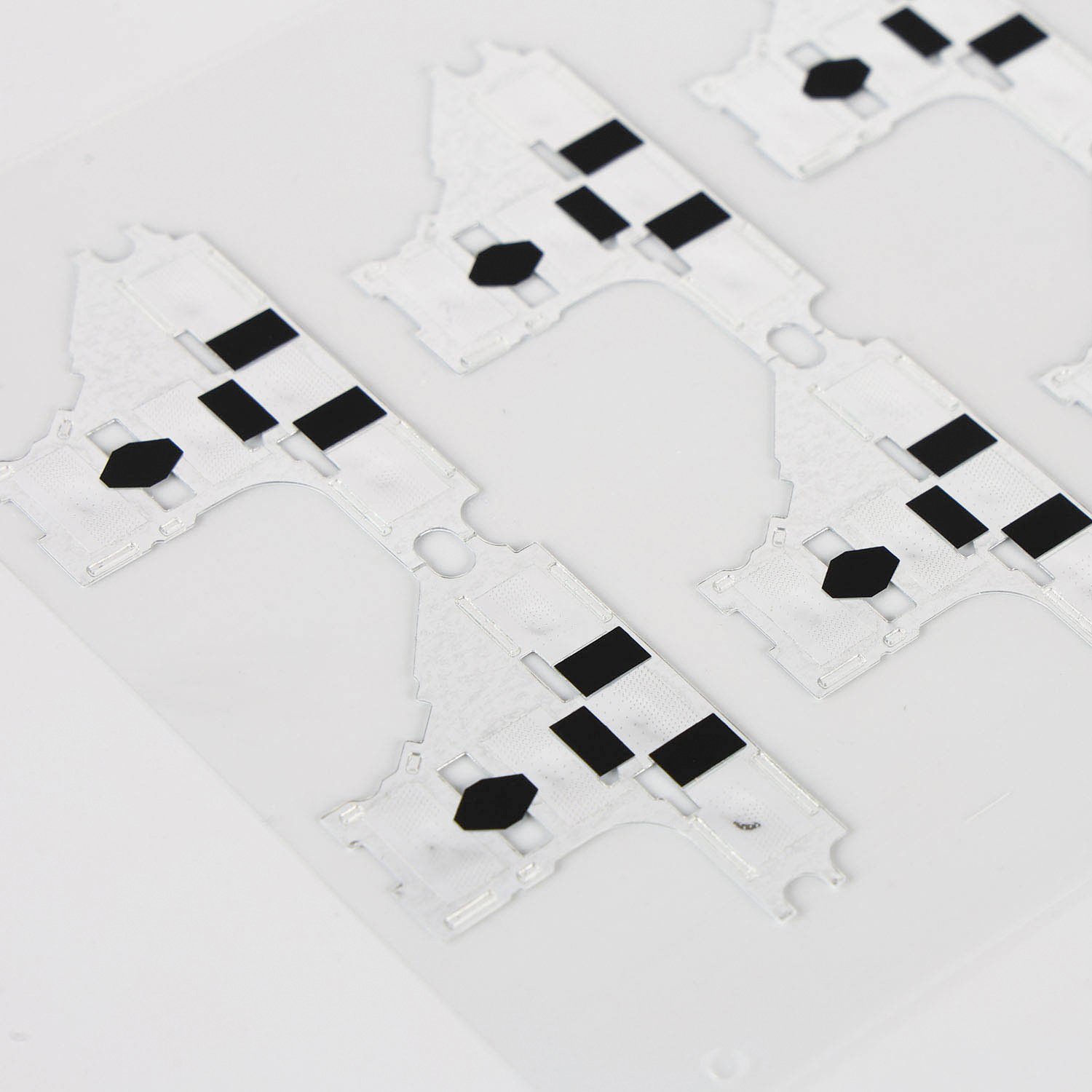

Explore Shanyo's Dome Sheets & LGF
| Structure | specification | Picture |
|---|---|---|

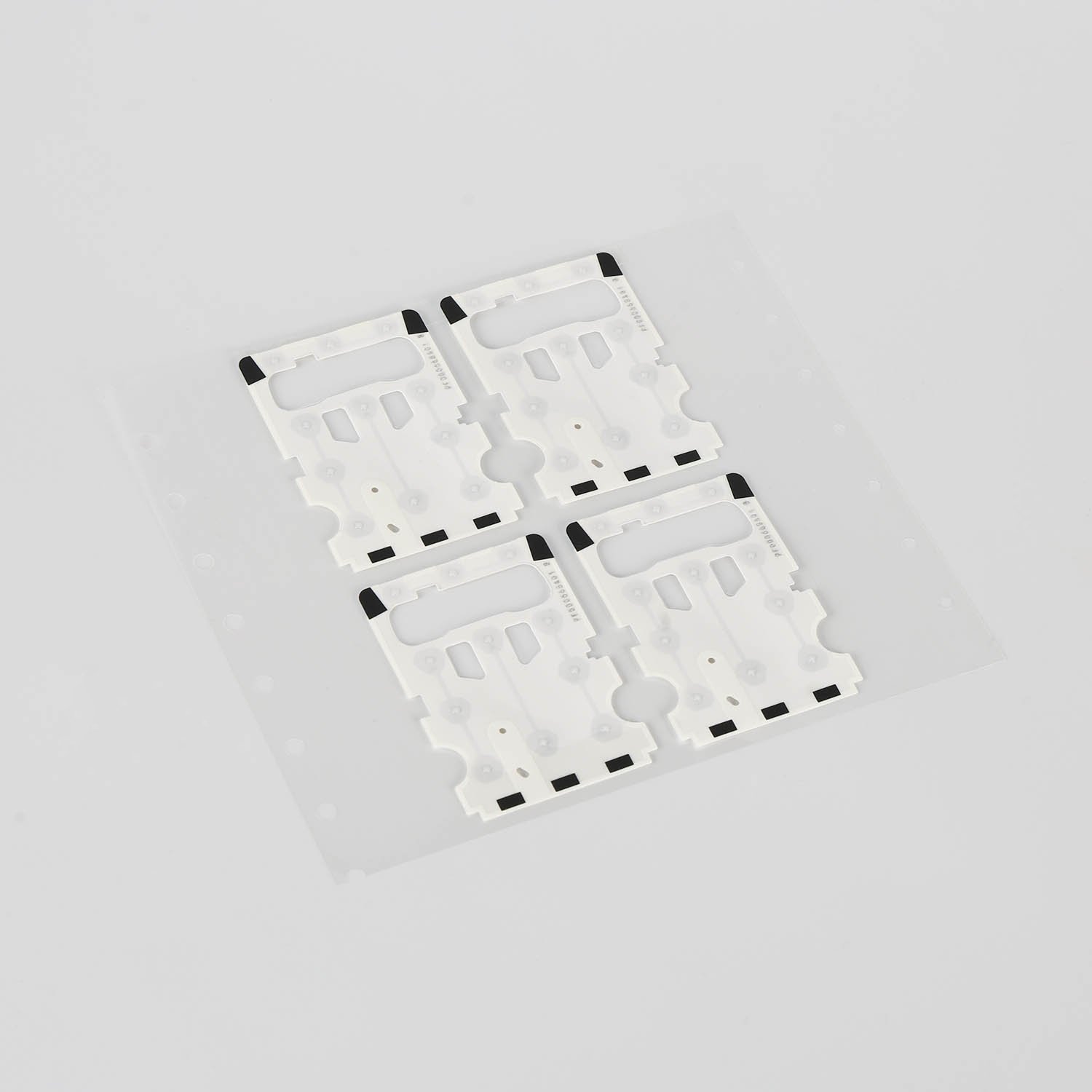

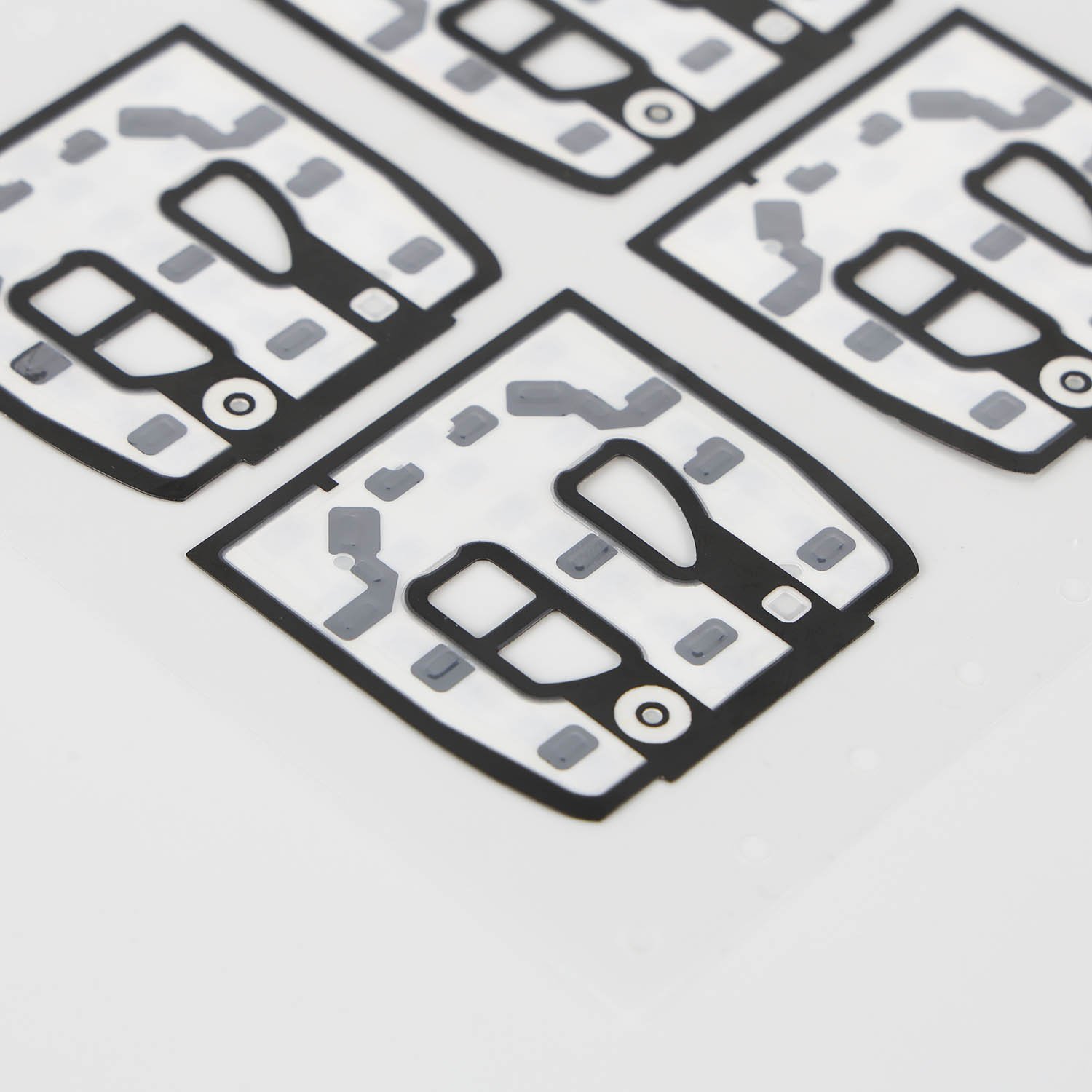

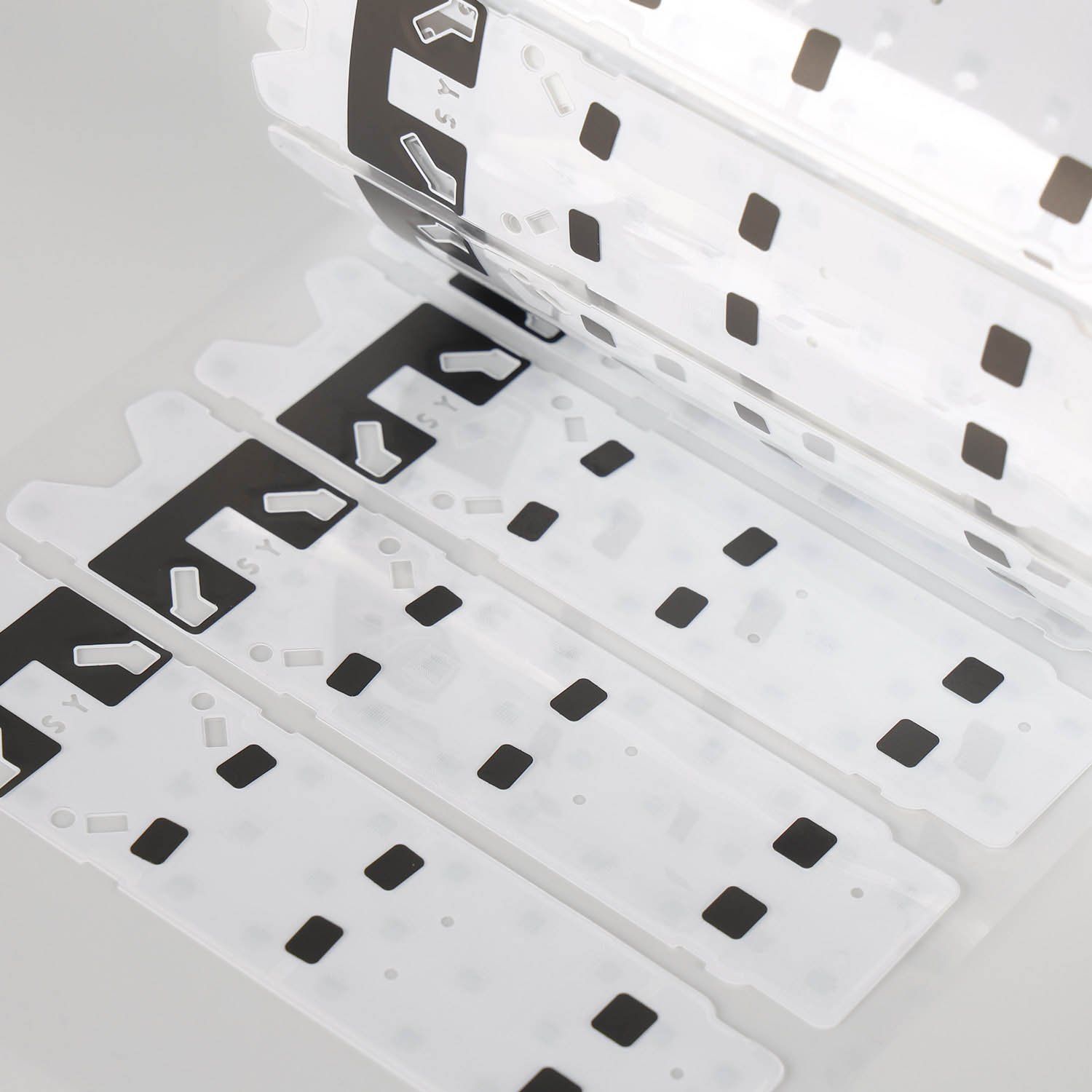

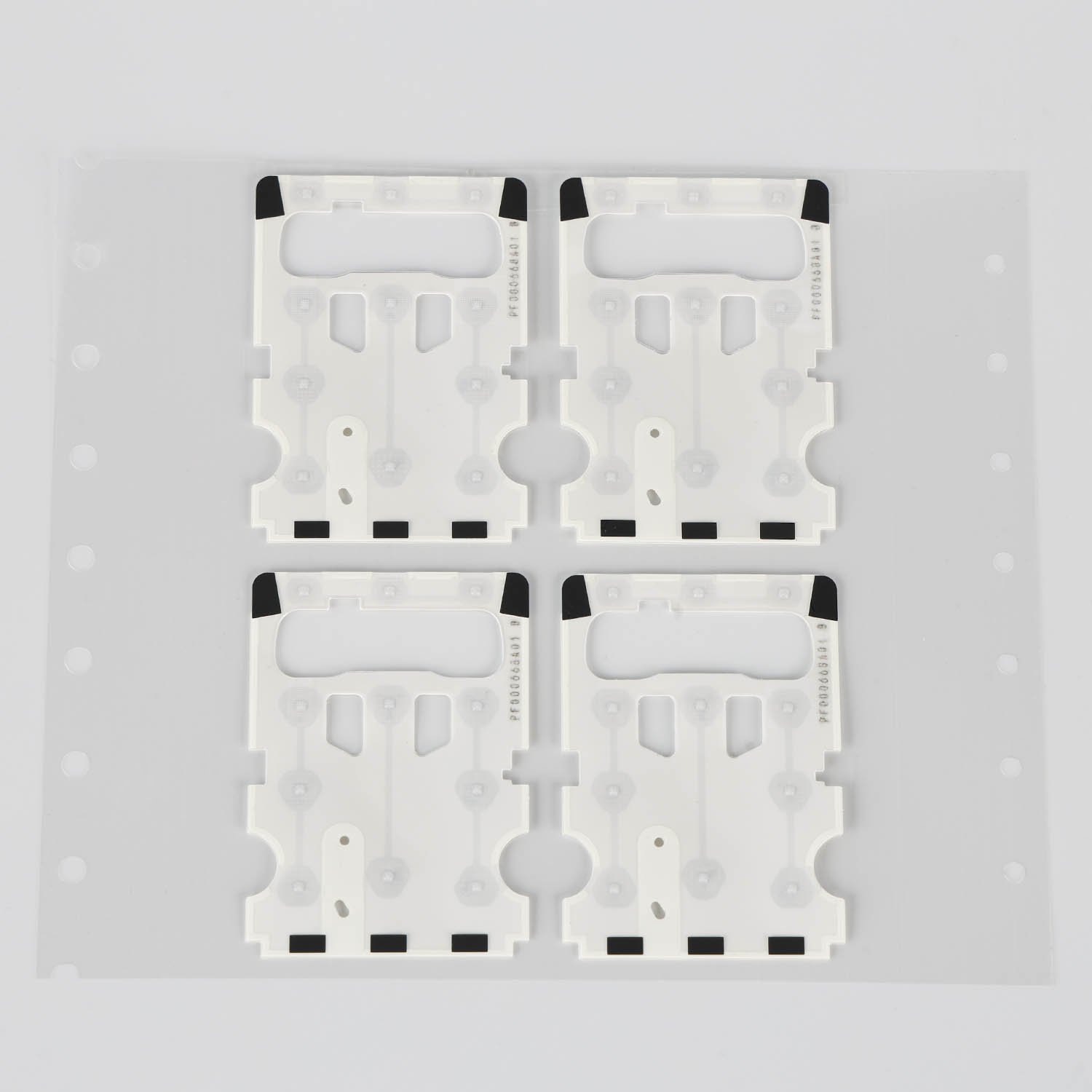

| LGF | Silver dye + diffused light film + double-sided tapeLGF+DOME SHEET |  |

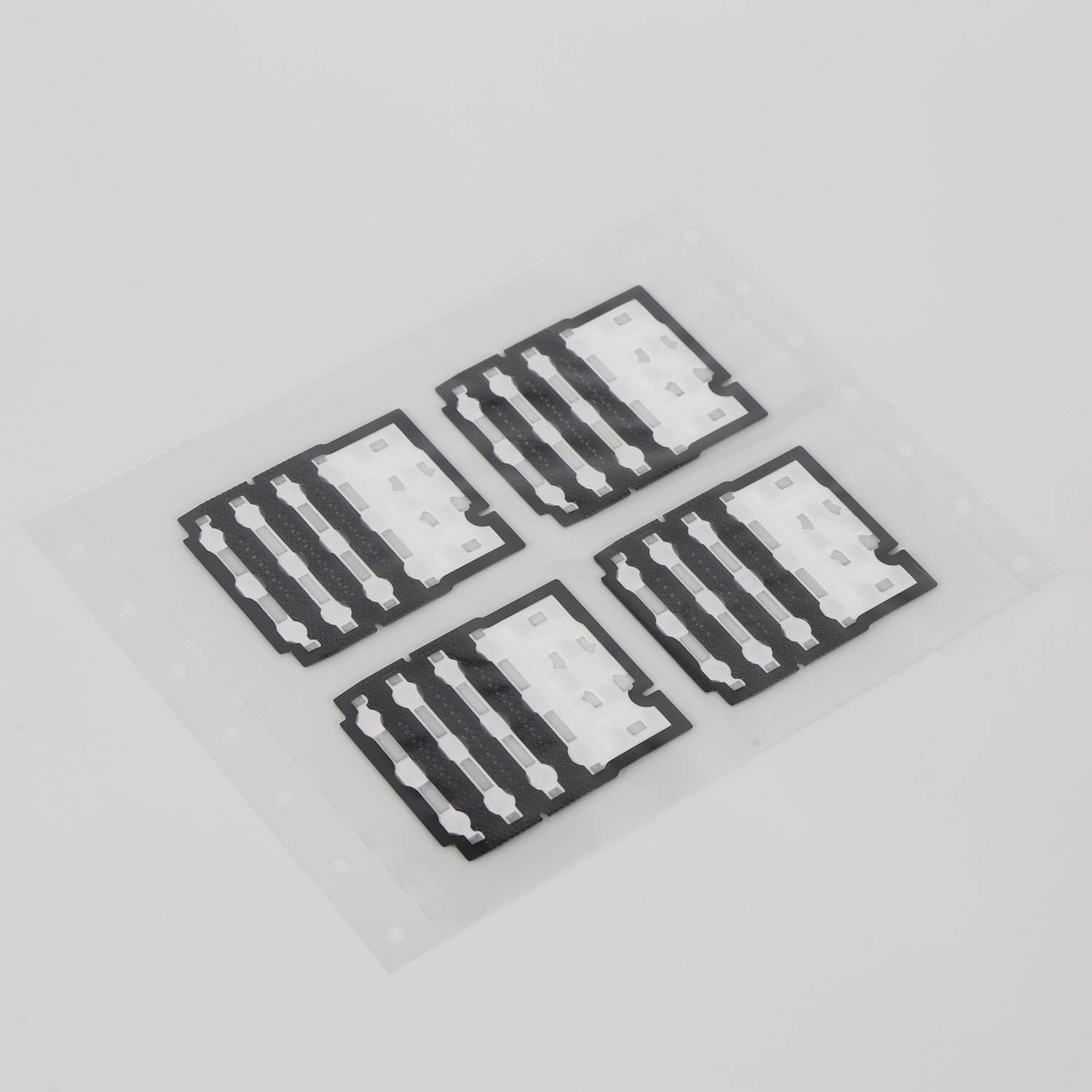

| Light-blocking paper+LGF+DOME SHEET |  |
Industry Pain Points and Solutions
| Challenge | Problem Statement | Solution / Technology Breakthrough | Performance Achieved |
|---|---|---|---|
| Tactile Consistency Control | Batch-to-batch force variation > 15 % | Digital tooling + AI-based 100 % force inspection | Force deviation < 5 % |
| Waterproof & Dustproof | Harsh-environment reliability | Labyrinth-edge seal + nano-hydrophobic coating | IP68 (validated by 3 m submersion test) |
| Ultra-thin Requirement | Slim-device form factor | 0.08 mm ultra-thin stainless-steel dome + flexible substrate lamination | Phone side-key thickness reduced from 0.8 mm to 0.3 mm |
Design and Selection Guide
| Application Scenario Analysis | Environmental Requirement | Mechanical Characteristic | Electrical Parameter | Structural Constraint |
|---|---|---|---|---|
| Consumer Electronics | –20 °C – +70 °C | 10 – 150 gf | < 100 mΩ | Thickness < 0.3 mm |
| Automotive Electronics | –40 °C – +105 °C | 50 – 300 gf | < 50 mΩ | IP67 protection |
| Medical Equipment | +10 °C – +40 °C | 20 – 100 gf | Medical certification | Curved-surface conformal |
| Solution Tier | Substrate Material | Dome (Metal) Material | Rated Life |
|---|---|---|---|
| Economical | PET | 304 stainless steel | 0.5 M cycles |
| Balanced | PEN | 301 stainless steel | 1 M cycles |
| Flagship | PI | Beryllium-copper alloy | 5 M cycles |
Why Choose Shanyo's Dome Sheets & LGF?
Shanyo’s Dome Sheets & LGF provide critical benefits for sophisticated electronic designs:
Superior Backlight Uniformity
Engineered microstructures within the LGF Dome Array ensure even light diffusion across the entire panel, eliminating hotspots and creating a premium, consistent glow.
Ultra-Thin, Integrated Construction
Combining the switch and light guide functions into a single film module enables a remarkably slim profile, facilitating sleek, modern product designs.
Simplified Assembly & Enhanced Reliability
As a pre-assembled unit, the LGF metal dome array reduces component count, streamlines production, and minimizes potential points of failure, improving overall durability.
Excellent Tactile Feedback
The integrated Metal Dome Sheet maintains a definitive, reliable snap feel with a lifecycle of over 500,000 actuations, ensuring a high-quality user interaction.
High Design Flexibility
Both the tactile dome switch layout and backlighting patterns can be fully customized in shape and effect, supporting unique branding and UI requirements.
Robust Environmental Sealing
The monolithic film construction provides a natural barrier against dust and moisture, forming an excellent foundation for achieving high IP-rated enclosures.
Find Your Application: Versatile by Design
Shanyo's Dome Sheets & LGF can be applied to various industries and specific products.
| Application Field | Typical Use Case | Key Benefits Provided by LGF Dome Sheets |
|---|---|---|
| Consumer Electronics | Smartwatch crowns, high-end remote controls, gaming controllers. | Delivers brand-defining uniform backlight and premium haptics in compact, design-driven devices. |

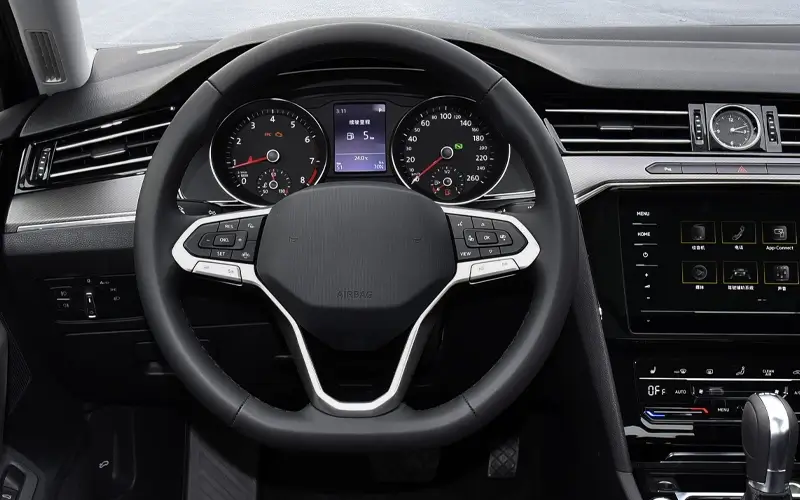

| Automotive Interiors | Steering wheel controls, center console touch panels, window switches. | Meets automotive-grade durability and temperature requirements while offering excellent visibility and feel. |
| Medical Devices | Patient monitor interfaces, portable diagnostic equipment. | Ensures clear, reliable operation in low-light environments; seamless surface is easy to clean and disinfect. |
| Industrial Controls & Home Appliances | Industrial HMI panels, control panels for premium kitchen appliances. | Provides a robust, reliable interface with excellent visibility in various lighting conditions. |
Consumer
Tactile metal domes are essential components in premium consumer electronics, from gaming controllers to mechanical keyboards.
Fitness Wearables
Shanyo’s premium metal dome switches deliver crisp, reliable tactile feedback—perfect for fitness trackers, wearables, and high-performance applications.

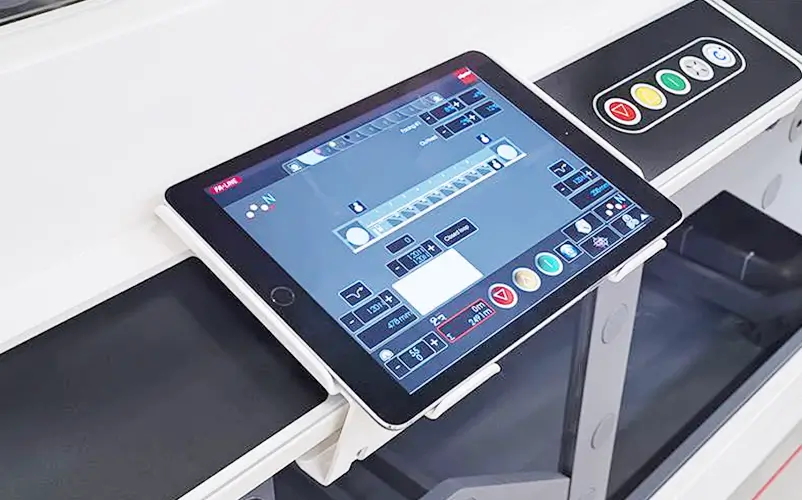

Industrial
Industrial equipment often requires rugged keyboards and human machine interfaces that can withstand continuous use in harsh environments and extreme temperatures.

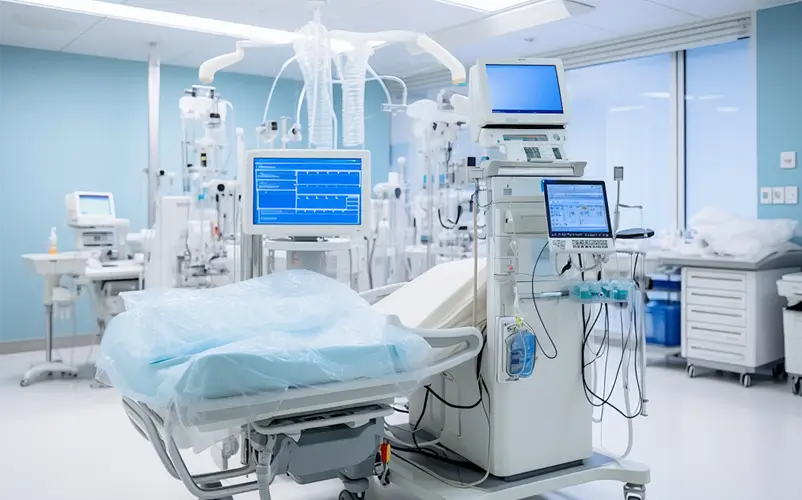

Medical
The medical industry has long relied on Shanyo’s membrane switch and touch screen technology as the user interface for its products.
Aerospace
Shanyo has over 20 years of experience designing backlit human machine interfaces and backlit panels and signage for the aerospace industry.
Military
When a Special Forces team inserts behind enemy lines, every component in their AN/PRC-163 manpack radio becomes a lifeline.
Shanyo's Partners
Shanyo collaborates with leading companies across various industries worldwide to design and manufacture dome arrays for them.
Help Center
FAQ
Q1: What is the main advantage of an LGF Dome Sheet over a traditional backlit keypad assembly?
A: The key advantage is integration and performance. A traditional assembly stacks separate components (LEDs, light guide plate, rubber dome, metal dome), leading to potential alignment issues, light loss, and greater thickness. An LGF metal dome array integrates the light guide and switch into a single, thin film, guaranteeing superior backlight uniformity, a slimmer profile, and simpler, more reliable assembly.
Q2: Does integrating the light guide affect the tactile feel of the Metal Dome Sheet?
A: Not at all. The tactile response is solely determined by the performance of the precision-engineered metal snap dome. The light guide layer is designed to coexist without interfering with the dome’s operation, ensuring you receive both perfectly even illumination and a crisp, consistent tactile click.
Q3: Can LGF Dome Sheets support dynamic lighting effects like RGB or animation?
A: Yes. By designing independent optical channels and zones within the LGF Dome Array, and pairing it with a compatible LED driver circuit, we can achieve dynamic lighting effects including multi-color RGB, breathing patterns, and sequential illumination.
Q4: Are these Dome Sheets & LGF solutions suitable for waterproof designs?
A: Absolutely. The LGF Dome Sheet module itself, being a flat film circuit, is inherently easier to seal than mechanical buttons. Using full lamination bonding, perimeter gaskets, or other sealing techniques, end products can readily achieve high ingress protection ratings like IP68.
Q5: What is required to start a custom LGF Dome Sheets project?
A: To begin, we primarily need:
1) Your panel layout and industrial design, specifying desired lit areas and effects;
2) Backlight performance goals (brightness, color, LED specifications);
3) Tactile requirements (actuation force and travel for each key);
4) Environmental specs (operating temperature, required IP rating).
We will then provide a complete solution from optical simulation to functional prototypes.
