Does metal dome installation have anything to do with specs?

Regarding the installation and welding of metal domes

Installing and welding metal domes, especially triangular ones, is a process that requires careful planning and execution to ensure structural integrity and aesthetic appeal. Here’s a detailed overview of the installation process and its effects:

Installation Process of Metal Domes

1. Design and Planning
– Blueprints and CAD Models: Detailed designs and structural blueprints are essential. CAD models help in visualizing the structure and planning the assembly.
– Material Selection: Choose the right type of metal based on the requirements (stainless steel, aluminum, etc.) considering factors like strength, weight, and corrosion resistance.

2. Foundation Preparation
– Site Preparation: Clear and level the installation site. Ensure the foundation is strong enough to support the dome.
– Anchor Points: Install anchor bolts or other anchoring systems to secure the dome’s base.

3. Fabrication of Triangular Panels
– Cutting and Shaping: Cut the metal sheets into triangular shapes as per the design specifications. Ensure precision to avoid gaps or misalignment.
– Pre-Assembly: Sometimes panels are pre-assembled in sections to ensure they fit together properly.

4. Assembly and Welding
– Framework Construction: If there’s an internal framework, assemble it first. This framework provides support during the installation of the triangular panels.
– Panel Installation: Begin installing the triangular panels from the base, working upwards. Panels are typically bolted or welded together.
– Welding: Use appropriate welding techniques (MIG, TIG, etc.) to join the panels. Ensure clean welds to maintain structural integrity and appearance.
– Sealing and Insulation: Apply sealants and insulators if necessary, especially for domes exposed to weather elements.

5. Finishing Touches
– Surface Treatment: Polishing, painting, or coating the dome to protect against corrosion and enhance appearance.
– Inspection: Conduct a thorough inspection to ensure all welds are secure and there are no structural weaknesses.

Effects of Proper Installation

1. Structural Integrity
– Strength and Stability: A well-installed dome provides excellent strength and stability. The triangular panels distribute weight evenly, making the structure robust against external forces like wind and snow loads.
– Durability: Proper welding and sealing ensure the dome is durable and can withstand environmental stress.

2. Aesthetic Appeal
– Visual Impact: Metal domes have a sleek, modern look that enhances the architectural beauty of buildings.
– Customizability: Different finishes and designs can be applied to match the aesthetic preferences of the customer.

3. Energy Efficiency
– Insulation: Metal domes can be insulated to improve energy efficiency, helping maintain consistent indoor temperatures.
– Natural Light: Some designs incorporate skylights or translucent panels, reducing the need for artificial lighting during the day.

4. Maintenance and Longevity
– Low Maintenance: Metal domes, once installed, require minimal maintenance. Regular inspections and occasional cleaning are usually sufficient.
– Longevity: High-quality materials and professional installation extend the lifespan of the dome.

Common Customer Concerns

– Cost: Installation cost varies based on size, complexity, and materials used. Customers should be informed about the long-term benefits and durability that justify the initial investment.
– Customization: Addressing how customized designs can be accommodated.
– Installation Time: Provide an estimated timeline for the completion of the project.
– Weather Resistance: Assurance of the dome’s performance in different weather conditions.

In conclusion, the installation and welding of metal domes, particularly triangular ones, is a meticulous process that results in a strong, durable, and visually appealing structure. Proper planning, skilled fabrication, and precise welding are crucial to achieving the best outcomes and meeting customer expectations.

What are the specifications of triangular metal domes?

Triangular metal domes, also known as tactile domes or snap domes, are used in various applications such as membrane switches, user interfaces, and other electronic devices to provide tactile feedback. The specifications of these domes can vary based on their design and intended use. Below, I’ll outline the key specifications of triangular metal domes, focusing on the two main types: with legs and without legs.

Triangular Metal Domes Without Legs

These domes do not have legs or feet and are typically used in applications where they sit directly on the contact surface.

1. Dimensions: The dimensions can vary, but typical sizes include the side lengths and height of the dome.
2. Actuation Force: The force required to actuate the dome, usually measured in grams (g).
3. Material: Typically made from stainless steel or other conductive metals.
4. Plating: Can have various types of plating such as gold or nickel to improve conductivity and corrosion resistance.
5. Travel Distance: The distance the dome travels when pressed.
6. Snap Ratio: The percentage difference between the actuation force and the return force, indicating the tactile feel.
7. Durability: Number of cycles the dome can withstand before failure.

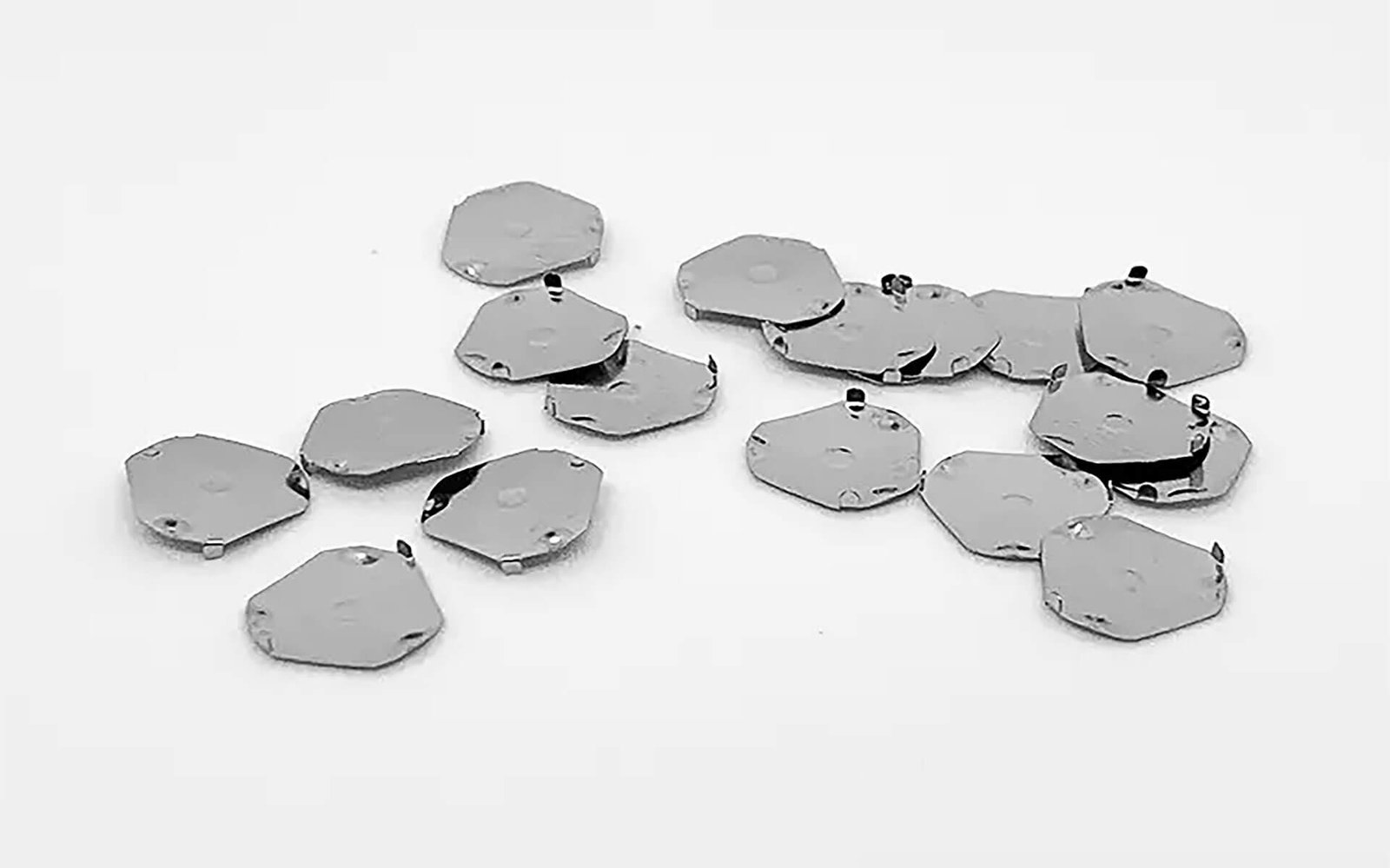

Triangular Metal Domes With Legs

These domes have legs or feet to provide stability and alignment during installation. The specifications for these domes include:

1. Leg Length:
– 3.0MM: Longer legs for applications requiring more height.
– 1.6MM: Standard length for most applications.
– 0.8MM: Shorter legs for low-profile applications.

2. Leg Width: Typically, the width of the legs is 0.8MM, but this can be customized based on specific installation requirements.
3. Dimensions: Including the overall size of the dome and the length of each leg.
4. Actuation Force: Similar to domes without legs, the force required to press the dome.
5. Material: Usually stainless steel, but can vary based on the application.
6. Plating: Gold, nickel, or other types of plating for conductivity and corrosion resistance.
7. Travel Distance: The movement of the dome when pressed.
8. Snap Ratio: The tactile feedback provided by the dome.
9. Durability: The lifespan of the dome in terms of the number of presses it can endure.

Customization

Some applications may require customized triangular metal domes with specific dimensions, leg lengths, or materials. The customization ensures that the domes fit the exact requirements of the device or interface they are being used in. Custom domes may also include specific mounting or installation methods to ensure proper alignment and functionality.

Summary of Key Specifications

1. Type: With legs (3.0MM, 1.6MM, 0.8MM) or without legs.
2. Dimensions: Size of the dome and leg dimensions.
3. Material: Typically stainless steel.
4. Plating: Gold, nickel, etc.
5. Actuation Force: Measured in grams.
6. Travel Distance: Movement when pressed.
7. Snap Ratio: Tactile feedback.
8. Durability: Lifespan in terms of press cycles.

These specifications help in selecting the appropriate triangular metal dome for various electronic applications, ensuring reliable performance and tactile feedback.

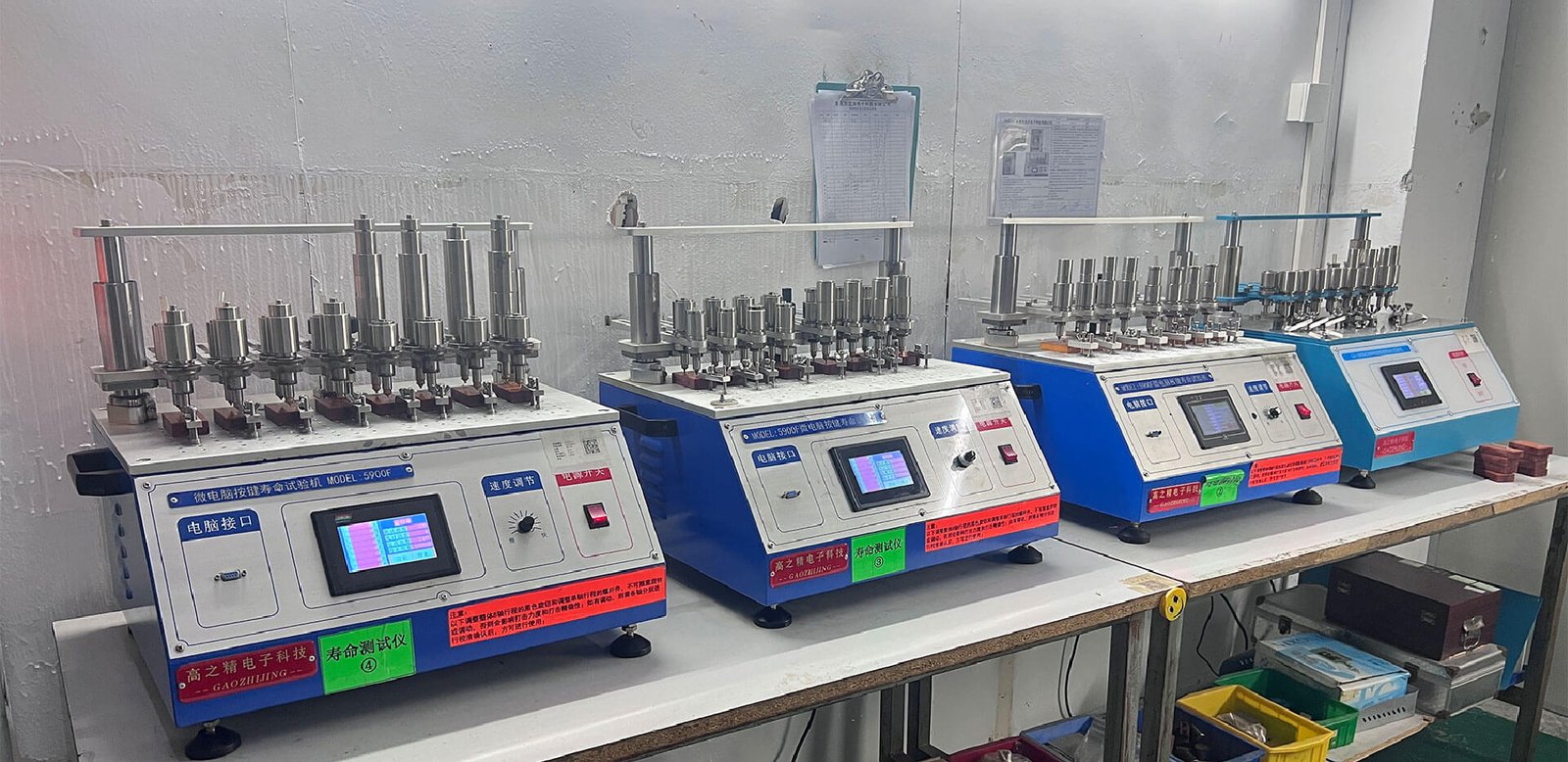

Triangular Metal Dome Life Strength

The triangular metal dome switch is a crucial component in many electronic devices, providing tactile feedback and serving as a conductive circuit on PCB (Printed Circuit Board) assemblies. Here’s a detailed explanation of its design, function, and factors affecting its lifespan:

Design and Function

1. Triangular Structure:
– The triangular shape of the metal dome is specifically designed to evenly distribute the mechanical force applied when pressed.
– Each corner of the triangle acts as a pivot point, ensuring a uniform and predictable deformation.

2. Conductive Circuit:
– When the dome is pressed, it makes contact with the PCB, closing the circuit and allowing current to flow.
– The conductive properties of the metal dome ensure a reliable electrical connection.

3. Extension and Contraction:
– As pressure is applied, the four sides of the dome extend outward.
– This extension is critical for the switch’s operation as it ensures that the dome returns to its original shape after the force is released, maintaining its tactile feedback.

Impact of Welding and Fixation

1. Fixation of Legs:
– If the two legs of the dome are welded and fixed, the ability of the dome to extend outward is restricted.
– This restriction leads to an increase in the internal stress when the dome is pressed.

2. Force Distribution:
– Without the ability to extend, the force applied to the dome increases significantly.
– Higher force and restricted movement lead to increased wear and tear, reducing the operational lifespan of the dome.

3. Service Life:
– In ideal conditions (no welding), the metal dome can achieve up to 5 million actuation.
– Proper installation and environmental considerations are essential to maintaining this lifespan.

Environmental Factors

1. Temperature and Humidity:
– Extreme temperatures and high humidity can affect the metal dome’s performance.
– Corrosion or material degradation due to environmental factors can shorten the dome’s lifespan.

2. Mechanical Stress:
– Repeated and high-frequency use in demanding environments can lead to fatigue.
– Proper material selection and coating can mitigate some of these effects.

Maintenance of Special Properties

1. Elasticity:
– The dome’s ability to return to its original shape is crucial for its tactile response.
– Ensuring that the dome is not overly constrained allows it to maintain its elasticity.

2. Electrical Conductivity:
– Maintaining a clean and corrosion-free surface ensures consistent electrical performance.
– Regular inspection and maintenance can help in identifying and addressing issues early.

The triangular metal dome switch is a vital component designed for durability and reliability, with a potential lifespan of millions of actions under optimal conditions. However, welding and fixing the dome’s legs can significantly reduce its lifespan by restricting its natural movement and increasing internal stress. Environmental factors such as temperature, humidity, and mechanical stress also play a role in the dome’s overall longevity. Proper installation, regular maintenance, and consideration of environmental conditions are essential for maximizing the service life of these metal domes.

How to install a metal dome more stably?

To install a triangular metal dome more stably, using a metal dome array with a securing film can be highly effective. This method ensures that the domes remain in place and function correctly without compromising their mechanical properties or lifespan. Here are the steps and considerations for stable installation:

Steps for Stable Installation Using a Metal Dome Array

1. Preparation:
– Ensure the PCB is clean and free from dust or contaminants that could affect adhesion or electrical performance.
– Verify that the metal domes and the securing film are free from defects and properly dimensioned for the PCB layout.

2. Placement of Metal Domes:
– Position each triangular metal dome on the designated contact points on the PCB.
– Make sure each dome is correctly oriented and aligned with the corresponding circuit paths.

3. Application of Securing Film:
– Carefully place the securing film over the metal domes. The film should be adhesive and transparent to allow for inspection.
– The film needs to have pre-cut holes or be flexible enough to ensure it does not interfere with the domes’ extension and contraction.

4. Securing the Film:
– Press the film firmly onto the PCB to ensure it adheres well, securing the domes in place without movement.
– Use a roller or similar tool to ensure even pressure distribution and avoid air bubbles.

5. Testing:
– After installation, test each dome by pressing it to ensure it activates the circuit correctly.
– Verify that the domes return to their original shape and position without any hindrance from the film.

Considerations for Optimal Stability and Performance

1. Material Selection:
– Use high-quality adhesive films that can withstand environmental conditions such as temperature changes and humidity.
– The film should be non-conductive to prevent short circuits and should not degrade over time.

2. Dome Placement Accuracy:
– Ensure precise placement of the domes to avoid misalignment, which can affect the electrical connection and tactile response.
– Use positioning tools or templates if necessary for consistent and accurate placement.

3. Environmental Protection:
– Consider additional protective measures such as sealing the edges of the film or using a conformal coating to protect the domes from environmental factors.

4. Inspection and Quality Control:
– Perform thorough inspections during and after installation to detect any misalignment or defects.
– Regular quality control checks can help in identifying issues early and ensuring the long-term reliability of the metal domes.

Advantages of Using a Metal Dome Array with Securing Film

1. Enhanced Stability:
– The securing film keeps the domes in place, preventing dislocation or falling off during use.

2. Simplified Installation:
– The process is straightforward and does not require complex tools or procedures, reducing assembly time and cost.

3. Uncompromised Performance:
– The film does not interfere with the domes’ ability to extend and contract, ensuring they maintain their tactile feedback and electrical performance.

4. Improved Longevity:
– By preventing movement and dislocation, the domes are less likely to experience mechanical stress that could shorten their lifespan.

Installing triangular metal domes using a securing film in a metal dome array is an effective method to enhance stability and performance. This approach simplifies installation, maintains the domes’ functionality, and improves their durability by preventing dislocation and reducing mechanical stress. By carefully selecting materials and ensuring precise placement, you can achieve a reliable and long-lasting installation of metal domes on PCB assemblies.

What is the difference between metal domes with dots and without dots?

Metal domes with and without dots are used in various electronic applications, but they serve slightly different purposes and are suitable for different environments and uses. Here’s a detailed comparison between the two types:

Metal Domes Without Dots

1. Types:
– Round Domes: Commonly used in micro switches, mobile phone buttons, and remote controls.
– Oval Domes: Similar applications as round domes, providing a different tactile feel.
– Cross-Shaped Domes: Often used in membrane switches and PCB boards.

2. Applications:
– Micro switches
– Mobile phone buttons
– Remote controls
– Membrane switches
– PCB boards

3. Conductivity Requirements:
– These domes generally have high conductivity requirements.
– They are often used in environments where precise and reliable electrical performance is critical.

4. Production Environment:
– Manufacturing in dust-free workshops is essential.
– Dust contamination can significantly impact the conductivity and performance of the metal domes.

5. Advantages:
– Reliable tactile feedback.
– Consistent electrical performance in high-conductivity applications.

6. Disadvantages:
– Susceptible to performance issues if not manufactured in a controlled, dust-free environment.

Metal Domes With Dots

1. Design:
– These domes have small dots or protrusions on their surface.
– The dots act as contact points that improve the tactile feedback and ensure a more reliable switch activation.

2. Applications:
– Typically used in applications where a more distinct tactile response is needed.
– Suitable for environments that may not be as strictly controlled as those required for domes without dots.

3. Conductivity Requirements:
– The dots help in creating a more reliable contact with the PCB.
– Less prone to issues caused by minor dust contamination due to the raised contact points.

4. Production Environment:
– While cleanliness is still important, the requirements may be less stringent compared to domes without dots.
– The raised dots help maintain conductivity even if minor contaminants are present.

5. Advantages:
– Enhanced tactile feedback due to the raised dots.
– Improved reliability in contact, reducing the risk of misfires.
– Slightly more forgiving in terms of production environment cleanliness.

6. Disadvantages:
– Potentially more complex manufacturing process to include the dots.
– May not be suitable for all applications, particularly those requiring a completely flat contact surface.

Summary

– Metal Domes Without Dots:
– Commonly used in high-precision applications such as micro switches, mobile phones, and remote controls.
– Require a highly controlled, dust-free manufacturing environment.
– Offer reliable tactile feedback and high conductivity, but are more sensitive to contamination.

– Metal Domes With Dots:
– Provide enhanced tactile feedback and improved reliability of contact.
– Can be used in slightly less controlled environments due to their design, which helps maintain conductivity.
– Suitable for applications where distinct tactile response and reliable switch activation are needed.

Choosing between metal domes with and without dots depends on the specific requirements of the application, including the necessary tactile feedback, the required conductivity, and the production environment constraints.

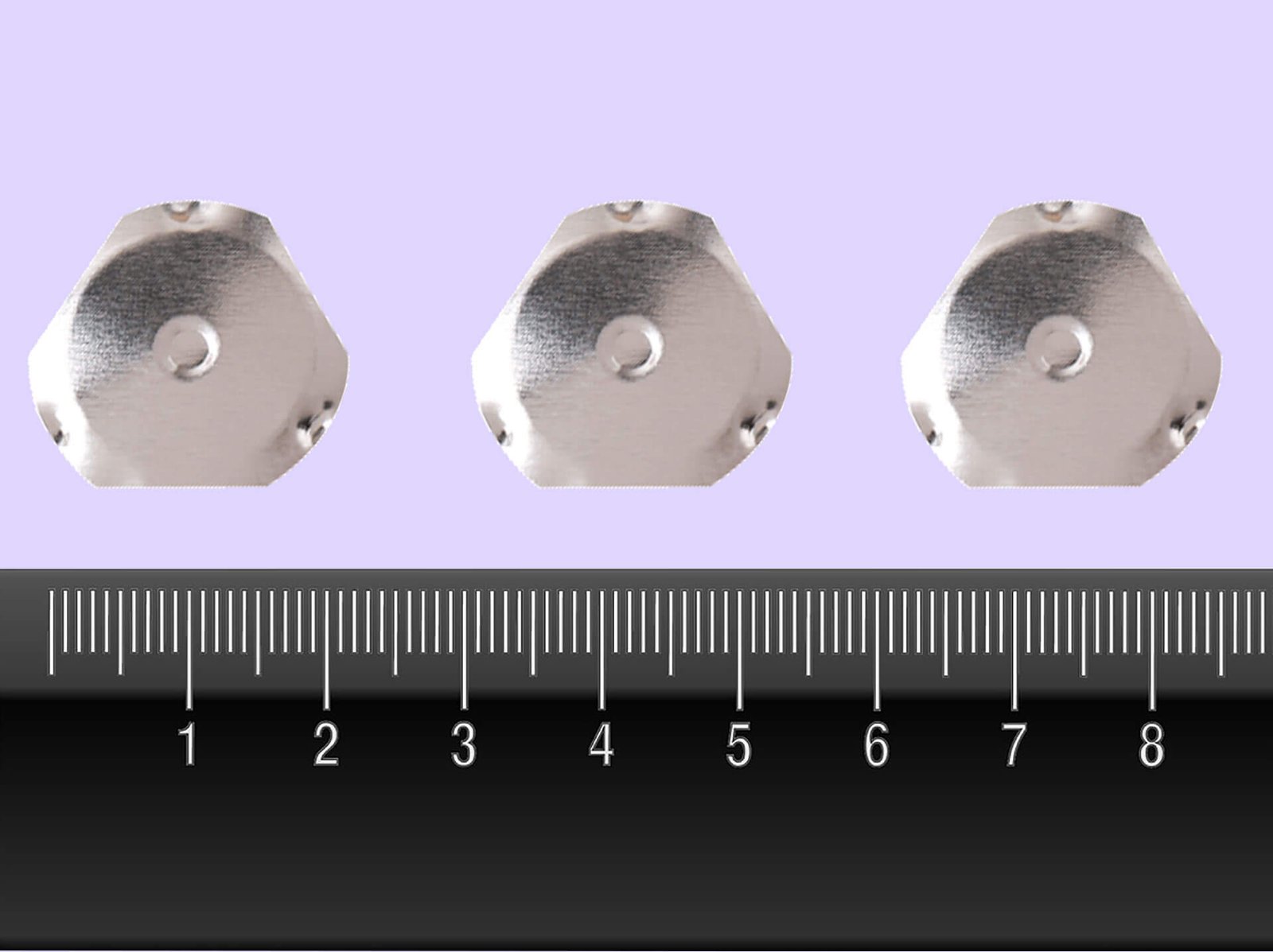

The dotted metal dome is designed with a protruding point in the middle, which significantly improves its performance and durability. Here are the key advantages of this design:

1. Enhanced Conductivity: The protruding point in the center of the dome helps to ensure a more reliable electrical connection. This design minimizes poor conduction performance, making the metal dome more effective in its role.

2. Dust Management: When dust enters the device, it tends to accumulate around the bumps rather than spreading across the entire dome surface. This localized accumulation helps in managing dust more efficiently.

3. Self-Cleaning Mechanism: The design allows for dust to fall off through vibrations that occur during the pressing of the dome. This feature helps in maintaining the cleanliness of the contact area, thereby extending the service life of the metal dome and reducing instances of poor conductivity.

Overall, the dotted metal dome with a central protruding point offers significant improvements in terms of conductivity and durability, making it a superior choice in environments where dust and other contaminants are a concern.
