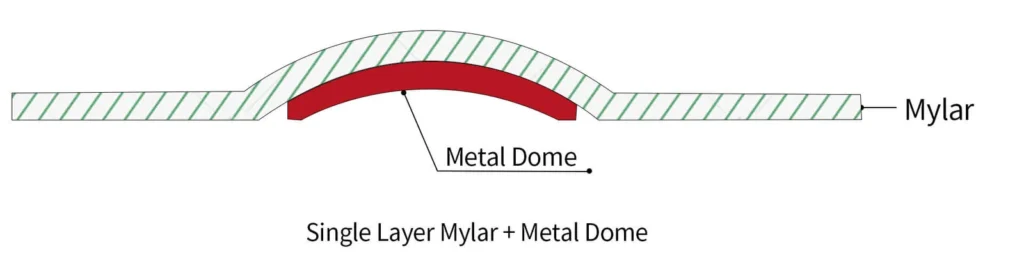

Single layer structure This is the simplest structure at the beginning. The metal dome is located under Mylar (a layer of PET with glue) and has ventilation holes to ensure a basic feel and use. The conductive film with a single layer structure is mainly used in early membrane switches (dome array), contact sheets, and other industries. The metal dome is directly pasted and positioned under Mylar (dome carrier) – a layer of adhesive PET film. At the same time, a ventilation hole is reserved for each metal dome on the product to provide a good rebound (feel).
Single Layer Dome Array Structure
The dome array can be simply manufactured onto large panels like one or two domes on a polyester backing, and these panels can contain a large number of domes in one pattern to suit customized applications. Domes of different sizes/types can be merged into the array design.
When quoting, you need to provide a dimensional diagram containing the construction requirements, dome dimensions and parameters, and the annual quantity. If necessary, budget pricing can be provided through CAD.
Please feel free to contact us to discuss your requirements.
Various specifications of snap dome are available：
- Triangle Metal Dome;
- Cruciform Metal Dome;
- Four Legs Tactile Domes
- Circular/ Round Metal Dome;
- Oblong/ Rectangle Metal Dome;
- Ellipse/ Round Waist Metal Dome;
- Circle / Round Metal Dome With Holes;
- Four Leg Metal Domes with Center Hole；
- Customized metal dome (color/ shape/ size, material, etc.).
Metal dome design principle
Metal Dome Array Classification:
- Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect
Get Free Drawing Design
Contact Us
Single Dome Sheet
It is directly pasted on the PCB board through the adhesive backside.
Panel Dome Sheet
Panel dome sheet as per design requirement Convenient fit and high efficiency.
SMT
SMT machining technology Smaller, lighter, denser, better.
Comsumer
Fitness Wearables
Industrial
Medical
Aerospace
Military
According to the needs of different product structures and grades
Nickel plating, silver plating, gold plating
Stable rebound
Strong conductivity
Stable rebound
Good feel
Dome Array Specifications
- Structure: Double Layers
- Material: Rubber glue + Mylar + Adhesive + Spacer + Adhesive + metal dome
- Color: Mylar: transparent; Spacer: white or transparent
- Thickness: Mylar: 0.05mm; Spacer: 0.075mm
- Available Domes: c-series, F-series, T-series
- Operating & Storage Temprature: 5-125℃
Order Metal Dome Array Machining Parts Online: Easy &Fast
Instant Quotation
- Eliminate long waits and reduce uncertainty. With our instant online quotations, you gain clear cost insights immediately, and free & professional DFM feedback, streamlining your Metal Dome Switch, Metal Dome Array, EMI Printing, Metal Dome Array, Light guide plate module, FPC switch, Membrane switch panel, Backlight Module, Equipment, die-cut products, light guides, UV bumps, FPC, panel buttons, PCB circuits, film flexible circuits and Packaging machining decisions.
Online Annotation
- Say goodbye to tedious back-and-forths. Directly annotate your 3D drawing online and convey specific changes or queries instantly via live chat. Ensure precise machining requirements are communicated and understood without ambiguity.
All-in-One Project Management
- Take full control of your Metal Dome (Snap Dome) projects. Manage both quotes and orders in a unified platform. Effortlessly oversee every project, ensuring that each stage is transparent and easily accessible.
Team Collaboration
- Strengthen your metal dome array (metal dome sheet) coordination. Create teams, invite members instantly, and access shared quotes & orders with ease. Include key departments like accounting, ensuring smooth payment oversight and execution.
Why Choose Our Custom Dome Array Machining Service
Online Instant quote request email, and get instant Dome Array quotes by simply uploading your design files. We can customize metal domes of various sizes and shapes according to customer requirements. provides real-time & competitive pricing and comprehensive feedback.
Advanced metal dome automatic assembly equipment multi-function testing equipment, and rigorous quality checks, combined with constant communication, ensure that every snap dome you receive meets the highest standards, consistently and reliably.
Boasting robust manufacturing capacity, Shanyo’s ensures quick turnaround for tactile dome machined parts. Plus, with our varied dome array(snap dome switch) choices, you’ll get your order on time, without the usual hassles.
No matter where you are, you can get our 24/7 engineering support all year around. Our experienced engineer can provide you with the most appropriate solution for your metal dome customized design, material selection, surface finishing, and even lead time.
