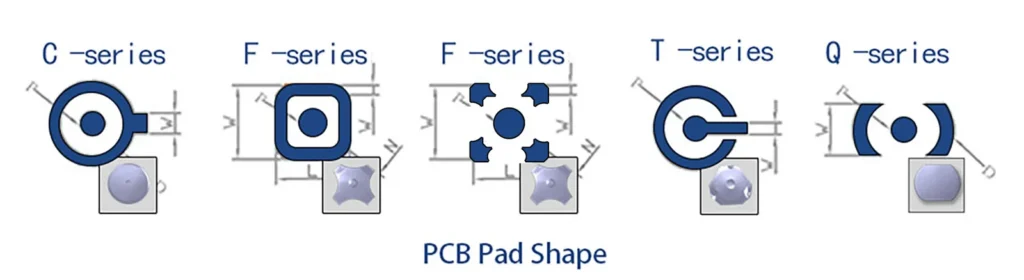

Various specifications of Tactile Metal Dome Switches are available：
- T-SERIES Metal Dome;
- F (4-Legs)-SERIES Four Legs Tactile Domes
- C-SERIES Circular/ Round Metal Dome;

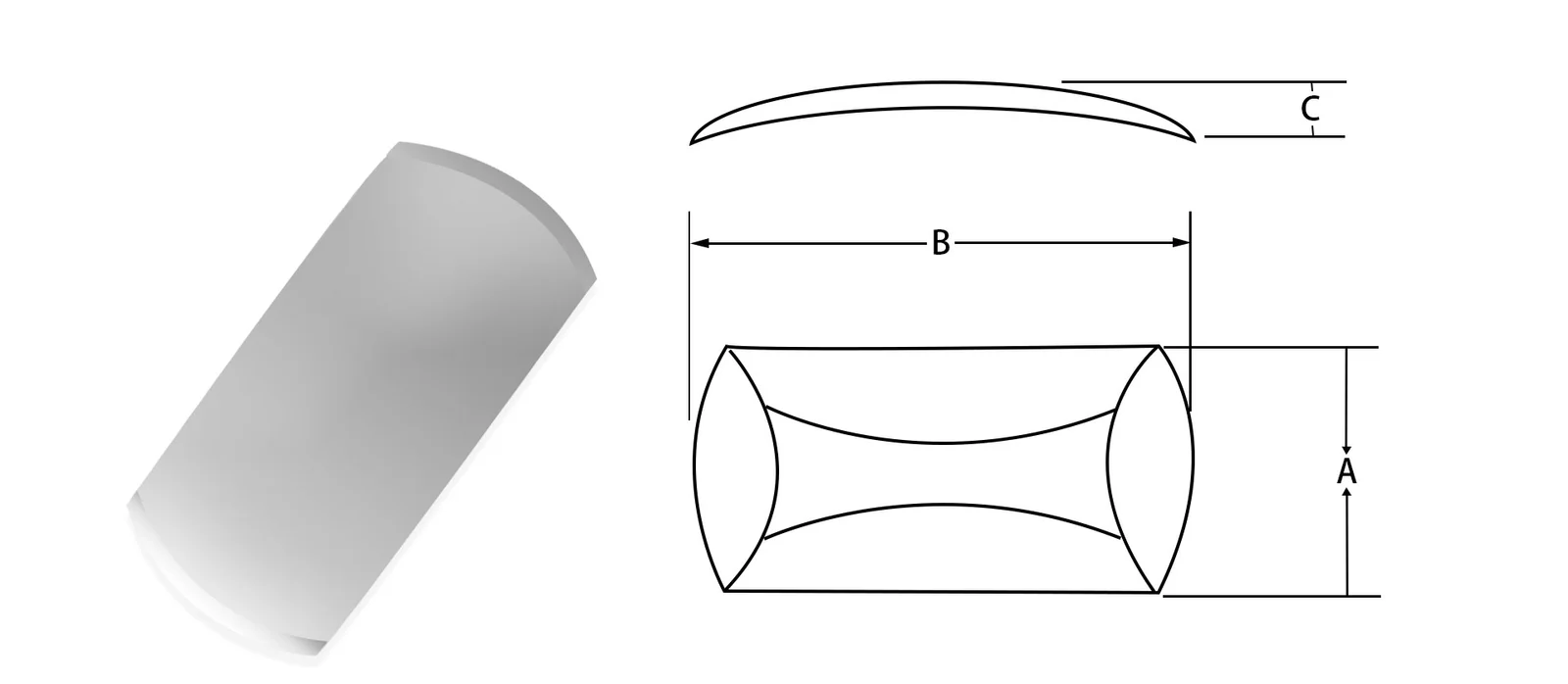

- O-SERIES Oblong/ Rectangle Metal Dome;

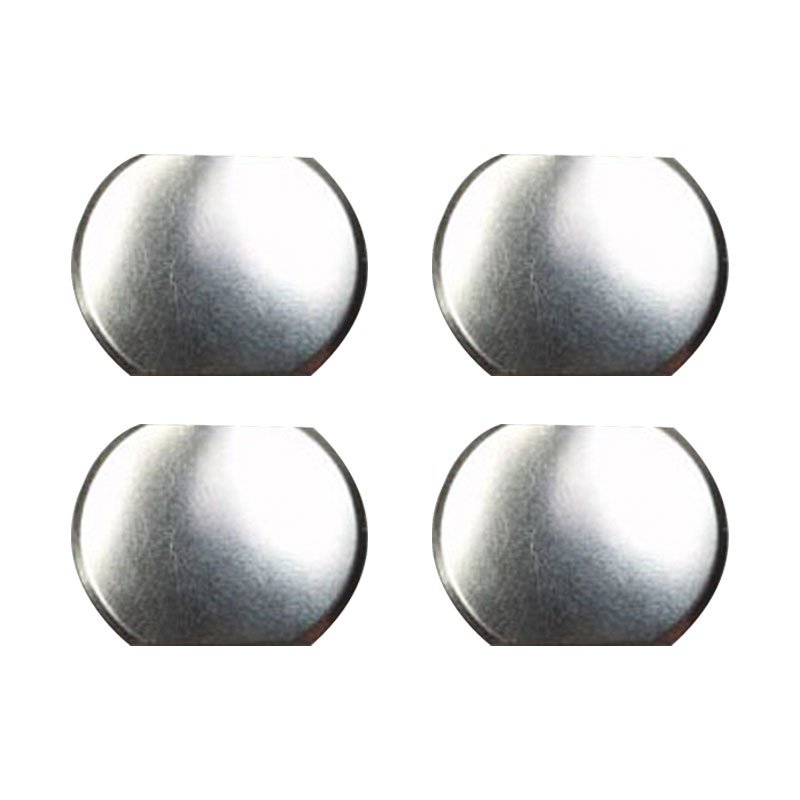

- Ellipse/ Round Waist Metal Dome;
- Circle / Round Metal Dome With Holes;
- Four Leg Metal Domes with Center Hole；
- Customized metal dome (color/ shape/ size, material, etc.).
Rectangular metal domes (oval metal domes, rectangular metal domes) and oblong (oval) switch panels can be mounted on single or double-sided printed circuit boards, flex circuits, and membranes.
Snap dome sizes ones are 3.5*2.9mm, 4.0*2.5mm, 5.0*3.7mm, and 8.9*7.1mm, etc. Sometimes people also call it a “rectangle metal dome”
The rebound/return force of a DR series dome is typically 100- 500g, and its Hand feel rate, click, itinerary force, height, thickness, lifespan, etc., can be adjustable according to the client’s requests. No matter what size or force you require, we’ll do our best to produce it. Contact us now for more!

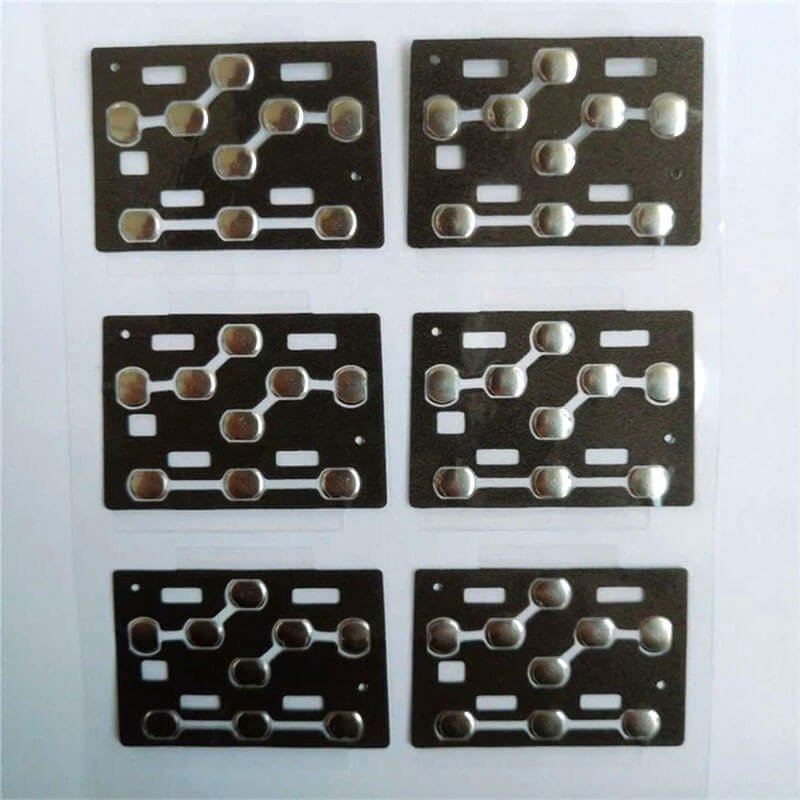

Snap Dome of pot flakes
Snap Dome as a metal dome. Compared with traditional silicone buttons, conductive film has a better feel and longer life. It can also indirectly improve the production of various types of switches using conductive film. efficiency. The metal spring on the dome button is located on the conductive part of the PCB (mostly located above the gold finger on the circuit board). When pressed, the center point of the spring is concave and contacts the circuit on the PCB, thus forming a circuit. , the current passes through, and the entire product can work normally. This is how it works.
| Product model | Size | Rebound/Return force(g) | Hand feel rate (%) | Fmax/Force (mm) | Dome height (mm) | Material thickness (mm) | Life Cycles (s) |
|---|---|---|---|---|---|---|---|
| SY-H2908DR3DP-Ni | 2.9mm | 80士25g | 70±15% | 0.17+0.05mm | 0.22+0.05mm | 0. 055mm | 500,000s |
| SY-H2910DR3DP-Ni | 2.9mm | 100±25g | 70+15% | 0.18+0.05mm | 0.23+0.05mm | 0. 055mm | 500,000s |
| SY-H2913DR3DP-Ni | 2.9mm | 130±25g | 70+15% | 0.19+0.05mm | 0.24士0.05mm | 0. 055mm | 500,000s |
| SY-H2915DR3DP-Ni | 2.9mm | 150±25g | 70+15% | 0.20+0.05mm | 0.25土0.05mm | 0.055mm | 500,000s |
| SY-H2917DR3DP-Ni | 2.9mm | 170±25g | 70+15% | 0.21+0.05mm | 0.26±0.05mm | 0.060mm | 500,000s |
| SY-H2908DR5DP-Ni | 2.9mm | 80±25g | 70+15% | 0.18+0.05mm | 0.23士0.05mm | 0.055mm | 500,000s |
| SY-H2910DR5DP-Ni | 2.9mm | 100±25g | 70+15% | 0.19+0.05mm | 0.24士0.05mm | 0.055mm | 500,000s |
| SY-H2913DR5DP-Ni | 2.9mm | 130±25g | 70+15% | 0.20+0.05mm | 0.25士0.05mm | 0.055mm | 500,000s |
| SY-H2915DR5DP-Ni | 2.9mm | 150±25g | 70+15% | 0.21+0.05mm | 0.26±0.05mm | 0.055mm | 500,000s |
| SY-M402516DR5DP-Ni | 4*2.5mm | 160±20g | 50+10% | 0.20+0.05mm | 0.250.05mm | 0.055mm | 500,000s |
| SY-M402518DR5DP-Ni | 4*2.5mm | 180±20g | 50+10% | 0.21+0.05mm | 0.26±0.05mm | 0.055mm | 500,000s |
| SY-M402518DR5DP-Ni | 4*2.5mm | 180±20g | 55+10% | 0.21士0.05mm | 0.26±0.05mm | 0.055mm | 500,000s |
| SY-M402520DR5DP-Ni | 4*2.5mm | 200±20g | 50+10% | 0.22士0.05mm | 0.27士0.05mm | 0.055mm | 500,000s |
| SY-H402514DR5DP-Ni | 4*2.5mm | 140±20g | 0.22+0.03mm | 0.25土0.03mm | 0.055mm | 500,000s | |
| SY-H402516DR5DP-Ni | 4*2.5mm | 160±20g | 0.23+0.03mm | 0.26土0.03mm | 0.055mm | 500,000s | |
| SY-H402518DR5DP-Ni | 4*2.5mm | 180±20g | 0.24+0.03mm | 0.27土0.03mm | 0.060mm | 500,000s | |
| SY-H402520DR5DP-Ni | 4*2.5mm | 200±20g | 0.24+0.03mm | 0.28土0.03mm | 0.060mm | 500,000s | |
| SY-M402814DR5DP-Ni | 4*2.8mm | 140±20g | 55+10% | 0.18士0.03mm | 0.23士0.03mm | 0.055mm | 1,000,000s |
| SY-M402816DR5DP-Ni | 4*2.8mm | 160±20g | 55+10% | 0.19士0.03mm | 0.24士0.03mm | 0.055mm | 1,000,000s |
| SY-M402818DR5DP-Ni | 4*2.8mm | 180士20g | 55+10% | 0.20士0.03mm | 0.25士0.03mm | 0.055mm | 1,000,000s |
| SY-M402820DR5DP-Ni | 4*2.8mm | 200±20g | 55+10% | 0.21士0.03mm | 0.26±0.03mm | 0.055mm | 1,000,000s |
| SY-M4010DR5DP-Ni | 4*3.0mm | 100士20g | 50+10% | 0.15士0.03mm | 0.20士0.03mm | 0.055mm | 500,000s |
| SY-M4012DR5DP-Ni | 4*3.0mm | 120士20g | 50+10% | 0.16±0.03mm | 0.21士0.03mm | 0.055mm | 500,000s |
| SY-M4013DR5DP-Ni | 4*3.0mm | 130士20g | 50+10% | 0.17士0.03mm | 0.22士0.03mm | 0.055mm | 500,000s |
| SY-H4013DR5DP-Ni | 4*3.0mm | 130±20g | 60+10% | 0.17士0.03mm | 0.22士0.03mm | 0.055mm | 500,000s |
| SY-M4014DR5DP-Ni | 4*3.0mm | 140±20g | 50+10% | 0.17士0.03mm | 0.22士0.03mm | 0.055mm | 500,000s |
| SY-M4014DR5DP-Ni | 4*3.0mm | 140±20g | 50+10% | 0.17士0.03mm | 0.22士0.03mm | 0.055mm | 500,000s |
| SY-H4015DR5DP-Ni | 4*3.0mm | 150±20g | 65+10% | 0.20士0.03mm | 0.24士0.03mm | 0.055mm | 1,000,000s |
| SY-M4016DR5DP-Ni | 4*3.0mm | 160±20g | 50+10% | 0.18士0.03mm | 0.23士0.03mm | 0.055mm | 500,000s |
| SY-M4018DR5DP-Ni | 4*3.0mm | 180士20g | 50+10% | 0.18士0.03mm | 0.23士0.03mm | 0.055mm | 500,000s |
| SY-M4020DR5DP-Ni | 4*3.0mm | 200±20g | 50+10% | 0.20土0.03mm | 0.25士0.03mm | 0.055mm | 500,000s |
| SY-M4022DR5DP-Ni | 4*3.0mm | 220±25g | 50+10% | 0.25士0.03mm | 0.26土0.03mm | 0.055mm | 500,000s |
| SY-M5010DR5DP-Ni | 5*3.0mm | 100±20g | 50+10% | 0.19士0.03mm | 0.24士0.03mm | 0.06mm | 500,000s |
| SY-M5012DR5DP-Ni | 5*3.0mm | 120士20g | 50+10% | 0.20士0.03mm | 0.25士0.03mm | 0.06mm | 500,000s |
| SY-M5014DR5DP-Ni | 5*3.0mm | 140±20g | 50+10% | 0.21士0.03mm | 0.26±0.03mm | 0.06mm | 500,000s |
| SY-M5016DR5DP-Ni | 5*3.0mm | 160±20g | 50+10% | 0.22士0.03mm | 0.27士0.03mm | 0.06mm | 500,000s |
| SY-M5018DR5DP-Ni | 5*3.0mm | 180±20g | 50+10% | 0.23士0.03mm | 0.28士0.03mm | 0.06mm | 500,000s |
| SY-M5020DR5DP-Ni | 5*3.0mm | 200±20g | 50+10% | 0.24士0.03mm | 0.29土0.03mm | 0.06mm | 500,000s |
| SY-M5022DR5DP-Ni | 5*3.0mm | 220±25g | 50+10% | 0.25士0.03mm | 0.30土0.03mm | 0.06mm | 500,000s |
| SY-M8923DR5DP-Ni | 8.85*7.1mm | 230±40g | 60+15% | 0.39士0.05mm | 0.40士0.05mm | 0.07mm | 500,000s |
| SY-M8933DRDP-Ni | 8.85*7.1mm | 330士30g | 50+15% | 0.43士0.05mm | 0.47士0.05mm | 0.08mm | 500,000s |
| SY-M8933DR5DP-Ni | 8.85*71mm | 330士20g | 60+15% | 0.39士0.03mm | 0.45土0.03mm | 0.08mm | 500,000s |
| SY-M8933DR5DP-Ni | 8.85*7.1mm | 330±40g | 60+15% | 0.39士0.05mm | 0.45±0.05mm | 0.08mm | 500,000s |
| SY-M8935DR5DP-Ni | 8.85*7.1mm | 350士30g | 50+15% | 0.40士0.3mm | 0.46±0.03mm | 0.08mm | 500,000s |
| SY-M8935DR5DP-Ni | 8.85*7.1mm | 350士20g | 60+15% | 0.40士0.03mm | 0.46±0.03mm | 0.08mm | 500,000s |
| SY-M8935DR5DP-Ni | 8.85*7.1mm | 350±40g | 60+15% | 0.40士0.05mm | 0.46±0.05mm | 0.08mm | 500,000s |
