Metal dome array and sheet (dome array) is a PET sheet containing a metal dome, which is used as a switch on circuit boards such as PCB or FPC and plays an important role between the user and the instrument. The function of the tactile switch. Can be easily peeled off the release paper and stuck on the circuit board as a switch for electronic equipment. Therefore, from the perspective of metal shrapnel encapsulation, it also requires a ” Peel & Place metal dome”. You can place one or more metal domes in each array depending on the design purpose, mostly in the same number and position as the PAD of the circuit board to which it will be posted.
Dome Arrays (Metal Dome Arrays) are the most cost-effective simple switching solution with a superior tactile interface between your device and the user. It has a nice click feel compared to the membrane polyester switches previously used. Due to the use of metal domes, it also lasts longer compared to polymer dome sheets.
The metal dome contacts on the array (sheet) sit above the contact points on the PCB. When the metal dome is pressed, the center of the dome contacts the PCB and allows current to flow. This is how metal dome arrays work. Please click on our blog to learn How to Place a Metal Dome Array on a Circuit Board.

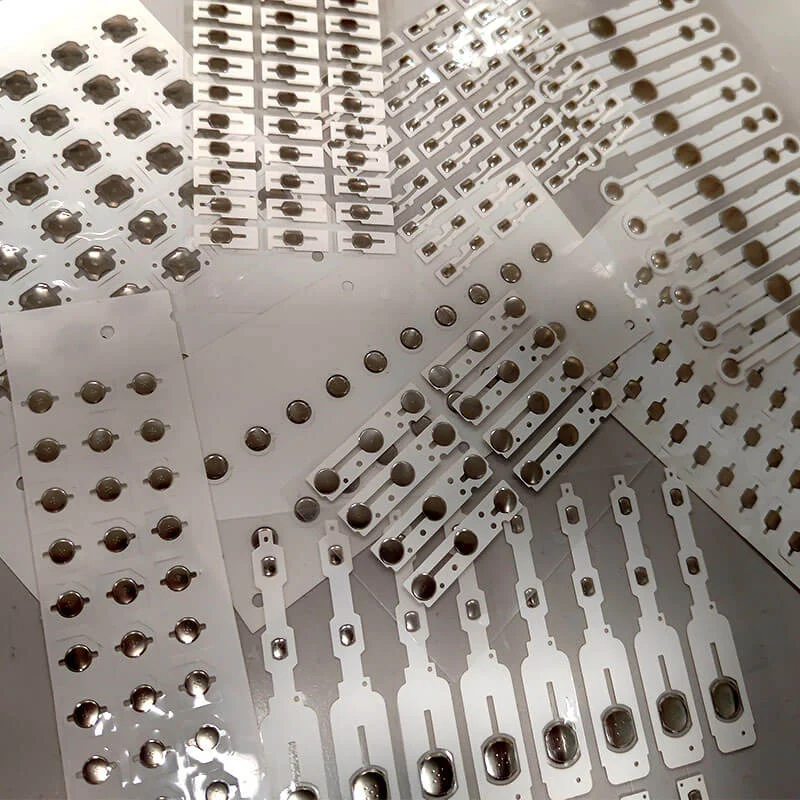

Metal dome arrays (metal dome) of various sizes can be manufactured and meet customer requirements. At present, the metal dome arrays we produce have the following basic types.
Used for: remote controls, MP3, MP4, GPS systems, electronic dictionaries, digital photo frames, etc.; mobile phones, PHS, cordless phones, handsets, walkie-talkies, etc. Digital electronic products with buttons…
Dome Array Features:
- Chemical resistance, weather resistance, and damage resistance;
- Ø 3 to Ø 6 mm, 100 g to 250 g driving force;
- Typical life span is greater than 1M cycles;
- You can choose the version with or without pits.
Dome array advantages:
- Shorten production time and easy assembly
The dome array is easy to assemble, and all domes can be placed on the PCB at the same time to shorten production time. The combination of automated processes will bring extremely low unit costs and improve production efficiency.
- Ensure quality
Dome arrays can reduce quality issues associated with dome placement because these arrays or dome sheets prevent misalignment or misalignment of dome pads, upper domes, and double dome misalignment during assembly.
Single Layer Dome Array
Single-layer dome arrays are used in dome arrays. Metal dome contacts are attached underneath Maylar, a layer of adhesive PET film. On the lamella, each dome contact has an air hole for a nice click feel.
Double Dome Array
EMI Printed Dome Array
– EMI Single Layer
EMI is printed on top of a single layer metal dome array (dome array).
– EMI Double Layer
Rubber Dome Array
LGF Dome Array
Custom Dome Arrays
Shanyo engineers independently developed the automatic shrapnel attachment and assembly machine equipment, which is more convenient, less troublesome, more accurate, and faster than manual labor. The metal shrapnel is independently developed and stamped and has multiple patents. Order now.
Get Free Drawing Design
Contact UsOnline Instant Quote & DFM Analysis
Online Instant quote request email, and get instant Dome Array quotes by simply uploading your design files. We can customize metal domes of various sizes and shapes according to customer requirements. provides real-time & competitive pricing and comprehensive feedback.
Consistent High Quality
Advanced metal dome automatic assembly equipment multi-function testing equipment, and rigorous quality checks, combined with constant communication, ensure that every snap dome you receive meets the highest standards, consistently and reliably.
Fast and Reliable Delivery
Boasting robust manufacturing capacity, Shanyo’s ensures quick turnaround for tactile dome machined parts. Plus, with our varied dome array(snap dome switch) choices, you’ll get your order on time, without the usual hassles.
Professional Engineering Support
No matter where you are, you can get our 24/7 engineering support all year around. Our experienced engineer can provide you with the most appropriate solution for your metal dome customized design, material selection, surface finishing, and even lead time.
METAL DOME SHEET ASSEMBLY METHOD
Single Dome Sheet
It is directly pasted on the PCB board through the adhesive backside.

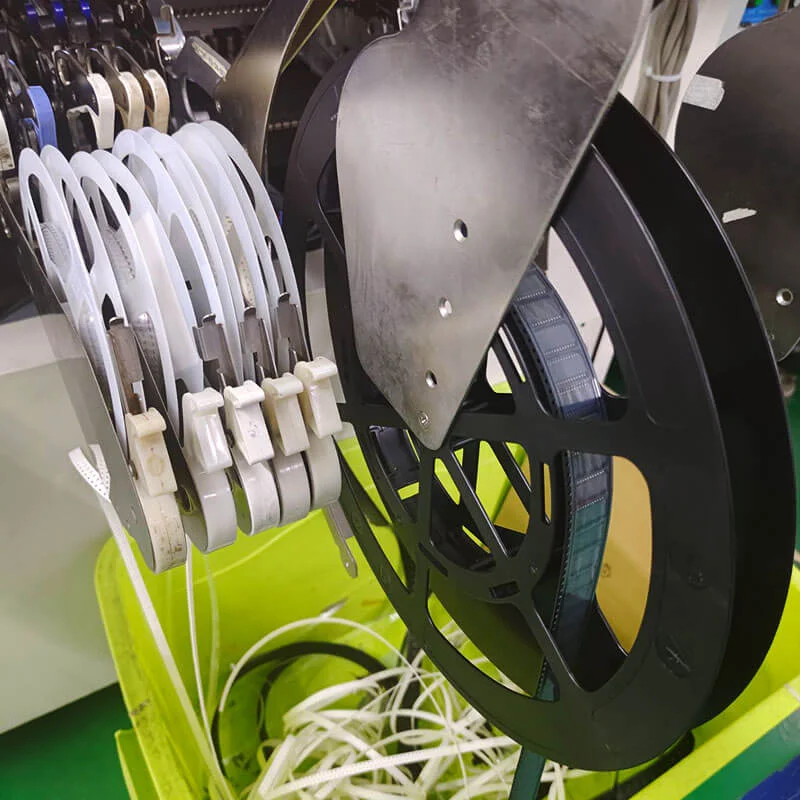

SMT
SMT machining technology Smaller, lighter, denser, better.
Panel Dome Sheet
Panel dome sheet as per design requirement Convenient fit and high efficiency.
Nickel plating, silver plating, gold plating
Smooth contact
Strong conductivity
Stable rebound
Good feel
Dome Array Specifications
- Structure: Double Layers
- Material: Rubber glue + Mylar + Adhesive + Spacer + Adhesive + metal dome
- Color: Mylar: transparent; Spacer: white or transparent
- Thickness: Mylar: 0.05mm; Spacer: 0.075mm
- Available Domes: c-series, F-series, T-series
- Operating & Storage Temprature: 5-125℃
Various specifications of metal shrapnel are available
- Triangle Metal Dome;
- Cruciform Metal Dome;
- Four Legs Tactile Domes
- Circular/ Round Metal Dome;
- Oblong/ Rectangle Metal Dome;
- Ellipse/ Round Waist Metal Dome;
- Circle / Round Metal Dome With Holes;
- Four Leg Metal Domes with Center Hole；
- Customized metal dome (color/ shape/ size, material, etc.).
Metal Dome Array Classification
- Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect Transparency: Better alignment
- White: generally used with light guides (reflective)
- Black: generally used to block out light (obscuring the content)
- Yellow: it belongs to high-temperature resistant material (can exceed SMT high-temperature effect for a short time)
- Silver screen: grounding anti-static effect
Comsumer
Fitness Wearables
Industrial
Medical
Aerospace
Military
