Flexible Circuit Technologies is a premier global provider of the design and production of flexible circuit technology

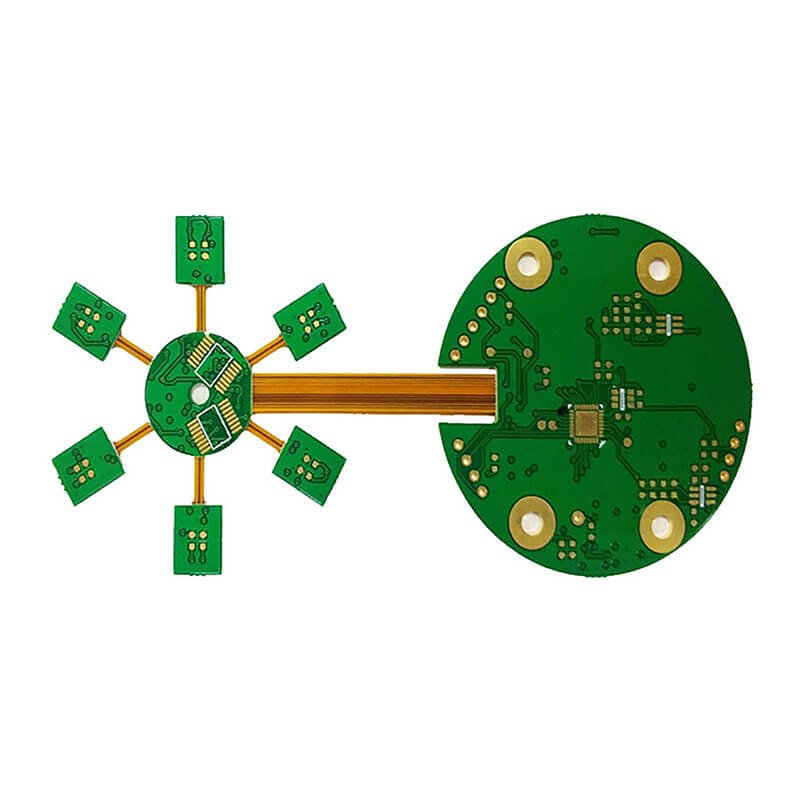

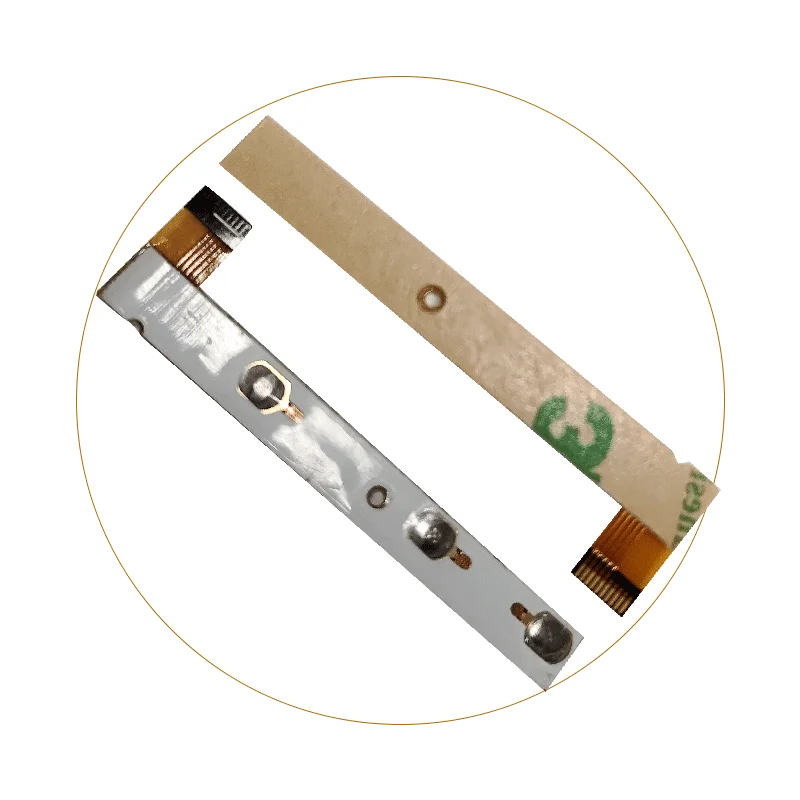

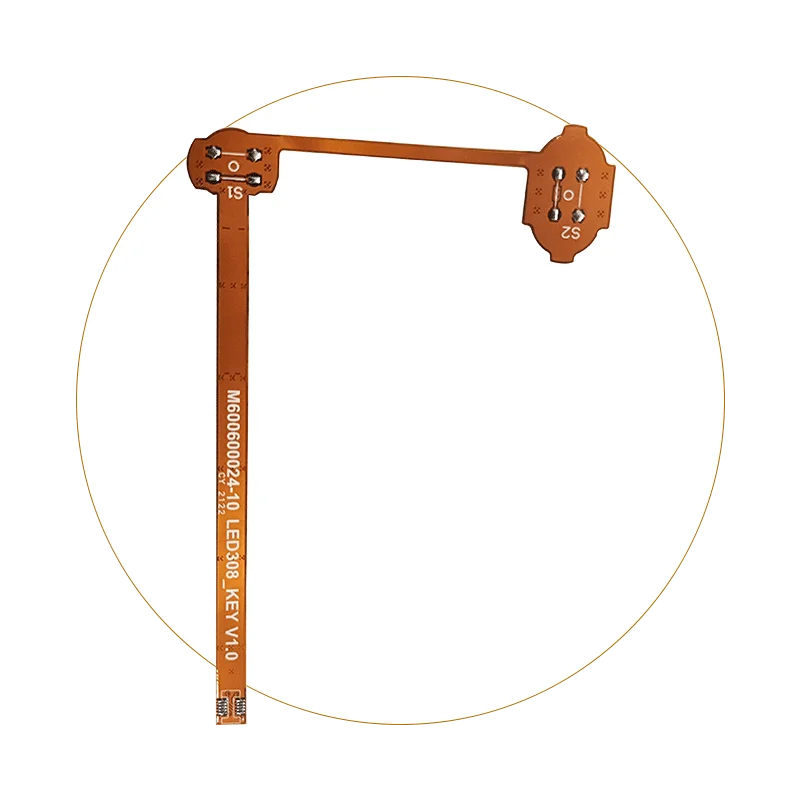

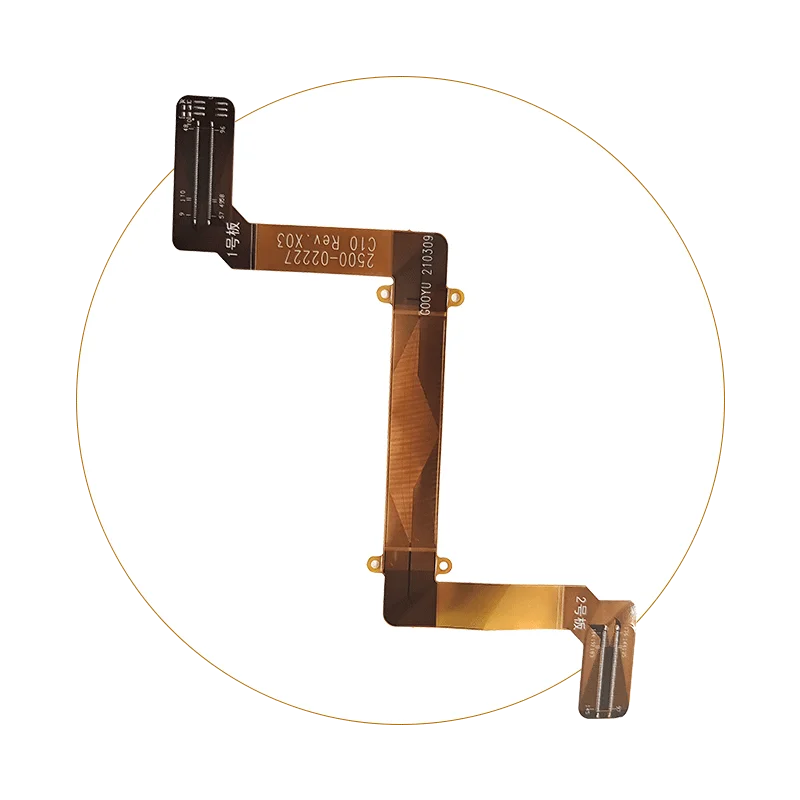

Flexible Circuits, Rigid Flex, Flexible Heaters, Flat Flex Cables, Membrane Switches, Plastic Moldings, Assemblies, Product Module Builds to Complete Product Box Builds.
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us

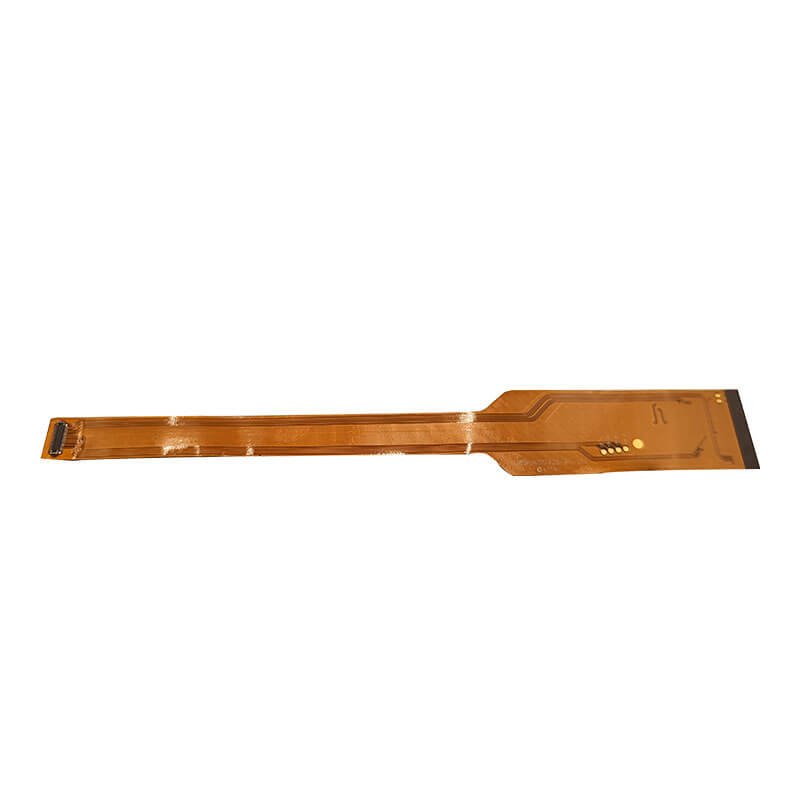

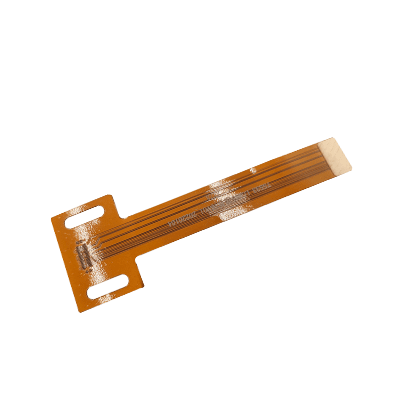

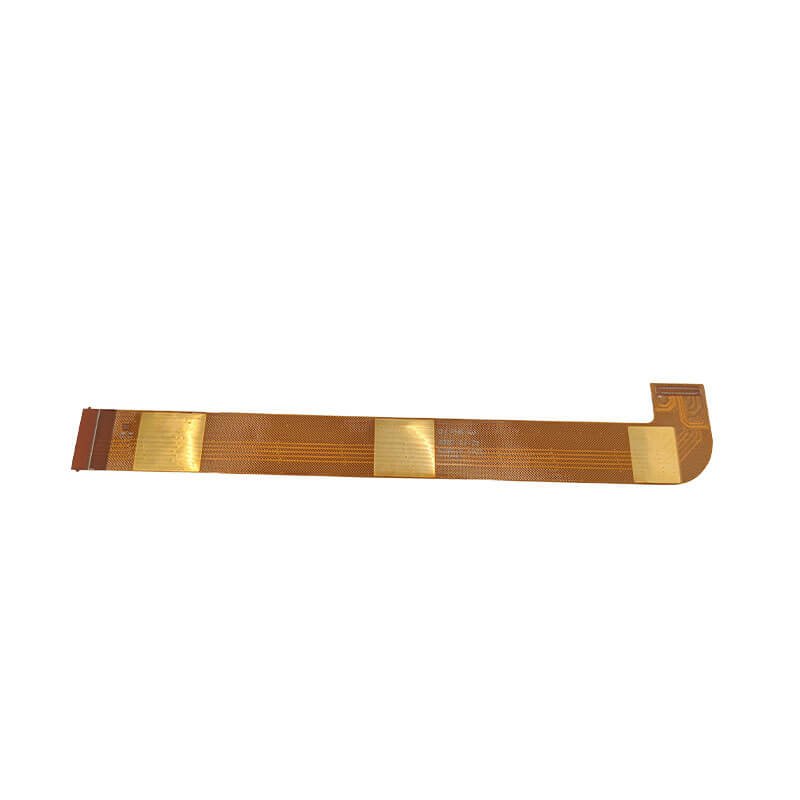

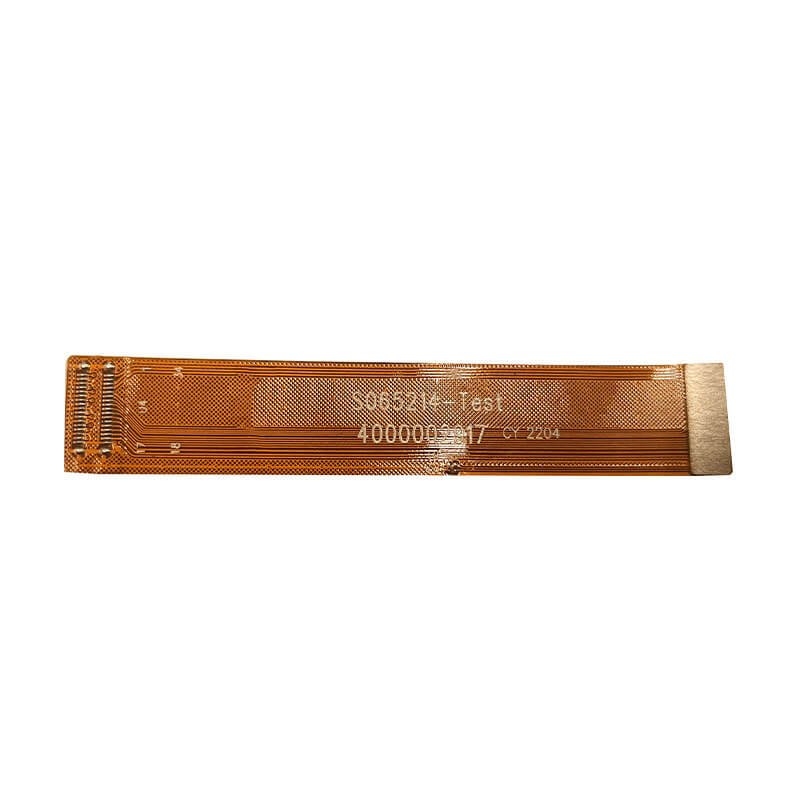

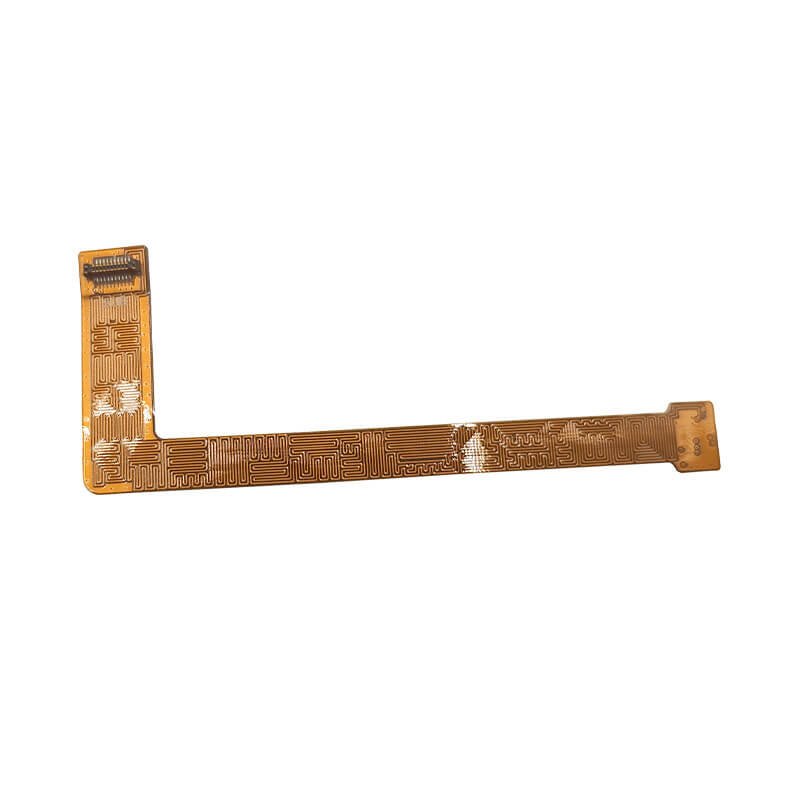

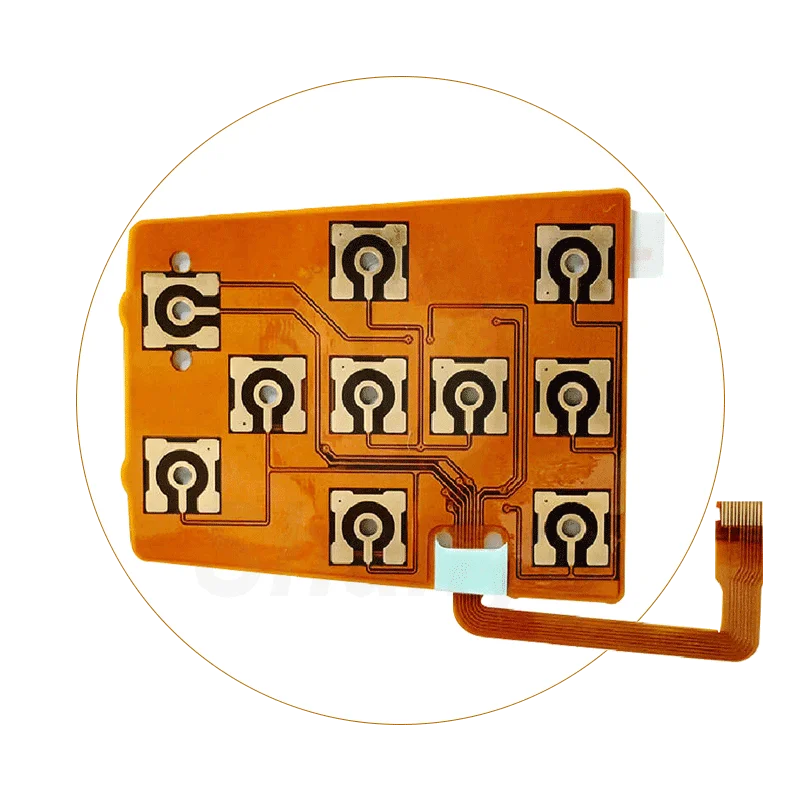

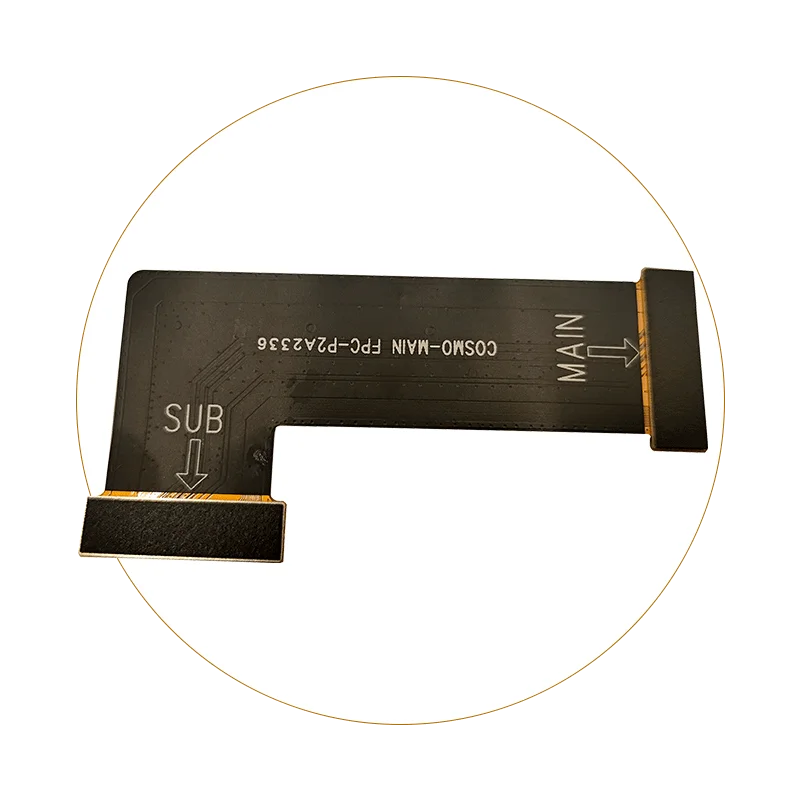

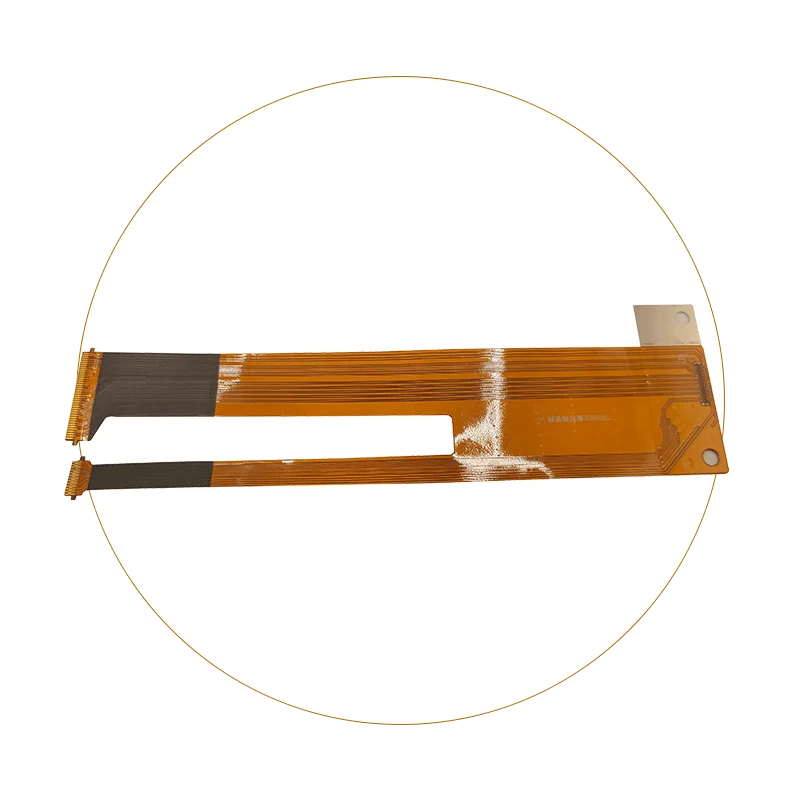

Capabilities Of FPC Cable
| 1 | ITEM | UNIT | CAPABILITY/ Limit Tolerance | CAPABILITY/ Normal tolerance |
|---|---|---|---|---|
| 2 | Layers | / | 1-6 layer | 1-6 layer |
| 3 | Cutting size | mm | 250*1000mm | 250*500mm |
| 4 | Min. thickness | mm | 0.075mm | 0.10mm |
| 5 | Adhesive stiffener | um | PSA:50um | PSA:50um |
| 6 | Hot setting adhesive | um | 12.5/25/40um | 12.5/25/40um |
| 7 | Min. drilling hole size | mm | 0.1 | 0.2 |
| 8 | Hole diameter tolerance | mm | ±0.075 | ±0.1 |
| 9 | Hole wall copper thickness | um | 8/15/25 | 8/15/25 |
| 10 | Min line width/space | mm | 0.05/0.05 | 0.075/0.075 |
| 11 | Line width tolerance | mm | ±0.03 | ±0.04 |
| 12 | Distance between hole edge to outline | mm | ≥0.4 | ≥0.5 |
| 13 | Solder mask thickness | um | 8 | 15 |
| 14 | Silk screen thickness | um | 8 | 15 |
| 15 | Immersion gold | um | Ni: 2.0~5.0 | Ni: 2.0~5.0 |
| 16 | Immersion gold | um | Au: 0.03~0.08 | Au: 0.03~0.08 |
Get Free Drawing Design
Contact UsFlexible Printed Circuit Board Manufacturers Production Process
Double-side plate system
Open material → Drilling → PTH → Plating → Pre-treatment → Dry film → Alignment → Exposure → Development → Graphic plating → Stripping → Pre-treatment → Dry film → Alignment → Exposure → Development → Etching → Stripping → Surface treatment → Overlay film → Pressing → Curing → Immersion of nickel and gold → Printing of characters → Cutting → Electrical testing → Punching → Final inspection → Packing → Shipments
China Flexible Printed Circuit Board Basic Structure

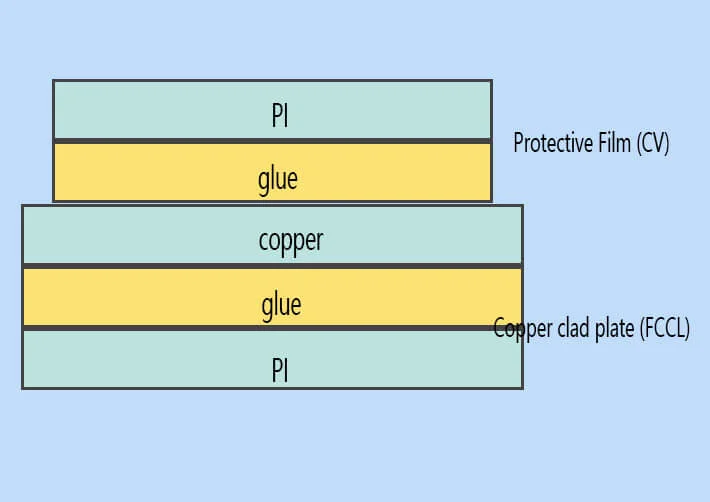

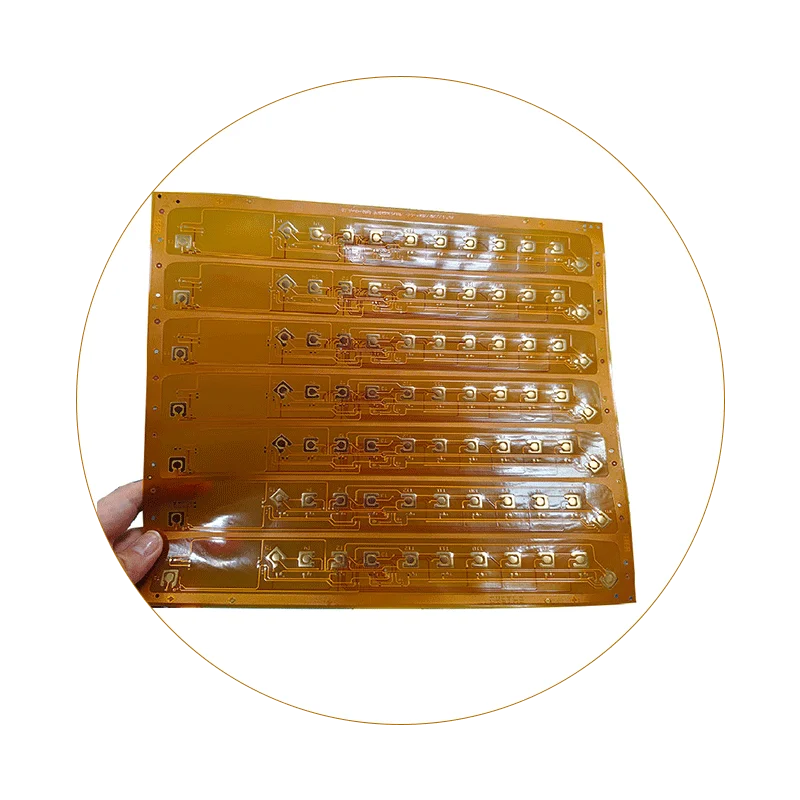

Common single panel structure diagram

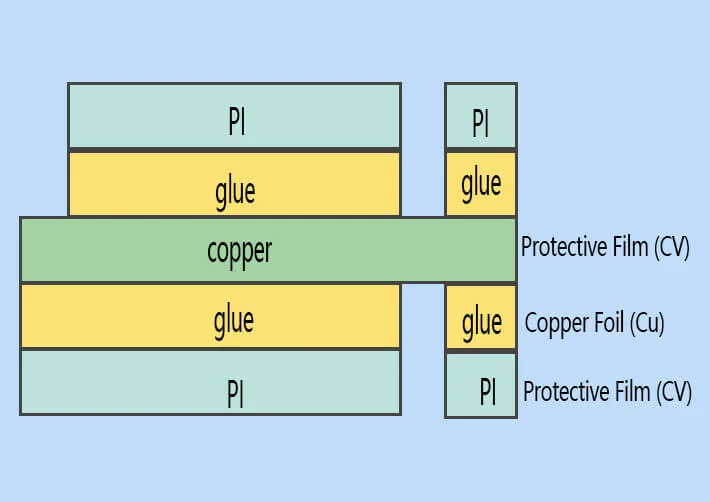

Hollow plate composition

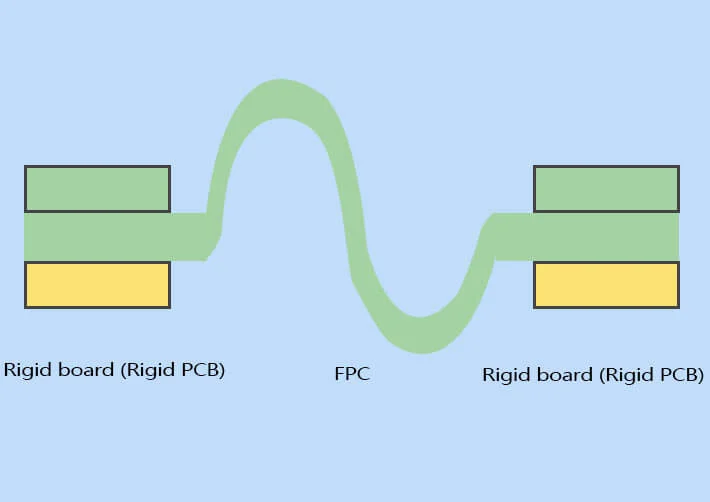

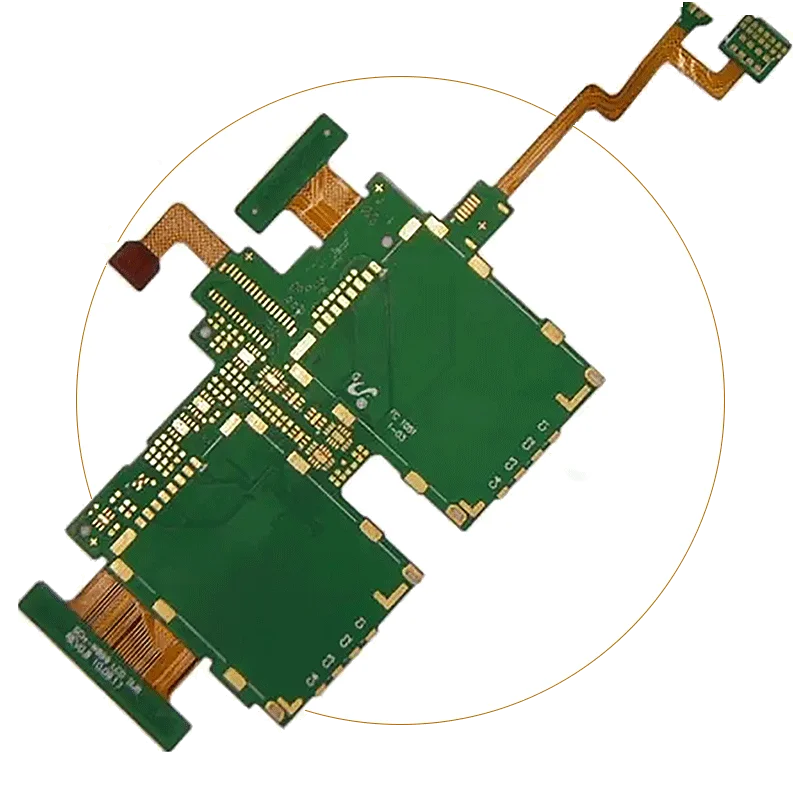

The combination of soft and hard plate composition

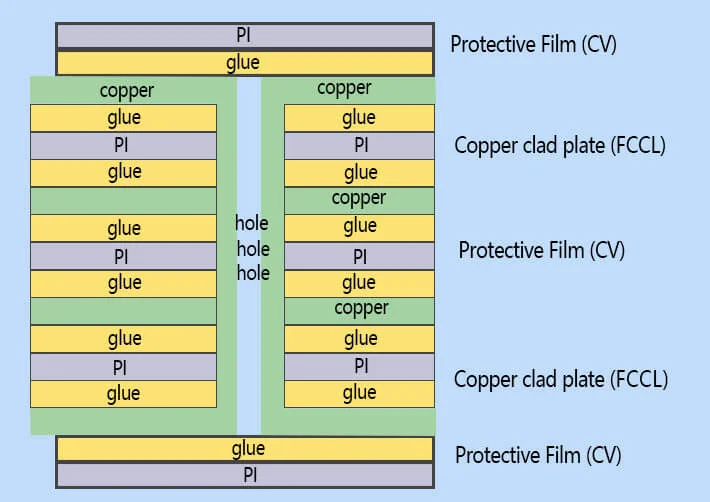

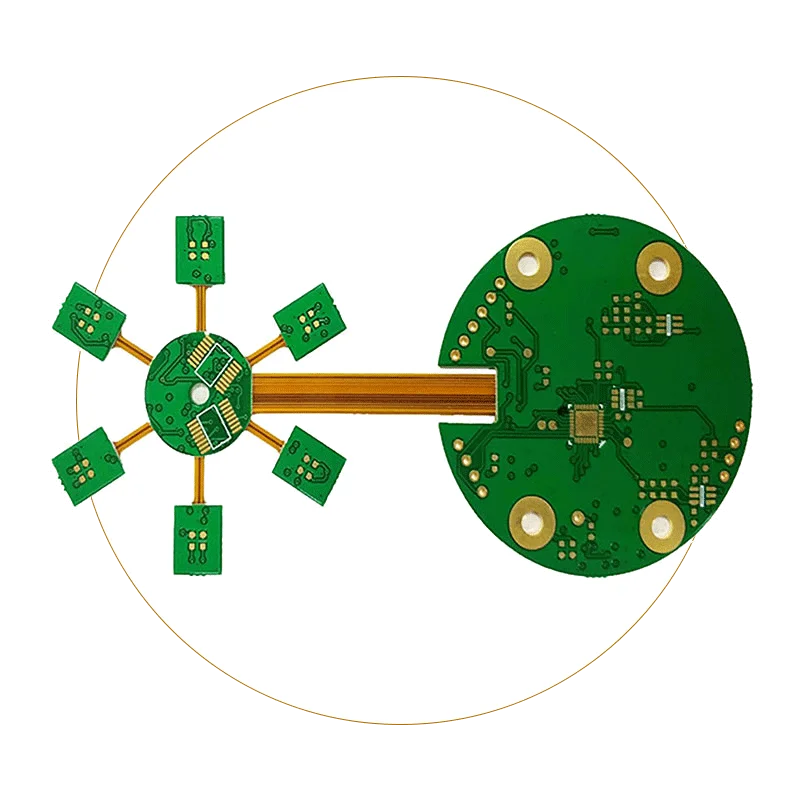

Multi-layer board structure diagram

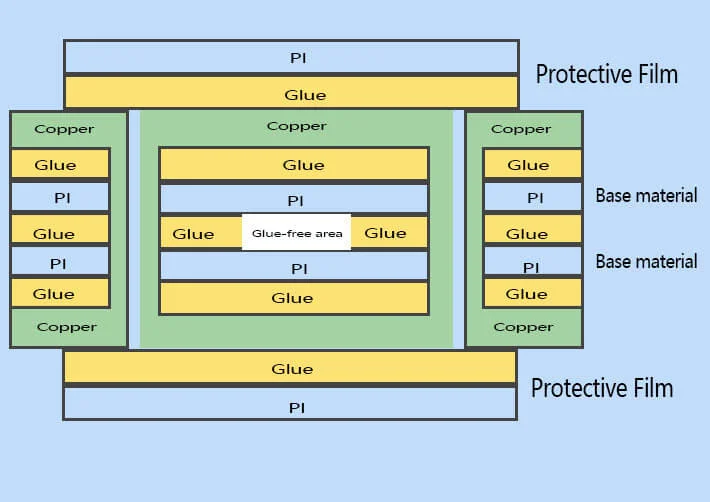

The substrate generates a double sided laminated composition
Copper Film
The copper film is divided into electrolytic copper and rolled copper. The common thicknesses are 1oz 1/2oz and 1/3 oz.
Substrate Film: Common thicknesses are 1 mil and 1/2 mil.
Glues: Thickness depends on the customer’s requirement.
Cover Film
Cover Film: For surface insulation. Common thicknesses are 1mil and 1/2mil.
Glues: Thickness depends on the customer’s requirement.
Release Paper: To avoid foreign matter from adhesive before pressing; to facilitate the work.
PI Stiffener Film
PI Stiffener Film: Reinforces the mechanical strength of the FPC and facilitates the surface mounting process. Common thicknesses range from 3mil to 9mil.
Glues: Thickness depends on the customer’s requirement.
Glues (Adhesives): To avoid adhesive from sticking to foreign objects before pressing.
EMI: Electromagnetic shielding film protects the circuit board circuit from outside (a strong electromagnetic area or susceptible to interference area) interference.
Bottom line, if you have flex circuit design or flex printed circuit board needs, we can help. contact us

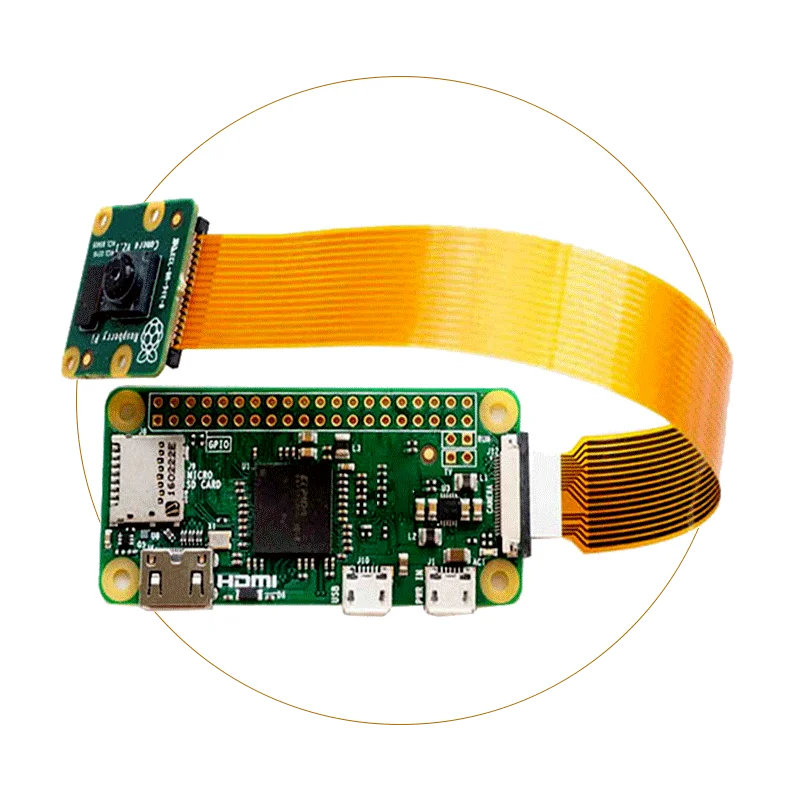

High-density Wiring
FPC cables can accommodate a high density of conductive traces, making them ideal for applications with numerous connections in a confined area.
Signal Integrity
FPC cables have low resistance, capacitance, and inductance, preserving the integrity of transmitted electrical signals.
Flexibility
FPC cables are extremely flexible, able to bend, twist, or fold without harming the circuitry, making them simple to incorporate into devices with restricted space or complex layouts.
Customizability
FPC cables can be customized to meet specific requirements such as conductive trace arrangement, length, width, and connectors, enabling tailored solutions for diverse applications.
High Reliability
FPC cables are durable, reliable, and can withstand repeated flexing and bending without compromising performance.
Cost-effectiveness
FPC cables provide cost advantages and increased production efficiency compared to traditional wiring solutions, particularly for high-volume production.
