Waterproof Membrane Switch – SY01
Waterproof Membrane Switches
If there is no properly sealed waterproof membrane switch or waterproof keyboard, your electronic products will be at risk of moisture, dust, dirt, and other fine particles invading. This may damage your membrane switch keyboard equipment, leading to shortages and failures, and it is not cheap to repair.
Before designing a waterproof membrane switch or a waterproof keyboard membrane, be sure to pay attention to the difference between a waterproof membrane switch and a waterproof membrane switch: a waterproof rubber keyboard and a membrane switch can only resist water exposure, such as vertical splashing or overflowing. However, waterproof switches and keyboards can withstand complete immersion in water or spray flushing.
Using a waterproof membrane switch is the best way to protect your investment and save money, time, and stress.
CE Certification Waterproof Membrane Switches
Shanyo produces waterproof membrane switches and keyboard films that comply with the International Electrotechnical Commission (IEC) standard IP68. Components manufactured according to this standard can be soaked in fresh water at a depth of 1.5m (4.9 feet) for up to 30 minutes and can withstand dirt, dust, sand, and humid environments.
We recommend using an IP68 waterproof rubber keyboard in the following applications：
- Boat/boat
- trailer
- truck
- All-terrain vehicle
- Handheld electronics
Our rubber membrane switches are made of high-grade silicone rubber and conductive carbon particles or non-conductive rubber actuators. Through the compression molding process, an angled net is formed around the keyboard, which collapses whenever the user presses a key. This protective webbing provides users with a variety of benefits.
China Waterproof Flexible Membrane Switches Protect against Damage from Water, Dust, and Micro-Particulate
The most important role of waterproof membrane switches is to protect your precious electronic equipment from further damage. The stamper silicone rubber of the rugged membrane switch can be moisture-proof, thereby extending the service life of the equipment.
Cheap Waterproof Membrane Switch
In addition to its waterproof ability, the low price makes rubber keyboards and switches such a popular choice. These components are often cheaper than waterproof mechanical switches and can provide the functions you need at a cost-effective price.
Membrane Switch Waterproof Resistance to Extreme Temperature And Aging
Silicon is not only very suitable for waterproof and dustproof particles but also plays a good role in heat resistance and long-term use. Moisture resistance and chemical resistance can slow down deterioration, making silicone rubber keyboards and waterproof membrane switches a huge investment.
Customized Waterproof Flexible Membrane Switches Have Appearance Options And A Tactile Feedback
Waterproof membrane switches and rubber keyboards can be designed in a variety of different shapes, sizes, and colors to meet your needs. They provide flexibility in terms of rubber hardness and keyboard surface design. You can also create your favorite tactile feedback style, including a 3-dimensional keyboard and a firm tactile response.
The keyboard film adopts a smooth silicone rubber keyboard, which increases comfort
Keyboards and membrane switches are conducive to user interaction, and silicone rubber is a good way to improve the user experience. Unlike plastic buttons, rubber buttons are soft and more comfortable to press.
Tactile waterproof membrane switch surface can be easily cleaned
The waterproof silicone rubber keyboard is easy to clean and disinfect. You won’t have to worry about bacteria, pollution, or dirt and debris infiltrating the silicone rubber keyboard switch.
waterproof flexible membrane switch features: Fully functional and reliable
Choosing the right waterproof membrane switch or silicone rubber keyboard for your application is an important decision. Before purchasing a waterproof user interface, it is very important to provide the correct design for your application. Our professionals are always ready to assist you in your design.
Waterproof membrane switch panel must:
Contact us to discuss waterproof membrane switches options
Shanyo is a trusted manufacturer of waterproof membrane switches and metal dome arrays. We serve more than nine industries and have the technology needed to provide the best solution for your application. Please visit our marine industry page to learn more about our custom waterproof membrane switches and rubber keyboards.
If you have questions about using a waterproof rubber keyboard in your application, please contact Shanyo immediately.
Non-tactile membrane switch
The buttons of the non-tactile membrane switch are not embossed or printed only with ink on the button frame. The realization of the function lies in the combination of the power-on point on the panel or the power-on point of the upper circuit and the power-on point of the lower circuit to form a line conduction. The main difference from the tactile membrane switch is that when the button of the graphic overlay is pressed, there will be no obvious sound and no tactile feedback is provided. The main way to judge the realization of the function is whether there is an optical change in the LED or LCD window. You can also use LED backlight technology to determine whether the function is realized by judging whether the button or font is lit.
Working Principle of flat membrane switch
The basic working principle of the membrane switch is as follows:
When the membrane panel is not pressed, the membrane switch is in a normal state, with its upper and lower contacts in a disconnected state, and the isolation layer isolates the upper and lower circuits; when the panel is pressed, the contacts of the upper circuit deform downward, It coincides with the lower line and makes the line conductive.
The conductive line sends a signal to the external connection instrument (substrate) to realize its corresponding function; when the finger is released, the upper circuit contact rebounds back and the circuit is disconnected. The loop triggers a signal.
Services
waterproof flexible membrane switches
Excellent Waterproof Process ( IP67 )
Shanyo’s unique waterproof technology with 3M300LSE,
it can reach the waterproof grade of IP67 that
can be used in humid environments.
Beautiful Appearance
Modern Silkscreen Printing with Top design Custom the product as your need
Comfortable Key Feeling
High Quality
Delicate Tactile
Easy to Use
Easy to carry and disassemble
Original 3M adhesive
Stable Quality
Shanyo Guarantee Consistent Quality
of Proofing & Batches
High Reliability
Shanyo membrane switch
life up to 2 million times
Long Lifetime
High Quality
The lifetime can reach
Factory direct sale low Cost
Shanyo offers the low cost
with high quality
Small Volume & Light Weight
The total thickness is only about 1mm
Weighs only a few grams to ten grams
waterproof membrane switch
Shanyo can customize and produce various sizes of membrane switches, membrane Key, graphic overlays, membrane circuits, LED backlit membrane switches, LGF backlit membrane switches, EL backlit membrane switches, capacitive membrane switches, rubber button membrane switches, FPC circuit membrane switches, PCB Circuit membrane switches, PCB integrated circuit membrane switches, metal back panel membrane switches, acrylic/PC back panel membrane switches, waterproof membrane switches, anti-UV membrane switches, anti-scratch membrane switches, digitally printed membrane switches and other application fields.

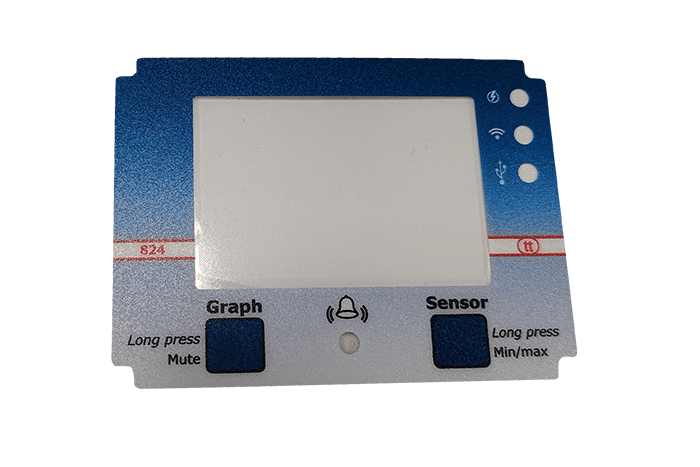

Membrane switches consist of buttons, front panels, text, marks, logos, and transparent windows. besides
The design of graphic overlay can reflect the integration of product functions and original color expression.
This is unique. Membrane switch keyboard application areas:
- Instruments and Instruments
Measuring instruments, analytical instruments, navigation instruments, and medical instruments.
- Household appliances
Remote controls, electronic locks, washing machines, microwave ovens, rice cookers, audio-visual equipment, etc.
- Office systems
Telephones, fax machines, photocopiers, calculators, etc.
- Computer
Operate a keyboard, monitor, printer, plotter, etc.
- Electronic toys
Electronic organs, game consoles, electronic targets, etc.
- Mechatronics products
CNC machine tools, intelligent robots, electronic scales, printing machinery, color expansion equipment, industrial cameras, etc.
- Microprocessor system.
Shanyo company has passed ISO9001:2015 quality management system certification, and SGS certification, and is an AAA credit enterprise. We provide capacitive and resistive membrane switches and key surface stickers, tactile membrane switches, silicone rubber buttons, membrane panels, PCB integrated circuits, and FPC combined membrane switches to global customers, as well as provide overall solutions for OEM and ODM membrane switch series products!
Office Equipment
Instrumentation
Mechanical & Industrial Control
Toys & Remote Control
Flat Membrane Switch
PET Membrane Switch
Waterproof Membrane Switches
waterproof membrane switch factory construction
Membrane switches are two main structures
The switch button is slightly raised, slightly higher than the panel, forming a 3D membrane switch. The convex is helpful to stimulate the operator’s sensitive touch, to help the operator accurately determine the position of the button, and to improve the recognition speed. The convex membrane switch can be designed into a variety, improving the decorative effect of the product and achieving a perfect appearance.
A flat structure was common in the initial stage of the membrane switch. The buttons on the membrane switch simply use color to express position, shape, and size. The accuracy of the operation can only be identified by the operator’s vision, and there is no appropriate feedback information to indicate whether the fingers press the effective range of the switch to make it work, thus affecting the confidence of the whole machine monitoring and control, and the speed of operation as well.
Membrane Switch Flat Tactile Type
Membrane Switch Convex Tactile Type
Membrane Switch Metal Dome Tactile Type
Membrane switch spring acts as upper line
The membrane switch spring piece only has a tactile function
Membrane switch convex frame non-tactile type
Membrane switch convex frame has tactile type
Membrane switch LED and line are on the same layer
Membrane switch LED and wiring different layers
Membrane switch inner and outer frame type (waterproof structure)
Membrane switch bifold type
Waterproof Membrane Switch Keypad Technical Parameters:
Membrane switch keyboard is a sealed multi-layer structure non-self-locking key switch composed of a flexible insulating material layer and a conductive material layer. It is an internationally popular type in recent years that integrates panel and switch function markers, display windows, and indicator lights. The new micro-current electronic switch, which integrates the transparent window, the inner edge of the switch, and the lead-out wire of the switch circuit, forms an electronic control system assembly. Compared with conventional mechanical switches, it has a beautiful appearance, long life, resistance to bending, strong sealing, and waterproofing. , oil-proof, shock-resistant, drop-resistant, small size, ultra-thin, light weight, and other advantages that conventional switches cannot match. The main product models include flat non-tactile type, dome convex tactile type, convex tactile type, LED light-emitting tube type, EL backlight type, frame line raised type, and hard circuit board type membrane switch.
waterproof membrane switch supplier Materials Selection PC/PET
Membrane Switch and Tacitle Panel
Membrane panel is a type of HMI, in which the structure is generally PET, PC as the base material, DT, Nitto, or 3M as the adhesive material to assemble them. A membrane switch and panel is a kind of HMI with more prominent performance and lower prices.
The membrane touch panel is the operating system on many electronic controllers, medical accessories, and agricultural products, and it is also the first interface. Color matching and design are particularly important. Fortunately, as one of the most professional membrane switch manufacturers, Shanyo’s engineers and designers are very good at this type of membrane control panel. At the same time, we will strictly review whether the customer’s drawings and ideas can be realized.
Membrane Keyboard Switch Materials Selection PC/PET
1. Panel material:
Generally divided into two categories: PC (Polycarbonate) and PET (Polyester).
PC (Polycarbonate)
- There are bright and matte surfaces (fine sand, medium sand, coarse sand)
- Commonly used thicknesses are 0.125, 0.175, 0.25mm
- Special treatment includes HP series (such as HP40, HP60 and HP92S, etc.)
- Advantages of PC material: good ink adhesion.
- Disadvantages of PC material: poor corrosion resistance, difficult to use in outdoor products.
- Generally, those with Windows use a glossy PC, and those without Window use a matte PC. Matte PC is scratch-resistant.
PET（Polyester
Matte:
Autotype (thickness 0.15mm and 0.20mm) Kimoto (thickness 0.125mm and 0.188mm)
Bright side:
Autotype (thickness is 0.18mm and 0.25mm) Izaya (thickness is 0.125mm and 0.188mm) The above PET is treated PET.
Line materials:
PET has good insulation and heat resistance, high mechanical strength, transparency, especially bending resistance, and high elasticity. Therefore, PET is an ideal material for making membrane switch circuits.
- Generally, untreated PET is used;
- Thickness is 0.075, 0.1, 0.125mm.
- It is generally appropriate to choose 0.125mm. If it is too thick, the response will be slow and the switch sensitivity will be poor. If it is too thin, it will have insufficient elasticity and will not be conducive to the plug-in of the lead wire end.
Key piece (isolation layer) material:
Generally 0.1, 0.15, 0.20, and 0.25mm thick double-sided tape.
The thickness of the key sheet depends on the size and shape of the key, which is directly related to the operating pressure of the membrane switch and the sensitivity and reliability of the switch. Therefore, the size of the keyhole should be consistent with the size of the key pattern. When the size of the keyhole is larger, the thickness of the keysheet will also increase.
Membrane Push Button Switches Material Used In The Circuit Layer
Membrane Key Switch Material Used In The Circuit Layer
The base material of the circuit should be polyester(polyethylene phthalate) Film (Polyester referred to as PET).
It has good insulation and heat resistance, high mechanical strength, transparency, and airtightness, especially folding resistance and high elasticity.
Membrane Switch China Thickness of The Plastic
The thickness of the plastic substrate is 0.25mm or below and is called a membrane. It is mainly used as the panel layer of the membrane switch. Various indicative patterns and text are printed on the back to indicate the operation area of the corresponding key switch. Depending on the size of the button, the material is thick, the touch force is increased, and the response is slow; the material is too thin, the feel is poor when touched, and the rebound is not obvious. Thickness above 0.25mm is called a plate, which is not suitable for three-dimensional key forming. It can be used as an indicative sign panel in the keyless operation area, and can also be used as a lining for membrane switches to increase its hardness.
Custom Membrane Switch Circuit Ventilation Slot
The ventilation slot is generally 2mm wide, and there are no less than 3 keyholes connected to the ventilation slots, and 4-6 key connections provide better results. If the number of keys is less than 3, the key ventilation slot must be ventilated to the outside. It is ventilated to the outside and the buttons feel good to the touch.
Carbon paste is a non-metallic conductor paste that does not combine with oxygen in the air and can protect the underlying silver paste from oxidation. Carbon also has high wear resistance, which is convenient for plugging and unplugging leads and connection terminals.
Wholesale Membrane Switch Company Inks
It is divided into conductive ink, insulating ink, matte ink, and color ink.
- Conductive ink: silver paste, carbon paste, and silver-carbon mixed paste ;
- Insulating ink: plays an insulating role and is generally used for jumper insulation and entire surface insulation;
- Matting ink: window matting, panel matting;
- Colored ink: Due to different materials, the inks used are also different, including inks for PC materials and inks for PET materials.
Membrane Switch Dome Type
Shanyo can provide various types of custom membrane switches embossed keys, as shown in the picture below.
The default is circular relief (1st from left). If you need other types, please indicate it in the remarks or drawings when custom.
Membrane Switch with Metal Dome Key
This type of membrane switch uses a metal dome as the upper circuit layer of the switch. By pressing the key, the metal dome central point will connect the lower circuit, and then trigger with a signal. Metal dome is usually made of stainless steel, which is flexible and can be pressed more than one million times.
The keys of the metal shrapnel have a good button tactile and provide good tactile feedback to the operator. Shanyo uses a stainless steel cross dome and is available in specifications of 8.4mm, 10mm, 12mm, 14mm, and 16mm. The metal dome size of 10mm – 12mm is generally recommended, which is more suitable for the actual finger press.
Membrane Switch with LED
Shanyo this product can be welded with LED lights of various colors according to customer needs.
Flat Membrane switch
Waterproof Membrane Switch
Shanyo’s unique waterproof technology with 3M300LSE adhesive, the waterproof grade can reach IP67. This product is more used in the kitchen medical, and outdoor devices.
Membrane Switch with Electrostatic Shield
Features:
Waterproof Membrane Switch
Shanyo’s unique waterproof technology with 3M300LSE adhesive, the waterproof grade can reach IP67. This product is more used in the kitchen medical, and outdoor devices.
Plug-in-Card Membrane Switch
In this kind, the Membrane switches can be used repeatedly. Only the graphics and text of the card need to be changed. Shanyo designs key content, color, effect, etc. according to customer needs, The Plug-in-Card Membrane Switch can only change the design of the cards in the future, it can be used more widely.
Membrane Switch with Die-pressing Key
It’s also noticeable enough to feel like the switch is off. The bumps of silver paste require the use of molds, especially for batch orders. Customized bump molds can greatly improve production efficiency and product quality stability.
The stamped silver pad can be designed from 5mm to 11mm, and the recommended size is 8mm to 10mm. The button size will be more suitable for finger pressing.
LED and metal dome keypad membrane switch specifications
Check whether the information provided by the customer is complete:
- a. Engineering drawings (mark complete dimensions and tolerances, clearly mark windows, punching holes, LED polarity, color, etc.)
- b. Color card.
- c. *.ai or *.cdr image file
- d.Matrix
- e. Arrangement of lead wire PIN pins
- f. Chassis or sample
- Shape inspection: Check the shape and internal slots and windows accordingly according to the product design drawings.
- Appearance inspection: check the graphics of the panel layer， the logo text, etc, and whether there are defects, omissions, stains, etc. Whether the window and press position are offset. If there is protective film attached to the window.
- Check the peel strength of the adhesive: check whether the adhesive is the adhesive selected according to the order, and test the peel strength of the adhesive is not less than N/25mm.
Shanyo LED Membrane Switch FactoryPartner
LED Backlight Membrane Switches Keyboard FAQs
Frequently Asked Questions
Q1: What materials are used in Shanyo membrane Switch keyboards?
- Shanyo uses high-quality materials such as polyester or polycarbonate films, conductive inks, and adhesive layers in the production of their membrane keyboards.
Q2. Analysis of common failure modes and causes of membrane switch products?
Phenomenon:
There is no action when lightly tactile the keyboard panel. You must press the keys completely to make full contact before there will be a response.
Reason:
The resistance of the product is too large and the response is not sensitive.
Q3. Membrane keyboard switch keyboard appears on and off?
The keyboard panel turns on and off irregularly when in use. After this phenomenon occurs, shake the product terminals or re-plug and unplug, and it will return to normal.
The product terminals are not pressed tightly, resulting in poor contact.
Q4. The entire row of membrane key switch is unresponsive?
After the product is installed, one or more rows of key are unresponsive.
A. After the upper and lower line terminals were pinned in the same direction, there were pins in different directions that had poor contact with the product line, causing the entire row of buttons to become unresponsive.
B. The lead wire of the product was excessively bent during installation, and the circuit at the bend was broken, causing all the keys on the circuit to become unresponsive.
C. Due to improper protection, the wiring at the lead-out was cut off, causing the keys to become unresponsive.
D． The pin slot is deformed and has poor or no contact with the straight pin after installation.
Q5. Why does the product start on its own?
The keyboard panel malfunctions after installation.
A. There are granular objects on the mounting surface of the membrane switch keyboard or there are bubbles wrapped around it due to uneven pushing, which will push up the base of the product, causing it to start on its own.
B. There are creases on the keys on the membrane switch panel, making the keys more sensitive.
Q6. Membrane switches keyboard rebound is sluggish?
The membrane switch panel will have continuous movements or repeated sounds after the operation is completed.
Due to improper operation during production, rubber particles remained on the keys. When operating the keys, the rubber particles will adhere to the upper and lower wire pieces, resulting in slow rebound, continuous movement, or repeated sounds.
Q7. Membrane Switches Issues to note during assembly?
- Testing or operating buttons before product assembly must be carried out on the platform to avoid the key being broken or products equipped with a metal dome causing the snap dome to dent.
- Before packaging, the mounting surface should be smooth and clean, without oil, dust, or other foreign matter.
- The product cannot be scratched with sharp or hard objects to avoid scratches on the lines or surface.
- Do not use corrosive liquids to wipe the product.
- Products using silver filaments must not be bent, otherwise the silver filaments will wrinkle and cause poor appearance.
- When plugging and unplugging the terminals of the membrane switch panel and the straight pins, you must hold the housing of the terminals with your hands.
- If the product needs to be torn off and reinstalled due to inaccurate placement or other circumstances, the angle between the product and the mounting surface should not be greater than 30° to avoid creases on the product.
