How to Choose Tactile Metal Dome Switches? The Definitive Guide

A tactile metal dome, also known as a snap dome, is a normally open momentary contact switch that provides a crisp tactile feel, giving users immediate feedback that a button has been pressed. Metal domes offer numerous advantages over other switch solutions, including low profiles and high life cycle ratings, making them a reliable choice for various applications. With a wide variety of dome shapes and styles available, selecting the right metal dome for your specific needs is crucial. Engineers must consider the different benefits of various tactile metal dome switches to achieve the desired user experience.

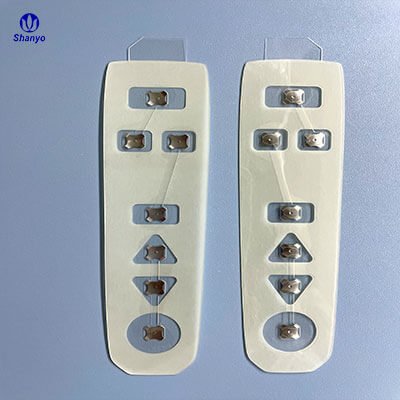

What Are Tactile Metal Dome Switches?

Tactile metal domes are normally open momentary contact switches that close a circuit when pressed, providing tactile feedback to the user. This feedback confirms the button press, enhancing the user experience and ensuring reliable operation.

Advantages of Tactile Metal Domes

• Low Profile:

deal for compact device designs.

• High Life Cycle:

Can withstand millions of actuations, making them highly durable.

• Customizable:

Available in various shapes and sizes to meet specific application requirements.

• Reliable Feedback:

Provides a distinct tactile response that improves user interaction.

Selecting the Right Tactile Metal Dome for Your Application

Choosing the appropriate tactile metal dome for your application involves understanding the distinct characteristics and benefits of each type. There are five main types of tactile metal domes: four-legged, round, triangle, oblong, and SMT. Most domes can be customized to meet your end product’s force, height, audibility, or tactile feedback requirements. Features to consider adding to your domes include backlighting, built-in actuation, over-travel, and many more.

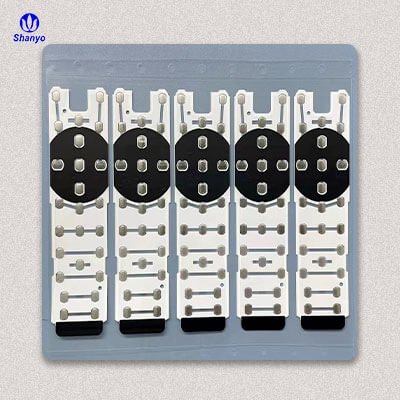

Types of Tactile Metal Domes

Four-Legged Metal Domes

• Overview:

Four-legged domes are versatile and widely used in various applications due to their stability and adaptability. These domes are known for their strong tactile feedback and durability.

Advantages:

• Surface Compatibility:

Can adhere to a wide variety of surfaces, including single or double-sided circuit boards, flex circuits, and membrane switch panels.

• High Actuation Forces:

Achieve high actuation forces, making them suitable for applications that require a firm press to activate.

• Customization:

Easy to customize to meet unique specifications, including force, height, and tactile feedback.

Applications:

• Industrial keypads
• Consumer electronics
• Medical instruments

Round Metal Domes

Overview: Round or circular metal domes are designed for applications needing a low-profile switch with a soft tactile feel.

Advantages:

• Low-Profile Design:

Ideal for applications requiring a low-profile switch.

• Soft Tactile Feel:

Provides a softer tactile feel compared to other shapes.

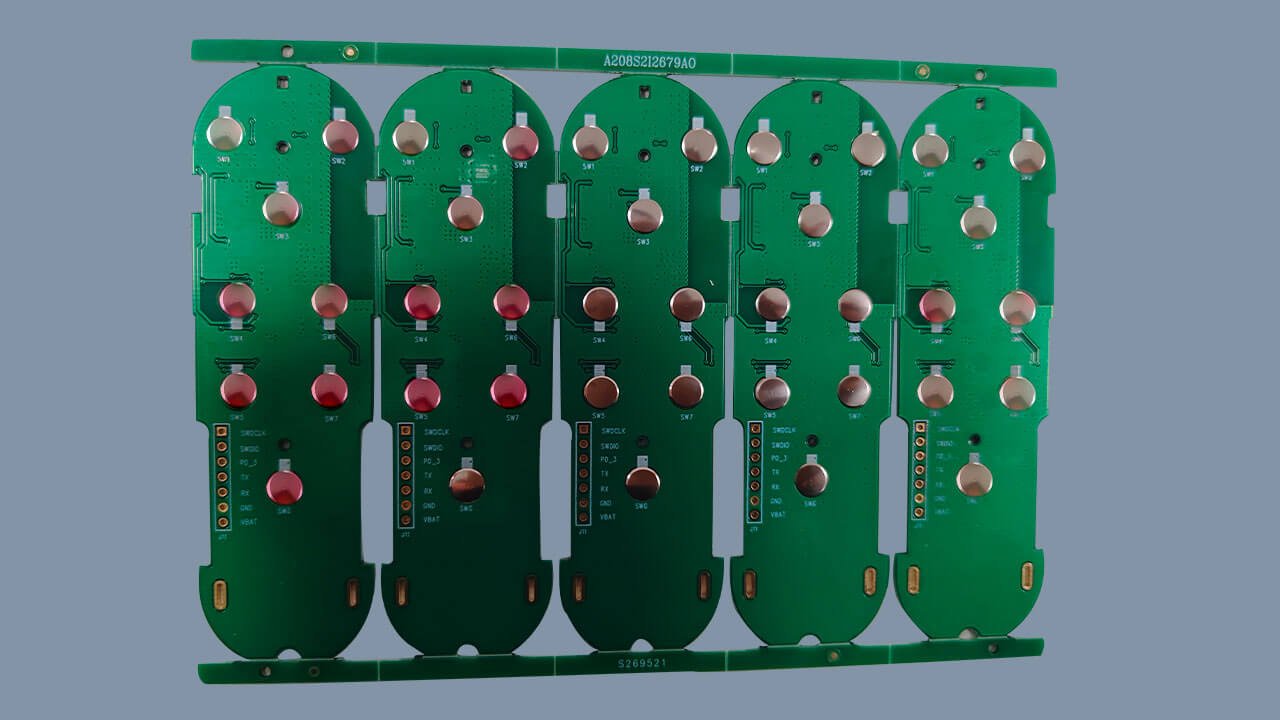

• Double-Sided Circuit Board Compatibility:

Suitable for applications with a double-sided circuit board and membrane overlay.

Applications:

• Remote controls
• Handheld devices
• Automotive controls

Triangle Metal Domes

• Overview:

Triangle tactile metal domes, also known as three-leg domes, are compact and capable of high actuation forces despite their small size.

Advantages:

• Space Efficiency: Ideal for applications with limited or narrow available circuit board space.
• High Actuation Forces: Provides strong tactile feedback suitable for tight spaces.

Applications:

• Compact electronic devices
• Medical instruments

Oblong Metal Domes

• Overview:

Oblong or oval-shaped metal domes are designed for long narrow spaces or applications where a full hand squeeze is preferable to a single finger press.

Advantages:

• Shape:

Ideal for long, narrow spaces.

• Soft Tactile Feel:

Typically have a softer tactile feel.

Applications:

• Remote controls
• Control panels
• Industrial equipment

SMT Metal Domes

• Overview:

Surface Mount Technology (SMT) domes, or solder domes, are standard four-leg domes with two tabs for surface mounting directly to the circuit.

Advantages:

• Automation Friendly:

Designed for use in SMT or pick-and-place machines.

• Performance:

Adhered to the circuit with reflow soldering without impacting performance.

Applications:

• High-volume electronic manufacturing
• Automotive electronics
• Consumer devices

Customization Options and Additional Features

To meet specific requirements, tactile metal domes can be customized in various ways:

• Force:

Adjusting the force needed to actuate the dome.

• Height:

Modifying the height to fit space constraints.

• Audibility:

Designing the dome for either a quiet or audible click.

• Tactile Feedback:

Tailoring the level of tactile feedback from soft to crisp.

Additional Features to Consider

• Backlighting:

For visibility in low-light conditions.

• Built-In Actuation:

Simplifying design and assembly.

• Over-Travel:

Allowing the dome to be pressed slightly beyond the actuation point without damage.

Choosing the right tactile metal dome for your application involves considering various factors such as shape, force, height, audibility, and tactile feedback. Each type of dome has unique benefits suited for different applications, from consumer electronics to industrial equipment. Customization options and additional features like backlighting and built-in actuators can further enhance functionality and user experience.

If you need assistance in selecting the right tactile metal dome for your application, contact Shanyo today. Our team of experts is ready to help you find the perfect solution tailored to your specific needs.
